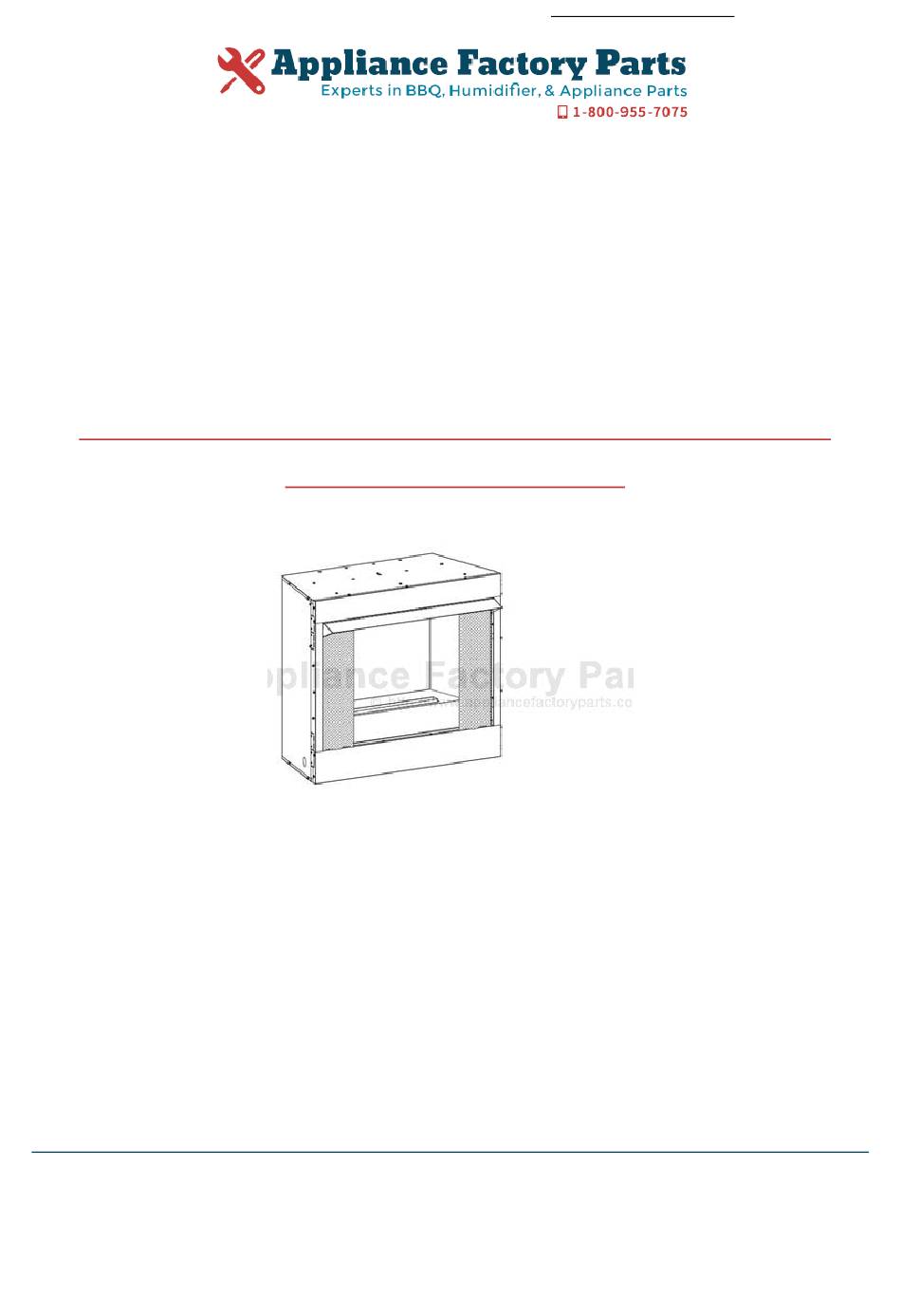

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. White Mountain Hearth OLP36FP72SP-3 Owner's Manual Shop genuine replacement parts for White Mountain Hearth OLP36FP72SP-3 Find Your White Mountain Hearth Fireplace Parts - Select From 539 Models -------- Manual continues below --------...
-
Page 2: Carbon Monoxide Hazard
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. WARNING OUTDOOR GAS FIREPLACE For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. GAS-FIRED 3. -
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Before You Start .......................3 Carton Contents & Hardware Package ..............3 Important Tips to Keep a Good Flame ..............4 Product Specifications ....................5 Accessories ......................5 Important Safety Information ..................6 Safety Information for Users of LP-Gas ..............7 Homeowner Reference Information .................8 Introduction ......................8 - 9 Fireplace Dimensions .....................10 Gas Supply ...................... -
Page 4: Before You Start
BEFORE YOU START Sample Warnings and Definitions: WARNING DANGER If not installed, operated and maintained in accordance with the manufacturer's instructions, this product could expose you Indicates a hazardous situation which, if not avoided, will result to substances in fuel or from fuel combustion which can cause in death or serious injury. -
Page 5: Important Tips To Keep A Good Flame
IMPORTANT TIPS TO KEEP A GOOD FLAME IMPORTANT NOTICE INSTALLER - SERVICE PERSON - HOMEOWNER 1. Ensure the air shutter is set to the specification. See Verify the air shutter opening is set correctly. Refer to the Figures 1 to 3 and table on page 5. tables for specific air shutter settings for each model. -
Page 6: Product Specifications
Fully Open ACCESSORIES The following accessories may be obtained from your Empire Comfort Systems dealer. Contact your Empire Dealer for more accessory options. If you need additional information beyond what your dealer can furnish, contact Empire Comfort Systems Inc., 918 Freeburg Ave., Belleville, Illinois 62220-2623. -
Page 7: Important Safety Information
IMPORTANT SAFETY INFORMATION FOR THE INSTALLER FOR THE HOMEOWNER • Leave these instructions with the homeowner • This fireplace should be inspected before use and at least annually by a qualified service person. More frequent • Replace any guard or protective device removed for cleaning may be required due to insects, pollen build up, servicing prior to operating the fireplace. -
Page 8: Safety Information For Users Of Lp-Gas
SAFETY INFORMATION FOR USERS OF LP-GAS Propane (LP-Gas) is a flammable gas which can cause fires LP-Gas may condense in a closed area, and the odor intensity and explosions. In its natural state, propane is odorless could vary at different levels. Since it is heavier than air, there and colorless. -
Page 9: Homeowner Reference Information
HOMEOWNER REFERENCE INFORMATION We recommend that you record the following information about your fireplace. Model Number: _____________________________ Date purchased: ________________________ Serial Number: _____________________________ Location of fireplace: _____________________ Dealer Name: ______________________________ Dealer Phone: _________________________ Notes: ______________________________________________________________________________ INTRODUCTION Instructions to Installer Important 1. -
Page 10: Introduction
INTRODUCTION Screened Porch Installation The fireplace may be installed safely and is design certified by UL to be installed in a screened porch with the following guidelines. Minimum Porch Area 96 sq ft Minimum Ceiling Height 84 inches See page 14 - Planning Installation Installation on Rugs and Tile If this fireplace is installed directly on carpeting, tile or other combustible material (other than wood flooring or decking), the... -
Page 11: Fireplace Dimensions
FIREPLACE DIMENSIONS OUTER FIREBOX DIMENSIONS INNER FIREBOX DIMENSIONS GAS INLET HOLE THIS SIDE ONLY TOP VIEW SIDE VIEW INDEX DIMENSION DESCRIPTION DIMENSIONS (in inches) LETTER OLP36 OLP42 The maximum height of fireplace face (excluding standoffs) 35-1/16 35-1/16 The maximum width of the fireplace face (excluding nailing flanges) The maximum depth of the fireplace The height of the fireplace opening 24-1/4... -
Page 12: Gas Supply
GAS SUPPLY The fireplace installation must conform with local codes, or in the TO CONTROL GAS SUPPLY PLUMBING absence of local codes with the National Fuel Gas Code, ANSI VALVE Z223.1/NFPA 54; International Fuel Gas Code, Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and MANUAL Handling Code, B149.2, as applicable. -
Page 13: Clearances
CLEARANCES Top Framing and Finishing: Combustible framing materials COMBUSTIBLE requires 3/4 inch across top of unit. See Figure 7. FINISHED WALL OR MANTEL Sidewall Clearances: The clearance from the inside of the fireplace to perpendicular combustible side wall must not be less than 6 inches. - Page 14 CLEARANCES CEILING COMBUSTIBLES ALLOWED WALL STUD 9 3/4” 53 1/2” MIN. 28 1/2” MIN. 3/4” TO COMBUSTIBLES WALL FACING REQUIRED ACROSS 18 3/4” ENTIRE TOP EDGE MIN. OF FIREPLACE HOOD 84” MIN. FIREBOX (CEILING TO FLOOR) FACE FLOOR Dimensions (inches) INDEX DISTANCE FROM DISTANCE ABOVE...
-
Page 15: Planning Installation
Vinyl Soffit, Vinyl Ceiling, Vinyl Overhang Disclaimer Clearances are to heat resistant material (i.e. wood, metal). This does not include vinyl. Empire Comfort Systems Inc. will not be held responsible for heat damage caused to vinyl overhangs, vinyl ceilings or vinyl ventilated/unventilated soffits. -
Page 16: Fireplace Installation Instructions
FIREPLACE INSTALLATION INSTRUCTIONS Locating Fireplace Pry the top standoffs up and bend pieces as shown. Attach free-end to face top with two hex-head screws from hardware pack. Place fireplace in framing opening. Use the tabs on the side of the fireplace to attach fireplace to framing. Different tab BOTTOM OF FIREPLACE locations can be used for wall materials with a thickness of... -
Page 17: Gas Line Connection
FIREPLACE INSTALLATION INSTRUCTIONS Install the Hood Finishing Failure to install the furnished hood (or optional extension hood) All joints (top, bottom and sides), where the wall or decorative before the fireplace is used may create a fire hazard. facing material meets the fireplace surround should be sealed with a 300°F minimum sealant material. -
Page 18: Ip Lighting Instructions
IP LIGHTING INSTRUCTIONS FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. BEFORE LIGHTING, smell around the appliance area B. -
Page 19: Main Burner Flame Characteristics
MAIN BURNER FLAME CHARACTERISTICS Main Burner Flame Pattern The main burner flame will be blue with yellow tipping. Main Burner Flame Ignition and Extinction When the main burner is ignited it will take a few seconds for the full flame pattern to develop. When the main burner is extinguished it will take a few seconds for the flames to disappear. -
Page 20: Ip Remote Control Installation & Operation
IP REMOTE CONTROL INSTALLATION & OPERATION Two-function wireless remote control system for On/Off-Hi/ The transmitter has ON/OFF and HI/LO functions. When you Lo operation of the AF-4000 gas control valve press a button on the transmitter, the signal light illuminates to verify that a signal is being sent. -
Page 21: Cleaning And Service
CLEANING AND SERVICE Keep the control compartment, logs and burner area clean by ANNUAL CLEANING/INSPECTION – Refer to parts diagram vacuuming or brushing the area at least once a year. for location of items discussed below. • Inspect and clean burner air intake hole. Remove lint or Cleaning Instructions particles with vacuum or brush. -
Page 22: Troubleshooting
TROUBLESHOOTING SYMPTOMS - POSSIBLE CAUSES AND CORRECTIONS Turn appliance OFF and allow to cool before servicing. Only a qualified service person should service and repair the fireplace. When power button is pressed, there is no spark. Burner does not light. Ignitor electrode not connected to ignitor cable - Burner orifice clogged - Clean burner or replace main Reconnect ignitor cable. -
Page 23: Parts View
PARTS VIEW 16 20 Page 22 33859-3-0317... -
Page 24: Parts List
PARTS LIST USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH. Part No. Index No. Description OLP36FP72 OLP42FP72 33848 33849 Face, Bottom 33851 33852 Face, Top 33854 33854 Face, Side - Right 33856 33856 Face, Side - Left 34032 34032... -
Page 25: Master Parts Distributor List
This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort. com. Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equip- ment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc. Dey Distributing F. W. Webb Company... -
Page 26: Appliance Service History
APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes 33859-3-0317 Page 25... - Page 27 APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes Page 26 33859-3-0317...
-
Page 28: Warranty Terms
WARRANTY TERMS Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods specified below. Hearth products must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. - Page 29 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.empirecomfort.com Page 28 33859-3-0317...
