Western Digital WD1200B05RNN - 120 GB External Hard Drive Install Manual

Unplugging the USB 2.0 External Hard Drive
CAUTION: Do not unplug your USB 2.0 external hard drive before following the
steps below as this could result in data loss.
Windows Users
Double click on the Windows Unplug or Eject Hardware icon in your system tray
(located in the bottom right corner of your screen—see the dialog box below for a
depiction of this icon). The following dialog box displays:
Unplug or Eject Hardware system tray icon
Select and highlight USB Mass Storage Device from the list, then click Stop. To
confirm your selection of the drive to be disconnected, click OK. You may now
unplug the USB 2.0 external hard drive from your computer.
Macintosh Users
To unplug your USB 2.0 external hard drive, drag the USB 2.0 hard drive icon to
the Trash. After the disk icon has disappeared from the desktop, you may safely
disconnect the external hard drive.
- 7 -
Technical Support Services
If you need additional information or help during installation or normal use of this product,
contact Western Digital Technical Support. When calling for support, please have your
Western Digital USB 2.0 external hard drive serial number, system hardware, and software
versions available.
Telephone Assistance
800.ASK.4WDC (800.275.4932)
+31.20.446.7651 (Europe)
Online Services
support.wdc.com
www.westerndigital.com
Western Digital and the Western Digital logo are registered trademarks of Western Digital Technologies, Inc.
Other marks may be mentioned herein that belong to other companies.
©2002 by Western Digital Technologies, Inc. All rights reserved.
Assembled in the USA.
For service and literature:
Western Digital
800.ASK.4WDC USA
20511 Lake Forest Drive
+31.20.4467651 Europe
Lake Forest, CA 92630
support.wdc.com
www.westerndigital.com
2079-001033-000
08/02
Western Digital
External Hard Drive
USB 2.0 and 1.1
Install Guide
Hardware Installation and Setup
for your USB 2.0 External Hard Drive
Getting Started
1
• Minimum System Requirements: An available USB port (a USB 2.0 host controller
or USB 2.0 PCI adapter card is required for USB 2.0 Hi-Speed performance),
Windows ® 98SE/Me/2000/XP, a Pentium II processor or higher, and least 64
®
MB of RAM. Macintosh users require Mac OS X or higher, a true G3 processor
or higher, and at least 32 MB of RAM.
• USB Backward Compatibility: All current computer systems that have existing
USB 1.1 ports can be used with Western Digital's USB 2.0 external hard drive. A
USB 2.0 PCI adapter card is required for USB 2.0 Hi-Speed performance—up to
40 times faster than USB 1.1 in data transfer rates.
• Record Serial Number: Located on the bottom of the external hard drive, the serial
number is used for setup and technical support purposes.
Western Digital USB 2.0 External Hard Drive Kit Contents
AC Power Supply
USB 2.0 Certified
Interface Cable
7200 RPM External Hard Drive
Also included: power cord, warranty card, and Install guide.
CAUTION: Do not drop or jolt your USB 2.0 external hard drive or attempt to
open the drive and service it yourself. These actions will void the warranty.
- 1 -
Connecting the USB 2.0 External Hard Drive
2
Windows 98SE users only: You must install the device drivers on your system
prior to connecting the device. Skip to page 4 for installation procedures.
1. Power on your computer.
2. Plug the end of the power connector with the flat side facing up into the power
supply socket located on the back of the drive.
3. Connect the power cord (with the AC power supply connected) into an electrical
outlet. Verify that the power LED is lit.
4. Connect one end of the included USB 2.0 cable into an available USB port on
your computer.
5. Plug the other end of the USB 2.0 cable into the back of the external hard drive.
USB 2.0 Port
Power LED (Green)
Access LED (Red)
Power Supply Socket
USB Connection

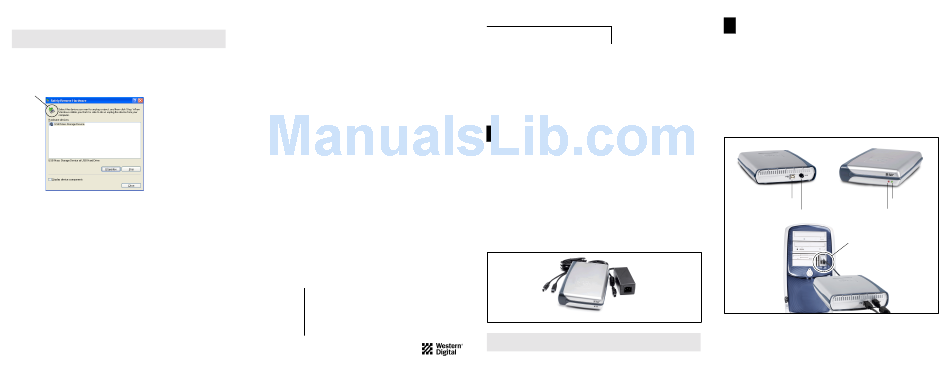

USB 2.0 External Hard Drive Rear and Front Panel with Installation
- 2 -
