Specifications:
Size: 35mm * 41mm
Connectors: 2 pc 2*10 pins, 2x2mm pitch.
Supply voltage: 3.3V (3.0V.3.5V)
Radio and microcontroller IC: MC13212 (Freescale)
RF standard: IEEE 802.15.4
Frequency range: 2405MHz to 2480MHz
Output power: configurable depending on antenna/accomodating equipment to obtain up to
15.70mW.
I/O:
two full duplex RX/TX serial ports (LV-TTL)
29 I/O (including 8 configurable analog inputs)
Certified antennas:
RX001_UM02.doc
Epoke Radio module RX001
USER/SERVICE MANUAL

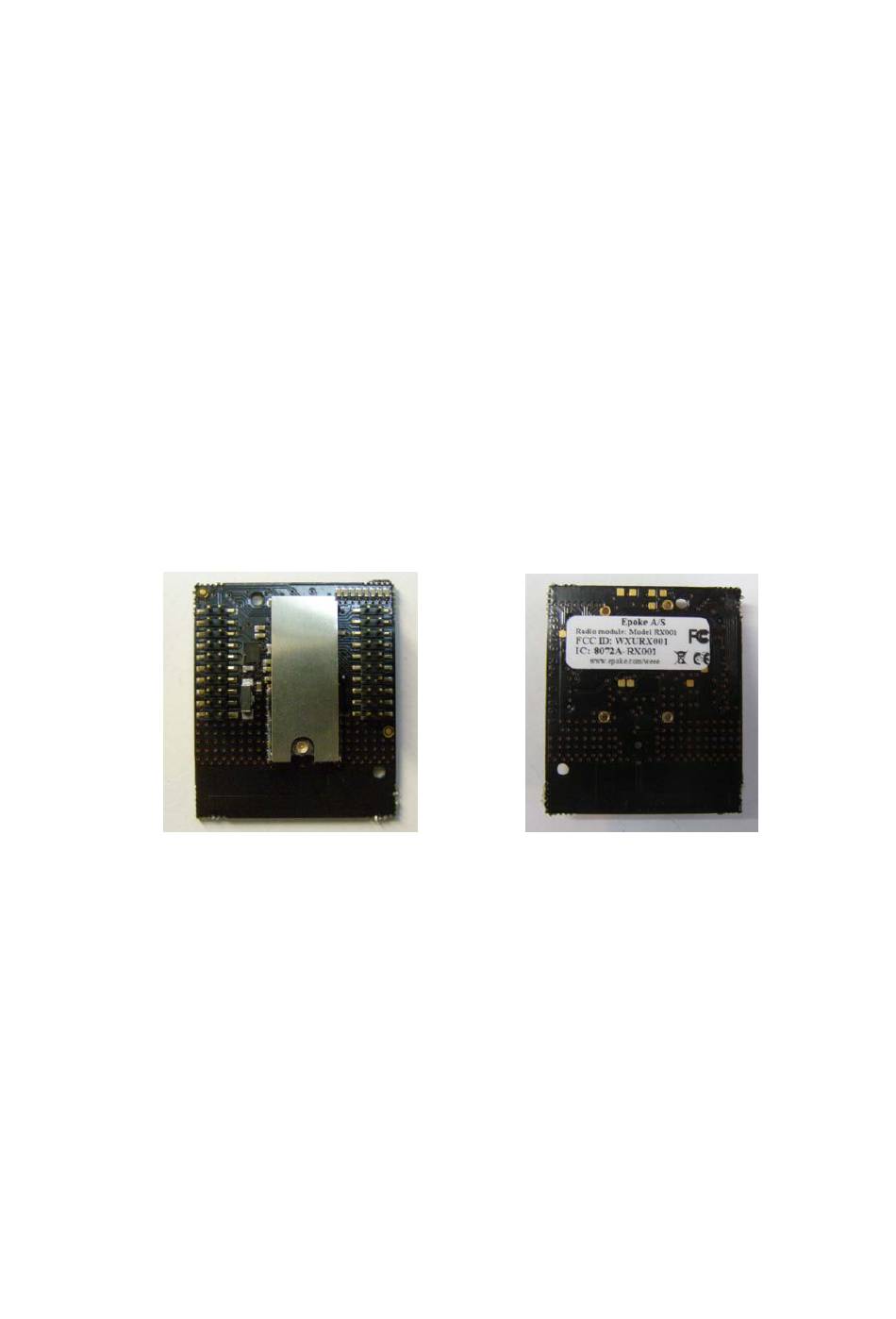

RX001 component side
1) built-in F-antenna on circuit board (0 ohms mounted as R1, no UFL
connector).
2) UFL connector mounted and connected to shortened vertical dipole via
150mm UFL to RPSMA-bulk cable.
3) UFL connector mounted and connected to full-length vertical dipole with
130mm integrated coax cable.
Rev 0.2
RX001 back side (visible when mounted)
Advertisement
Summary of Contents for Epoke RX001
- Page 1 I/O: two full duplex RX/TX serial ports (LV-TTL) 29 I/O (including 8 configurable analog inputs) RX001 component side RX001 back side (visible when mounted) Certified antennas: 1) built-in F-antenna on circuit board (0 ohms mounted as R1, no UFL connector).
- Page 2 Operation: The operation of the radiolink established by two or more modules is entirely embedded into the Epoke Epomaster control system and requires no user interaction. Warning: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.
- Page 3 Changes or modifications to the equipment not expressly approved by the Epoke will void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits a Class B digital device, pursuant to Part 15 of the FCC Rules.
