Summary of Contents for M5Stack M5DinMeter

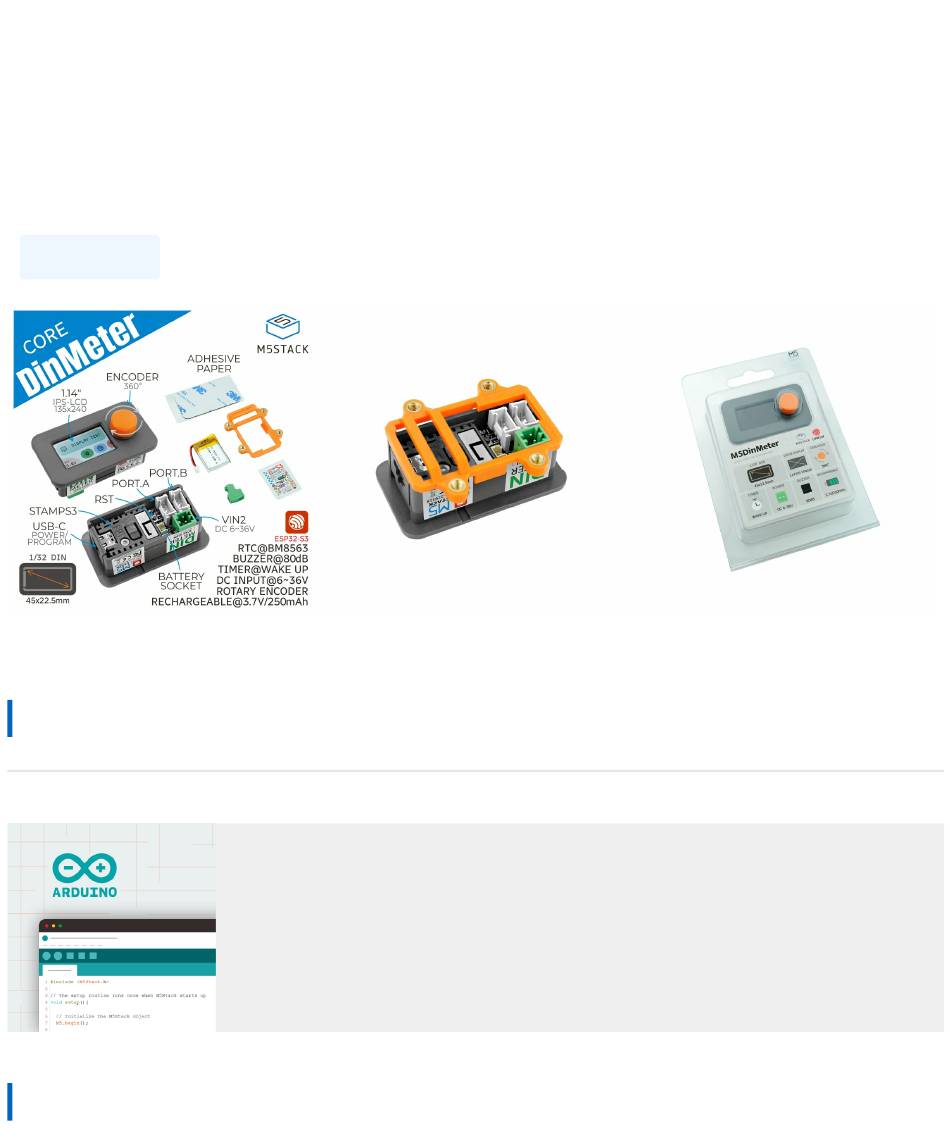

- Page 1 M5DinMeter SKU:K134 Tutorials & Quick Start Arduino IDE This tutorial will show you how to program and control StampS3 devices through Arduino IDE Description...
- Page 2 Din Meter is a1/32 DIN standard embedded development board equipped with a 1.14-inch ST7789 screen and powered by an M5StampS3 as its main controller. It features a built-in rotary encoder for precise knob position tracking. Additionally, it includes an RTC circuit, an onboard buzzer, and buttons below the screen for device interaction and alert notifications.
- Page 3 Three power supply modes: USB/DC/BAT Din size standard: Features ST7789v2 screen M5StampS3 as the main control Rotary Encoder Wide voltage input...
-
Page 4: Specification
Reserved PORTA and PORTB ports Lithium battery interface (Rechargeable) 1/32DIN standard (45*22.5mm) Programming platform: Arduino, UIFlow Includes 1xM5DinMeter 1xADHESIVE PAPER 1X250mAh Battery 1xtag 1xDC-JACK terminal input (6-36V) 1xBack brace Applications Smart home detection and control system Access Control System Industrial Control Makers and DIY projects Specification... - Page 5 Resources Parameters ESP32-S3@Xtensa LX7,8M- FLASH,WIFI,OTG\CDC function Wide Voltage Input Range 6-36V Screen Driver ST7789V2 Screen Resolution 135*240 Charge Current 100mA PORT-A Carrying capacity :DC5V/Max:220mA Grove Carries Capacity PORT-B Carrying capacity :DC5V/Max:220mA standby current(Battery powered DC4.2V/38.4uA standby current) Battery seat specifications 1.25mm-2p Power Supply Mode USB/DC Power supply/Battery...
- Page 6 EasyLoader EasyLoader is a simple and fast program burner, which has a built-in product-related case program, which can be burned to the main control through simple steps to perform a series of functional verification.
- Page 7 Download Windows Version Easyloader Related Link BM8563 tp4057 ST7789V2 Spec of external DC power connector Lithium battery seat Schematic...
- Page 8 PinMap Port A Port B RTC8563&ENCODER ST7789V2 Module Size...
- Page 9 Examples Arduino M5DinMeter-UserDemo Video M5DinMeter Introduction and application...
