BENY TS01 Manual

Tire inflator
Hide thumbs

Advertisement

Table of Contents

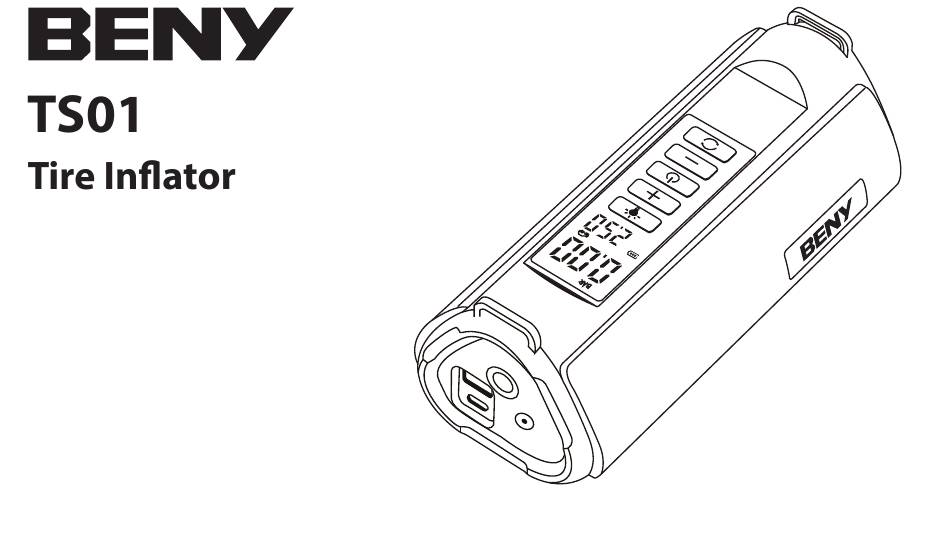

Model ： TS01
Read this manual carefully before use and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS01 and is the answer not in the manual?

Questions and answers

Summary of Contents for BENY TS01

  • Page 1 Model ： TS01 Read this manual carefully before use and keep it for future reference.

  • Page 2: Product Overview

    1.PRODUCT OVERVIEW 1.LCD Screen 1. PRODUCT OVERVIEW 2.Light button 1. PRODUCT OVERVIEW 3.“+” button 4.Power button 5.“_" button 6.Mode button 7.LED light 8.Air outlet 9.USB output port 10.12v DC Vehicle Power Supply 11.Type-C input port 12.LED light strip 9 1011...

  • Page 3: Package Contents

    2.PACKAGE CONTENTS User manual User manual x 1 TS-01Air Inflator x 1 Schrader-Presta Needle valve Rubber dinghy Swim ring valve valve adaptor x 1 adaptor x 1 valve adaptor x 1 adaptor x 1 Air tube x 1 USB charging EVA bag x 1 3m Power cable x 1...

  • Page 4: Technical Specifications

    3.TECHNICAL SPECIFICATIONS Name Tire lnflator Model TS-01 Dimensions 220*95*89mm Inflation Pressure Range 0.35-10.3Bar/5-150PSI Operating Temperature -20℃~60℃ Battery Capacity 19.98Wh Lumen value of LED light 200LM USB-C Input 5V/2A USB-A Output 5V/2A Charging Time 3-4hours Sensor Accuracy ±1psi...
  • Page 5 4.HOW TO USE AIR COMPRESSOR Step 1 . Remove the valve cap and connect the air Step 2. Press to turn on the air pump. tube to the inflator’s air outlet by rotating clockwise. Step 3 . Press to choose a mode. Detecting the Step 4.

  • Page 6: Display And Buttons

    5.DISPLAY AND BUTTONS Modes and default units Current Unit Bike Mode Actual Barometric Car Mode Pressure Motorcycle Mode Current Mode Ball Mode Battery Lever Preset Air Default tire pressure values Pressure in various modes 2.1Kg/cm2 Bike Mode 2.5Kg/cm2 Car Mode 2.2Kg/cm2 Motorcycle Mode 0.6Kg/cm2...
  • Page 7 Long press the Power Button to turn on the inflator. Short press the Power Button to start inflating. In the power-on state, long press the Power Button to turn off the inflator. After the mode is set, press the Plus Button to increase the presetpressure value. After the mode is set, press the Minus Button to decrease the presetpressure value.
  • Page 8 6.LIGHTING Press once and LED light is always on (3 watts). Press 2 times to switch the LED light to strobe. Press 3 times to LED light strip with weak gear (2 watts). Press 4 times to LED light strip with strong gear (5 watts). Press 5 times and the LED light strip to SOS.
  • Page 9 8.AIR PRESSURE REFERENCE TABLE...

  • Page 10: Troubleshooting

    9.TROUBLESHOOTING The power of the product is too low, and please recharge Slowly flashing green indicator the product. Red indicator The connection timed out, and Please reconnect the clamps. The temperature exceeds 65 + 5C. Remove the smart clamp Flashing Red indicator until the indicator resumes flashing red and green alternately.

  • Page 11: Safety Instructions

    10.SAFETY INSTRUCTIONS ●Keep a safe distance between the body and the product while inflating or starting. After running for a long time, the temperature of the junction between the air tube and the main body may become very high. To avoid burns, do not touch. ●Please don't leave it for prolonged periods in a hot car.
  • Page 12 2.What should I do if the product does not turn on? Make sure the power switch is in the on position. Check that the jump starter is fully charged. Recharge the unit if necessary. Make sure a proper polarity cable connection has been established. If it still doesn't work, please contact us via ecservice@zjbeny.com as soon as possible.
  • Page 13 Model ： TS03 Read this manual carefully before use and keep it for future reference.
  • Page 14 1.PRODUCT OVERVIEW 1.LCD Screen 1. PRODUCT OVERVIEW 2.Light button 1. PRODUCT OVERVIEW 3.“+” button 4.Power button 5.“_" button 6.Mode button 7.12V DC port 8.LED light 9.Air outlet 10.USB output port 11.Type-C input port 12.LED light strip 9 1011...
  • Page 15 2.PACKAGE CONTENTS User manual User manual x 1 TS-03 Jump Starter Schrader-Presta Needle valve Rubber dinghy Swim ring valve & Air Inflator x 1 valve adaptor x 1 adaptor x 1 valve adaptor x 1 adaptor x 1 Heavy Duty Air tube x 1 USB charging EVA bag x 1...
  • Page 16 3.TECHNICAL SPECIFICATIONS Name Jump Starter & Tire lnflator Model TS-03 Dimensions 220*95*89mm Inflation Pressure Range 0.35-10.3Bar/5-150PSI Operating Temperature -20℃~60℃ Engine Rating up to 6.0L Gas/3.0L Diesel Battery Capacity 38.48Wh Lumen value of LED light 200LM USB-C Input 5V/2A USB-A Output 5V/2A Charging Time 5-6hours...
  • Page 17 4.HOW TO USE JUMP STARTER Step 1.Remove the valve cap and connect the air tube to the inflator’s air outlet by rotating clockwise. Step 2. Connect the Red clamp to the positive electrode ( + ) of your vehicle battery and the Black Clamp to the negative one ( - ). Step 3 .
  • Page 18 5.HOW TO USE AIR COMPRESSOR 5.HOW TO USE AIR COMPRESSOR 5.HOW TO USE AIR COMPRESSOR Step 1 . Remove the valve cap and connect the air Step 2. Press to turn on the air pump. tube to the inflator’s air outlet by rotating clockwise. Step 3 .
  • Page 19 6.DISPLAY AND BUTTONS Modes and default units Current Unit Bike Mode Actual Barometric Car Mode Pressure Motorcycle Mode Current Mode Ball Mode Battery Lever Preset Air Default tire pressure values Pressure in various modes 2.1Kg/cm2 Bike Mode 2.5Kg/cm2 Car Mode 2.2Kg/cm2 Motorcycle Mode 0.6Kg/cm2...
  • Page 20 Long press the Power Button to turn on the inflator. Short press the Power Button to start inflating. In the power-on state, long press the Power Button to turn off the inflator. After the mode is set, press the Plus Button to increase the presetpressure value. After the mode is set, press the Minus Button to decrease the presetpressure value.
  • Page 21 7.LIGHTING Press once and LED light is always on (3 watts). Press 2 times to switch the LED light to strobe. Press 3 times to LED light strip with weak gear (2 watts). Press 4 times to LED light strip with strong gear (5 watts). Press 5 times and the LED light strip to SOS.
  • Page 22 9.AIR PRESSURE REFERENCE TABLE...
  • Page 23 10.TROUBLESHOOTING The power of the product is too low, and please recharge Slowly flashing green indicator the product. Red indicator The connection timed out, and Please reconnect the clamps. 1.Check whether the smart clips are connected backward. 2.Check whether the red and black clamps are connected or Red indicator with beeps connected to the same piece of metal.
  • Page 24 11.SAFETY INSTRUCTIONS ●Keep a safe distance between the body and the product while inflating or starting. After running for a long time, the temperature of the junction between the air tube and the main body may become very high. To avoid burns, do not touch. ●Please don't leave it for prolonged periods in a hot car.
  • Page 25 2.What should I do if the product does not turn on? Make sure the power switch is in the on position. Check that the jump starter is fully charged. Recharge the unit if necessary. Make sure a proper polarity cable connection has been established. If it still doesn't work, please contact us via ecservice@zjbeny.com as soon as possible.

This manual is also suitable for:

Ts03
