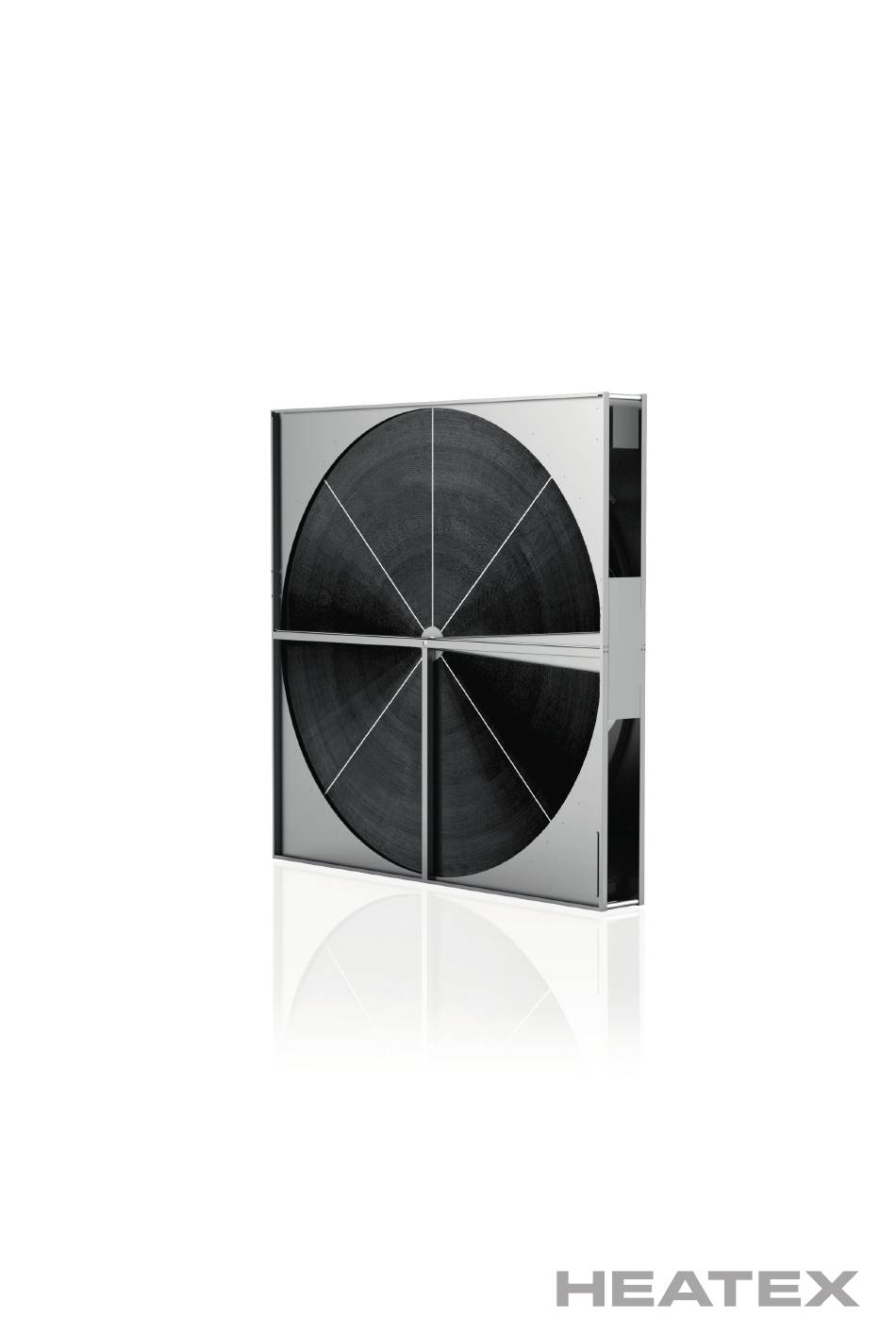

- Page 1 MODEL E INSTALLATION & MAINTENANCE AIR-TO-AIR HEAT EXCHANGERS...
-
Page 2: Copyright Notice
COPYRIGHT NOTICE All information and content included (whether directly or by reference) in this document, such as text, graphics and images, is the property of Heatex AB, its subsidiaries, affiliates, licensors and/or joint venture partners. All rights are reserved. No licenses, express, implied or otherwise to any intellectual property rights in this document are granted by Heatex AB. - Page 3 Updated 2025.04.16 Version 15 DECLARATION OF INCORPORATION Description and identification of the partly completed machinery: Rotary heat exchanger model E with casing and with a drive unit. The following essential requirements of EC Machinery Directive 2006/42/EC have been applied and fulfilled: 1.1.2, 1.2.1, 1.2.3, 1.2.4.1, 1.2.4.2, 1.2.4.3, 1.2.6, 1.3.1, 1.3.2, 1.3.4, 1.3.7, 1.3.8, 1.3.8.1, 1.3.8.2, 1.4.1,...
-
Page 4: Table Of Contents
6.5 Brush Sealings 6.6 Special Seals 6.7 Purge Sector 6.8 Control Unit 6.9 Rotor Tilt 6.10 Motor Access 6.11 Application Limits 6.12 Troubleshooting 6.13 Conditions to Ful ll the Hygiene Certi cation Requirements HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 4 (19) -
Page 5: General
Picture 2. If the casing is covered, lift the casing at the gables. _______________________________________________________________________________________ Please note that for diameters between 500 mm (19.69”) and 900 mm (35.43”) the controller of the variable drive unit will be delivered separately. HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 5 (19) -
Page 6: Storage
• Please refer to Picture 3 for the force schedule and Picture 4 for the specific support positions. Pay extra attention to position 3, as it experiences significant forces during operation. • Ensure the rotor is installed on a horizontal, even surface to prevent warping and maintain factory settings. HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 6 (19) - Page 7 0.5 kN 0.7 KN Vertically up 2 kN 5 kN 5 KN Vertically down/up 0.5 kN 0.6 kN 0.8 KN Picture 4. Support positions, vertical installation (left) and horizontal installation (right). HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 7 (19)
- Page 8 In case of a horizontal rotor, support is needed for the frame and center beam. • Avoid angular flow, as it can impact the rotation and drive of the wheel. Heatex AB recommends the air- flow to be perpendicular to the rotor.
-
Page 9: Pre-Start Adjustments And Inspections
3. Firmly attached dirt in the rotor is easiest removed by using hot water and a mild detergent. The mild detergent may be remo- ved with high-pressure water cleaner with the nozzle placed 300 mm from the matrix. 4. If required, Heatex recommends disinfection with the substance known as LIV +45 (isopro- panol based sub- stance). -
Page 10: Adsorption And Enthalpy Wheels
The power belt must be positioned so that the thinner side of the belt is in constant contact with the inside of the pulley. The belt should be twisted so the thicker side is in contact with the wheel for better friction. HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 10 (19) -
Page 11: Round Belt
Belt tension should be 1-2% (i.e. belt length 1-2% shorter than travelled length). For power belt remove one link per meter belt to get correct tension. -
Page 12: Control Unit
4 screws accessed on the back side on the motor plate. The screws for the motor plate are access from the external side. For inspections and minor maintenance issues the motors can be accessed via the inspection hatches if they are present. (Special casing option). HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 12 (19) -
Page 13: Application Limits
ENGLISH Updated 2025.04.16 Version 15 6.11 Application Limits Recommended temperature limits for rotary heat exchanger Model E are -40°C (-40°F) to +65°C (149°F). It is however important not to exceed the temperature limits on mounted components: Component Bearings -40°C (-40°F) 110°C (230°F) -
Page 14: Conditions To Ful Ll The Hygiene Certi Cation Requirements
• The AHU needs to be designed in such a way that the rotary heat exchanger is possible to slide out for cleaning and disinfection. • Cleaning and disinfection of the heat exchanger should be done in accordance with Heatex cleaning and disinfection instructions with the cleaning and disinfection substances prescribed by Heatex (see Mainte- nance chapter). - Page 15 Measure motor resistance, it Motor has to be replaced rent heavy to run should be identical on all phases. if resistance is not identical on all phases. Please con- tact: claim@heatex.com HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 15 (19)
- Page 16 V for the control unit to switch signal from ads/2023/12/Troubles- off. the control unit hooting-English.pdf Check that High Speed and Low Please check DIP swiches settings: https://ibccontrol. Speed DIP switches are set to com/en/manuals/ OFF. HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 16 (19)
- Page 17 Please con- sed at a criti- tact: claim@heatex.com it´s without damage. cal level, e.g. short-circu- iting cable, connector or motor HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 17 (19)
- Page 18 >10 sec 1. E08 Check control unit connection 1. Phase 1. Wrong Internal hardware issue. Please contact: claim@ fault on connec- stepper tion heatex.com motor power supply (U, V, HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 18 (19)
- Page 19 Decription Error Code Check motor connection Internal hardware issue. Please contact: claim@ heatex.com 1. E09 1. Internal 1. Electro- Internal hardware issue. Please contact: claim@ hardwa- nics re error error heatex.com HEATEX MODEL E INSTALLATION & MAINTENANCE MANUAL 19 (19)
