Summary of Contents for Xtec Industries DIO-1

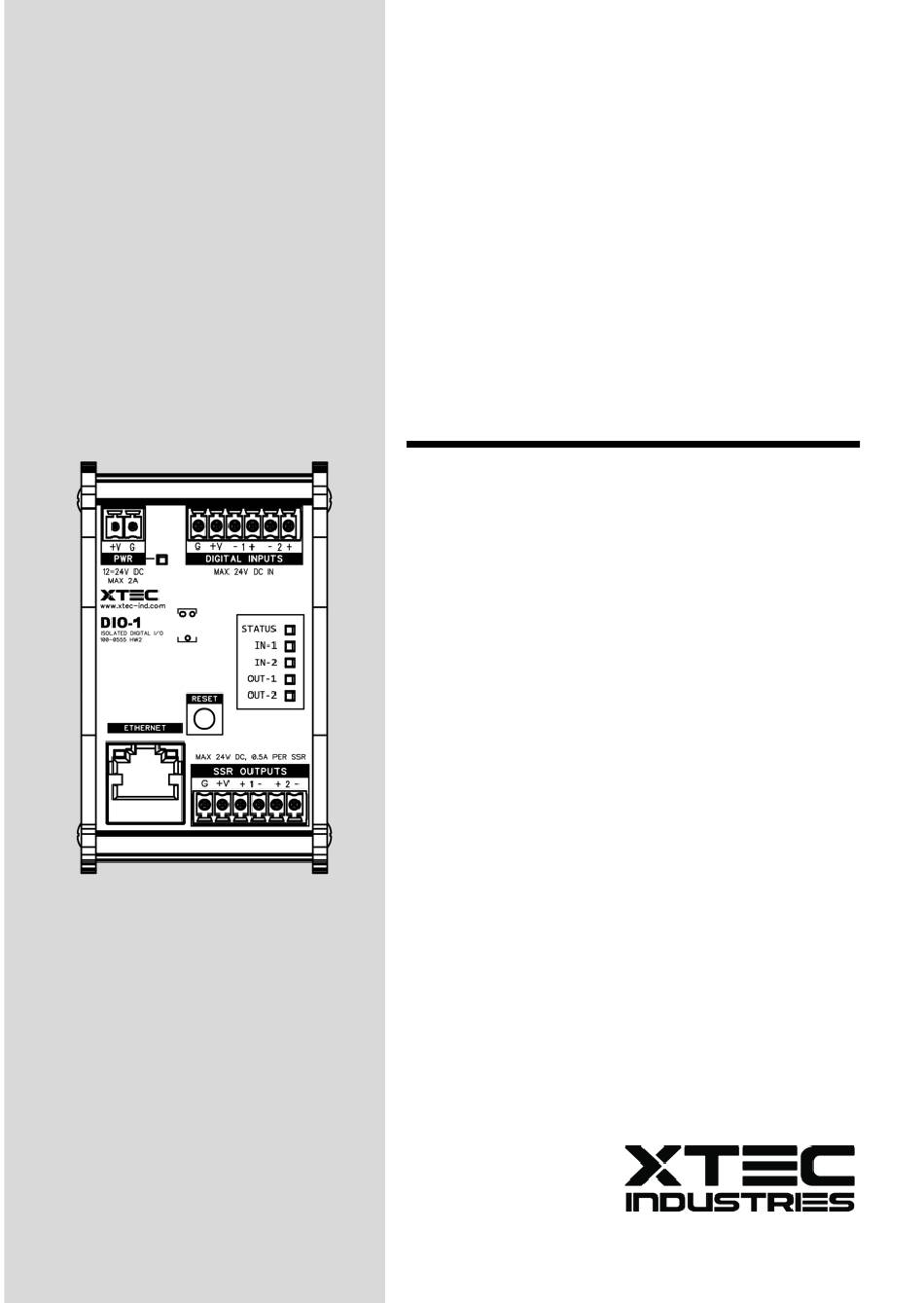

- Page 1 User Manual DIO-1 Digital I/O Module...
-
Page 2: Table Of Contents
Contents Contents ................2 Safety Information ............3 Overview ................3 Front View ................ 4 Power Supply ..............5 Ethernet ................5 Digital Inputs ..............6 SSR Outputs ..............8 Reset Button ..............10 Status LED ..............10 I/O LED’s ................ 10 Ethernet Protocol and Commands ......... -
Page 3: Safety Information
The DIO-1 is housed in a DIN rail mounting enclosure, and features pluggable connectors to simplify installation and maintenance. All terminals are protected against ESD and... -
Page 4: Front View
Front View 12 – 24v DC power supply input Power LED Digital Inputs connector Solid State Relay Outputs connector Ethernet connector Reset button LED indicators for status, inputs and outputs... -
Page 5: Power Supply
Make sure you double check the polarity and voltage levels of the supply before switching on! Ethernet The DIO-1 supports 10/100BASE-T Ethernet networking for configuration, control and status. Use a standard 8 pin RJ45 Ethernet cable to connect the module to another device such as a network switch, PLC or computer. -
Page 6: Digital Inputs
Digital Inputs The DIO-1 has two isolated digital inputs, complying to IEC61131-2 Type 3. The inputs are protected against reverse polarity, and up to 4KV ESD. These inputs are “sinking”, and hence require a DC voltage to be applied to the terminals to switch on. - Page 7 Example input wiring: • Input 1 is not isolated, since the switch uses the +V and G terminals of the input connector. • Input 2 is fully isolated, since it uses its own power source for the switch.
-
Page 8: Ssr Outputs
SSR Outputs The DIO-1 has two isolated Solid State Relay (SSR) outputs, each of which can switch up to 500mA at up to 60v DC. Each SSR is protected with a PTC automatic reset fuse, and provides up to 1.5KV of isolation. - Page 9 Example SSR output wiring: • Output 1 is not isolated, since the load uses the +V and G terminals of the output connector. • Output 2 is fully isolated, since it uses its own power source for the load.
-
Page 10: Reset Button
Reset Button A recessed Reset button is located on the front panel. Press and hold this button for 1 second to reset the DIO-1 back to the original factory default settings: IP Address: 192.168.1.100 Sub-net mask: 255.255.255.0 Gateway: 192.168.1.1 TCP Port:... - Page 11 2 • “s” is the state, 0 or 1 Eg: Send “?1” will return “?11” if input 1 is ON. Send “?2” will return “?20” if input 2 is OFF. Note: The DIO-1 web browser configuration uses port 80.
-
Page 12: Configuration
DIO-1. Open your web browser, and type the IP address of the DIO-1 in the address bar. You should see the configuration page similar to above. Set the IP address, subnet mask, gateway and DNS as required. -
Page 13: Specifications
Specifications Digital Voltage Range 12-24v DC Inputs Type IEC61131-2 Type 3 Min ON current ~2.25mA Isolation * 2500Vrms Digital Max Voltage 60v DC Outputs Max Current 500mA Switch Speed Isolation * 1500Vrms Control Ethernet 10/100BASE-T Protocols TCP/IP, HTTP Connector RJ-45 copper LED’s Power, status, DI- 1/2 state, DO1/2... -
Page 14: Drawing
Drawing... -
Page 15: Notes
Notes... - Page 16 For more information on our products, please visit: www.xtec-ind.com ® The XTEC logo is a registered trademark of XTEC Industries Pte Ltd. ©2024 XTEC Industries Pte Ltd, Singapore 100-0555 R2...
