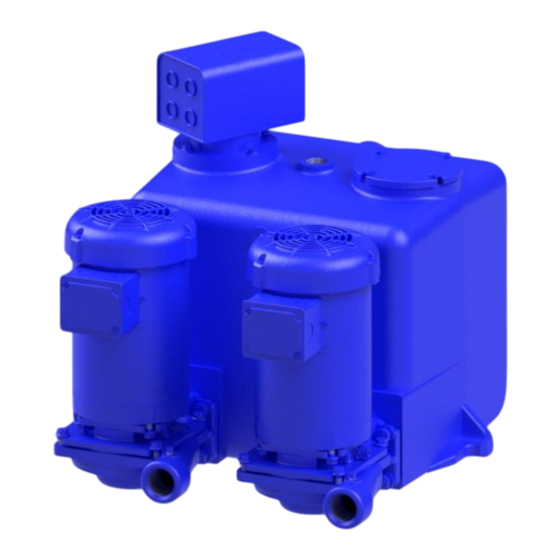

- Page 1 July 2021 Form SMV3618C ® Condensate Pump, type Guardian Unit Installation and Maintenance Instructions ® ® Guardian Boiler Feed Unit Guardian Condensate Return Unit 1875 Dewey Avenue Benton Harbor, MI 49022 Phone 269-925-2522 Fax 269-925-7888...
-
Page 2: Installation
INTRODUCTION ® This form contains information necessary to install, operate The Guardian Condensate Units are complete assemblies ® and maintain Guardian Condensate Units manufactured for returning condensate to low pressure boilers from by Vent-Rite. The information is assembled in order, from gravity heating systems, low pressure steam process. -
Page 3: Wiring Schematics
by operating the float head lever manually. If the OPERATING POINTS float ball is not buoyant, replace with new float ball. 1. Check motor speed. If motor speed is low check 4. If after long service, water flows from around the wiring connections to motor. -
Page 4: Maintenance
MAINTENANCE INSPECTION. To ensure best operation of unit, make a Any leakage will also be visible on seal plate. Leakage systematic inspection at least once a week. indicates that the seal surfaces are worn and will need replacing. CAUTION: Never operate pump when receiver CLEANLINESS. -
Page 5: Troubleshooting
TROUBLESHOOTING A troubleshooting chart is shown below to enable you to isolate any problems you may encounter when operating the ® Guardian Condensate Unit. SYMPTOM POSSIBLE CAUSE REMEDY 1. No condensate discharge 1a. Not enough condensate in tank to prime pump. 1a. - Page 6 Guardian® Boiler Feed Pumps (WITH MAKE-UP WATER VALVE) The Model GSB (simplex unit) or GSBD (duplex unit) When the boiler requires water, the float operated switch Guardian® Boiler Feed Pump is designed for those in the Controller starts the pump motor(s) through installations where it is important to maintain the boiler magnetic starters that can be furnished as an optional water line within narrow limits, and to automatically supply...
-
Page 10: Repair Parts List
Guardian® Condensate Pump REPAIR PARTS LIST Figure 5 Figure 6... - Page 11 ITEM NUMBER DESCRIPTION SIMPLEX QUANTITY DUPLEX QUANTITY Motor Gauge Glass Float Switch Volute Tank Gasket Impeller Adapter Plate Volute O-Ring Mechanical Seal Water Slinger Impeller Bolt Impeller Retainer Volute Bolt Motor Bolt Volute Plug Vent Fitting 1 Elbow, 1 Straight 2 Elbow, 2 Straight Vent Line Table 2...
