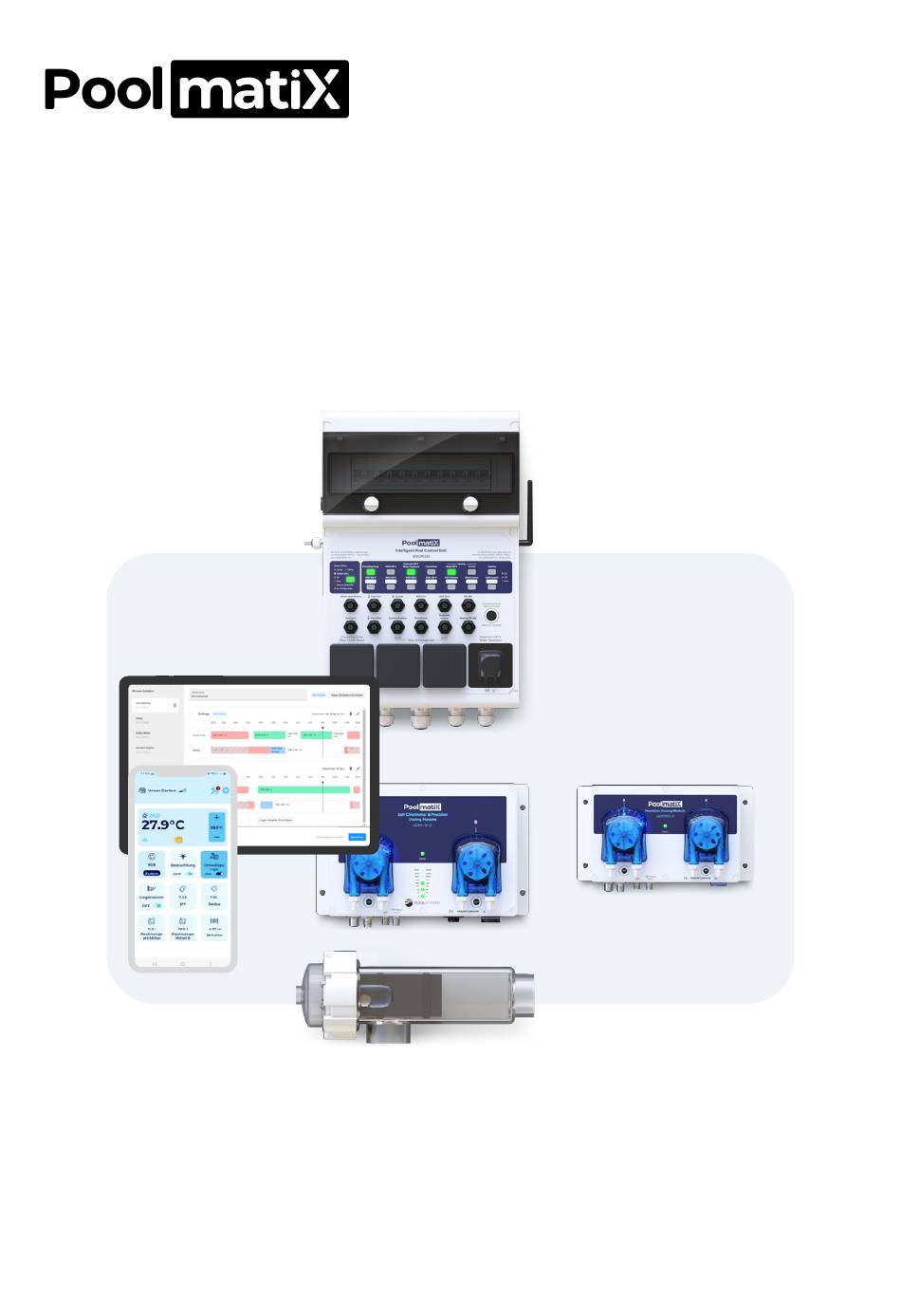

SDWM002 Intelligent Pool Central
Control Unit
Manual for Installation and Commissioning
Version 2.0
Mountfield a.s.
Mirošovická 697
25164 Mnichovice, Czech Republic
www.mountfield.cz
The product images are for illustrative purposes only
and may differ from the actual product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Poolmatix SDWM002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mountfield Poolmatix SDWM002

  • Page 1 SDWM002 Intelligent Pool Central Control Unit Manual for Installation and Commissioning Version 2.0 Mountfield a.s. Mirošovická 697 25164 Mnichovice, Czech Republic www.mountfield.cz The product images are for illustrative purposes only and may differ from the actual product.

  • Page 2: Table Of Contents

    ....... . © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 3 Please note that the installation should be carried out by a pool technician familiar with the Poolmatix system. The installation of all electrical parts and low voltage connections should be carried out by a qualified electrician. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 4: Installation Of Pool Technology Components

    The following diagrams show typical components of your pool technology, Poolmatix components, and their locations. Please follow these diagrams carefully when preparing the pool technology for the installation of the Poolmatix system. Fig. 1 Saltwater Pool Installation © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 5 Installation of Pool Technology Components Fig. 2 Saltwater Pool Installation with Bypass for the Electrolytic Cell. The Water Flow Sensor Must be Installed in the Bypass. Fig. 3 Alternative Mounting Position of the Electrolytic Cell © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 6 (or other type of heating) Pool Lighting Poolmatix Pushbutton Interface Pool Pushbuttons Poolmatix Outside Temperature Sensor Counterflow Alternative Mounting Position of the Water Temperature Sensor (from Pool) Water Temperature Sensor (into Pool) © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 7: Water Flow Sensor

    Fig. 5 Installation of the Water Flow Sensor When installing the sensor, you must ensure that the water flow in the pipe in front of the sensor is not obstacled by any other objects. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 8 Fig. 6 Distance of the Flow Sensor from Obstacles in the Piping Please ensure that the sensor paddle is the correct length. Fig. 7 Sensor Paddle Too Long © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 9: Water Temperature Sensors

    The electrodes are installed in a 12 mm inline electrode holder, which is mounted in a saddle clamp or a T-piece with a ½” internal thread. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 10 To reduce the risk of damage to the electrodes from solid particles in the water flow, we recommend installing the electrode tip outside the main water flow, approximately 5-10 mm from the bottom of the pipe. Please follow these instructions: Fig. 10 Recommended Electrode Installation © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 11: Injection Dosing Valves

    The injection dosing valves are installed in a saddle clamp or a T-piece, with a ½” internal thread. Please refer to the component diagrams in this manual for the correct installation position of the valves. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 12: Connecting The Pool Heating

    Fig. 12 Control via a Power Output (230V) © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 13: Control Via An External Relay

    RS-485 interface from the PoolmatixPro SDWM002 main control unit. If your heat pump is equipped with a cooling function, the PoolmatixPro SDWM002 system can also control the pool cooling via the RS-485 connection. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 14 You can use any commercially available cable to extend the length, however please do not exceed a total length of 25 meters. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 15: Connection Of Poolmatix Intelligent Devices

    “daisy chain” method, whereby the power inputs and outputs of all devices are connected together. Fig. 15 Diagram 9: “Daisy-Chaining” of Poolmatix Intelligent Devices Poolmatix Device A Poolmatix Device B Poolmatix Device C © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 16 Connection of Poolmatix Intelligent Devices Poolmatix Control Data Bus Poolmatix Power Cable (230 V) Poolmatix Power Output (230 V) Poolmatix Control Data Bus © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 17: Connection Of The Poolmatix Sensors

    The Poolmatix water temperature sensors and the outdoor temperature sensor use a digital one-wire connection. These sensors are connected to the corresponding M12 sensor connections on the PoolmatixPro SDWM002 main control unit. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 18: Push-Button Interfaces And Water Level Sensor

    You can use any commercially available cable to extend the length, however please do not exceed a total length of 20 meters. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 19: Internet Connection Type

    If there is a strong signal at the entrance to the manhole, you can locate the standard LTE antenna directly under the manhole cover. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 20 PoolmatixPro SDWM002 underground, please note that the mobile phone signal in the underground shaft may deteriorate as soon as more soil is brought in around the shaft. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 21: Ethernet Connection

    For detailed instructions on connecting the PoolmatixPro SDWM002 main control unit to your Wi- Fi network, please refer to Chapter 9 of this document. Detailed instructions on setting up the Wi-Fi connection can be found in Chapter 9. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 22 Check the firewall of your home network. Some home routers use a network firewall that can partially or completely block communication with the PoolmatixPro SDWM002 . Before installation, make sure that neither your router nor your ISP is restricting communication on any network ports. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 23: Installation Of The Poolmatixpro Sdwm002 Control Unit

    Flexible, Remotely Set up Functionalities ●   Control of the Entire Pool Water Treatment System ●   Management of all Pool Technology ●   Integrated Connectivity ●   Available in 1-phase and 3-phase versions ●   © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 24: Functional Parts - Front View

    Fig. 19 Functional Parts of the PoolmatixPro SDWM002 Control Unit Circuit Breakers LED Indicator Panel Connections for Sensors and Peripheral Devices Manual Control Button 230 V Sockets Cable Glands for Mains Power and Additional Connections © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 25: Inside View - Connection Points

    Connection Terminals for Front Panel 230V Sockets (Wiring Harness) Heating Connection Connection for Potential-Free Contacts (AUX5 - AUX7) Connection for 230 V Pool Technology Components (Lighting, AUX1 - AUX4) Counterflow Connection © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 26: Technical Data

    300 x 445 x 125 mm (W x H x D) Net Weight SDWM002-PS(D)114122 4.4 kg SDWM002-PS(D)314120 4.1 kg Applicable Standards EN 61439-1 ed. 3, EN 61439-3, EN 62368-1, EN 301489-1, EN 301489-17, RoHS © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 27: Installation And Commissioning

    1.5 kW terminal SDWM002- Three-phase asynchronous Internal screw PS(D)314120 motor 4,0 kW terminal 6.6. Installation and Commissioning This chapter will guide you through the installation of the PoolmatixPro SDWM002 intelligent control unit. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 28: Installation Process

    Fasten the main cabinet of the unit with screws in the desired position. Connect the pool technology to the terminals and busbars in the cabinet. Connect the mains power cable to the terminals and busbars in the cabinet. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 29 Connect the PE conductor (green-yellow) of the wiring harness to the PE busbar. Reattach the plug of the wiring harness that connects the sockets on the front panel to the main circuit board in the cabinet. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 30: Pool Configuration

    Switch on all other required circuit breakers of the switchgear. 6.7. Pool Configuration We recommend that you prepare your pool configuration in advance. Please refer to the document titled “Manual Software Configuration and Settings” for detailed instructions. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 31: Testing Individual Pool Functions

    Depending on your pool configuration, please carry out additional service sequences to check that the pool technology is functioning correctly. Follow the instructions of the individual service sequences to test the respective pool function. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 32: Commissioning Of The System And Handover To The Customer

    Please refer to the Poolmatix User Manual for detailed instructions on how to set up the iXmanager mobile app and connect the user’s pool to the app. Show the customer the basic functions of the application. ●   © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 33 Help the customer to set the basic parameters of the pool - pH, ORP, free chlorine and ●   temperature. Help the customer set a basic time schedule for the pool. ●   © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 34: Connection Of A Variable Speed Circulation Pump

    Modbus protocol. You need to set the pump speeds directly in the iXfield web technical application. In this case, please connect the RS-485 connect cable of the circulation pump to the RS-485 connector. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 35 Connection of a Variable Speed Circulation Pump  Important Note: Please contact your distributor to check whether your circulation pump is supported by the PoolmatixPro SDWM002 system before selecting this option. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 36: Wi-Fi Setup Of The Poolmatixpro Sdwm002 Main Control Unit

    Wi- Fi access point of the PoolmatixPro SDWM002 . You will find the QR code on the label of the PoolmatixPro SDWM002 control unit. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 37 Alternatively, you can search for available Wi- Fi networks and select the Wi-Fi SSID eledio- xxxxxx. Step 3 Enter the Wi-Fi password. You can also find it on the label of the PoolmatixPro SDWM002 main control unit. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 38 192.168.100.1 in your web browser and open the web configuration page PoolmatixPro SDWM002 This page should display automatically. Step 6 Enter the Wi-Fi password again. You will find it on the label on the main control unit. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 39 This screen is now displayed. Select the “Network” tab. Step 8 Select “Detected Wi-Fi Network*”. Step 9 Now select the Wi-Fi network to which you want to connect the PoolmatixPro SDWM002 . © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 40 If the PoolmatixPro SDWM002 unit cannot establish a connection to the newly set up Wi-Fi, please repeat the process. Make sure that you enter the correct password for the Wi-Fi network you want to connect to. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 41: Service Sequences

    Electrode This sequence stops all technologies and Complete pH electrode Calibration - guides the user through pH electrode calibration 2-Point calibration using 2 calibration buffers - pH 7.0 and pH 10.0. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
  • Page 42 ORP calibration buffer. UV Lamp Test This sequence stops all technologies and Visual check of the UV lamp allows the user to visually check the function function of the UV lamp. © 2024. Version 2.0 Mountfield a.s. All rights reserved.

  • Page 43: Disposal Of Used Product

    Standards that define the proper handling of old electrical appliances. The crossed-out waste bin symbol on the product indicates that waste must be separated and disposed of in an appropriate facility. © 2024. Version 2.0 Mountfield a.s. All rights reserved.
