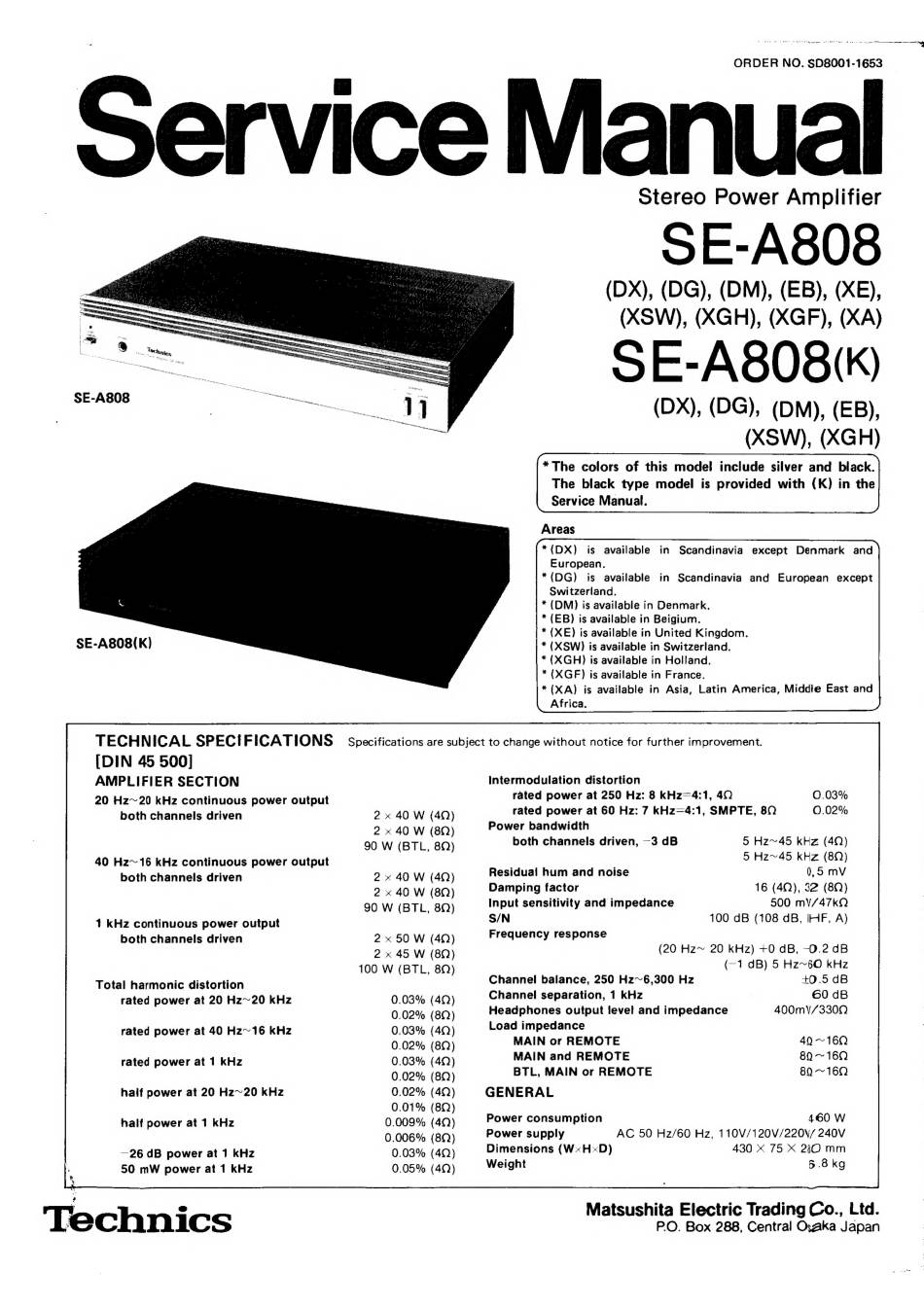

Technics SE-A808 K Service Manual

ey
SE-A808
SE-A808(K)
TECHNICAL SPECIFICATIONS
[DIN 45 500]
AMPLIFIER SECTION
20 Hz~20 kHz continuous power output
both channels driven
40 Hz~ 16 kHz continuous power output
both channels driven
1 kHz continuous power output
both channels driven
Total harmonic distortion
rated power at 20 Hz~20 kHz
rated power at 40 Hz~16 kHz
rated power at 1 kHz
half power at 20 Hz~20 kHz
half power at 1 kHz
—26 dB power at 1 kHz
50 mW power at 1 kHz
Technics
2x 40 W (40)
2 x 40 W (89)
90 W (BTL, 8)
2x 40 W (4)
2 x 40 W (8Q)
90 W (BTL, 8Q)
2 x 50 W (49)
2 x 45 W (82)
100 W (BTL, 89)
0.03% (4)
0.02% (80)
0.03% (40)
0.02% (82)
0.03% (42)
0.02% (80)
0.02% (42)
0.01% (82)
0.009% (42)
0.006% (82)
0.03% (40)
0.05% (49)
Channel balance, 250 Hz~6,300 Hz
Channel separation, 1 kHz : 60 dB
Headphones output level and impedance
Load impedance
MAIN or REMOTE
MAIN and REMOTE
BTL, MAIN or REMOTE
GENERAL
eR eee cee te agen es
ORDER NO. $D8001-1653
stereo Power Amplifier
SE-A808
(DX), (DG), (DM), (EB), (XE),
(XSW), (XGH), (XGF), (XA)
SE-A808(k)
(DX), (DG), (DM), (EB),
(XSW), (XGH)
*The colors of this model include silver and black.
The black type model is provided with (K) in the
Service Manual.
Areas
*(DX) is available in Scandinavia except Denmark and
European.
*(DG) is available in Scandinavia and European except
Switzerland.
* (DM) is available in Denmark.
* (EB) is available in Beigium.
* (XE) is available in United Kingdom.
* (XSW) is available in Switzerland.
* (XGH) is available in Holland.
* (XGF) is available in France.
* (XA) is available in Asia, Latin America, Middie East and
Africa.
Specifications are subject to change without notice for further improvement.
intermodulation distortion
rated power at 250 Hz: 8 kHz=4:1, 4Q 0.03%
rated power at 60 Hz: 7 kHz=4:1, SMPTE, 80 0.02%
Power bandwidth
both channels driven, —3 dB
5 Hz~45 kHz (42)
5 Hz~45 kkz (8)
Residual hum and noise 05 mV
Damping factor
Input sensitivity and impedance
16 (4Q), 32 (8)
500 mV/47kQ
100 dB (108 dB, IHF, A)
Frequency response
(20 Hz~ 20 kHz) +0 dB, -0.2 dB
(—1 dB) 5 Hz~60 kHz
+0.5 dB
400mvV/3300
40 ~160
80 ~16Q
89 ~ 160
Power consumption 460 W
Power supply
Dimensions (WxHxD)
AC 50 H2/60 Hz, 110V/120V/220V/ 240V
430 * 75 X 230 mm
6.8 kg
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central O;aka Japan
