Summary of Contents for ACEUP ENERGY AWPG3400

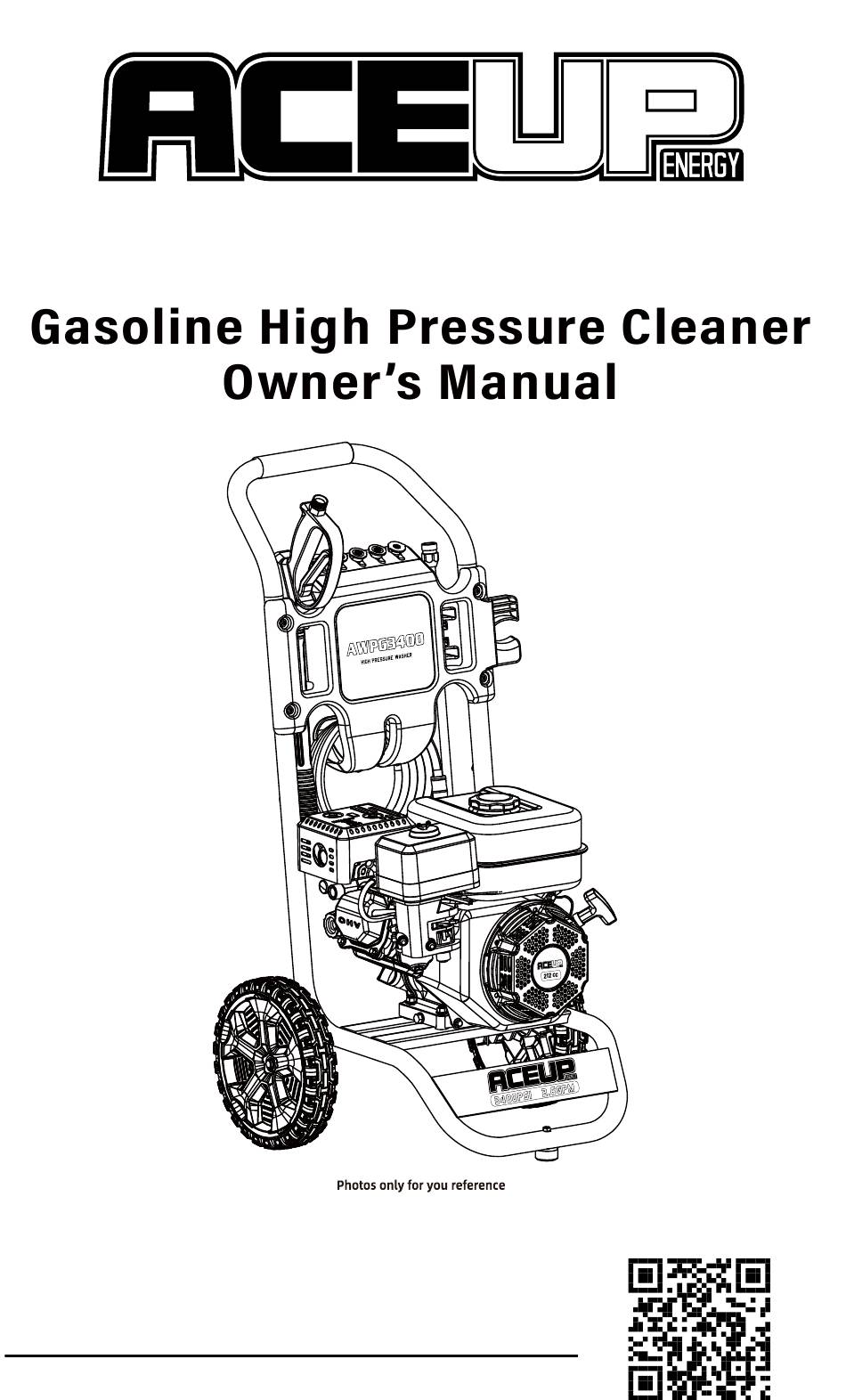

- Page 1 AWPG3400 Have product questions or need technical support? Please feel free to contact us. Email: aceupenergy@foxmail.com Website: https://aceupworld.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ................SAFETY LABEL ....................ITEM DESCRIPTION ..................ASSEMBLY INSTRUCTIONS ................OPERATING INSTRUCTIONS ................SHUTTING DOWN & CLEAN-UP ............... WINTERIZING AND LONG-TERM STORAGE ............. CLEANING TIPS ....................TROUBLESHOOTING ..................MAINTENANCE ....................SPECIFICATION .................... -
Page 3: Important Precautions
Owner's Manual for Gasoline High Pressure Cleaner Read First! IMPORTANT PRECAUTIONS- NEVER ! Point nozzle at people or animals. Drink alcohol or use drugs while operating this equipment. Spray electrical connections, electrical outlets or fixures. Add gasoline when the engine running. Running the machine at the place with gasoline spilling Touch hot surfaces or allow accessories to contact hot surfaces Operate the machines in an closed space other wise exhausted... - Page 4 Owner's Manual for Gasoline High Pressure Cleaner 1.This machine has been designed for use with the cleaning agent supplied orrecommended by the manufactur- er.The use of other cleaning agents or chemicalsmay adversely affect the safety of the machine. 2.High pressure hoses,fittings and couplings are important for the safety of themachine Use only hoses,fittings and couplings recommended by the manufacturer.
- Page 5 Owner's Manual for Gasoline High Pressure Cleaner 24.When the water temperature of the cleaning pump more than 60℃ temperature control valve will automatically ejects hot water, cold water into the pump, cooling pump to realize automatic cleaning. 25.the kickback forces do not exceed 20N when openning the trigger gun. Do not use acids, alkaline, solvents or any other flammable material, in this machine, these chemical products can bring physical injuries to the operator and irreversible damage to the machine.
-
Page 6: Item Description
Owner's Manual for Gasoline High Pressure Cleaner AWPG3400 OVERVIEW Item Description 1. Adjustable nozzle 2. Trigger gun 3.Water outlet joint 4. Water outlet joint 5. Water inlet joint 6. Tyre 7. Recoil start ASSEMBLY INSTRUCTIONS Step 1 Insert the upper frame tube into the other frame tube, adjust the tube horizontally, press the spring buckle, and press down the upper frame until the spring buckle is perforated and popped out. -
Page 7: Operating Instructions
Owner's Manual for Gasoline High Pressure Cleaner OPERATING INSTRUCTIONS Step 1 Check oil level. Oil level should be level to the bottom of the oil filling neck. Be sure the oil level is level when checking the oil level. (Refer to the engine’s operating manual) We recommend that the oil be changed after the first 20 hours, then once every 50 hours. - Page 8 Owner's Manual for Gasoline High Pressure Cleaner Step 7 Turn the fuel valve to the “ON” position. Note:Do not use the choke if the engine is warm or the air temperature is high. Step 8 Turn the switch to “ON” position. Step 9 One end of the pipette is inserted into the suction cleaning pump coupling on the other end is inserted into the cleaning liquid, bottle cleaning liquid with filter, replacement black cleaning liquid nozzle, start machine can be sprayed out with cleaning liquid flow.
-
Page 9: Shutting Down & Clean-Up
Owner's Manual for Gasoline High Pressure Cleaner SHUTTING DOWN & CLEAN-UP Step 1 Turn the engine switch to “OFF” position. Step 2 Turn the fuel switch to “OFF” position. Step 3 Turn off water supply. Step 4 Press trigger to release water pressure. Step 5 Disconnect thegarden hose from the waterinlet joint on the unit. -
Page 10: Winterizing And Long-Term Storage
Owner's Manual for Gasoline High Pressure Cleaner TAKING A BREAK….five minutes or more Step 1 Turn the engine switch to “OFF” position. Step 2 Turn the fuel switch to “OFF” position. Step 3 Press trigger to release water pressure. Step 4 Engage the gun safety lock. WINTERIZING AND LONG-TERM STORAGE 1. -
Page 11: Cleaning Tips
Owner's Manual for Gasoline High Pressure Cleaner CLEANING TIPS Deck cleaning (with or without detergent) Pre-rinse deck and surrounding area with fresh water. If using deck wash, Place detergent suction tube directly into cleaning solution and apply to surface at low pressure. For best results, limit your work area to smaller sections of approximately 25 square feet, allow deck wash to remain on surface 1-3 minutes. - Page 12 Owner's Manual for Gasoline High Pressure Cleaner CLEANING TIPS – Continued Barbecue Grills, Outdoor Power Equipment & Gardening T ools (with or without detergent) Pre-rinse surface with fresh water. If using all purpose cleaner or degreaser, place detergent suction tube directly into cleaning solution and apply detergent at low pressure.
-
Page 13: Troubleshooting
Owner's Manual for Gasoline High Pressure Cleaner TROUBLESHOOTING Disconnect the machine from the power source before making any repair Symptom Cause Solution Engine will not · No gasoline · Fill gas tank. start · Low oil level · Add oil. Slide choke lever out to closed position. - Page 14 Owner's Manual for Gasoline High Pressure Cleaner TROUBLESHOOTING – continued Symptom Cause Solution No detergent. · Detergent suction tube not · Check connection. properly connected to the machine. · Dilute detergent. For best results, use detergent. · Detergent is too thick. ·...
-
Page 15: Maintenance
Owner's Manual for Gasoline High Pressure Cleaner MAINTENANCE · Check the filter element of the aire cleaner. Remove the dirt and dust to keep it clean. · Check the bolts and nuts to make sure they are fastened. · Check the lube oil level according to Part 1. 1. - Page 16 .Do not throw in the trash or pourit on the ground. Operating Instructions and Parts Manual AWPG3400 Repair Parts List for Engine Driven Pumps, Model AWPG3400 DESCRIPTION QTY.
-
Page 17: Specification
NOTE: Please dispose of used engine oil in a manner that is compatible withthe environment .We suggest you take it in a sealed container to yonrocal service station for reclamation .Do not throw in the trash or pourit on the ground. Operating Instructions and Parts Manual AWPG3400 MODLE AWPG3400 Rated flow(GPM/LPM) 2.6/9.8... -
Page 18: Circuit Diagram
Owner's Manual for Gasoline High Pressure Cleaner measurement distance d=1m ENVIRONMENT: 1.Altitude:<1000m 2.Atmospheric temperature:-5℃~40℃ 3.Relative humidity:<75% 4.Never be used in explosive enviroment. CIRCUIT DIAGRAM... - Page 19 Owner's Manual for Gasoline High Pressure Cleaner...
