Mega 1

2000W Portable Power Station

User Manual

Table of Contents

Need help?

Do you have a question about the Mega 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for OUPES Mega 1

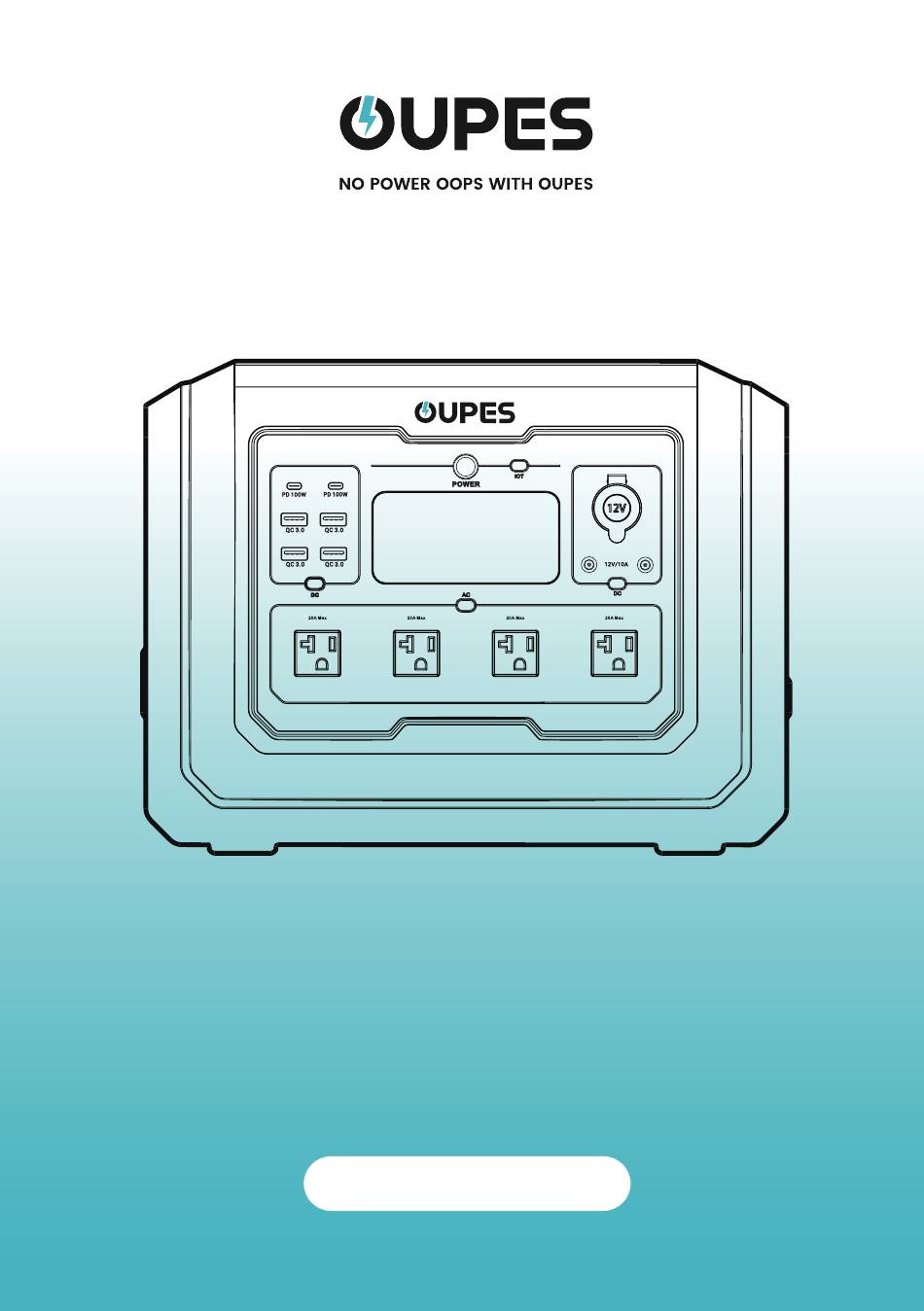

Page 1 Mega 1 2000W Portable Power Station User Manual...
Page 2: Table Of Contents
Contents Disclaimer Safety Instruction 02-04 Preparation Before Use 02-03 Device Compatibility and Precautions Common Mistakes and How to Avoid Them Usage Scenarios and Precautions Product List Product Description 06-08 Specifications Overview LCD Screen Instructions for Use 09-10 Power ON/OFF 09-10 AC Input Overload Protection Recharge Methods 11-12...
Page 3: Disclaimer
Disclaimer Before using this product, please read this user manual carefully to ensure that you fully understand the product and can use it correctly. After reading this user manual, please keep it in a safe place for future reference. Improper use of this product may cause serious injury to yourself or others, or result in product damage and property loss.
Page 4: Safety Instruction
Safety Instruction Preparation Before Use 1.1 Read the User Manual Carefully review the user manual provided with the device to understand the power station's interface functions, rated power, supported device types, and usage methods. Pay special attention to the rated power and output voltage of each interface to ensure compatibility with connected devices.
Page 5: Device Compatibility And Precautions
Device Compatibility and Precautions 2.3 Special Note: List of Sensitive Devices Devices sensitive to voltage fluctuations include: ●Tablets like iPads ●High-end TVs (OLED, 4K) ●Cameras and drones ●High-end sound systems For these devices, use them individually and ensure proper interface matching. Common Mistakes and How to Avoid Them 3.1 Using the Wrong Interface, Causing Device Damage ●Error Example: Using the car charger port for powering voltage-sensitive devices (e.g.,...
Page 6: Usage Scenarios And Precautions
Usage Scenarios and Precautions 4.1 Charging via the car charger ●Do not charge devices via the car charger interface when the vehicle is starting or stopping to avoid voltage spikes. ●Ensure the device's power aligns with the station's output specifications when using the car charger interface.
Page 7: What's In The Box
Available On Available On You can connect this product via APP to view information, control the device and personalize settings. Scan the QR code to down- load our Smart Control APP. What's in the Box Power Station*1 AC Charging MC4 to Anderson Cable *1 Cable *1 Cigarette Lighter to...
Page 8: Product Description
Product Description Specifications Output Output 120V 50Hz/60Hz AC Output Max 2000W（Surge: 4500W） Bypass Mode: 2000W DC 12V & Cigarette 13V10A 130W Total Lighter Output 5V3A; 9V2A; 12V1.5A【18W Max】 USB-A Output USB-C Output 5V3A; 9V3A; 12V3A; 15V3A; 20V5A【100W Max】 Input AC Input 90V~140V 60Hz 12A Max 1400W Max Solar Input 12V~78V MPPT: 18V~75V 14A Max 800W Max...
Page 9: Overview
Product Description Overview USB-A USB-C Main Power Output Port Output Port Screen Button Button AC Output AC Output DC Output DC 5521 Cigarette Lighter Socket Power Button Power Button Output Port Output Port AC Input Port Solar/Car Input Port AC Input Overload Protection Extra Battery Port...
Page 10: Lcd Screen
Product Description LCD Screen Remaining discharge Battery Capacity WiFi& Input Power time display Percentage Bluetooth Display Error Warning Battery Capacity Output Power Circle Display AC Output USB-C Cooling Cigarette Lighter Indicator Indicator Indicator USB-A High temperature Low temperature DC 5521 Indicator lndicator lndicator...
Page 11: Instructions For Use
Instructions for use Power ON/OFF Main Power： a）Press and hold the main power button for 3 seconds to turn the main power on or off. b）When the main power is on, short press the main power button to turn the screen on or off.
Page 12: Ac Input Overload Protection
Power ON/OFF AC/DC Output Power： a) When the main power is on, press AC/DC output power button to turn on, press them again to turn off. b) The product will shut down after 6 hours without any load connected, which can be adjusted on the APP.
Page 13: Recharge Methods
Recharge Methods AC Charging Use AC charging cable to connect AC wall outlet and the power station. Solar Charging a）Use MC4 to Anderson charging cable to connect solar panels and the power station. b）Connect 3*240W solar panels at most in series to get maximum power. c）Make sure the solar panels meet the following requirements: OCV: 78V；Current: 14A；Max Power: 800W...
Page 14: Cigarette Lighter Charging
Cigarette Lighter Charging a）The cigarette lighter port supports 12V~15V, 8A car charging input. b）Please ensure that the car is started before connecting the power station in case that the car battery drains. Extra Battery Charging a）Turn off the power station and the extra battery before connecting or discon- necting them.
Page 15: Eps(Emergency Power Supply) Function
Function (Emergency Power Supply) a）EPS function is enabled by default with a 20ms switching when grid power is cut off. b）Charge the power station from power grid and connect the device to AC output port as shown in the picture, then press AC output power button on. c）Please do not connect the power station to equipment requiring 0ms uninter- rupted power supply.
Page 16: Error Code & Trouble Shooting
Error Code & Trouble Shooting Error Status Cause Solution Code Short circuit of AC Press the AC output E000 power button to restore. output. flashing, no output Press the AC output power E001 Overload of AC output. button to restore. flashing, no output Charge the device in time and Battery voltage of...
Page 17 Error Code & Trouble Shooting Error Status Cause Solution Code Stop charging and discharge Over voltage of single E021 until the battery voltage flashing battery cell returns to normal. Charge the device until the Low Voltage of single E022 voltage returns to normal. flashing, no ouput battery cell.
Page 18: Faq(Frequently Asked Question)
Scan QC code for FAQ. Certification and Compliance FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde- sired operation.
Page 19 FCC Warning Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 20 Customer Service Hours (EST): Call Us: +1 (209) 400-9909(9:00 AM - 5:00 PM, Mon. - Fri.) Email Us: 9:00 PM - 5:00 AM, Mon. - Fri. https://oupes.com...
