Page 1 Edition 10/2023 Reference Manual SIMATIC NET Networking components RUGGEDCOM Modules For RX1500, RX1501, RX1510, RX1511, RX1512, RX1524, RX1536 https://www.siemens.com/ruggedcom...
Page 2 Preface Introduction Power supply modules SIMATIC NET Copper Ethernet modules Networking components Fiber optic Ethernet RUGGEDCOM Modules modules Serial modules Reference Manual WAN modules Cellular modem modules RUGGEDCOM APE modules Blank modules For RX1500, RX1501, RX1510, RX1511, RX1512, RX1524, RX1536 10/2023 C79000-G8976-1320-18...
Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
Page 4 SIMATIC NET glossary ......................viii Accessing documentation ..................... viii Registered trademarks ......................viii Training ..........................viii Customer support ........................ix Contacting Siemens ........................ ix Ordering RUGGEDCOM products ....................x Introduction ........................... 1 Available modules ....................1 Supported modules by device ................16 Installing/removing modules ................
Page 5 Table of contents 3.10 RUGGEDCOM RX1500PN LM 6TX01 ..............68 Fiber optic Ethernet modules ..................... 71 RUGGEDCOM RX1500PN LM 4FX11 ..............72 RUGGEDCOM RX1500PN LM FL01 ............... 74 RUGGEDCOM RX1500PN LM FG03 ............... 76 RUGGEDCOM RX1500PN LM FG50 ............... 78 RUGGEDCOM RX1500PN LM FG51 ...............
Page 6 Table of contents RUGGEDCOM RX1500PN LM APE1404 ADM (Obsolete) ........211 RUGGEDCOM RX1500PN LM APE1404W7 (Obsolete) ......... 214 RUGGEDCOM RX1500PN LM APE1404CKP (Obsolete) ......... 217 RUGGEDCOM RX1500PN LM APE1808LNX ............220 RUGGEDCOM RX1500PN LM APE1808W10 ............222 RUGGEDCOM RX1500PN LM APE1808CKP ............224 8.10 RUGGEDCOM RX1500PN LM APE1808ADM ............
Page 7 Table of contents RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 8 Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Security RSS Feed under https://www.siemens.com/cert. Supplementary documentation Documentation related to RUGGEDCOM RX1500 is available on the Siemens Industry Online Support website at .
Page 9 Downloads SIMATIC NET glossary The SIMATIC NET glossary describes special terms that may be used in this document. The glossary is available online via Siemens Industry Online Support (SIOS) at: https://support.industry.siemens.com/cs/ww/en/view/50305045 Accessing documentation The latest user documentation for RUGGEDCOM RX1500 is available online at https:// support.industry.siemens.com.
Page 10 Call a local hotline center to submit a Support Request (SR). To locate a local hotline center, visit https://w3.siemens.com/aspa_app/?lang=en. Mobile app Install the Industry Online Support app by Siemens AG on any Android, Apple iOS or Windows mobile device and be able to: •...
Page 11 E-Mail info.ruggedcom@siemens.com https://www.siemens.com Ordering RUGGEDCOM products Use the RUGGEDCOM-Selector to select and configure RUGGEDCOM products and accessories. Once selected, an item(s) can be transferred to the Siemens Industry Mall and ordered. RUGGEDCOM Selector http://www.siemens.com/ruggedcom-selector. For more information, refer to https://www.siemens.com.
Page 12 Introduction This catalog details the various power and media modules available for the RUGGEDCOM RX1500/RX1501/RX1510/RX1511/RX1512/RX1524/RX1536. Modules allow network designers to quickly and cost effectively adjust their communications infrastructure to the needs of the facilities and the network. It is intended to be used as a supplement to the "Installation Manual" for the device.
Page 13 Introduction 1.1 Available modules 6GK6015-0AL18-0AA1 (Conformal coated) RUGGEDCOM RX1500PN PS 24 Input range 13 to 36 VDC (shipped until 2019) Maximum power consumption 63.5 W Terminal type Non-removable Screw Article numbers 6GK6015-0AL11-0AA0 (Standard) 6GK6015-0AL11-0AA1 (Conformal coated) RUGGEDCOM RX1500PN PS 24 Input range 13 to 36 VDC (shipped from 2019 on) Maximum power consumption...
Page 14 Introduction 1.1 Available modules Terminal type Non-removable Screw Article numbers 6GK6015-0AL13-0AA0 (Standard) 6GK6015-0AL13-0AA1 (Conformal coated) RUGGEDCOM RX1500PN PS HI Input range 88 to 300 VDC or 85 to 264 VAC (shipped from 2019 on) Maximum power consumption 65 W Terminal type Removable Screw Article numbers 6GK6015-0AL13-0AA0...
Page 15 Introduction 1.1 Available modules Interface Port Type M12 (8-Pin, A-Coded, Controlled Bypass) Distance 100 m (328 ft) Article numbers 6GK6015-0AL20-0PE0 (Standard) 6GK6015-0AL20-0PE1 (Conformal coated) RUGGEDCOM RX1500PN LM X Power Consumption CG04 Ports Speed 1000 Mbps Interface Port Type M12 (8-pin, X-Coded) Distance 100 m (328 ft) Article numbers...
Page 16 Introduction 1.1 Available modules Article numbers 6GK6015-0AL20-0PF0 (Standard) 6GK6015-0AL20-0PF1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption 4TX04 Ports Speed 100 Mbps Interface Port Type M12 (4-Pin, D-Coded) Distance 100 m (328 ft) Article numbers 6GK6015-0AL20-0PD0 (Standard) 6GK6015-0AL20-0PD1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption 4TX04B Ports...
Page 17 Introduction 1.1 Available modules Distance 2 km (1.2 mi) Article numbers 6GK6015-0AL20-0BC0 (Standard) 6GK6015-0AL20-0BC1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption FL01 Mode Speed 10/100 Mbps Interface FL/SX Wavelength 820 nm Ports Port Type Distance 2 km (1.2 mi) Article numbers 6GK6015-0AL20-0BD0 (Standard) 6GK6015-0AL20-0BD1...
Page 18 Introduction 1.1 Available modules 6GK60150-AL200-DC1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption FX50 SFP sockets Speed 100 Mbps Article numbers 6GK6015-0AL20-0JC0 (Standard) 6GK6015-0AL20-0JC1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption FX51 Mode Speed 100 Mbps Interface Wavelength 1310 nm Ports Port Type Distance 2 km (1.2 mi) Article numbers...
Page 19 Introduction 1.1 Available modules Port Type RJ45 Article numbers 6GK6015-0AL20-0KB0 (Standard) 6GK6015-0AL20-0KB1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption Interface T1/E1 Ports Port Type RJ48C Article numbers 6GK6015-0AL20-0MB0 (Standard) 6GK6015-0AL20-0MB1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption Interface T1/E1 Ports Port Type RJ48C Article numbers 6GK6015-0AL20-0MC0...
Page 20 Introduction 1.1 Available modules Cellular Modem Modules RUGGEDCOM RX1500PN LM Power Consumption Services GSM/EDGE/HSPA+ Region North America (AT&T) Port Type 50 Ω SMA Antennas 1 x GSM/EDGE/HSPA+, 1 x Receive Diversity (Secondary) Dual Mini-SIM (2FF) Article numbers 6GK6015-0AL20-0WB0 (Standard) 6GK6015-0AL20-0WB1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption Services...
Page 21 Introduction 1.1 Available modules RUGGEDCOM RX1500PN LM Power Consumption Services EVDO Rev A Region North America (Verizon) Port Type 50 Ω SMA Antennas 1 x GSM/EDGE/HSPA+, 1 x EVDO Rev A, 2 x Receive Diversity (Secondary) Dual Mini-SIM (2FF) Article numbers 6GK6015-0AL20-0WF0 (Standard) 6GK6015-0AL20-0WF1...
Page 22 Introduction 1.1 Available modules Article numbers 6GK6015-0AL20-0WJ0 (Standard) 6GK6015-0AL20-0WJ1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption Services 4G LTE/HSPA+/EDGE/GPRS/GSM/ UMTS/GNSS Region Asia-Pacific Port Type 50 Ω SMA Antennas 1 x LTE Main, 1 x LTE MIMO, 1 x Dual Mini-SIM (2FF) Article numbers 6GK60150AL200WK0 (Standard) 6GK60150AL200WK1...
Page 23 Introduction 1.1 Available modules RUGGEDCOM RX1500PN LM Power Consumption 10 W APE1402W7 (Obsolete) Operating System Windows® Embedded Standard Processor Intel Atom E660 1.3 GHz, 512 KB L2 Cache 2 GB DDR2, 800 MHz, 32-bit Disk 8 GB SATA, Solid State Networking Realtek RTL8111, RJ45 Gigabit Ethernet Interface 2 x USB 2.0...
Page 24 Introduction 1.1 Available modules RUGGEDCOM RX1500PN LM Power Consumption 10 W APE1404W7 (Obsolete) Operating System Windows® Embedded Standard Processor Intel Atom E660T 1.3 GHz, 512 KB L2 Cache 2 GB DDR2, 800 MHz, 32-bit Disk 16 GB SATA, Solid State Networking Realtek RTL8111, RJ45 Gigabit Ethernet Interface 2 x USB 2.0...
Page 25 Introduction 1.1 Available modules RUGGEDCOM RX1500PN LM Power Consumption 12 W APE1808W10 Operating System Windows® 10 Enterprise 2019 LTSC Processor Intel x5-E3940 1.8 GHz, 2 MB L2 Cache 8 GB DDR3 ECC, 1600 MHz, 32- Disk 80 GB, Solid State Networking Intel I210, RJ45 Gigabit Ethernet Interface 2 x USB 3.0...
Page 26 (Standard) 6GK6015-0AL20-0GN1 (Conformal coated) RUGGEDCOM RX1500PN LM Power Consumption 12 W APE1808CConn Operating System Siemens CloudConnect Processor Intel x5-E3940 1.8 GHz, 2 MB L2 Cache 8 GB DDR3 ECC, 1600 MHz, 32- Disk 80 GB, Solid State Networking Intel I210, RJ45 Gigabit Ethernet Interface 2 x USB 3.0...
Page 27 1.2 Supported modules by device Supported modules by device Most devices in the RUGGEDCOM RX1500 product family support most, if not all available modules. Restrictions exist for some. Before selecting/installing a module, verify first if it is supported by the target device.
Page 28 Introduction 1.2 Supported modules by device Module RUGGEDCOM RX1500PN LM FL01 • • • • • • • RUGGEDCOM RX1500PN LM FG03 • • • • • • • RUGGEDCOM RX1500PN LM FG50 • • • • • • • RUGGEDCOM RX1500PN LM FG51 •...
Page 29 Introduction 1.3 Installing/removing modules Module RUGGEDCOM RX1500PN LM W61 • • • • • • • RUGGEDCOM RX1500PN LM W81 • • • • • • • RUGGEDCOM RX1500PN LM W91 • • • • • • • RUGGEDCOM APE modules Module RUGGEDCOM RX1500PN LM APE1402 (Obsolete) •...
Page 30 Introduction 1.4 Dimensions Dimensions Power and media modules conform to the following dimensions: Note All dimensions are in millimeters (mm). Power Supply Module Dimensions 162.5 151.8 40.6 Figure 1.1 Power Supply Module Dimensions Media Module Dimensions 162.5 151.4 19.7 Figure 1.2 Media Module Dimensions RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 31 Introduction 1.4 Dimensions RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...

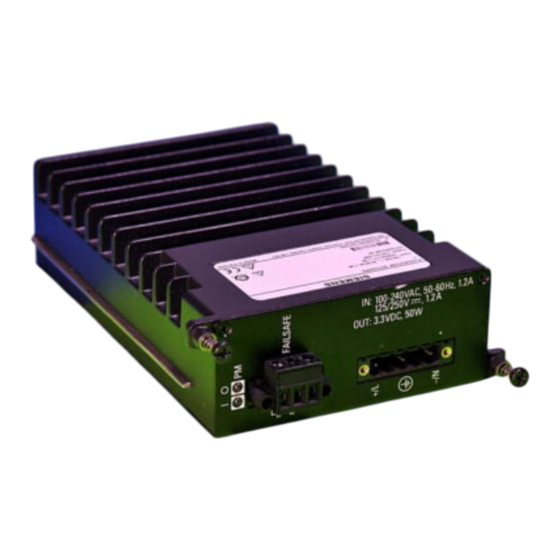

Page 32 Power supply modules The following power supply modules are available, excluding the RUGGEDCOM RX1512. Note The RUGGEDCOM RX1512 features a built-in power supply. RUGGEDCOM RX1500PN PS 12 "RUGGEDCOM RX1500PN PS 12" (Page 22) RUGGEDCOM RX1500PN PS 12P "RUGGEDCOM RX1500PN PS 12P" (Page 24) RUGGEDCOM RX1500PN PS 24 "RUGGEDCOM RX1500PN PS 24"...
Page 33 Terminal Block A removable screw terminal block. For information about connecting power to the module, refer to the "Installation Manual" for the RUGGEDCOM RX1500. Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm conditions.
Page 34 Siemens Canada Ltd.. For contact information, refer to "Contacting Siemens" (Page ix). RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 35 Terminal Block A 3-position European-style (Euroblock) terminal block. For information about connecting power to the module, refer to the "Installation Manual" for the RUGGEDCOM RX1500. Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm conditions.
Page 36 Siemens Canada Ltd.. For contact information, refer to "Contacting Siemens" (Page ix). RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 37 Power supply modules 2.3 RUGGEDCOM RX1500PN PS 24 RUGGEDCOM RX1500PN PS 24 The RUGGEDCOM RX1500PN PS 24 power supply module provides 24 VDC power to the host device and features a failsafe relay to protect against critical error conditions. It is equipped with a removable screw terminal block and a failsafe relay terminal block.
Page 38 Siemens Canada Ltd.. For contact information, refer to "Contacting Siemens" (Page ix). RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 39 Terminal Block A 3-position European-style (Euroblock) terminal block. For information about connecting power to the module, refer to the "Installation Manual" for the RUGGEDCOM RX1500. Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm conditions.
Page 40 Siemens Canada Ltd.. For contact information, refer to "Contacting Siemens" (Page ix). RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 41 Terminal Block A removable screw terminal block. For information about connecting power to the module, refer to the "Installation Manual" for the RUGGEDCOM RX1500. Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm conditions.
Page 42 Siemens Canada Ltd.. For contact information, refer to "Contacting Siemens" (Page ix). RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous...
Page 43 Power supply modules 2.5 RUGGEDCOM RX1500PN PS 48 6GK6015-0AL12-0AA1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 44 Terminal Block A 3-position European-style (Euroblock) terminal block. For information about connecting power to the module, refer to the "Installation Manual" for the RUGGEDCOM RX1500. Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm conditions.
Page 45 Siemens Canada Ltd.. For contact information, refer to "Contacting Siemens" (Page ix). RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 46 Terminal Block A removable screw terminal block. For information about connecting power to the module, refer to the "Installation Manual" for the RUGGEDCOM RX1500. Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm conditions.
Page 47 Siemens Canada Ltd.. For contact information, refer to "Contacting Siemens" (Page ix). RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous...
Page 48 Power supply modules 2.7 RUGGEDCOM RX1500PN PS HI 6GK6015-0AL13-0AA1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 49 Terminal Block A 3-position European-style (Euroblock) terminal block. For information about connecting power to the module, refer to the "Installation Manual" for the RUGGEDCOM RX1500. Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm conditions.
Page 50 Siemens Canada Ltd.. For contact information, refer to "Contacting Siemens" (Page ix). RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 51 Power supply modules 2.8 RUGGEDCOM RX1500PN PS HIP RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 52 Copper Ethernet modules The following copper Ethernet modules are available. RUGGEDCOM RX1500PN LM CG01 "RUGGEDCOM RX1500PN LM CG01" (Page 42) RUGGEDCOM RX1500PN LM CG03 "RUGGEDCOM RX1500PN M12 CG03" (Page 45) RUGGEDCOM RX1500PN LM CG03B "RUGGEDCOM RX1500PN M12 CG03B" (Page 48) RUGGEDCOM RX1500PN LM CG04 "RUGGEDCOM RX1500PN M12 X CG04"...
Page 53 Copper Ethernet modules 3.1 RUGGEDCOM RX1500PN LM CG01 RUGGEDCOM RX1500PN LM CG01 The RUGGEDCOM RX1500PN LM CG01 module features two 10/100/1000Base-TX copper RJ45 Ethernet ports. Description Ethernet ports Port LEDs Figure 3.1 RUGGEDCOM RX1500PN LM CG01 Ethernet ports Fixed 10/100/1000Base-TX copper RJ45 Ethernet ports. Port LEDs Each port features a dedicated LED that indicates its Link/activity state.
Page 54 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 55 Copper Ethernet modules 3.1 RUGGEDCOM RX1500PN LM CG01 Declarations of conformity for each directive are available online via Siemens Industry Online Support [https:// support.industry.siemens.com/]. Ordering information Description 2 x 10/100/1000TX RJ45 Article numbers 6GK6015-0AL20-0FC0 (Standard) 6GK6015-0AL20-0FC1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 56 Copper Ethernet modules 3.2 RUGGEDCOM RX1500PN M12 CG03 RUGGEDCOM RX1500PN M12 CG03 The RUGGEDCOM RX1500PN M12 CG03 module features two 10/100/1000Base-TX copper M12 (8-pin, A-coded) Ethernet ports. Description M12 port Port LED Figure 3.3 RUGGEDCOM RX1500PN M12 CG03 Ethernet ports Fixed 10/100/1000Base-TX copper M12 Ethernet ports. Port LEDs Each port features a dedicated LED that indicates its Link/activity state.
Page 57 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous...
Page 58 Copper Ethernet modules 3.2 RUGGEDCOM RX1500PN M12 CG03 Ordering information Description 2 x 10/100/1000TX 8-pin M12 Article numbers 6GK6015-0AL20-0PB0 (Standard) 6GK6015-0AL20-0PB1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 59 Copper Ethernet modules 3.3 RUGGEDCOM RX1500PN M12 CG03B RUGGEDCOM RX1500PN M12 CG03B The RUGGEDCOM RX1500PN M12 CG03B module features two 10/100/1000Base- TX copper M12 (8-pin, A-coded) Ethernet ports. Both ports can be utilized as bypass ports to protect the network from power disruptions. Description M12 port Port LED...
Page 60 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 61 Copper Ethernet modules 3.3 RUGGEDCOM RX1500PN M12 CG03B Ordering information Description 2 x 10/100/1000TX 8-pin M12 with Controlled Bypass Article numbers 6GK6015-0AL20-0PE0 (Standard) 6GK6015-0AL20-0PE1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 62 Copper Ethernet modules 3.4 RUGGEDCOM RX1500PN M12 X CG04 RUGGEDCOM RX1500PN M12 X CG04 The RUGGEDCOM RX1500PN M12 X CG04 module features two 10/100/1000Base-TX copper M12 (8-pin, X-coded) Ethernet ports. Description M12 port Port LED Figure 3.7 RUGGEDCOM RX1500PN M12 X CG04 Ethernet ports Fixed 10/100/1000Base-TX copper M12 Ethernet ports.
Page 63 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous...
Page 64 Copper Ethernet modules 3.4 RUGGEDCOM RX1500PN M12 X CG04 Article numbers 6GK6015-0AL20-0PH0 (Standard) 6GK6015-0AL20-0PH1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 65 Copper Ethernet modules 3.5 RUGGEDCOM RX1500PN M12 X CG04B RUGGEDCOM RX1500PN M12 X CG04B The RUGGEDCOM RX1500PN M12 X CG04B module features two 10/100/1000Base- TX copper M12 (8-pin, X-coded) Ethernet ports. Both ports can be utilized as bypass ports to protect the network from power disruptions. Description M12 port Port LED...
Page 66 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 67 Copper Ethernet modules 3.5 RUGGEDCOM RX1500PN M12 X CG04B Ordering information Description 2 x 10/100/1000TX 8-pin M12 X-Coded with Controlled Bypass Article numbers 6GK6015-0AL20-0PJ0 (Standard) 6GK6015-0AL20-0PJ1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 68 Copper Ethernet modules 3.6 RUGGEDCOM RX1500PN M12 4TX03 RUGGEDCOM RX1500PN M12 4TX03 The RUGGEDCOM RX1500PN M12 4TX03 module features four 10/100Base-TX copper M12 (8-pin, A-Coded) Ethernet ports. Description M12 Port Port LED Figure 3.11 RUGGEDCOM RX1500PN M12 4TX03 Ethernet ports Fixed 10/100Base-TX copper M12 Ethernet ports. Port LEDs Each port features a dedicated LED that indicates its link/activity state.
Page 69 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous...
Page 70 Copper Ethernet modules 3.6 RUGGEDCOM RX1500PN M12 4TX03 Ordering information Description 4 x 10/100TX 8-pin M12 Article numbers 6GK6015-0AL20-0PC0 (Standard) 6GK6015-0AL20-0PC1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 71 Copper Ethernet modules 3.7 RUGGEDCOM RX1500PN M12 4TX03B RUGGEDCOM RX1500PN M12 4TX03B The RUGGEDCOM RX1500PN M12 4TX03B module features four 10/100Base-TX copper M12 (8-pin, A-coded) Ethernet ports. Two of the available ports can be utilized as bypass ports to protect the network from power disruptions. Description M12 Port M12 Port with Controlled Bypass...
Page 72 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 73 Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products Declarations of conformity for each directive are available online via Siemens Industry Online Support [https:// support.industry.siemens.com/]. Ordering information Description 4 x 10/100TX 8-pin M12 with Controlled Bypass...
Page 74 Copper Ethernet modules 3.8 RUGGEDCOM RX1500PN M12 4TX04 RUGGEDCOM RX1500PN M12 4TX04 The RUGGEDCOM RX1500PN M12 4TX04 module features four 10/100Base-TX copper M12 (4-pin, D-coded) Ethernet ports. Description M12 Port Port LED Figure 3.15 RUGGEDCOM RX1500PN M12 4TX04 Ethernet ports Fixed 10/100Base-TX copper M12 Ethernet ports. Port LEDs Each port features a dedicated LED that indicates its link/activity state.
Page 75 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 76 Copper Ethernet modules 3.9 RUGGEDCOM RX1500PN M12 4TX04B RUGGEDCOM RX1500PN M12 4TX04B The RUGGEDCOM RX1500PN M12 4TX04B module features four 10/100Base-TX copper M12 (4-pin, D-coded) Ethernet ports. Two of the available ports can be utilized as bypass ports to protect the network from power disruptions. Description M12 Port M12 Port with Controlled Bypass...
Page 77 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 78 Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products Declarations of conformity for each directive are available online via Siemens Industry Online Support [https:// support.industry.siemens.com/]. Ordering information Description 4 x 10/100TX 4-pin M12 with Controlled Bypass...
Page 79 Copper Ethernet modules 3.10 RUGGEDCOM RX1500PN LM 6TX01 3.10 RUGGEDCOM RX1500PN LM 6TX01 The RUGGEDCOM RX1500PN LM 6TX01 module features six 10/100Base-TX copper RJ45 Ethernet ports. Description Ethernet ports Port LEDs Figure 3.19 RUGGEDCOM RX1500PN LM 6TX01 Ethernet ports Fixed 10/100Base-TX copper RJ45 Ethernet ports. Port LEDs Each port features a dedicated LED that indicates its link/activity state.
Page 80 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 81 Copper Ethernet modules 3.10 RUGGEDCOM RX1500PN LM 6TX01 Declarations of conformity for each directive are available online via Siemens Industry Online Support [https:// support.industry.siemens.com/]. Ordering information Description 6 x 10/100TX RJ45 Article numbers 6GK6015-0AL20-0NB0 (Standard) 6GK6015-0AL20-0NB1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 82 Fiber optic Ethernet modules The following fiber optic Ethernet modules are available. RUGGEDCOM RX1500PN LM 4FX11 "RUGGEDCOM RX1500PN LM 4FX11" (Page 72) RUGGEDCOM RX1500PN LM FL01 "RUGGEDCOM RX1500PN LM FL01" (Page 74) RUGGEDCOM RX1500PN LM FG03 "RUGGEDCOM RX1500PN LM FG03" (Page 76) RUGGEDCOM RX1500PN LM FG50 "RUGGEDCOM RX1500PN LM FG50"...
Page 83 Fiber optic Ethernet modules 4.1 RUGGEDCOM RX1500PN LM 4FX11 RUGGEDCOM RX1500PN LM 4FX11 The RUGGEDCOM RX1500PN LM 4FX11 module features four 100Base-FX fiber optic Ethernet ports. Note When connecting cables, make sure the Transmit (Tx) and Receive (Rx) connections of each port are properly connected and matched to establish a proper link. Description Ethernet ports Port LEDs...
Page 84 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 85 Fiber optic Ethernet modules 4.2 RUGGEDCOM RX1500PN LM FL01 RUGGEDCOM RX1500PN LM FL01 The RUGGEDCOM RX1500PN LM FL01 module features three 10Base-FL/100Base-SX fiber optic Ethernet ports. Note When connecting cables, make sure the Transmit (Tx) and Receive (Rx) connections of each port are properly connected and matched to establish a proper link. Description Ethernet ports Port LEDs...
Page 86 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 87 Fiber optic Ethernet modules 4.3 RUGGEDCOM RX1500PN LM FG03 RUGGEDCOM RX1500PN LM FG03 The RUGGEDCOM RX1500PN LM FG03 module features two 1000Base-LX fiber optic Ethernet ports. Note When connecting cables, make sure the Transmit (Tx) and Receive (Rx) connections of each port are properly connected and matched to establish a proper link. Description Ethernet ports Port LEDs...
Page 88 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 89 For information about which SFP transceivers are compatible with this module, as well as instructions for ordering and installation/ removal, refer to the "RUGGEDCOM SFP Transceiver Catalog [https:// support.industry.siemens.com/cs/ca/en/view/109482309]". Port LEDs Each transceiver socket features a dedicated LED that indicates the link/activity state of the associated SFP transceiver.
Page 90 Fiber optic Ethernet modules 4.4 RUGGEDCOM RX1500PN LM FG50 RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 91 Fiber optic Ethernet modules 4.5 RUGGEDCOM RX1500PN LM FG51 RUGGEDCOM RX1500PN LM FG51 The RUGGEDCOM RX1500PN LM FG51 module features two 1000Base-SX fiber optic Ethernet ports. Note When connecting cables, make sure the Transmit (Tx) and Receive (Rx) connections of each port are properly connected and matched to establish a proper link. Description Ethernet ports Port LED...
Page 92 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 93 For information about which SFP transceivers are compatible with this module, as well as instructions for ordering and installation/ removal, refer to the "RUGGEDCOM SFP Transceiver Catalog [https:// support.industry.siemens.com/cs/ca/en/view/109482309]". Port LEDs Each transceiver socket features a dedicated LED that indicates the link/activity state of the associated SFP transceiver.
Page 94 Fiber optic Ethernet modules 4.6 RUGGEDCOM RX1500PN LM FX50 RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 95 Fiber optic Ethernet modules 4.7 RUGGEDCOM RX1500PN LM FX51 RUGGEDCOM RX1500PN LM FX51 The RUGGEDCOM RX1500PN LM FX51 module features two 100Base-FX fiber optic Ethernet ports. Note When connecting cables, make sure the Transmit (Tx) and Receive (Rx) connections of each port are properly connected and matched to establish a proper link. Description Ethernet ports Port LEDs...
Page 96 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 97 For information about which SFP transceivers are compatible with this module, as well as instructions for ordering and installation/ removal, refer to the "RUGGEDCOM SFP Transceiver Catalog [https:// support.industry.siemens.com/cs/ca/en/view/109482309]". Port LEDs Each transceiver socket features a dedicated LED that indicates the link/activity state of the associated SFP transceiver.
Page 98 Fiber optic Ethernet modules 4.8 RUGGEDCOM RX1500PN LM 6FX50 RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 99 Fiber optic Ethernet modules 4.9 RUGGEDCOM RX1500PN LM 6FX51 RUGGEDCOM RX1500PN LM 6FX51 The RUGGEDCOM RX1500PN LM 6FX51 module features six 100Base-FX fiber optic Ethernet ports. Note When connecting cables, make sure the Transmit (Tx) and Receive (Rx) connections of each port are properly connected and matched to establish a proper link. Description Ethernet ports Port LED...
Page 100 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 101 Fiber optic Ethernet modules 4.9 RUGGEDCOM RX1500PN LM 6FX51 RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 102 Serial modules The following serial modules are available. RUGGEDCOM RX1500PN LM S01 "RUGGEDCOM RX1500PN LM S01" (Page 92) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 103 Each serial port can be run in RS232, RS485 or RS422 mode. On initial power-up, all serial ports default to RS485 mode. However, each port can be individually set to RS232, RS485 or RS422 mode via RUGGEDCOM RX1500. For more information, refer to the "RUGGEDCOM ROX Configuration Manual" for the host device.
Page 104 Serial modules 5.1 RUGGEDCOM RX1500PN LM S01 Pin-out description The following are the pin-out descriptions for the RJ45 ports: Figure 5.2 Serial RJ45 Port RS232 Mode RS485 Mode RS422 Mode RX- (Receive Negative) Reserved (Do Not Connect) Common (Isolated) Ground RX (Receive) ...
Page 105 Serial modules 5.1 RUGGEDCOM RX1500PN LM S01 The following illustration demonstrates the recommended RS485 wiring scheme: 120Ω 10nF 120Ω 10nF RUGGEDCOM RX1500PN LM S01 Module and Host Device Common (Isolated Ground) Negative Positive Shield to Earth (Connected At a Single Point) RS485 Devices (32 Total) Figure 5.3 Recommended RS485 Wiring...
Page 106 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 107 Serial modules 5.1 RUGGEDCOM RX1500PN LM S01 RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 108 WAN modules The following Wireless Area Network (WAN) modules are available. "RUGGEDCOM RX1500PN LM TC1" (Page 98) "RUGGEDCOM RX1500PN LM TC2" (Page 101) "RUGGEDCOM RX1500PN LM TC4" (Page 104) "RUGGEDCOM RX1500PN LM E02" (Page 107) "RUGGEDCOM RX1500PN LM D02" (Page 109) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 109 WAN modules 6.1 RUGGEDCOM RX1500PN LM TC1 RUGGEDCOM RX1500PN LM TC1 The RUGGEDCOM RX1500PN LM TC1 module features a single T1/E1 RJ48C port for connection to a Wide Area Network (WAN). Requirements/restrictions Chassis Only one T1/E1 module is permitted per device. Description WAN Port TX LED...
Page 110 WAN modules 6.1 RUGGEDCOM RX1500PN LM TC1 Installing the module For information about installing this module, refer to the "Installation Manual" for the host device. Pin-out description The following is the pin-out for the RJ48C port: Figure 6.2 RJ48C Pin Configuration Name Description RRING Receive Negative...
Page 111 WAN modules 6.1 RUGGEDCOM RX1500PN LM TC1 RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 112 WAN modules 6.2 RUGGEDCOM RX1500PN LM TC2 RUGGEDCOM RX1500PN LM TC2 The RUGGEDCOM RX1500PN LM TC2 module features two T1/E1 RJ48C ports for connection to a Wide Area Network (WAN). Requirements/restrictions Chassis Only one T1/E1 module is permitted per device. Description WAN Ports TX LED RX LED...
Page 113 WAN modules 6.2 RUGGEDCOM RX1500PN LM TC2 Installing the module For information about installing this module, refer to the "Installation Manual" for the host device. Pin-out description The following is the pin-out for the RJ48C ports: Figure 6.4 RJ48C Pin Configuration Name Description RRING Receive Negative...
Page 114 WAN modules 6.2 RUGGEDCOM RX1500PN LM TC2 RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 115 WAN modules 6.3 RUGGEDCOM RX1500PN LM TC4 RUGGEDCOM RX1500PN LM TC4 The RUGGEDCOM RX1500PN LM TC4 module features four T1/E1 RJ48C ports for connection to a Wide Area Network (WAN). Requirements/restrictions Chassis Only one T1/E1 module is permitted per device. Description WAN Ports TX LED RX LED...
Page 116 WAN modules 6.3 RUGGEDCOM RX1500PN LM TC4 Installing the module For information about installing this module, refer to the "Installation Manual" for the host device. Pin-out description The following is the pin-out for the RJ48C ports: Figure 6.6 RJ48C Pin Configuration Name Description RRING Receive Negative...
Page 117 If requested, this information must be provided to the telephone company. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 118 WAN modules 6.4 RUGGEDCOM RX1500PN LM E02 RUGGEDCOM RX1500PN LM E02 The RUGGEDCOM RX1500PN LM E02 module features two sets of E1 BNC ports for connection to a Wide Area Network (WAN). Description E1 BNC Ports Port LEDs Figure 6.7 RUGGEDCOM RX1500PN LM E02 WAN Ports Fixed E1 BNC ports.
Page 119 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 120 Note This module is not RoHS certified. It must be purchased separately from any RUGGEDCOM RX1500 series device. Any RUGGEDCOM RX1500 series device equipped with this module does not meet the requirements for a CE declaration of conformity. Description DDS Port...
Page 121 WAN modules 6.5 RUGGEDCOM RX1500PN LM D02 Standards and Operating Modes The module is compatible with the following standards: • AT&T PUB 62310 (Standard DDS) • BELLCORE TA-TSY-000077 • BELLCORE TR-TSY-000458 • ANSI T1.410 It also supports the following operating modes, which are configurable via the operating system for the host device: Operating Mode Line Rate...
Page 122 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 123 WAN modules 6.5 RUGGEDCOM RX1500PN LM D02 RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 124 Cellular modem modules The following cellular modem modules are available. RUGGEDCOM RX1500PN LM W11 "RUGGEDCOM RX1500PN LM W11" (Page 114) RUGGEDCOM RX1500PN LM W12 "RUGGEDCOM RX1500PN LM W12" (Page 122) RUGGEDCOM RX1500PN LM W21 "RUGGEDCOM RX1500PN LM W21" (Page 130) RUGGEDCOM RX1500PN LM W22 "RUGGEDCOM RX1500PN LM W22"...
Page 125 Cellular modem modules 7.1 RUGGEDCOM RX1500PN LM W11 RUGGEDCOM RX1500PN LM W11 The RUGGEDCOM RX1500PN LM W11 module offers GSM/EDGE/HSPA+ capabilities for wireless remote access to the 3G (third generation) networks in North America (AT&T). It supports a single primary antenna and an optional diversity antenna to improve radio signal strength.
Page 126 Installation requirements The cellular modem module is approved for modular use in mobile applications. The module, as part of the RUGGEDCOM RX1500, can be integrated into a final product without additional certification from the Federal Communications Commission (FCC) or Industry Canada (IC) if the application meets the following requirements:...
Page 127 Cellular modem modules 7.1 RUGGEDCOM RX1500PN LM W11 Note If this module is integrated into a portable device, separate approval related to the Specific Absorption Rate (SAR) requirements of FCC Part 2.1093 and IC RSS-102 is required. • Persons in the area must be kept at least 20 cm (8 in) from the antenna at all times.
Page 128 Cellular modem modules 7.1 RUGGEDCOM RX1500PN LM W11 Note The module only supports mini-SIM cards (2FF size format). Remove the media module from the chassis. For more information, refer to the "Installation Manual" for the host device. On the smooth side of the module, remove the four screws and separate the cover from the module housing.
Page 129 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.3 Antenna and Lightning Protector Assembly Connect the lightning protector to the appropriate antenna port on the module.
Page 130 Cellular modem modules 7.1 RUGGEDCOM RX1500PN LM W11 Conducted Transmit (Tx) power tolerances System/ Frequency Band (MHz) Conducted Tx Comment Operating Band Power (dBm) -850 and GSM-900 850/900 +32 ± 1 GMSK mode, connectorized (class 4) +27 ± 1 8PSK mode, connectorized (class E2) DCS-1800 and 1800/1900...
Page 131 This module has been assigned the Industry Canada product ID 2417C-MC8705. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 132 Cellular modem modules 7.1 RUGGEDCOM RX1500PN LM W11 Ordering information Description 1 x GSM/EDGE/HSPA Article numbers 6GK6015-0AL20-0WB0 (Standard) 6GK6015-0AL20-0WB1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 133 Cellular modem modules 7.2 RUGGEDCOM RX1500PN LM W12 RUGGEDCOM RX1500PN LM W12 The RUGGEDCOM RX1500PN LM W12 module offers GSM/EDGE/HSPA+ capabilities for wireless remote access to 3G (third generation) networks in North America (AT&T), Europe and Australia. It supports dual primary antennas and optional diversity antennas to improve radio signal strength.
Page 134 Installation requirements The cellular modem module is approved for modular use in mobile applications. The module, as part of the RUGGEDCOM RX1500, can be integrated into a final product without additional certification from the Federal Communications Commission (FCC) or Industry Canada (IC) if the application meets the following requirements:...
Page 135 Cellular modem modules 7.2 RUGGEDCOM RX1500PN LM W12 Note If this module is integrated into a portable device, separate approval related to the Specific Absorption Rate (SAR) requirements of FCC Part 2.1093 and IC RSS-102 is required. • Persons in the area must be kept at least 20 cm (8 in) from the antenna at all times.
Page 136 Cellular modem modules 7.2 RUGGEDCOM RX1500PN LM W12 Note The module only supports mini-SIM cards (2FF size format). Remove the media module from the chassis. For more information, refer to the "Installation Manual" for the host device. On the smooth side of the module, remove the four screws and separate the cover from the module housing.
Page 137 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.6 Antenna and Lightning Protector Assembly Connect the lightning protector to the appropriate antenna port on the module.
Page 138 Cellular modem modules 7.2 RUGGEDCOM RX1500PN LM W12 Conducted Transmit (Tx) power tolerances System/ Frequency Band (MHz) Conducted Tx Comment Operating Band Power (dBm) -850 and GSM-900 850/900 +32 ± 1 GMSK mode, connectorized (class 4) +27 ± 1 8PSK mode, connectorized (class E2) DCS-1800 and 1800/1900...
Page 139 (ACMA) under the Radiocommunications Act 1992 and the Telecommunications Act 1997. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 140 • Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products Declarations of conformity for each directive are available online via Siemens Industry Online Support [https:// support.industry.siemens.com/]. Ordering information Description 2 x GSM/EDGE/HSPA Article numbers...
Page 141 Cellular modem modules 7.3 RUGGEDCOM RX1500PN LM W21 RUGGEDCOM RX1500PN LM W21 The RUGGEDCOM RX1500PN LM W21 module offers EVDO Rev A capabilities for wireless remote access to 3G (third generation) networks in North America (Verizon), Europe and Australia. It supports a single primary antenna and an optional diversity antenna to improve radio signal strength.
Page 142 Installation requirements The cellular modem module is approved for modular use in mobile applications. The module, as part of the RUGGEDCOM RX1500, can be integrated into a final product without additional certification from the Federal Communications Commission (FCC) or Industry Canada (IC) if the application meets the following requirements:...
Page 143 Cellular modem modules 7.3 RUGGEDCOM RX1500PN LM W21 Note If this module is integrated into a portable device, separate approval related to the Specific Absorption Rate (SAR) requirements of FCC Part 2.1093 and IC RSS-102 is required. • Persons in the area must be kept at least 20 cm (8 in) from the antenna at all times.
Page 144 Cellular modem modules 7.3 RUGGEDCOM RX1500PN LM W21 Note The module only supports mini-SIM cards (2FF size format). Remove the media module from the chassis. For more information, refer to the "Installation Manual" for the host device. On the smooth side of the module, remove the four screws and separate the cover from the module housing.
Page 145 A Radio Frequency (RF) site survey is recommended prior to any installation to help determine the best location for the LTE and GPS antennas. For assistance, contact a Siemens Sales representative. • The cellular modem supports SISO (Single Input Single Output) and MIMO (Multiple Input Multiple Output) modes.
Page 146 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.9 Antenna and Lightning Protector Assembly Connect the lightning protector to the appropriate antenna port on the module.
Page 147 Cellular modem modules 7.3 RUGGEDCOM RX1500PN LM W21 Typical Radio Frequency (RF) System/ Frequency Band (MHz) Conducted Tx Operating Band Power (dBm) Transmit (Tx) Receive (Rx) 1851 to 1910 1930 to 1990 23 to 25 Cellular 824 to 849 869 to 894 Supported EVDO Rev A frequency bands Frequency Tx (MHz)
Page 148 This module is certified by Verizon Wireless in North America under Open Development Certification Agreement MA-004198-2012. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 149 Cellular modem modules 7.4 RUGGEDCOM RX1500PN LM W22 RUGGEDCOM RX1500PN LM W22 The RUGGEDCOM RX1500PN LM W22 module offers EVDO Rev A capabilities for wireless remote access to 3G (third generation) networks in North America (Verizon), Europe and Australia. It supports dual primary antennas and optional diversity antennas to improve radio signal strength.
Page 150 Installation requirements The cellular modem module is approved for modular use in mobile applications. The module, as part of the RUGGEDCOM RX1500, can be integrated into a final product without additional certification from the Federal Communications Commission (FCC) or Industry Canada (IC) if the application meets the following requirements:...
Page 151 Cellular modem modules 7.4 RUGGEDCOM RX1500PN LM W22 Note If this module is integrated into a portable device, separate approval related to the Specific Absorption Rate (SAR) requirements of FCC Part 2.1093 and IC RSS-102 is required. • Persons in the area must be kept at least 20 cm (8 in) from the antenna at all times.
Page 152 Cellular modem modules 7.4 RUGGEDCOM RX1500PN LM W22 Note The module only supports mini-SIM cards (2FF size format). Remove the media module from the chassis. For more information, refer to the "Installation Manual" for the host device. On the smooth side of the module, remove the four screws and separate the cover from the module housing.
Page 153 A Radio Frequency (RF) site survey is recommended prior to any installation to help determine the best location for the LTE and GPS antennas. For assistance, contact a Siemens Sales representative. • The cellular modem supports SISO (Single Input Single Output) and MIMO (Multiple Input Multiple Output) modes.
Page 154 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.12 Antenna and Lightning Protector Assembly Connect the lightning protector to the appropriate antenna port on the module.
Page 155 Cellular modem modules 7.4 RUGGEDCOM RX1500PN LM W22 Typical Radio Frequency (RF) System/ Frequency Band (MHz) Conducted Tx Operating Band Power (dBm) Transmit (Tx) Receive (Rx) 1851 to 1910 1930 to 1990 23 to 25 Cellular 824 to 849 869 to 894 Supported EVDO Rev A frequency bands Frequency Tx (MHz)
Page 156 This module is certified by Verizon Wireless in North America under Open Development Certification Agreement MA-004198-2012. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 157 Cellular modem modules 7.5 RUGGEDCOM RX1500PN LM W32 RUGGEDCOM RX1500PN LM W32 The RUGGEDCOM RX1500PN LM W32 module offers GSM/EDGE/HSPA+ and EVDO Rev A capabilities for wireless remote access to the 3G (third generation) networks in North America (AT&T and Verizon). It supports dual primary antennas and optional diversity antennas to improve radio signal strength.
Page 158 Installation requirements The cellular modem module is approved for modular use in mobile applications. The module, as part of the RUGGEDCOM RX1500, can be integrated into a final product without additional certification from the Federal Communications Commission (FCC) or Industry Canada (IC) if the application meets the following requirements:...
Page 159 Cellular modem modules 7.5 RUGGEDCOM RX1500PN LM W32 Note If this module is integrated into a portable device, separate approval related to the Specific Absorption Rate (SAR) requirements of FCC Part 2.1093 and IC RSS-102 is required. • Persons in the area must be kept at least 20 cm (8 in) from the antenna at all times.
Page 160 Cellular modem modules 7.5 RUGGEDCOM RX1500PN LM W32 Note The module only supports mini-SIM cards (2FF size format). Remove the media module from the chassis. For more information, refer to the "Installation Manual" for the host device. On the smooth side of the module, remove the four screws and separate the cover from the module housing.
Page 161 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.15 Antenna and Lightning Protector Assembly Connect the lightning protector to the appropriate antenna port on the module.
Page 162 Cellular modem modules 7.5 RUGGEDCOM RX1500PN LM W32 Power consumption Conducted Transmit (Tx) power tolerances System/ Frequency Band (MHz) Conducted Tx Comment Operating Band Power (dBm) GSM-850 and GSM-900 850/900 +32 ± 1 GMSK mode, connectorized (class 4) +27 ± 1 8PSK mode, connectorized (class E2) DCS-1800 and...
Page 163 Cellular modem modules 7.5 RUGGEDCOM RX1500PN LM W32 Supported WCDMA frequency bands Band Frequency range Tx (MHz) VSWR Rx (MHz) VSWR Band I 1920 to 1980 < 2.5:1 2110 to 2170 < 3.5:1 WCDMA 2100 Band II 1850 to 1910 < 2.5:1 1930 to 1990 <...
Page 164 This module is certified by Verizon Wireless in North America under Open Development Certification Agreement MA-004198-2012. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 165 Cellular modem modules 7.6 RUGGEDCOM RX1500PN LM W41 RUGGEDCOM RX1500PN LM W41 The RUGGEDCOM RX1500PN LM W41 module offers 4G LTE, HSPA+, HSDPA, HSUPA, DC-HSPA+, UMTS/WCDMA, EDGE, GPRS, GSM and GNSS capabilities for wireless remote access to 4G (fourth generation) LTE (Long Term Evolution) networks in European Union countries.
Page 166 Siemens cellular modem, avoid using the cellular modem in applications where a communication failure could result in damage to equipment or personal injury to persons in the area. Siemens accepts no responsibility for any damages that may result due to wireless disruptions.
Page 167 Cellular modem modules 7.6 RUGGEDCOM RX1500PN LM W41 Note The host device must have RUGGEDCOM ROX v2.13.3 or higher installed. Insert the module into the host device. For more information, refer to the "Installation Manual" for the device. Connect antennas. Configure the LTE modem and GPS settings. For more information, refer to the "RUGGEDCOM ROX Configuration Manual"...
Page 168 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.18...
Page 169 Cellular modem modules 7.6 RUGGEDCOM RX1500PN LM W41 Technical specifications General Services 4G LTE/HSPA+/HSDPA/HSUPA/DC-HSPA+/UMTS/WCDMA/EDGE/GPRS/ GSM/GNSS Region European Union Connector 50 Ω SMA Antennas 1 x LTE Main, 1 x LTE MIMO, 1 x GPS Dual Mini-SIM (2FF) Power consumption Supported LTE channel bandwidths Band Channel bandwidths (MHz) Band 1...
Page 170 Cellular modem modules 7.6 RUGGEDCOM RX1500PN LM W41 Supported WCDMA frequency bands Band Frequencies (MHz) Transmit (Tx) Receive (Rx) Band 1 (WCDMA 2100) 1920 to 1980 2110 to 2170 Band 2 (WCDMA 1900) 1850 to 1910 1930 to 1990 Band 5 (WCDMA 850) 824 to 849 869 to 894 Band 6 (WCDMA 800)
Page 171 Cellular modem modules 7.6 RUGGEDCOM RX1500PN LM W41 Polarization Any other than LHCP (Left-Hand Circular Polarized) is acceptable. Vertical linear polarization is sufficient. Gv and Gh are measured and averaged over -45 to 90° in elevation, and ± 180° in azimuth. Conducted Rx (Receive) Sensitivity for LTE Bands Band Conducted Rx Sensitivity (dBm)
Page 172 Siemens Canada Ltd. at: https://support.industry.siemens.com/cs/ww/en/view/109810680 RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment:...
Page 173 Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products Declarations of conformity for each directive are available online via Siemens Industry Online Support [https:// support.industry.siemens.com/]. Ordering information Description 1 x 4G/LTE European Union (EU)
Page 174 Cellular modem modules 7.7 RUGGEDCOM RX1500PN LM W51 RUGGEDCOM RX1500PN LM W51 The RUGGEDCOM RX1500PN LM W51 module offers 4G LTE, HSPA+, HSDPA, HSUPA, DC-HSAP+, UMTS/WDCAM, EDGE, GPRS, GSM, CDMA, EVDO and GNSS capabilities for wireless remote access to 4G (fourth generation) LTE (Long Term Evolution) networks in North America.
Page 175 Installation requirements The cellular modem module is approved for modular use in mobile applications. The module, as part of the RUGGEDCOM RX1500, can be integrated into a final product without additional certification from the Federal Communications Commission (FCC) or Industry Canada (IC) if the application meets the following requirements:...
Page 176 Cellular modem modules 7.7 RUGGEDCOM RX1500PN LM W51 Note If this module is integrated into a portable device, separate approval related to the Specific Absorption Rate (SAR) requirements of FCC Part 2.1093 and IC RSS-102 is required. • Persons in the area must be kept at least 20 cm (8 in) from the antenna at all times.
Page 177 Cellular modem modules 7.7 RUGGEDCOM RX1500PN LM W51 To install or remove a SIM card, do the following: NOTICE Static electricity hazard – risk of damage to equipment Make sure to take appropriate anti-static precautions before opening the cellular modem module. Note The module only supports mini-SIM cards (2FF size format).
Page 178 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.22...
Page 179 Cellular modem modules 7.7 RUGGEDCOM RX1500PN LM W51 Supported RF Bandwidths Standard Bands Notes Data Rates • Band 2 (1900 MHz) MIMO support Category 3 • Band 4 (AWS 1700/2100 Downlink MHz) • Band 5 (850 MHz) • 100 Mbps (20 MHz bandwidth) •...
Page 180 Cellular modem modules 7.7 RUGGEDCOM RX1500PN LM W51 Band Channel bandwidths (MHz) Band 5 ü ü ü ü û û Band 13 û û ü ü û û Band 17 û û ü ü û û Band 25 ü ü ü ü...
Page 181 Cellular modem modules 7.7 RUGGEDCOM RX1500PN LM W51 Band Frequencies (MHz) Transmit (Tx) Receive (Rx) Band Class 10 (Secondary 800 817 to 824 861 to 869 MHz) Subclass 2 and 3 are supported GNSS specifications Satellite channels 12 channel, continuous tracking Protocols NMEA 0183 v3.0 Acquisition time...
Page 182 Cellular modem modules 7.7 RUGGEDCOM RX1500PN LM W51 Conducted Rx (Receive) Sensitivity for LTE Bands LTE Band Conducted Rx Sensitivity (dBm) Primary Secondary SIMO (Typical) SIMO (Worst (Typical) (Typical) Case) LTE Band 2 -99.1 -98.2 -101.6 -94.3 LTE Band 4 -99.7 -98.9 -102.4 -96.3...
Page 183 Cellular modem modules 7.7 RUGGEDCOM RX1500PN LM W51 Conducted Rx (Receive) Sensitivity for CDMA Bands Band Standard Error Rate Conducted Rx Sensitivity (dBm) Typical Worst Case Band Class 0 CDMA 1x 0.5% FER -109.6 -104.0 (Cellular 800 MHz) EVDO Rev A 0.5% PER -109.8 -105.5...
Page 184 This module is certified under IC CS-03 Part II, Issue 9 and has been assigned the product ID 2417C-MC7355. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 185 Cellular modem modules 7.8 RUGGEDCOM RX1500PN LM W61 RUGGEDCOM RX1500PN LM W61 The RUGGEDCOM RX1500PN LM W61 module offers 4G LTE, HSPA+, CDMA, EVDO, GPS and GNSS capabilities for wireless remote access to 4G (fourth generation) LTE (Long Term Evolution) networks in North America. It supports dual 4G LTE antennas and a single GPS antenna.
Page 186 Installation requirements The cellular modem module is approved for modular use in mobile applications. The module, as part of the RUGGEDCOM RX1500, can be integrated into a final product without additional certification from the Federal Communications Commission (FCC) or Industry Canada (IC) if the application meets the following requirements:...
Page 187 Cellular modem modules 7.8 RUGGEDCOM RX1500PN LM W61 Note If this module is integrated into a portable device, separate approval related to the Specific Absorption Rate (SAR) requirements of FCC Part 2.1093 and IC RSS-102 is required. • Persons in the area must be kept at least 20 cm (8 in) from the antenna at all times.
Page 188 Cellular modem modules 7.8 RUGGEDCOM RX1500PN LM W61 To install or remove a SIM card, do the following: NOTICE Static electricity hazard – risk of damage to equipment Make sure to take appropriate anti-static precautions before opening the cellular modem module. Note The module only supports mini-SIM cards (2FF size format).
Page 189 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.25...
Page 190 Cellular modem modules 7.8 RUGGEDCOM RX1500PN LM W61 Supported LTE channel bandwidths Band Channel bandwidths (MHz) Band 4 ü ü ü ü ü ü (AWS) Band 13 û û ü ü û û Band 25 ü ü ü ü ü ü Supported LTE frequency bands Band Frequency...
Page 191 Cellular modem modules 7.8 RUGGEDCOM RX1500PN LM W61 • Wide-Band GPS and GLONASS: 1565 to 1606 MHz recommended Field of View (FoV) • Omni-directional in azimuth • -45° to 90° in elevation Polarization (average Gv/Gh) > 0 dB Free space average gain (Gv >...
Page 192 Cellular modem modules 7.8 RUGGEDCOM RX1500PN LM W61 Band LImit (dBm) Room typical Class A (dBm) (dBm) Extreme Limit Band 13 (Primary) -93.3 -94.5 Band 13 -93.3 -96.5 -95.5 (Secondary) Conducted Rx (Receive) sensitivity for CDMA frequency bands Band Standard LImit (dBm) Room Class A (dBm) Notes...
Page 193 This module is certified by Verizon Wireless in North America under Open Development Certification Agreement MA-004198-2012. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous...
Page 194 Cellular modem modules 7.9 RUGGEDCOM RX1500PN LM W81 RUGGEDCOM RX1500PN LM W81 The RUGGEDCOM RX1500PN LM W81 module offers GSM, EDGE, GPRS, UMTS, HSPA +, 4G LTE and GNSS capabilities for wireless remote access to 4G (fourth generation) LTE (Long Term Evolution) networks in the Asia-Pacific region. It supports dual 4G LTE antennas and a single GPS antenna.
Page 195 Installation requirements The cellular modem module is approved for modular use in mobile applications. The module, as part of the RUGGEDCOM RX1500, can be integrated into a final product without additional certification from the Federal Communications Commission (FCC) or Industry Canada (IC) if the application meets the following requirements:...
Page 196 Cellular modem modules 7.9 RUGGEDCOM RX1500PN LM W81 Note If this module is integrated into a portable device, separate approval related to the Specific Absorption Rate (SAR) requirements of FCC Part 2.1093 and IC RSS-102 is required. • Persons in the area must be kept at least 20 cm (8 in) from the antenna at all times.
Page 197 Cellular modem modules 7.9 RUGGEDCOM RX1500PN LM W81 To install or remove a SIM card, do the following: NOTICE Static electricity hazard – risk of damage to equipment Make sure to take appropriate anti-static precautions before opening the cellular modem module. Note The module only supports mini-SIM cards (2FF size format).
Page 198 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.28...
Page 199 Cellular modem modules 7.9 RUGGEDCOM RX1500PN LM W81 Band 1.4 MHz 3 MHz 5 MHz 10 MHz 15 MHz 20 MHz Band 3 ü ü ü ü ü ü Band 7 û û ü ü ü ü Band 8 ü ü ü...
Page 200 Cellular modem modules 7.9 RUGGEDCOM RX1500PN LM W81 Operational limits Altitude < 6000 m (3.7 mi) or velocity < 100 m/s (328 ft/s) Either limit may be exceeded, but not both GNSS Standalone Antenna Requirements Frequency range • Narrow-Band GPS: 1572.42 MHz ± 2 MHz minimum •...
Page 201 Cellular modem modules 7.9 RUGGEDCOM RX1500PN LM W81 Conducted Rx (Receive) Sensitivity for GSM/EDGE Bands Band Error Rate Modulation Conducted Rx Sensitivity (dBm) Typical Worst Case GSM 850 2 % BER -109 -102 10 % BLER GMSK (CS1) -112 -104 EDGE (MCS5) -104 EGSM 900 2 % BER...
Page 202 Australian Communications and Media Authority (ACMA). As such, the module is marked with the Regulatory Compliance Mark (RCM) and is authorized for use in Australia. A copy of the Declaration of Conformity is available via Siemens Industry Online Support at https://support.industry.siemens.com/cs/...
Page 203 Cellular modem modules 7.10 RUGGEDCOM RX1500PN LM W91 7.10 RUGGEDCOM RX1500PN LM W91 The RUGGEDCOM RX1500PN LM W91 module offers GSM, EDGE, GPRS, UMTS, HSPA +, 4G LTE and GNSS capabilities for wireless remote access to 4G (fourth generation) LTE (Long Term Evolution) networks in North American (AT&T, Verizon, Rogers, Telus, Bell).
Page 204 Installation requirements The cellular modem module is approved for modular use in mobile applications. The module, as part of the RUGGEDCOM RX1500, can be integrated into a final product without additional certification from the Federal Communications Commission (FCC) or Industry Canada (IC) if the application meets the following requirements:...
Page 205 Cellular modem modules 7.10 RUGGEDCOM RX1500PN LM W91 Note If this module is integrated into a portable device, separate approval related to the Specific Absorption Rate (SAR) requirements of FCC Part 2.1093 and IC RSS-102 is required. • Persons in the area must be kept at least 20 cm (8 in) from the antenna at all times.
Page 206 Cellular modem modules 7.10 RUGGEDCOM RX1500PN LM W91 To install or remove a SIM card, do the following: NOTICE Static electricity hazard – risk of damage to equipment Make sure to take appropriate anti-static precautions before opening the cellular modem module. Note The module only supports mini-SIM cards (2FF size format).
Page 207 Using shielded coaxial cables, connect the antenna to the lightning protector. Make sure the cables are routed away from any noise sources, such as Switch- Mode Power Supplies (SMPS). RUGGEDCOM RX1500 Shielded coaxial cable Lightning protector Antenna Figure 7.32...
Page 208 Cellular modem modules 7.10 RUGGEDCOM RX1500PN LM W91 Band 1.4 MHz 3 MHz 5 MHz 10 MHz 15 MHz 20 MHz Band 3 ü ü ü ü ü ü Band 7 û û ü ü ü ü Band 8 ü ü ü...
Page 209 Cellular modem modules 7.10 RUGGEDCOM RX1500PN LM W91 Protocols NMEA 0183 v3.0 Acquisition time • Hot start: 1 s • Warm start: 29 s • Cold start: 32 s Accuracy • Horizontal: < 2 m 6.6 ft (50 %), < 5 m or 16.4 ft (90 %) •...
Page 210 Cellular modem modules 7.10 RUGGEDCOM RX1500PN LM W91 Conducted Rx (Receive) Sensitivity for UMTS Bands Band Error Rate Conducted Rx Sensitivity (dBm) Primary Secondary Primary/ (Typical) (Typical) Secondary (Worst Case) Band 1 (UMTS 2100) 0.1% BER -111.4 -109.8 -106.7 Band 2 (UMTS 1900) -110.8 -108.9 -104.7...
Page 211 Australian Communications and Media Authority (ACMA). As such, the module is marked with the Regulatory Compliance Mark (RCM) and is authorized for use in Australia. A copy of the Declaration of Conformity is available via Siemens Industry Online Support at https://support.industry.siemens.com/cs/...
Page 212 RUGGEDCOM APE modules The following RUGGEDCOM Application Processing Engine (APE) modules are available. RUGGEDCOM RX1500PN LM APE1402 "RUGGEDCOM RX1500PN LM APE1402 (Obsolete)" (Page 202) RUGGEDCOM RX1500PN LM APE1402W7 "RUGGEDCOM RX1500PN LM APE1402W7 (Obsolete)" (Page 205) RUGGEDCOM RX1500PN LM APE1404 "RUGGEDCOM RX1500PN LM APE1404 (Obsolete)"...
Page 213 Power button. This button also allows users to reboot the module. NOTICE Whenever possible, power down or reboot the RUGGEDCOM APE through the RUGGEDCOM RX1500 operating system instead of forcing a shutdown or reboot RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 214 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 215 RUGGEDCOM APE modules 8.1 RUGGEDCOM RX1500PN LM APE1402 (Obsolete) Ordering information Description APE, 1.3GHz, 2GB RAM, 8GB SATA, Video, USB, Linux Article numbers 6GK6015-0AL20-0GB0 (Standard) 6GK6015-0AL20-0GB1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 216 Power button. This button also allows users to reboot the module. NOTICE Whenever possible, power down or reboot the RUGGEDCOM APE through the RUGGEDCOM RX1500 operating system instead of forcing a shutdown or reboot RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 217 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 218 RUGGEDCOM APE modules 8.2 RUGGEDCOM RX1500PN LM APE1402W7 (Obsolete) Declarations of conformity for each directive are available online via Siemens Industry Online Support [https:// support.industry.siemens.com/]. Ordering information Description APE, 1.3GHz, 2GB RAM, 8GB SATA, Video, USB, Windows 7 Embedded Article numbers...
Page 219 Power button. This button also allows users to reboot the module. NOTICE Whenever possible, power down or reboot the RUGGEDCOM APE through the RUGGEDCOM RX1500 operating system instead of forcing a shutdown or reboot RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 220 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 221 RUGGEDCOM APE modules 8.3 RUGGEDCOM RX1500PN LM APE1404 (Obsolete) Ordering information Description APE, 1.3GHz, 2GB RAM, 16GB SATA, Video, USB, Linux Article numbers 6GK6015-0AL20-0GD0 (Standard) 6GK6015-0AL20-0GD1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 222 RUGGEDCOM APE modules 8.4 RUGGEDCOM RX1500PN LM APE1404 ADM (Obsolete) RUGGEDCOM RX1500PN LM APE1404 ADM (Obsolete) The RUGGEDCOM RX1500PN LM APE1404 ADM module is a 32-bit computer with Debian Linux® and CROSSBOW ADM pre-installed. It also features a 16 GB solid-state drive.
Page 223 This button also allows users to reboot the module. NOTICE Whenever possible, power down or reboot the RUGGEDCOM APE through the RUGGEDCOM RX1500 operating system instead of forcing a shutdown or reboot with the Power button. This helps protect against improper shutdowns and protect data integrity.
Page 224 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 225 The RUGGEDCOM RX1500PN LM APE1404W7 module is a 32-bit computer with Windows® Embedded Standard 7 pre-installed and a 16 GB solid-state drive. Requirements/restrictions Chassis This module is only compatible with the following chassis. • RUGGEDCOM RX1500 • RUGGEDCOM RX1501 • RUGGEDCOM RX1510 •...
Page 226 This button also allows users to reboot the module. NOTICE Whenever possible, power down or reboot the RUGGEDCOM APE through the RUGGEDCOM RX1500 operating system instead of forcing a shutdown or reboot with the Power button. This helps protect against improper shutdowns and protect data integrity.
Page 227 RUGGEDCOM APE modules 8.5 RUGGEDCOM RX1500PN LM APE1404W7 (Obsolete) RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 228 Power button. This button also allows users to reboot the module. NOTICE Whenever possible, power down or reboot the RUGGEDCOM APE through the RUGGEDCOM RX1500 operating system instead of forcing a shutdown or reboot RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 229 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 230 RUGGEDCOM APE modules 8.6 RUGGEDCOM RX1500PN LM APE1404CKP (Obsolete) Ordering information Description APE, 1.3GHz, 2GB RAM, 16GB SATA, Video, 2xUSB, Checkpoint FW Article numbers 6GK6015-0AL20-0GF0 (Standard) 6GK6015-0AL20-0GF1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 231 RUGGEDCOM APE modules 8.7 RUGGEDCOM RX1500PN LM APE1808LNX RUGGEDCOM RX1500PN LM APE1808LNX The RUGGEDCOM RX1500PN LM APE1808LNX module is a 64-bit computer with 8 GB RAM, and a 80 GB solid-state drive. It is pre-configured with Debian Linux® 10. Description SD Card Slot Display Port Ethernet port USB Ports...
Page 232 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 233 RUGGEDCOM APE modules 8.8 RUGGEDCOM RX1500PN LM APE1808W10 RUGGEDCOM RX1500PN LM APE1808W10 The RUGGEDCOM RX1500PN LM APE1808LNX module is a 64-bit computer with 8 GB RAM, and a 80 GB solid-state drive. It is pre-configured with Microsoft Windows® 10 Enterprise 2019 LTSC. Description SD Card Slot Display Port...
Page 234 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 235 RUGGEDCOM APE modules 8.9 RUGGEDCOM RX1500PN LM APE1808CKP RUGGEDCOM RX1500PN LM APE1808CKP The RUGGEDCOM RX1500PN LM APE1808CKP module is a 64-bit computer with 8 GB RAM, and a 80 GB solid-state drive. It is pre-configured with Check Point GAiA™ running on a Debian Linux® 10 host operating system. Description SD Card Slot Display Port...
Page 236 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 237 RUGGEDCOM APE modules 8.9 RUGGEDCOM RX1500PN LM APE1808CKP Ordering information Description Application Processing Engine, Atom x5-E3940, 8GB RAM, 64GB eMMC, DisplayPort, uSD, USB, Checkpoint FW (Requires Checkpoint License) Article numbers 6GK6015-0AL20-0GK0 (Standard) 6GK6015-0AL20-0GK1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 238 RUGGEDCOM APE modules 8.10 RUGGEDCOM RX1500PN LM APE1808ADM 8.10 RUGGEDCOM RX1500PN LM APE1808ADM The RUGGEDCOM RX1500PN LM APE1808ADM module is a 64-bit computer with 8 GB RAM, and a 80 GB solid-state drive. It is pre-configured with RUGGEDCOM CROSSBOW ADM running on a Debian Linux® 10 host operating system. Description SD Card Slot Display Port...
Page 239 RUGGEDCOM APE modules 8.10 RUGGEDCOM RX1500PN LM APE1808ADM For more information about RUGGEDCOM CROSSBOW ADM, refer to the RUGGEDCOM CROSSBOW user documentation available through Siemens Customer Support. Installing the module For information about installing this module, refer to the "Installation Manual" for the host device.
Page 240 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 241 RUGGEDCOM CROSSBOW server. For more information about CROSSBOW SAM-L, refer to the RUGGEDCOM CROSSBOW user documentation available through Siemens Customer Support. Installing the module For information about installing this module, refer to the "Installation Manual" for the host device.
Page 242 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 243 RUGGEDCOM APE modules 8.11 RUGGEDCOM RX1500PN LM APE1808SAM-L Ordering information Description Application Processing Engine, Atom x5-E3940, 8GB RAM, 64GB eMMC, DisplayPort, uSD, USB, CROSSBOW SAM-L FW Article numbers 6GK6015-0AL20-0GN0 (Standard) 6GK6015-0AL20-0GN1 (Conformal coated) RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 244 RUGGEDCOM APE modules 8.12 RUGGEDCOM RX1500PN LM APE1808ELAN 8.12 RUGGEDCOM RX1500PN LM APE1808ELAN The RUGGEDCOM RX1500PN LM APE1808ELAN module is a 64-bit computer with 8 GB RAM, and a 80 GB solid-state drive. It is pre-configured with RUGGEDCOM ELAN running on a Debian Linux® 10 host operating system. Description SD card slot Display port...
Page 245 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 246 8.13 RUGGEDCOM RX1500PN LM APE1808CConn 8.13 RUGGEDCOM RX1500PN LM APE1808CConn The RUGGEDCOM RX1500PN LM APE1808CConn module is a 64-bit computer with 8 GB RAM, and a 80 GB solid-state drive. It is pre-configured with Siemens CloudConnect. Description SD card slot Display port...
Page 247 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 248 Blank modules The following blank modules are available. RUGGEDCOM RX1500PN PS XXP "RUGGEDCOM RX1500PN PS XXP" (Page 238) RUGGEDCOM RX1500PN LM Blank "RUGGEDCOM RX1500PN LM Blank" (Page 239) NOTICE Blank modules should be installed in empty slots to prevent the ingress of dirt or debris in the chassis.
Page 249 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 250 This module has been certified to comply with the requirements of the following standards. RoHS This module is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
Page 251 Blank modules 9.2 RUGGEDCOM RX1500PN LM Blank RUGGEDCOM Modules Reference Manual, 10/2023, C79000-G8976-1320-18...
Page 252 For more information Siemens RUGGEDCOM https://www.siemens.com/ruggedcom Industry Online Support (service and support) https://support.industry.siemens.com Industry Mall https://mall.industry.siemens.com Siemens Canada Ltd. Digital Industries Process Automation 300 Applewood Crescent Concord, Ontario, L4K 4E5 Canada © 2023 Siemens Canada Ltd. Subject to change...

This manual is also suitable for:

Ruggedcom rx1501 Ruggedcom rx1510 Ruggedcom rx1511 Ruggedcom rx1512 Ruggedcom rx1524 Ruggedcom rx1536 ... Show all

Siemens RUGGEDCOM RX1500 Reference Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Siemens RUGGEDCOM RX1500

Summary of Contents for Siemens RUGGEDCOM RX1500

This manual is also suitable for:
