Peavey XR 684+ Owner's Manual

Peavey XR 684+ Owner's Manual

Stereo powered mixer
Hide thumbs Also See for XR 684+:

Advertisement

Table of Contents

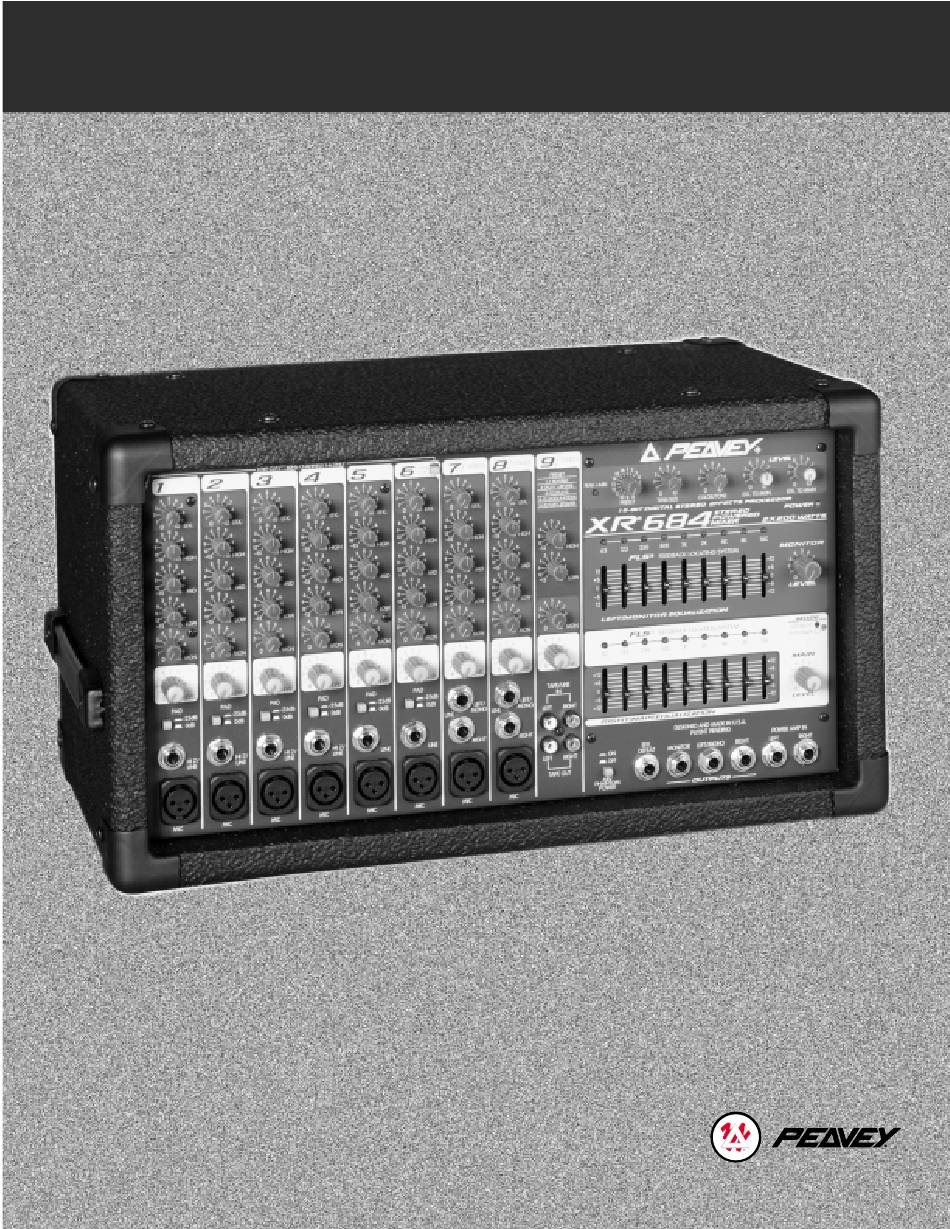

X R
6 8 4 / X R
6 8 4 +
®
®
S t e r e o P ow e r e d M i xe r
O
'
M
WNER
S
ANUAL
Free Datasheet http://www.datasheet4u.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR 684+ and is the answer not in the manual?

Questions and answers

Related Manuals for Peavey XR 684+

Summary of Contents for Peavey XR 684+

  • Page 1 6 8 4 / X R 6 8 4 + ® ® S t e r e o P ow e r e d M i xe r ’ WNER ANUAL Free Datasheet http://www.datasheet4u.com/...
  • Page 2 Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
  • Page 3 ENGLISH ™ 684/684+ Powered Sound Reinforcement Mixing Console General Description: Congratulations on your purchase of the XR ™ 684/684+ powered mixer. Within one compact unit, we have packed feature after feature, each displaying the latest technology available. Both the XR 684 and the XR 684+ are covered in this guide.
  • Page 4 CHANNEL SECTION: CHANNELS 1-4 1. MIC INPUT: XLR balanced, low-impedance channel input optimized for a microphone or other low-level source. Pin 2 is the positive input. Because of the wide range of gain adjustment, signal levels as high as +10 dBV (2.45 V RMS) can be accommodated.

  • Page 5: Master Section

    NOTE: Channels 5-9 contain features that differ from the previous channels. Only those features are mentioned below. For information on features not mentioned please refer to the section for Channels 1-4. CHANNELS 5-6 10. LINE: 1/4" balanced TRS input for line level signals. This signal is connected through a 25 dB pad to the mic input below it.
  • Page 6 17. PRESET: Selects the effect preset from the list below. EFX Presets PRESET NAME TIME/SIZE COLOR/TONE Chamber Time: 150 to 5,000 ms Damping (High Frequency) Plate Time: 100 to 4,000 ms Damping (High Frequency) Room Time: 150 to 5,000 ms Damping (High Frequency) Cathedral Time: 100 to 8,000 ms...
  • Page 7 Peavey 5116 or a Peavey 1:1 Interface Adapter, can also be used to isolate a mic from phantom voltage. 28. EFX DEFEAT: This 1/4" jack accepts an on/off 1/4" footswitch (Peavey Pt. #00051000) to defeat the effects of both the Main and Monitor mixes.
  • Page 8 IF THE FUSE CONTINUES TO OPEN, DO NOT OVER FUSE. TAKE THE UNIT TO AN AUTHORIZED PEAVEY SERVICE CENTER! 37. PARALLEL LEFT/RIGHT SPEAKER OUTPUTS: These 1/4" jacks are the amplifier’s output. By connecting a speaker cable to this jack and to a speaker cabinet, you complete the signal chain.
  • Page 9 Free Datasheet http://www.datasheet4u.com/...
  • Page 10 Free Datasheet http://www.datasheet4u.com/...
  • Page 11 ® 684 IN - LEFT/RIGHT MODE 684 In - Left/Right Mode ® Mains - Left Mains - Right ™ ™ Impulse Impulse Left/Monitor Outputs (Rear) Right/Main Outputs (Rear) Mode Switch ® Reactor Tape Player ™ ™ Tape Player In Wireless Hi-Z Mic Mic/Gtr Stereo Voice Module...
  • Page 12 ® 684 IN - MONITOR/MAIN MODE 684 In - Monitor/Main Mode ® Mains ™ Monitors Impulse ™ 112M Left/Monitor Outputs (Rear) Right/Main Outputs (Rear) Mode Switch Depressed (In) ® Reactor Tape Player ™ Tape Player In Wireless Hi-Z Mic Mic/Gtr Stereo Voice Module Keyboard Free Datasheet http://www.datasheet4u.com/...

  • Page 13: Input Specifications

    ™ SPECIFICATIONS Input Specifications: Function Input Z Input Gains Input Levels Bal/ Connector (ohms) control Min** Nominal* UnBal. setting Lo-Z Max w/o pad -60 dBu -30 dBu -11 dBu Bal. XLR: Pin 1 Gnd, (150 ohms) (50 dB) Pin 2 (+), Pin 3 (-) Channel 1-8 Max.

  • Page 14: Frequency Response

    Frequency Response: Mic Input to L - R Output 20 Hz — 20 kHz +0 dB/-1 dB Line Input to L - R Output 20 Hz — 20 kHz +0 dB/-1 dB To Power Amplifier Output 20 Hz — 20 kHz +0 dB/-1 dB Total Harmonic Distortion (THD): <...

  • Page 15: Power Section

    XR 684/400 SC AMPLIFIER SPECIFICATIONS POWER SECTION Hum and Noise: (400 SC Module with DDT ™ -97 dB below 210 watts Frequency Response: Damping Factor: +0, -1 dB, 20 Hz — 20 kHz @ rated power Greater than 100 @ 1 kHz, 4 ohms Rated Power: Input Sensitivity: •...
  • Page 16 What Peavey Will Do We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.

  • Page 17: Important Safety Instructions

    16. The user should not attempt to service this equipment. All service work should]d be done by a qualified service technician. 17. This product should be used only with a cart or stand that is recommended by Peavey Electronics. 18. Exposure to extremely high noise ]levels may cause a permanent hearing loss. individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time.
  • Page 18 Features and specifications subject to change without notice. Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com ©2000 Printed in the U.S.A. 2/00 Free Datasheet http://www.datasheet4u.com/...
