Summary of Contents for RCA J32PT1140

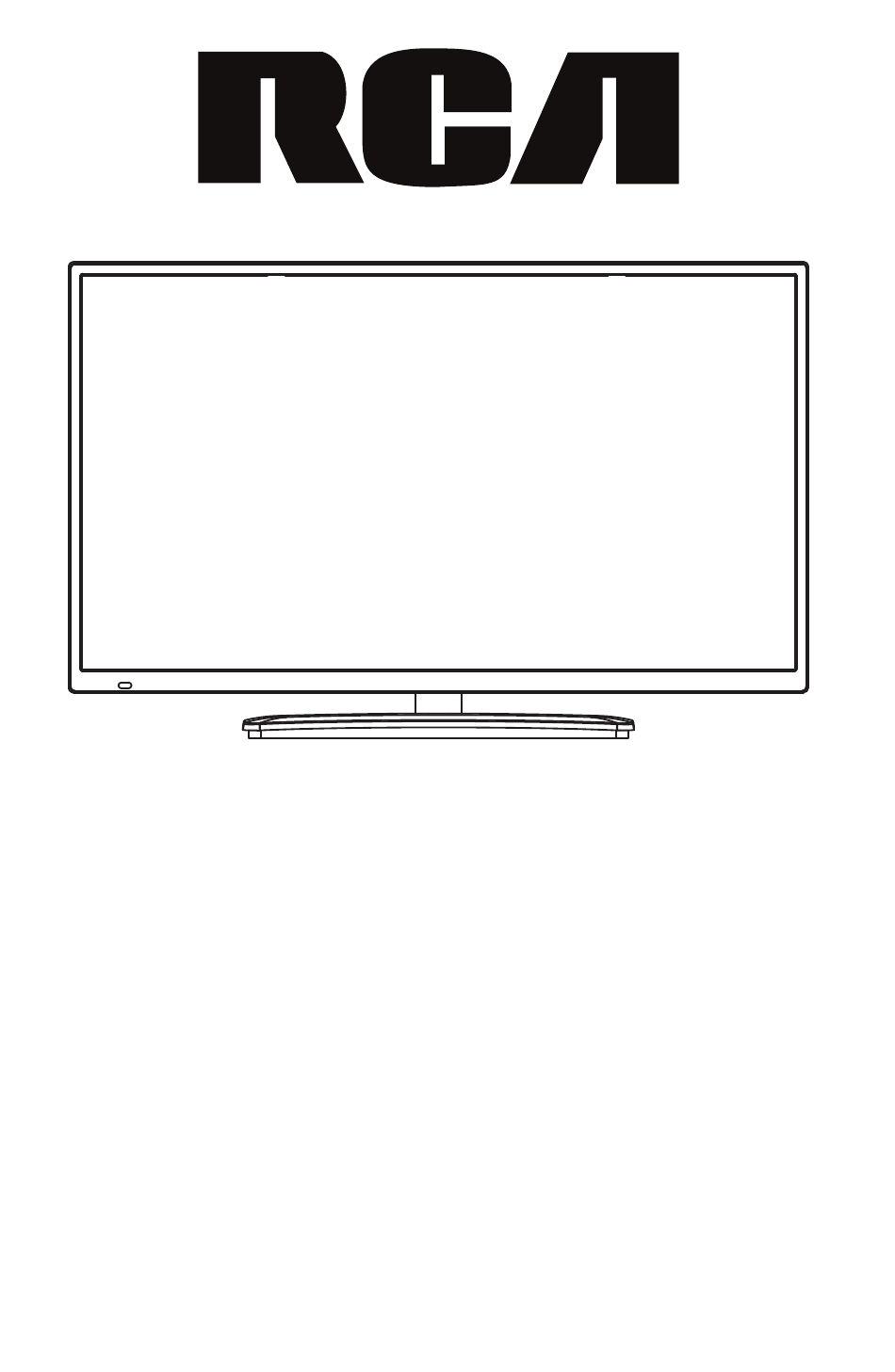

- Page 1 User Manual J32PT1140 J40PT1240 J40PT1440 J43PT1440 J49PT1440 J55PT1440 Before operating this product, please read user manual completely...
-
Page 2: Table Of Contents
Table of Contents Table of Contents.....................1 Important Safety Informations..................2 Getting Started ......................4 Initial TV Setup ......................8 Master Menu Adjustments ..................9 Commercial Interface Menu...................18 Channel Remapping .....................26 USB Operation ......................29 Troubleshooting .....................31 Attaching the TV Stand ..................32 Attaching the TV Stand to Furniture ..............33 Limited Warranty ......................34... -
Page 3: Important Safety Instructions
Important Safety Instructions CAUTION MARKINGS LOCATED AT THE REAR OF THE APPARATUS. is intended to alert the user to the presence of uninsulated "dangerous magnitude to constitute a risk of electric shock to persons. alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 9) Do not install near any heat sources such as radiators, heat registers, 10) Do not defeat the safety purpose of the polarized or grounding-type plug. for replacement of the obsolete outlet.
-
Page 5: Getting Started
Getting Started View J32PT1140 J40PT1240 1, 2 1, 2 J40PT1440/J43PT1440/J49PT1440 1, 2 J55PT1440 400,0 1. Remote Sensor Do not block this sensor or the remote control will not work. 2. Standby Indicator Indicates whether the unit is ON or in STANDBY (OFF) mode. - Page 6 Getting Started View IR Pass MTI IN RS232 COAX HDMI1 Through HDMI2 YPbPr Line USB2 HDMI3 (ARC) (Mini) (Mini) USB1 1. MTI Internet Connection. 2. RS232 3. IR Pass Through. 4. Coaxial Output Connection for Coaxial (digital audio) output 5. HDMI Input Connnection for HDMI signal.
- Page 7 Getting Started The Guest Remote Control - R230D1A This remote is used by the hotel guest. It prevents the guest from changing 1. POWER 2. INPUT Selects the input source. 3. SLEEP Sets the sleep timer. 4. SOUND 5. CC 6.
- Page 8 Getting Started The Master Remote Control - R230D2 settings of the TV. This remote should not be used by the guest. 1. NUMBER BUTTONS Selects channel numbers. 2. POWER Switches the set on or off. 3. SYSTEM multiple TVs are in the same room. 4.
-
Page 9: Initial Setup Wizard
Initial TV Setup Initial Setup Wizard After connecting your TV antenna or cable wire, turn the television ON. The quick setup wizard will display on-screen. Select your preferred Picture setting followed by antenna options if you will view local over-the-air TV broadcasts from an antenna. These channels will be stored in the TV tuner memory after performing Channel Auto Scan. -
Page 10: Channel Menu
Master Menu Adjustments Channel Menu Press MENU button to display the main menu, press◄/►button to select channels. Press ▼/▲ button to select submenu. Press ◄ / ► button to adjust options. Press MENU button to back the previous menu. Channels Picture Time Setup... -
Page 11: Picture Menu
Master Menu Adjustments Picture Menu Press MENU button to display the main menu, press ◄ / ► button to select Picture. Press ▼/▲ button to select submenu. Press ◄ / ► button to adjust options. Press MENU button to back the previous menu. Channels Sound Time... - Page 12 Master Menu Adjustments Color Temperature Adjust the color personality of the picture to your preference. Normal - Gives the white colors a neutral tint. Warm - Gives the white colors a reddish tint. Cool - Gives the white colors a bluish tint. Advanced Settings Adjust advanced video features to fine tune the picture.
-
Page 13: Sound Menu
Master Menu Adjustments Sound Menu Press MENU button to display the main menu, press ◄ / ► button to select Sound. Press ▼/▲ button to select submenu. Press ◄ / ► button to adjust options. Press MENU button to back the previous menu. Channels Time Setup... -
Page 14: Digital Audio Output
Master Menu Adjustments Digital Audio Output Select the digital audio output between PCM (Analog Audio) and RAW (Digital Audio). Press ◄ / ► button to select. Surround Sound Turn virtual surround sound effect on or off. Press ◄ / ► button to select (On / Off). AVL maintains a consistent sound level set by the viewer regardless of the channel or program. -
Page 15: Setup Menu
Master Menu Adjustments Time Format Select your time format. Press ◄/► button to select (12-hour or 24-hour). Auto Clock Use to synchronize the display automatically. Press ◄/► button to select (On / Off). Setup Menu Press MENU button to display the main menu, press◄/►button to select Setup. Press ▼/▲... - Page 16 Master Menu Adjustments Reset Reset TV settings to factory defaults. Press OK / ► button to enter. HDMI CEC Press OK / ► button to enter. Voice Description Press ◄ / ► button to select (on/off). Bluetooth Press OK / ► button to enter sub-menu. Commercial Interface Press OK / ►...
- Page 17 Master Menu Adjustments Change Password Press ► button to enter. System Lock Lock or unlock the buttons on the TV. Press ◄/► button to select (Off / On). Input Block Block or unblock the input sources. Press ► button to enter. Press ◄/►...
- Page 18 Master Menu Adjustments Canada English These ratings are for programs which are using English rating system. Rating News and sports. Children Children over 8 years General Parental guidance Over 14 years Adults Canada French The ratings are for programs which are using French rating system. Rating News and sports.
-
Page 19: Commercial Interface Menu
USB stick as a ‘clone’ file. Update Splash Screen This feature replaces the RCA image when the TV powers on with an image of your choice. You will need a USB memory stick with a file called logo.jpg that is smaller than 200 KB in size and formatted to fit the resolution of the television in question. -
Page 20: Channel Submenu
Commercial Interface Menu Install Settings File Sometimes the RCA support team can provide a setup file called settings.set. This file would need to be placed on a USB memory stick. The USB memory stick can be plugged into any available USB port on the television. Selecting this option will install the file. -
Page 21: Osd Submenu
Commercial Interface Menu OSD Submenu Channels Time Setup Lock Picture Sound Initial CC Last Clear Vchip Password Auto Reset V chip Signal Info. Bar Clock Info. Bar ff). Banner Style Basic Select Move MENU Return Initial CC This setting sets the closed caption setting of the television when it is powered on. -
Page 22: Source Submenu
Commercial Interface Menu Source Submenu Channels Time Setup Lock Picture Sound Input in Channel List Source Lock Auto Sense Input ff). Select Move MENU Return Input Channel List This allows you to add Inputs into your channel lineup, adding them to the end. When you are on your last channel in the index, pressing CH+ on your remote will then proceed through the inputs you’ve selected. - Page 23 Commercial Interface Menu Volume Submenu Channels Time Setup Lock Picture Sound Speaker Default Volume Last Max Volume Min Volume ff). Select Move MENU Return Speaker This allows you to turn the speaker ON or OFF. Turning it off disables the built-in TV speakers.
-
Page 24: Power Management Submenu
Commercial Interface Menu Power Management Submenu Channels Time Setup Lock Picture Sound Auto Power On Keep Always On Auto Power Off ff). Select Move MENU Return Auto Power On This feature allows you to select how the TV acts after AC power is lost, and then restored. - Page 25 Commercial Interface Menu Key Management Submenu Channels Time Setup Lock Picture Sound Keypad Lock Power Keypad Lock Main Menu Lock Active Remote Number ff). Select Move MENU Return Keypad Lock This feature disables all keys physically on the television except for the power button.
- Page 26 MENU Return The RCA MUX is a device apparatus that is installed within your facility head-end. It gets injected between your signal provider and your buildings signal distribution. This device allows you setup all TV’s, or some TV’s, with a settings file.
-
Page 27: Channel Remapping
RCA’s indexing options unlocking the ability to manually change channels to a desired layout. - Page 28 Channel Remapping Channel Remapping This menu shows all channel information found in a channel scan. It is where the television allows channels to be Remapped in any order, and where Channel Labels can be added. Physical Virtual Index Channel Labels Skip There are 5 columns, each showing specific information.
- Page 29 Channel Remapping Renaming Highlighting a channel and pressing 1 on a master remote will bring up 7 editable boxes in the channel label column. Use the left/right directional arrows to navigate between the boxes and the up/down arrows to edit the boxes text. Press ‘OK’ on a master remote when finished entering the label.
-
Page 30: Photo Menu
USB Operation Note: Before operating Media menu, Plug in USB device, then press INPUT button to set the Input Source to Media. Press ◄/► button to select Media in the Source menu, then press OK button to enter. Press ◄/► button to adjust the option you want to adjust in the main Media menu, then press OK button to enter. -
Page 31: Music Menu
USB Operation Music Menu Press ◄ / ► button to select MUSIC in the main menu, then press OK button to enter. Press clear button to return to the previous menu. Press ◄ / ► button to select drive disk you want to watch, then press OK button to enter. media. -
Page 32: Troubleshooting
Troubleshooting contacting Customer Support. Turn off the device immediately as soon as you suspect a malfunction and unplug Do not attempt to repair the device yourself. SYMPTOM CHECK ITEM LED screen Make sure the unit is turned on and the connections are correct. stays dark. -
Page 33: Attaching The Tv Stand
Attaching the TV Stand Place the smaller round plastic ring on the TV neck, then place the stand. Step three Place another round plastic ring with a notch, then place the circular metal plate on the stand. Step four Instert and tighten all screws. -
Page 34: Attaching The Tv Stand To Furniture
Attaching the TV Stand to Furniture Locking Plate The RCA LV series TV is equipped with an integrated locking plate to deter ed with an integrated locking plate to deter unauthorized movement of the TV. Typical Fasteners A) #8 Tamper Resistant... -
Page 35: Limited Warranty
Limited Warranty Limited Warranty Your Display will be repaired or replaced in accordance with the terms of this warranty, if it proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. - Page 36 How you get service: Contact your dealer, or visit http://www.rcacommercialtv.com, or call 1-800-RCA-2161 (800-722-2161). Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the warranty period must be presented to obtain warranty service.
- Page 37 RCA is a trademark of RCA Trademark Management used under license of DTI. DTI Services, LLC 5935 W 84th St Indianapolis, IN 46278 http://www.rcacommercialtv.com...
