Summary of Contents for Aoni D700
- Page 1 User Manual IoT Device Model: D700...
- Page 2 1.Introduction The IoT device is designed for the shared scooter and it could communicate with the cloud server via cellular communication. Our IoT device is highlighted with the following features. First of all, you could fully control the scooter, such as lock/unlock, power on /off, turn on/off the throttle, and switch between different riding modes, etc.
-
Page 3: Basic Parameters
2.Basic Parameters Item Specification Cloud Communications Connected to the server through TCP socket B5/B7/B41 Bands Support (U.S.-Band) Wifi Band 2.4G/5G Connectivity/BLE BLE5.2 (2402-2480MHz) (Auxiliary unlocking) GNSS GPS+GLONASS/GPS+BDS Antenna Efficiency Celluar>40%; GPS>70% Unlocking Time 1-3s Geolocation Precision ≦15m (open ground, sunny unobstructed) Geolocation Time Hard/Cold Boot <35s;... - Page 4 2.Basic Parameters Item Specification Voice Prompts Factory Defaults; Volume:70-90dB Motion Detection Triaxial Accelerometer Operating Temperature -20℃ ~ 60℃ Storage Temperature -40℃ ~ 70℃ Operating Humidity 93%RH IP Rating IP67 Unlocked state current <40mA (36VDC average current) Lock state (standby) current <5mA (36VDC average current) Battery&Communication Interfaces 5pin:12-48V,GND,TX (TTL),RX (TTL), Power_control_wire...
-
Page 5: Main Features
3.Main Features Main Features(Firmware Version: 1.7.5) *This will be continuously updated Lock&unlock, power on/off through both 4G and BLE5.2. Two modes to locate: Single/Continuous Adjustable sensitivity of accelerometer User-defined communication interval between server and IoT Headlight switch: manual or programmable Enable/Disable Riding Modes Switch Riding modes switch:manually or programmable Enable/Disable Throttle, Cruise control, Front&rear lights flash... - Page 6 4.Diagram a. IoT Device*1...

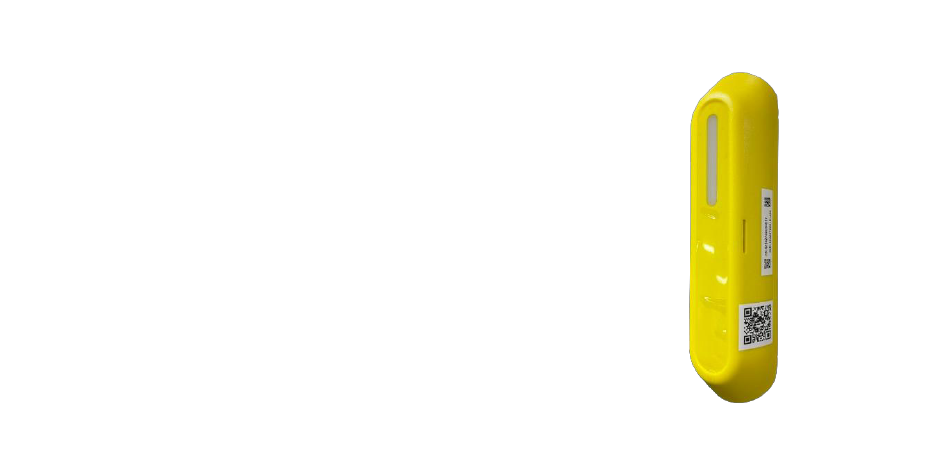

- Page 7 5.Main Body Diagram 5 Pin Cable Wifi QR Code Label Serial & IMEI Number Label Speaker...
- Page 8 6. Assembling a. The IoT device: First, connect the 5 pin cable of the scooter with that of the IoT device. Second, mount the 2 screws(M4*12) to attach the IoT device to the stem.
- Page 9 7.Notes 1. Do not use the IoT device beyond the operating temperature range: -20℃ ~ 60℃. 2. Do not dismantle the IoT device to change SIM card inside because this will weaken its waterproof performance. 3. Keep the IMEI code label and Serial Number code label adhered on the IoT device intact. 4.
-
Page 10: Regulatory Info
8. Regulatory Info FCC Regulatory Compliance Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 11 8. Regulatory Info Supplier's Declaration of Conformity Model No.: D700 Responsible Party SHENZHEN AONI ELECTRONIC CO.LTD No.5 Bldg., Honghui industrial Park, 2nd Liuxian Rd., Xin'an,Bao'an, Shenzhen, China Phone: +86 13798216006 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
