Arkon FLRM3885VESA Manual

FLRM3885VESA | VESA Mounting Plate with 8.5" Shaft Arm and Overhead Mount
SPVESAPLATE
SP10FLIFT
APMAMPS38MMAL
Attach the Ball Adapter to the VESA Plate
Align the AMPS adapter above the holes on the adapter
plate. Use the supplied hardware to fasten the AMPS
adapter securely onto the plate.
Mounting Plate Installation
Position the mounting plates against the designated area.
Secure the plates in place while inserting the hardware.
WARNING
CHOKING HAZARD - Keep out of reach from children under 8 yrs. as they can choke or suffocate on parts included with this system
WARNING
Arkon® is not responsible for any damages caused to your device or yourself due to the installation or use of this mount. Do not install Arkon® products near areas that intefere with operation
of vehicles. Arkon® assumes no responsibility or liability for injury or death as a result of failure to install in a safe location. Arkon® is not responsible for any damages caused to vehicles,
product, or people due to the installation or use of this product.
APFLIFT
SPRM3885
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST
Includes:
1 – Square VESA 75 / VESA 100 Adapter Plate (SPVESAPLATE)
2 – 7"x10" Black Steel Forklift Mounting Plate (APFLIFT)
1 – Robust™ Series 8.5 inch Metal Shaft Arm (SPRM3885)
1 – Hardware Kit (S10FLIFT)
2 – XMS AMPS Adapter Plate with 38mm Ball (APMAMPS38MMAL)
Note: This mount supports VESA 75 (75mm x 75mm) and VESA 100 (100mm x
100mm) patterns. It is best suited for small televisions and desktop computer
monitors weighing less than 5 pounds.
The APFLIFT steel plate weighs over 3 pounds and measures 10" x 7" x 1/8". It
features pre-drilled holes of sizes 4.9mm, 5.7mm, and 8.5mm, along with patterns
for mounting various devices, including 4-Hole AMPS, VESA 75, VESA 100, and
Gamber-Johnson 2" x 4.09".

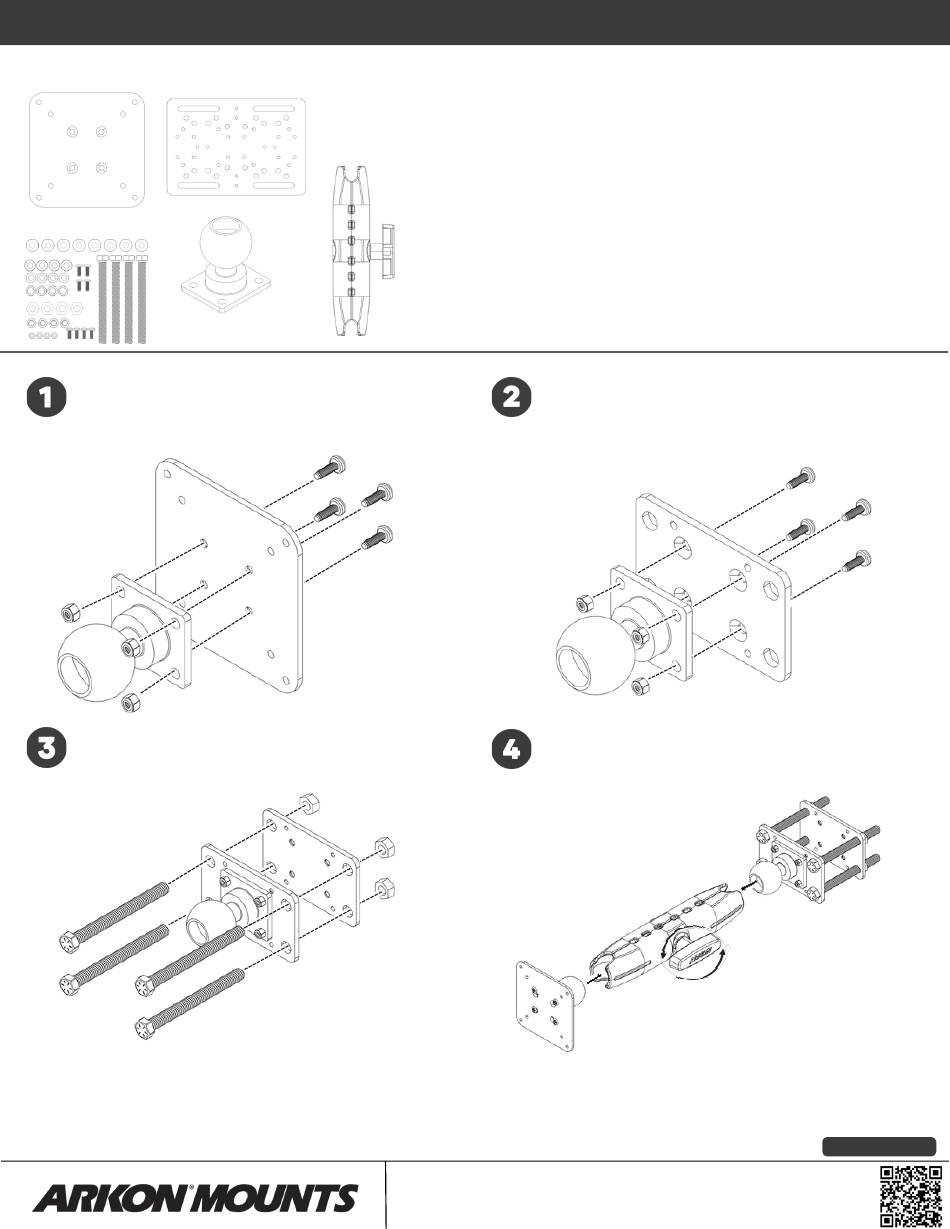

Attach the AMPS Adapter to the Mounting Plate
Position the AMPS plate on one of the mounting plates and
secure it in place using the screws and nuts included in the
hardware kit.
Assemble the components
Turn the shaft arm counterclockwise to loosen it. Next, attach
the 38mm ball adapters to both ends. Finally, tighten the shaft
to secure everything in place.
