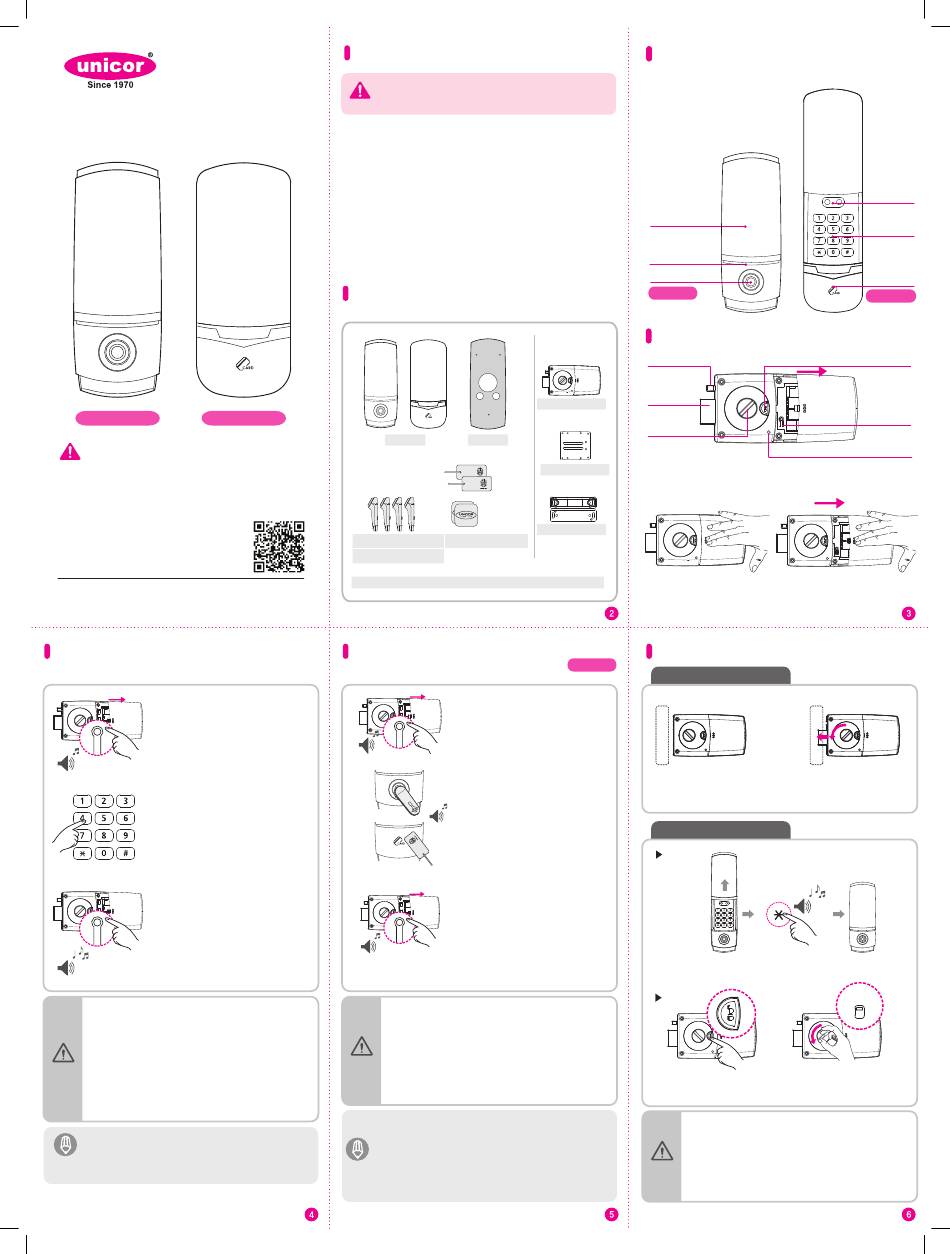

Unicor 220 Series User Manual

220/310 Series User Manual
Push-button type subsidiary key
220 Series 310 Series
Cautoin
As this is a keyless digital door lock, damage
may occur to parts of the dead lock system if
it is not used according to the manual. Users
should be fully aware of the manual and how to
operate this product.
UNICOR HIGHTECH CO., LTD
www.unicor.co.kr
- This manual may change without notice in case of product improvement.
- Product specifications are subject to change without prior notice.
- This manual may not be edited or changed without the manufacturer's prior permission
Registering and changing the secret code
Product composition may be subject to change depending on the installation environment.
1. Press the [Register] button
Open the battery cover, and press the [Register]
button. Then, a short signal sound "Bibi~" will
be generated.
2. Enter the new secret code for registration.
Push the keypad cover up on the front ass'y, and
then enter the new secret code for registration.
(Numerical characters of 3–20 digits, except for
the [*] and [#] buttons)
3. Press the [Register] button
Press the [Register] button after entering the
secret code. Then, a melody "Biriri" will be
generated, completing the registration.
Once the secret code is registered, while the
door is opened, users must check whether the
secret code is working well.
• The door must be open while registering the secret code. The door may
be locked while the user does not know the secret code yet (Carry the
emergency digital touch key/smart tag (card).
• When the registration is completed, the user must check whether the
door lock operates normally while keeping the door open and having
the deadbolt come out.
Caution
• When the user enters an incorrect secret code 3 or more consecutive
times, the door lock will stop its operation for 30 seconds.
(User the current state by pressing the [Open/Close] button on the
back ass'y)
• Only one secret code can be registered, and 3–20 digits can be entered for the secret code.
• When a new secret code is registered, the existing secret code (1234567890) will be
automatically deleted.
Attention • Even when the secret code is changed, the digital touch key or the smart tag (card) can still
be used without registering it additionally.
Safety precautions
The precautionary measures are for the safety of the user, for the prevention
of property damage, and for the avoidance of any inconveniences due to an
Warning accident. These must be read and followed properly.
• Do not disassemble or alter the lock. • Place the batteries carefully and correctly
according to their polarity (+/-). If the batteries
• Do not install where the distance over 5mm
are inserted in a wrong way, differently from
between the door and door frame.
the indicated direction or polarity, leakage or
• Please do not expose the secret code and
rupture could occur. Pay attention to it.
change the secret code in regularly.
• Please do not mix old with new batteries or use
• Batteries should not be exposed directly to heat
different types.
sources or flames, or submerged in water, because
Always use new alkaline batteries.
they may leak or explode, resulting in severe
• Do not clean the product with flammable
damage. Please do not use damaged batteries.
materials such as alcohol, benzene or thinners.
• Do not press using sharp tools or press numeric
Such materials may damage the surface or
button excessively.
cause a fire.
• Make sure the door is completely locked when
• Replace the current batteries with new ones
going out.
within 1 week after the battery replacement
notification melody sounded off for the first time.
Product Com position
Product composition may be subject to change depending on the installation environment.
Front Ass'y Front pad
Smart Tag
2EA
Slim smart key
2EA
Digital key 4ea (2-way only) 310 series only
Digital key and smart key are
220 series only
exclued from the 220N/310N series.
User Manual / Product Warranty / Installation Template / Screw / Batteries(AA LR6 4Pcs)
Registering the digital touch
key/smart tag (card) the secret code
The door must be open while registering and checking the digital touch key or the smart tag (card).
1. Press the [Register] button
Open the battery cover, and press the [Register]
button. Then, a short signal sound "Ttitti~" will
be generated.
2. Register the digital touch key/smart tag (card)
Bring the digital touch key/smart tag (card) that
needs to be registered into contact at the touch
plate of the front ass'y. When a normal contact
occurs, a short signal sound "Bibi~" will be
generated.
3. Press the [Register] button
Bring individual digital touch keys/smart tags
(cards) into contact at the touch plate in order
while pressing the [Register] button. Then, a
melody "Biriri" will be generated completing
the registration.
4. Delete the digital key / Smart key
Press [Register] button, and then press "0"(zero) for 5 seconds.
• The door must be open while registering the digital touch key or smart
tag (card). The door may be locked by mistake.
• When the registration is completed, the user must check whether the
door lock operates normally while it is open.
Caution
• If a digital touch key or smart tag (card) needs to be registered again,
press the [Register] button and then bring it into contact at the
reception area.
• Even when one of the digital touch keys or smart tags (cards) that are used
is missing, it is required to register all of the remaining digital touch keys
and smart tags (cards) again. When the registration takes places, the missing
digital touch key or smart tag (card) cannot be used as it will be automati -
cally deleted.
• Users can purchase additional digital touch keys or smart tags (cards) from
Attention
the head office customer center or from one of the company's selling shops.
• 4pcs of digital touch key (2pcs of smart tag (card)) are provided basically. It is
possible to register up to 20pcs.
Specification(Front Ass'y)
Keypad cover
Operating lamp
(Not available for JS310 series)
Touch plate
For 2way only
Specification(Back Ass'y )
Auto Lock Latch
Deadbolt
Back Ass'y
Manual Knob
For the Emergency use : if Open/Close
button is not working, then just turn to
Mounting Plate
open by finger
To Open the Battery C over
Strike & Strike Sp cer a
Press slightly battery cover and push to the direction of the arrow to open.
Locking the door from the inside and the outside
For 2way only
When the auto lock function is set
When it comes to the auto lock function that is set to default when the product
is shipped, the door will be locked 2 seconds after it is closed.
When the manual lock function is set
Outdoor side
Push the keypad cover up, and press [*] button.
then, the door will be closed with a melody "Biriric".
Indoor side
Press the [Open/Close] button of the back ass'y, or directly turn the manual knob
to the close position. Then, the door will be locked.
• If the user enters an incorrect secret code 3 consecutive times, an
alarm will be generated while the door lock will stop operation for a
certain period of time. (①Wait for about 30 seconds, and try to enter
the secret code again. ② If the operation stops, press the [Open/Close]
button from the inside to unset the current state)
Caution
• The company will not be held responsible for any damage due to
exposure of secret codes. Users need to be careful about keeping their
secret code safe.
Emergency power
terminal
Keypad
Touch Point
For smart models only
Open/Close Button
Register Button
Double Lock Button
After 3 seconds
Closed
