Summary of Contents for Laney LIONHEART FOUNDRY LF-SUPERTOP

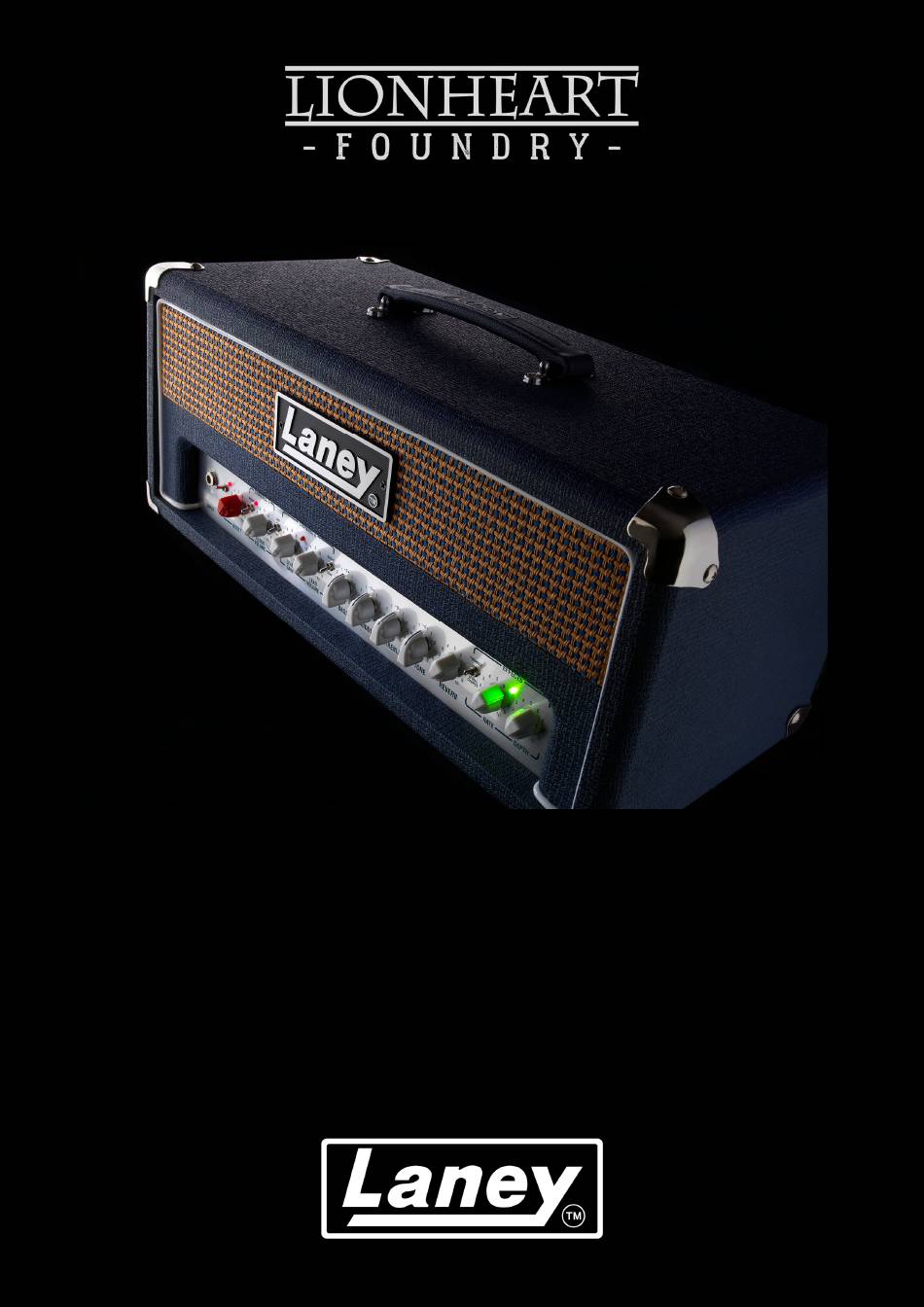

- Page 1 LF LF LF LF- - - - SUPER SUPER SUPERTOP SUPER USER MANUAL USER MANUAL USER MANUAL USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................2 FEATURES ..............................3 CONTROLS ................................. 4 FRONT PANEL ............................4 BACK PANEL ............................. 6 HOW TO CONNECT THE LF-SUPERTOP ......................7 LOUDSPEAKER CONNECTION ......................7 FX LOOP ..............................7 USING THE DI OUT ..........................8 AUX IN AND HEADPHONES OUT ......................9 FOOTSWITCH CONNECTIONS ...................... -
Page 3: Introduction
The LF-SUPERTOP is a pro spec dual channel all analogue 120-Watt guitar head, packed full of additional features. This powerhouse is built to deliver your bold and unmistakable presence, whether in the studio or live, the LIONHEART FOUNDRY LF-SUPERTOP is your partner in making every note heard loud and clear. -
Page 4: Features
We’ve carefully captured our legendary Laney GS112 and GS412 cabinets, in-house, to ensure they perfectly match the Foundry LIONHEARTs, and the LA·IR offers them up to you at the flick of a switch. These bespoke Built-In IRs allow you to send the perfect cabinet output option direct to the PA without the need to mic, all via the XLR DI OUT. -
Page 5: Controls
CONTROLS FRONT PANEL 1. INPUT SOCKET 6.3mm jack socket for your Guitar audio signal input. 2. BOOST CONTROL Pre-channel boost control with on/off switch. The LED will illuminate with the toggle in the up position and the Boost is active. Switching is also achievable via the rear panel Remote socket and footswitch. 3. - Page 6 4. EQ TONE STACK 3 tone EQ stack to tweak the bass, middle and treble. Passive controls that always sound musical at any setting with an additional Tone control to tweak the top end response of your signal. 5. REVERB Our built-in studio quality spring line reverb effect based on our award-winning Secret Path pedal.
-
Page 7: Back Panel
9. LOUDSPEAKER SOCKETS Connect to your passive guitar speaker cabinet. A Laney LF212 or LF412 is recommended. Two sockets are provided to run multiple cabinets at the same time. A single 4 Ohm, 8 Ohm or 16 Ohm cabinet can be used, or multiple cabinets having a combined impedance of 4 Ohms or more, ie two 8 Ohm cabinets. -
Page 8: How To Connect The Lf-Supertop
HOW TO CONNECT THE LF-SUPERTOP LOUDSPEAKER CONNECTION Simply connect your guitar to the input socket via a 6.3mm jack and you’re ready to play. FX LOOP To incorporate your effects pedalboard, plug the input and output to the FX send/return sockets respectively. -
Page 9: Using The Di Out
USING THE DI OUT The high-quality speaker emulated DI out, with IRs preloaded, can be connected to any balanced/unbalanced line level input device such as a PA or audio interface to a DAW. Toggle the cabinet emulation off should you want to use your own. Please note that it’s ok to use the amplifier with speaker outputs disconnected. -
Page 10: Aux In And Headphones Out
AUX IN AND HEADPHONES OUT Connect your backing track via the 3.5mm aux in from any media player device such as a mobile phone. This will play out of the onboard loudspeaker along with your guitar track. Alternatively, for silent practise, plug in a pair of headphones to the 3.5mm phones out socket to have your guitar and backing track play through them with the onboard loudspeaker muted. -
Page 11: Example Settings
EXAMPLE SETTINGS While the EQ on the LF-SUPERTOP is designed to always sound musical, here are a few starters to help you find some familiar tones: CLEAN PUSHED CLEAN LEAD RHYTHM FULL ON Page 10... -
Page 12: Specifications
295 x 625 x 285mm, (11.6" x 24.6" x 11.2"), 0.053 M3 Packed Weight 9.3Kg, (20.5 lbs) EAN Code (Single) 5060109459128 In the interest of continued development, Laney reserves the right to amend product specification without prior notification. Page 11... -
Page 13: Dimensions (In Mm)
DIMENSIONS (in mm) Page 12... -
Page 14: Block Diagram
BLOCK DIAGRAM Page 13... -
Page 15: Safety And Warnings
1) Unpacking: On unpacking your product, please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer. - Page 16 1) This device may not cause harmful interference. 2) This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment.
- Page 17 LANEY ELECTRONICS LTD. STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD. UK FOR THE LATEST INFORMATION PLEASE VISIT WWW.LANEY.CO.UK IN THE INTEREST OF CONTINUED DEVELOPMENT, LANEY RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION. V1.0 Page 16...
