Summary of Contents for Pure Processing SL-7510 Series

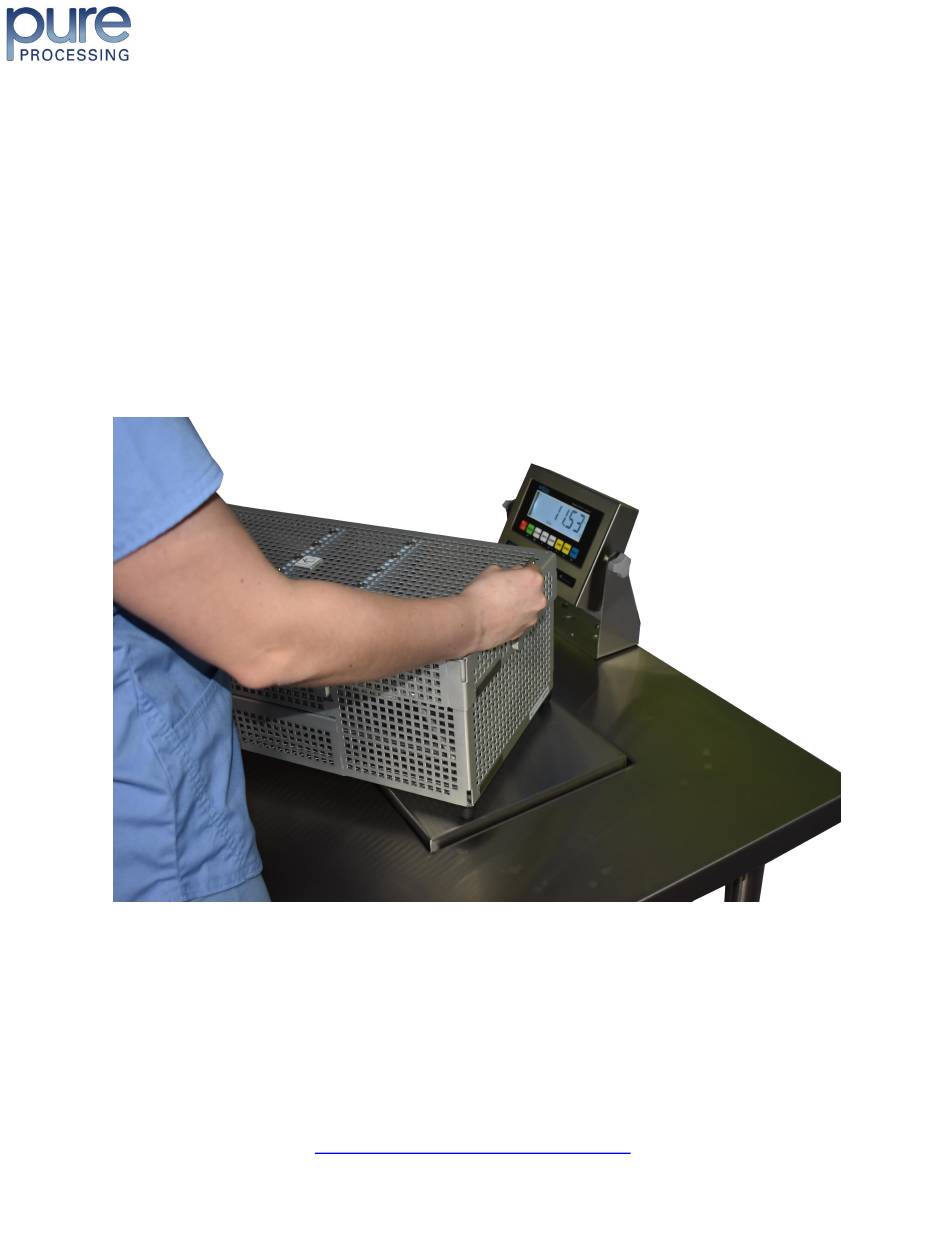

- Page 1 SL-7510 SERIES INDICATOR USER’S MANUAL (SL-7510-C Series) Pure Processing 130 E. Saint Charles Road STE C Carol Stream, IL 60188 www.pure-processing.com (877) 718-6868...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Precautions Preparations and Set Up Adjusting the Foot Height on Scales Features Specifications Power Supply Displays Display and Key Descriptions 8-10 Operating Instructions Calibration 12-13... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS For safe operation of the weighing indicator, please follow these instructions: ● Calibration inspection and maintenance of the indicator are prohibited by non-pro- fessional staff ● Please ensure that the indicator rests on a stable surface ● The indicator is a piece of static sensitive equipment; Please cut off power during electrical connections ●... -
Page 4: Adjusting The Foot Height On Scales
ADJUSTING THE FOOT HEIGHT ON SCALES 1. The top of the scale should be positioned about 3/4" above the table surface. If additional height is required, the scale height can be adjusted to a maximum of 1.5". MAXIMUM HEIGHT MINIMUM HEIGHT 2. - Page 5 3. Lift the scale from the seat in the cart. Twist the foot on each of the 4 legs, lengthening each leg. Turn right to shorten the legs, and left to make the legs longer. 4. Once adjusted, place the scale back into its seat. Replace the cover, and recalibrate the scale.
-
Page 6: Features
FEATURES ● LCD display ● Multiple weighing units: kg/lb (g/oz/lb:oz offered on LCD versions) ● Gross/Tare/Pre-Set Tare/Zero ● Multiple Hold functions ● Count weighing ● Accumulation weighing ● Overload / Underload indication ● Connects to multiple printers ● Splash proof keyboard and display ●... -
Page 7: Specifications
SPECIFICATIONS FIGURE 1: INDICATOR MEASUREMENTS... -
Page 8: Power Supply
POWER SUPPLY AC Adapter If the indicator is powered by an adapter, plug the adapter directly into the “DC” pin located at the bottom of the indicator. We recommend to plug into a wall outlet to avoid interference with other wirings. Battery (Optional) If you have an indicator with the rechargeable battery option, please charge the internal battery fully before first time use. -
Page 9: Displays
SL-7510-C (LCD) -
Page 10: Display And Key Descriptions
DISPLAY AND KEY DESCRIPTION ON/OFF Powers the Indicator On or Off if held for 2 seconds HOLD Holds the weight (5 Hold options; can be changed in parameter settings) TOTAL 1. Accumulates weights 2. Works with “Print” to perform the accumulation function and check the accumulation result UNITS Shifts between weighing units... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Power On ● Turn on the power by pressing the power button for 2 seconds. Once on, the scale will flash the voltage and then begin to auto-check and count down from 0-9 sequentially before entering the weighing mode Note: Anything on the scale before powering on will automatically be tared out. - Page 12 Counting Function ● The counting function is used to count a high volume of identical parts. You can do this by setting a sample and then either adding to the sample or taking away from the sample to count the number of objects on the scale ●...
- Page 13 Hold There are 4 different hold functions you can choose from in the C11 parameter 1. Peak Hold: Grabs the highest weight (for materials testing, ie. tension and pulling force) ● Press the HOLD key then add weight to the scale ●...
-
Page 14: Calibration
CALIBRATION PROCEDURE Turn on the scale by holding ON/OFF for 2 seconds. Press HOLD and PRINT together to access the setup menu. If done correctly, the display should now show Press PRINT to access the C1 channel. The display should show [ Press ZERO to choose which unit you want to calibrate in (1 = kg, 2 = lb). - Page 15 23. Enter the calibration weight value you will use (at least 10% of max capacity you set in C04 by using UNIT and COUNT to move the cursor left and right, and TARE and ZERO move the values down and up. 24.
