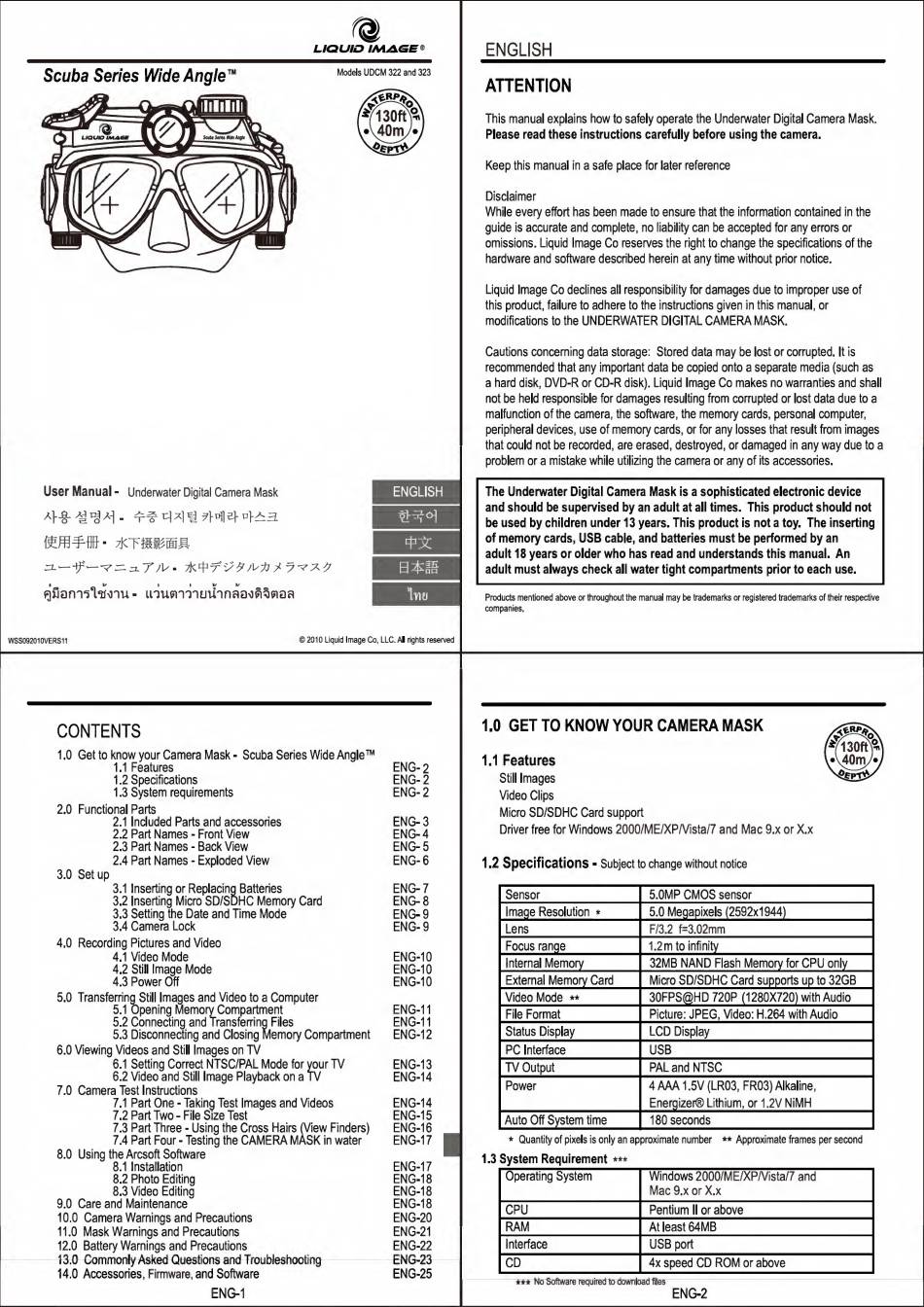

Liquid Image Scuba Wide Angle UDCM 322 User Manual

m
LIQUIO IAAj^GE^
Models UDCM 322 and 323
ENGLISH
ATTENTION
This manual explains how to safely operate the Underwater Digital Camera Mask.
Please read these instructions carefully before using the camera.
Keep this manual in a safe place for later reference
Disclaimer
While every effort has been made to ensure that the information contained in the
guide is accurate and complete, no liability can be accepted for any errors or
omissions. Liquid Image Co reserves the right to change the specifications of the
hardware and software described herein at any time without prior notice.
Liquid Image Co declines all responsibility for damages due to improper use of
this product, failure to adhere to the instructions given in this manual, or
modifications to the UNDERWATER DIGITAL CAMERA MASK.
User Manual - Underwater Digital Camera Mask ENGLISH
Ivicj
Cautions concerning data storage: Stored data may be lost or corrupted. It is
recommended that any important data be copied onto a separate media (such as
a hard disk, DVD-R or CD-R disk). Liquid Image Co makes no warranties and shall
not be held responsible for damages resulting from corrupted or lost data due to a
malfunction of the camera, the software, the memory cards, personal computer,
peripheral devices, use of memory cards, or for any losses that result from images
that could not be recorded, are erased, destroyed, or damaged in any way due to a
problem or a mistake while utilizing the camera or any of its accessories.
The Underwater Digital Camera Mask is a sophisticated electronic device
and should be supervised by an adult at all times. This product should not
be used by children under 13 years. This product is not a toy. The inserting
of memory cards, USB cable, and batteries must be performed by an
adult 18 years or older who has read and understands this manual. An
adult must always check all water tight compartments prior to each use.
Products mentioned above or throughout the manual may be trademarks or registered trademarks of their respective
companies.
WSS092010VERS11
© 2010 Liquid Image Co, LLC. Al rights reserved
CONTENTS
1.0 Get to know your Camera Mask - Scuba Series Wide Angle™
1.1 Features ENG-2
1.2 Specifications ENG-2
1.3 System requirements ENG- 2
2.0 Functional Parts
2.1 Included Parts and accessories ENG- 3
2.2 Part Names - Front View ENG- 4
2.3 Part Names - Back View ENG- 5
2.4 Part Names - Exploded View ENG- 6
3.0 Setup
1.0 GET TO KNOW YOUR CAMERA MASK
1.1 Features
still Images
Video Clips
Micro SD/SDHC Card support
Driver free for Windows 2000/ME/XPA/ista/7 and Mac 9.x or X.x
1.2 Specifications
- Subject to change without notice
3.1 Inserting or Replacing Batteries ENG- 7
3.2 Inserting Micro SD/SDHC Memory Card ENG- 8
3.3 Setting the Date and Time Mode ENG- 9
3.4 Camera Lock ENG- 9
4.0 Recording Pictures and Video
4.1 Video Mode ENG-10
4.2 Still Image Mode ENG-10
4.3 Power Off ENG-10
5.0 Transferring Still Images and Video to a Computer
5.1 Opening Memory Compartment ENG-11
5.2 Connecting and Transferring Files ENG-11
5.3 Disconnecting and Closing Memory Compartment ENG-12
6.0 Viewing Videos and Still Images on TV
6.1 Setting Correct NTSC/PAL Mode for your TV ENG-13
6.2 Video and Still Image Playback on a TV ENG-14
7.0 Camera Test Instructions
7.1 Part One - Taking Test Images and Videos ENG-14
7.2 Part Two - File Size Test ENG-15
7.3 Part Three - Using the Cross Hairs (View Finders) ENG-16
7.4 Part Four - Testing the CAMERA MASK in water ENG-17
Sensor 5.0MP CMOS sensor
Image Resolution * 5.0 Megapixels (2592x1944)
Lens F/3.2 f=3.02mm
Focus range 1.2 m to infinity
Internal Memory
32MB NAND Flash Memory for CPU only
External Memory Card Micro SD/SDHC Card supports up to 32GB
Video Mode ** 30FPS@HD 720P (1280X720) with Audio
File Format Picture: JPEG, Video: H.264 with Audio
Status Display LCD Display
PC Interface USB
TV Output PAL and NTSC
Power
4 AAA 1.5V (LR03, FR03) Alkaline,
Energizer® Lithium, or 1.2V NiMH
Auto Off System time 180 seconds
* Quantity of pixels is only an approximate number ** Approximate frames per second
8.0 Using the Arcsoft Software
8.1 Installation ENG-17
8.2 Photo Editing ENG-18
8.3 Video Editing ENG-18
9.0 Care and Maintenance ENG-18
10.0 Camera Warnings and Precautions ENG-20
11.0 Mask Warnings and Precautions ENG-21
12.0 Battery Warnings and Precautions ENG-22
13.0 Commonly Asked Questions and Troubleshooting ENG-23
14.0 Accessories, Firmware, and Software ENG-25
1.3 System Requirement ***
Operating System Windows 2000/ME/XPA/ista/7 and
Mac 9.x or X.x
CPU Pentium II or above
RAM At least 64MB
Interface USB port
CD 4x speed CD ROM or above
*** No Software required to download files
ENG-1 ENG-2
