Summary of Contents for Vonage VWRVD - D-Link VWR Wireless Router
-

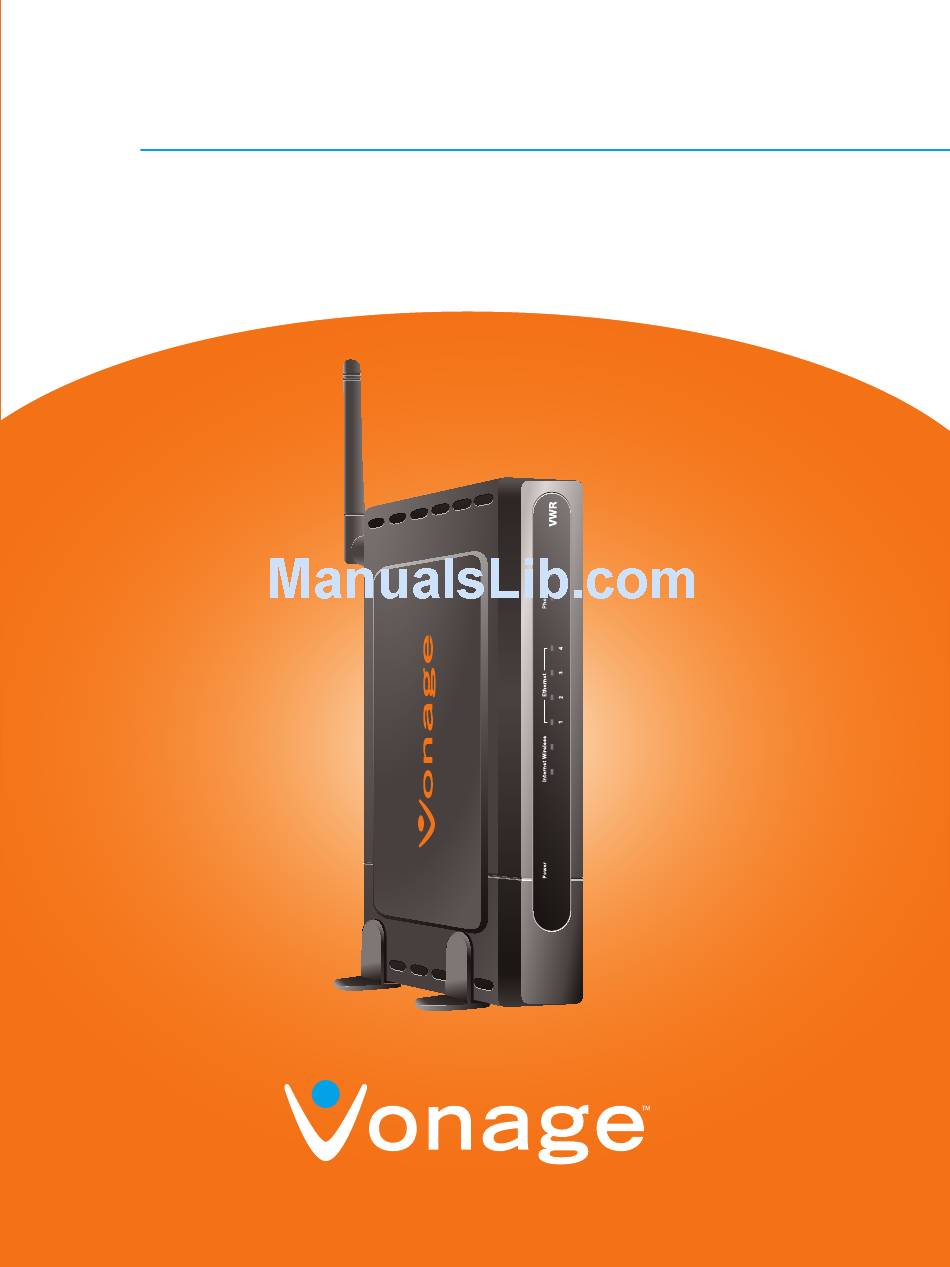

Page 1: Quick Start Guide
Quick Start Guide ® Vonage VWR Device... -
Page 2: Before You Begin
(You will need to provide the MAC ID on the bottom of the Vonage Device.) In the U.S., visit www.vonage.com/activate. In Canada, visit www.vonage.ca/activate. If you received your Vonage Device in the mail from Vonage, your Vonage phone service has already been activated. You also need a high-speed Internet connection, such as DSL or cable, to use Vonage. - Page 3 Quick Start Guide for Vonage. Get ready to start saving money on your phone bill with Vonage – just follow these easy step-by-step instructions to set up your new Vonage device. Within minutes, you’ll be making phone calls with high-quality, low-cost Vonage phone service!
- Page 4 Black Power Cord Telephone Blue Cable Yellow Cable Base Support* Cable NOTE: Ensure you are using the power supply provided with the Vonage Device. Using the wrong power supply could result in damage to your equipment. *Not required for installation.
- Page 5 Leave your modem connected to your cable or DSL phone line that supplies your Internet connection. Attach the antenna to your Vonage Device. Unplug the Ethernet cable that connects your modem to your computer or router. Unplug the cable from both your modem and your computer (or router).
- Page 6 Connect one end of the yellow cable to the yellow port labeled “Ethernet 1” on the back of the Vonage Device. Connect the other end to the Ethernet port on your computer or router that you unplugged earlier. Vonage Device...
- Page 7 Vonage Device NOTE: Before continuing, the “Power” and “Internet” lights on the front of the Vonage Device should both turn on. Wait until the “Power” light stops blinking and both “Power” and “Phone 1” lights are solid. The “Phone 2” light will be solid if you have a second Vonage line.
- Page 8 Click Apply. Click Save and Restart button on the left and click Reboot. Note: If you had an existing router connected to your DSL modem, but it is now connected to your Vonage device, the router will have to be set up as a DHCP client instead of PPPoE.
- Page 9 Step 3: Connecting your phone Plug the Vonage telephone cord into your phone or unplug your existing phone cord from the wall and plug it into the phone port directly on the Vonage Device. NOTE: If not done so already, disconnect phone cord from wall.
-
Page 10: Wireless Networking
Canada www.vonage.ca/vwr. Note: The Vonage Device is a wireless B/G Router, with wireless turned on by default. This means that if you have a computer that’s wireless B or G, you can take advantage of your new Wi-Fi network immediately and connect your computer wire-free. - Page 11 Device: Power – When the power light stops blinking and is a solid green, this indicates that your Vonage Device has started up properly. Note that both the power light and the phone light must be solid in order to make a phone call.
-
Page 12: Troubleshooting Tips
If necessary, refer to the information that came with your modem. Vonage Device – Wait for the power and phone(s) lights to be a solid green. (The Internet light will blink whenever there is activity.) Router, if you have one –... - Page 13 Be sure your phone is plugged in to the Green Phone Port 1 on the rear panel of the Vonage Device, and that it is disconnected from the wall jack that a traditional phone uses. Reset all of your equipment as described on page 10.
- Page 14 ® Your Vonage Web Account To go to your web account: Visit the Vonage website and enter your username and password into the customer login area. Your Vonage Dashboard gives you everything you need at your fingertips. • Account – Visit the Account section to make changes to your personal and credit card information.
- Page 15 If you’re still having trouble, please call: 1-Vonage Help (866-243-4357) U.S. or 1-877-272-0528 Canada Vonage 911 service operates differently than traditional 911. See www.vonage.com/911 for details. High-speed Internet or broadband required. Alarms and other systems may not be compatible. © 2008 Vonage.
- Page 16 SYSTEM REQUIREMENTS • High-speed broadband Internet connection, such as Cable or DSL • A valid Vonage account • If you purchased your Vonage Device at a retail location, make sure to first activate your device at www.vonage.com/activate. In Canada, visit www.vonage.ca/activate.
