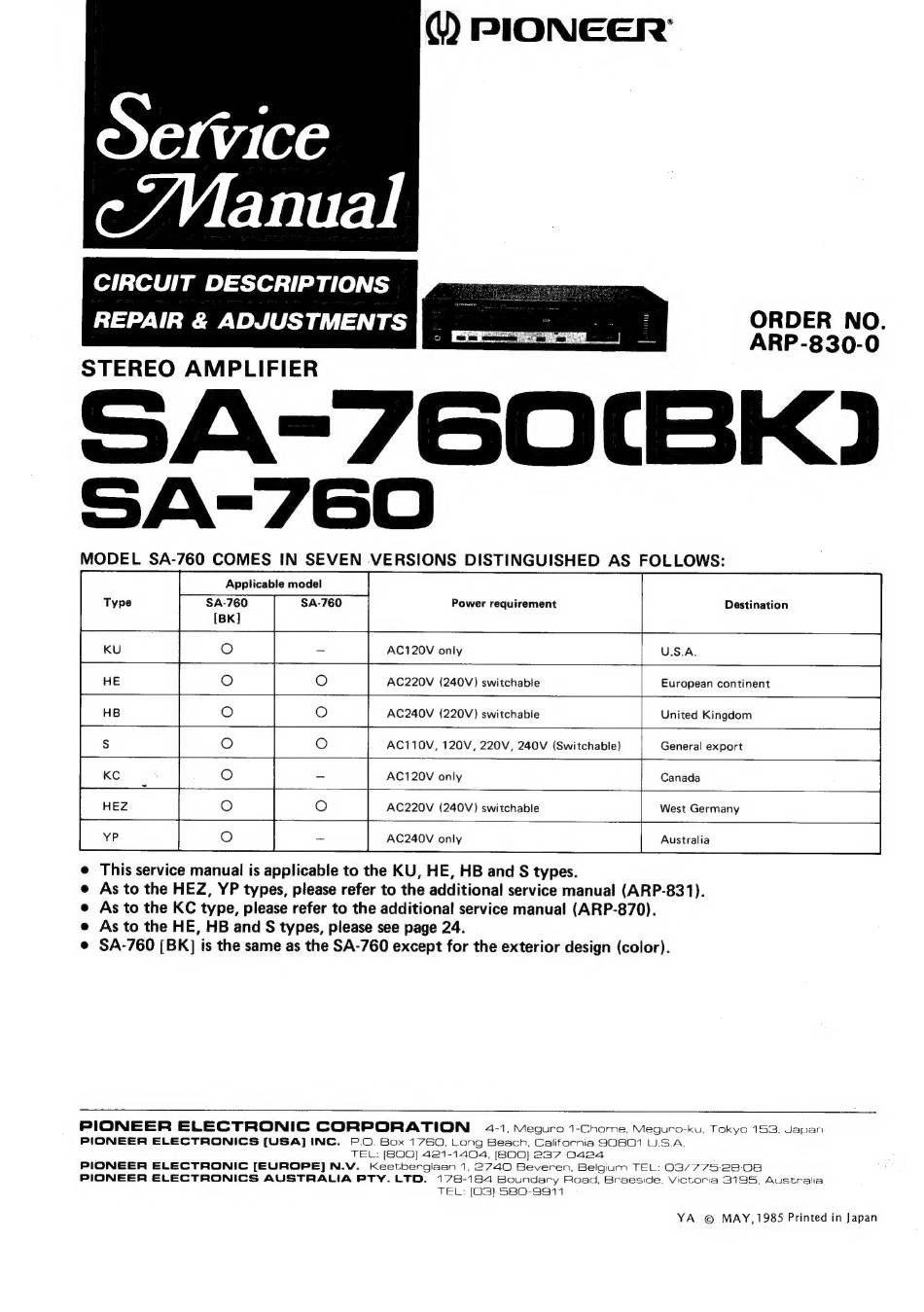

Pioneer SA-760 Service Manual

Y) PIONEER'
CIRCUIT DESCRIPTIONS
ORDER NO.
ARP-830-0
REPAIR & ADJUSTMENTS
STEREO AMPLIFIER
A-760(EK)
SA-760
MODEL SA-760 eae IN SEVEN VERSIONS DISTINGUISHED AS FOLLOWS:
| Applicable model | model
Type SA-760 SA-760 Power requirement Destination
[BK]
AC220V (240V) switchable European continent
AC240V (220V) switchable United Kingdom
AC110V, 120V, 220V, 240V (Switchable) General export
AC120V only Canada
AC220V (240V) switchable West Germany
AC240V only Australia
e This service manual is applicable to the KU, HE, HB and S types.
e As to the HEZ, YP types, please refer to the additional service manual (ARP-831).
e As to the KC type, please refer to the additional service manual (ARP-870).
e As to the HE, HB and S types, please see page 24.
e SA-760 [BK] is the same as the SA-760 except for the exterior design (color).
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS [USA] INC. P.O. Box 1760, Long Beach, California 30801 U.S.A.
TEL: [B00] 421-1404, (800) 237 C424
PIONEER ELECTRONIC [EUROPE] N.V. Keetbergiaan 1,2740 Beveren, Belgium TEL: 03/775:28-:08
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia
TEL: (03) 580-9911
YA © MAY,1985 Printed in Japan
