Summary of Contents for Elproma Cyble Dock V1

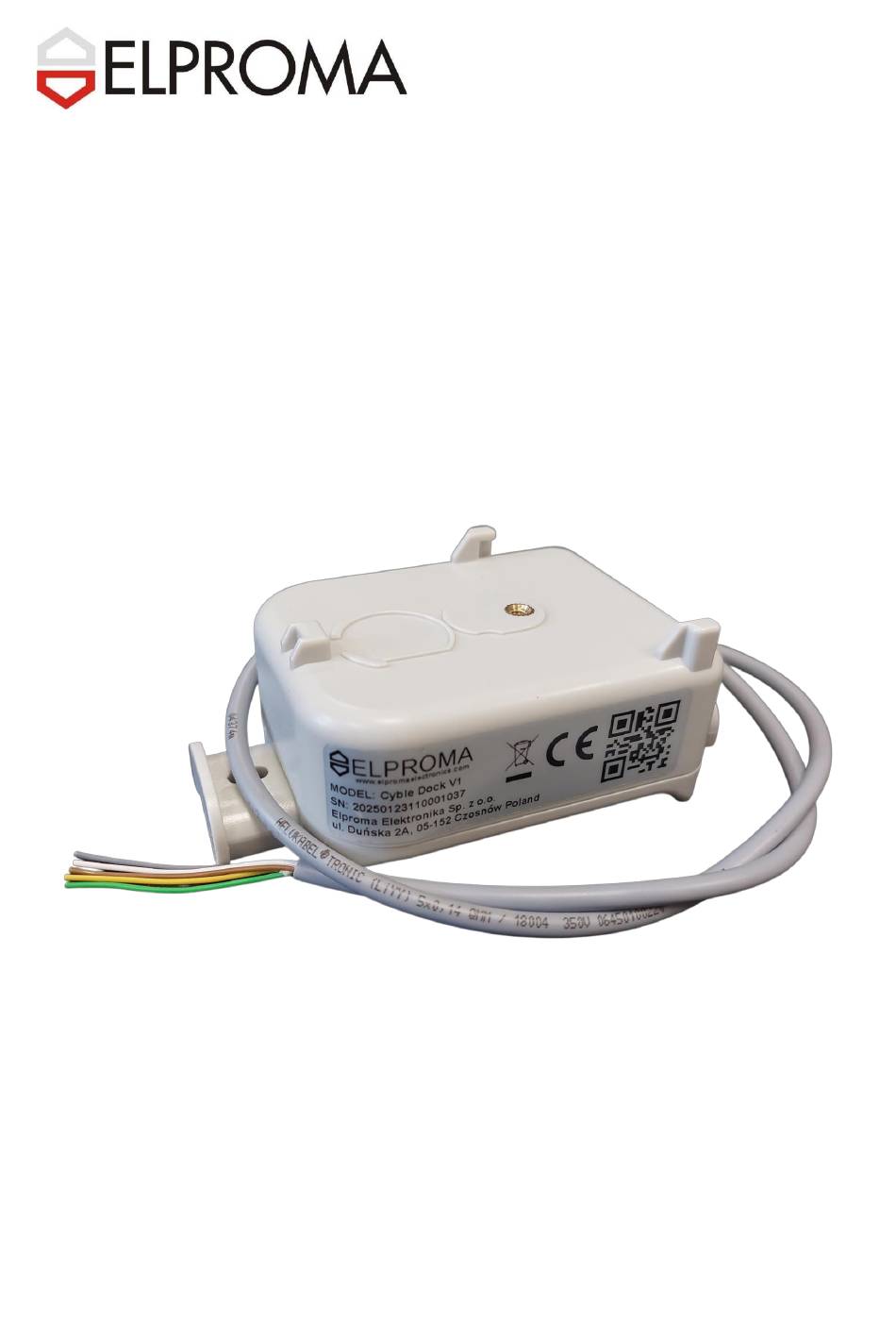

- Page 1 Cyble Dock V1 User Manual Revision: 1.0 Date: 28.02.2025...
-
Page 2: Table Of Contents
Cyble Dock V1 Revision: 1.0 User Manual Page 2 Contents Overview ................................3 1. Connection ..............................4 1.1. Connecting with Cyble Sensor ....................... 5 2. Accessories ..............................5 3. Installation..............................6 4. Package ................................7 5. Technical characteristics .......................... 8 5.1. -
Page 3: Overview
The water meter counter revolutions are transformed into electric pulses by Cyble Sensor, which are then passed over a cable to Cyble Dock V1 in a distanced location. Cyble Dock V1 converts the pulses into an alternating magnetic field, which can be then picked up by another Cyble Module –... -
Page 4: Connection
Cyble Dock V1 Revision: 1.0 User Manual Page 4 1. Connection Photo of Cyble Dock V1 cable with exposed open wires (no connector included): Figure 2. Connection wires exposed at the end of the cable. Wire description: Table 1. Wire description Number... -
Page 5: Connecting With Cyble Sensor
The wires on both devices are inteded to be connected together using Scotchloks (delivered with the device). The colors of the wires in the Cyble Dock V1 correspond to the colors in the Cyble Sensor and must be connected one-to-one (as in the picture below). -
Page 6: Installation
Page 6 3. Installation Cyble Dock V1 is dedicated to be used only with other Cyble Modules with a certain mounting points. Three tabs on Cyble Dock V1 position the Cyble Module by sliding it in them (marked with “1” in the figure below) and by securing it in desired place with a central polyamide screw (delivered with the Cyble Sensor;... -
Page 7: Package
Page 7 4. Package Figure 6. Cyble Dock V1 package Product package includes Cyble Dock V1 and Scotchloks. Package dimension is 160 x 120 x 62 mm. Product label is shown and described below. Figure 7. Cyble Dock V1 package Package label contains: •... -
Page 8: Technical Characteristics
Page 8 • WEEE logo (crossed out trash-can with a bar below) • CE symbol 5. Technical characteristics The technical characteristics of the Cyble Dock V1 device are presented in the tables below. 5.1. Basic parameters Table 2. Basic parameters Parameter... -
Page 9: Mechanical Characteristics
Mechanical characteristics are shown in the table below: Table 3. Mechanical characteristics Parameter Description Max. dimensions 113,5 x 63,6 x 41,6 mm (without cable) Cable length 0,5 m Weight 233 g IP rating IP68 Figure 8. Cyble Dock V1 dimensions 820.9506.91... -
Page 10: Environment
Cyble Dock V1 Revision: 1.0 User Manual Page 10 5.3. Environment Environmental characteristics of the Cyble Dock V1 are shown in the table below: Table 4. Environmental requirements Parameter Minimum Maximum Operating temperature range -15°C 55°C Instantaneous operating -20°C 70°C... -
Page 11: Product Identification Labels
User Manual Page 11 6. Product identification labels Product identification labels are on the Cyble Dock V1 device and on the box of the product. They include the following information: • manufacturer name and address • WEEE directive symbol (crossed out wheelie bin) •... -
Page 12: Transport Restrictions
Cyble Dock V1 Revision: 1.0 User Manual Page 12 7. Transport restrictions 1. There is no additional restriction, if you want to transport by air no more than two devices in one package. 2. If you want to transport by air more than two devices in one package, you have to... -
Page 13: Safety Recommendations
Cyble Dock V1 Revision: 1.0 User Manual Page 13 8. Safety recommendations READ CAREFULLY 1. Be sure that the use of this product is allowed in your country and that you have appropriate environmental conditions. The use of this product may be dangerous and has to be avoided in the following areas: •...
