Summary of Contents for Mytee CSB2033

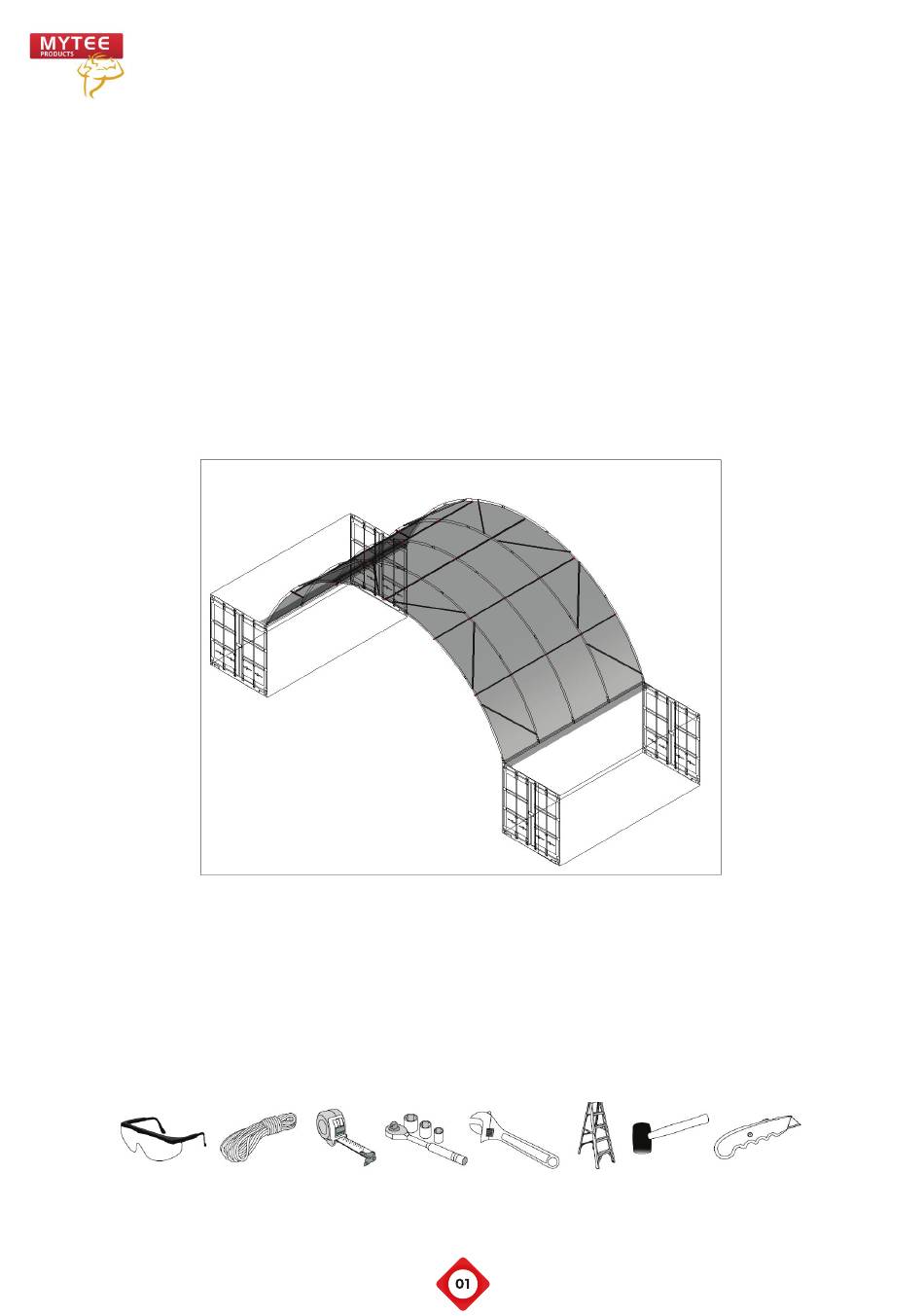

- Page 1 Container Shelter CSB2033 W10.0xL6.0xH3.6m (1.5m arch space) Assembly Instructions RECOMMENDED TOOLS...
-
Page 2: Recommended Tools
RECOMMENDED TOOLS Equipment List Speed Wrench 22#.23#.24# Hammer (30lb) Rope (12#) Long Tape (50m) Hammer Drill*1 Lifter*2 Crane*1 Forklift*1 Protective equipment... - Page 3 YOU MUST READ THIS DOCUMENT BEFORE YOU BEGIN TO ASSEMBLE THE SHELTER. Thank you for purchasing our shelter. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the shelter.
- Page 4 Precautions for Shelter Installation and Maintenanc I. Precautions for Installation 1. The installation ground should be solidified ground or concrete ground, and it must be flat to ensure that the base plate is installed firmly and reliably. 2. It is prohibited to directly fix the base plate on soft soil to prevent the stake peg from being fixed loosely.
- Page 5 Parts List of SS332012（L6xW10xH3.6m) Part Code Description Parts Drawings Q'ty Top arch pipe Middle bent arch pipe Lower bent pipe Purlins Bracing pipe Mount rail-1 Mount rail-2 Mount rail-3 Tension pipe connection plate for base rails Angle seat Clamps for fixing base rails Channel steel clamps Φ75 clips with M10*50 bolt M10*90mm bolt for swaged pipe...
- Page 6 Tech screw M8*23 for fixing the corner ratchet Tech screw M8*40 for fixing the 20+4 clamps Roof cover CONTAINERS LOCATION: Note: The containers must be firmly fastened to the ground before installation The distance between 2 x 20ft GP container is 32’10’’ , make sure they are level and square to each other.
- Page 7 Instruction for steel frame Note: The container must be firmly fixed to the ground before installation. 1. Connect the square steel tube base rails No.6, No.7, and No.8 on left and right container roofs. Using the connection plates #10 with bolt M12x100 with #17 bolt with 2pcs WASHERS. Two kinds of methods to fix base rails as the below drawings for option: Option A: Using base rail clamps No.13 with tech screws No.24 to fix the square tube rails to the top of container without any welding works as the below figure, the two ends of base rails is fixed...
- Page 8 2. Connect the Bent Joist (No.1, 2, 3) by bolt M10x90 (No.15) to be one arch. Put one end of the arch into the mount rail spigot and fasten it by bolt M10x90 (No.15), then try to put the other end to opposite rails.
- Page 9 3. When 2 arches are in place, connect purlins (No.4) between them by carriage bolt M12x100 (No.16). Please note the direction of the bolt, do not leave the shaft outside where the fabric will rest. By this way, one arch and purlins between it in turn, frames are installed. 4.
- Page 10 Instruction for Roof Cover Attached NOTE: DO NOT install the cover onto the frame of the dome shelter in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air. 1.
- Page 11 2. Pull the band inside the roof cover (four corners) by Winch (No.22). The winches No.22 should be welded to container or fastened with self-screws No.23. Note: DO NOT LEAVE COVER UNATTACHED UNDER ANY CIRCUMSTANCES until the final assembly and tightening has been completed. The process is quite easy.
