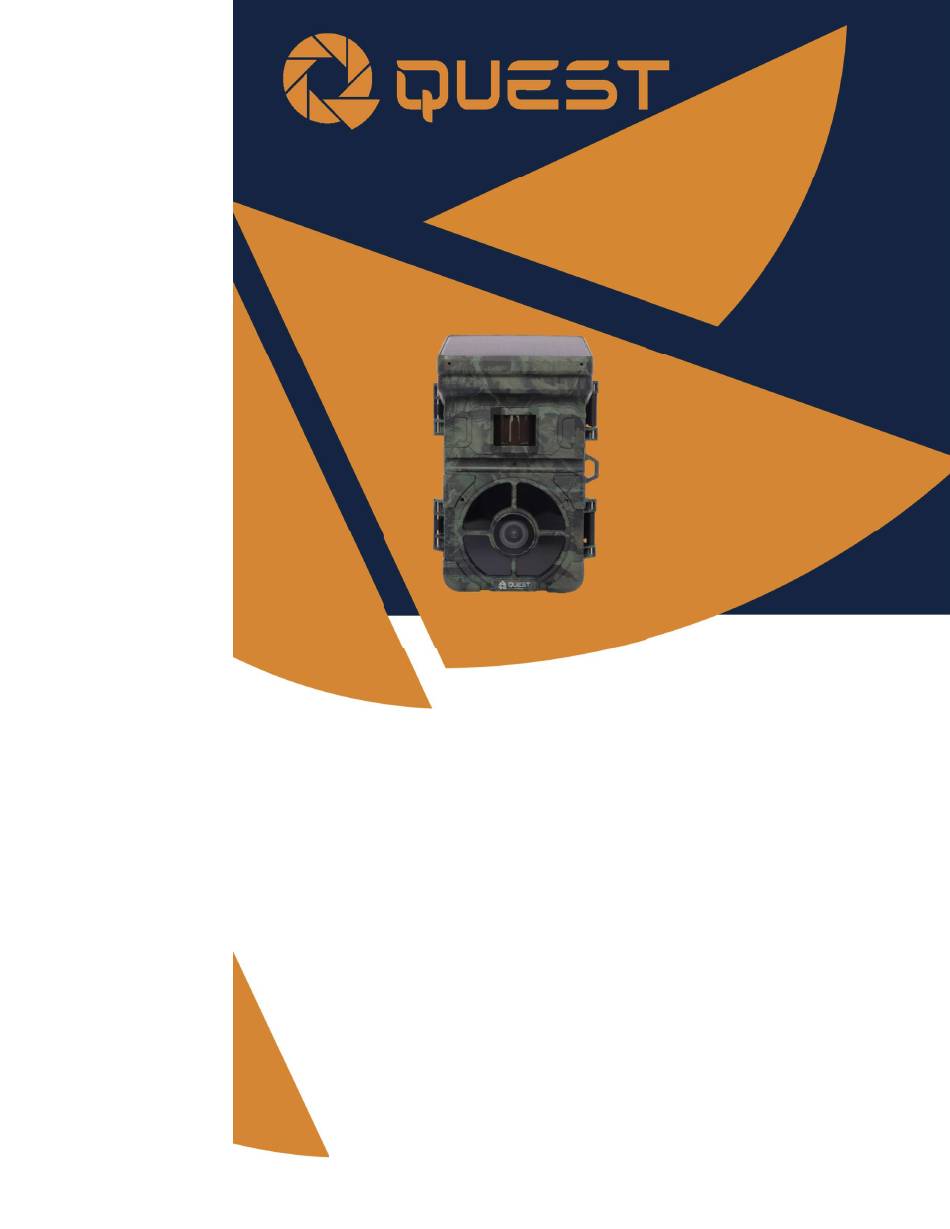

Page 1 TrapCam Instruction Manual Page 1...
Page 2: Table Of Contents
Table of Contents Introduction How the Camera Works … 5 Camera Overview … 6 Power Switch … 7 Button Functions … 7 Getting Started Installing the Batteries … 8 Installing the SD Card … 9 Configuring Camera Settings Understanding the Main Screen … 9 Adjusting Camera Settings …...
Page 3 Congratulations on your shiny new Quest Camera! We truly value your business and will continue to provide you with top quality customer service should you ever need help with any of our products. Be sure to explore our full range of products at: www.questcameras.com Thank you for choosing Quest Cameras.
Page 4 What you will need to set this camera up: -4 AA Batteries (not included) -Up to 32GB SD Card (not included) Note: We recommend charging the internal lithium battery with the included USB-C cord prior to use. (The solar panel will charge the lithium battery first. The 4 AA batteries are a backup power source.) Quest Cameras, LLC 108 Thurston Drive...
Page 5: How The Camera Works
Introduction How the Camera Works The TrapCam uses 4AA batteries with the attached solar panel that has a built-in back up 18650 battery inside– you’re sure to be powered through your hunting season. The Quest Cameras TrapCam also uses Invisible Flash Technology, coupled with 32 megapixels.
Page 6: Camera Overview
Camera Overview Page 6...
Page 7: Power Switch
Power Switch The camera has three working modes: On, Setup, and Off ON MODE: When you switch the camera into on mode, the camera will work according to how the camera menu settings have been configured. SETUP MODE: When you switch the camera into setup mode, you can adjust the menu settings.
Page 8: Getting Started
Getting Started Installing the batteries This camera can function on 4AA batteries. Pay attention to the (+) or (-) molded into each sleeve to determine if you insert the positive or negative end into the sleeve first. We recommend charging the internal lithium battery with the included USB-C cord prior to use.
Page 9: Installing The Sd Card
Installing the SD Card To enable power to the camera, you will need to install an SD card in the slot located at the bottom of the camera. The SD card size is up to 32GB.It’s recommended to use an SD card rated class 10 or above.
Page 10: Adjusting Camera Settings
Adjusting Camera Settings Screen 1: Camera Mode Photo/Video/Photo+Video PIR Interval 5s-60min Photo Size 5MP-32MP Photo Burst 1 photo-3 Photos PIR Interval: It means the time interval that the PIR sensor is allowed to work. This prevents the card from filling up with too many redundant images.
Page 11 Screen 2: Video Resolution 1920x1080, 1280x720 Recording Length 5s-3min PIR Sensitivity Low, Medium, High Record Audio OFF/ON PIR Sensitivity: LOW /Medium/High  Select "High" for interior areas and environments with little interference.  Select "Medium" for exterior areas and environment with a normal amount of interference. ...
Page 12 Screen 3: Audio Volume Low, Medium, High Timer OFF/ON Time Lapse OFF/ON Loop Recording OFF/ON Time Lapse Interval: When choosing time lapse, the camera will take photos or videos even when it is not triggered. It’s useful for constant monitoring of an area, but not recommended for general use.
Page 13 Screen 4: Time Format 12hr/24hr Date/Time Set Accordingly Time Stamp OFF/ON Auto Power Off OFF/3min/5min/10min Auto Power Off: In setup mode, if you forget to shut down, the machine will automatically power off within the set time Off/3min/5min/10min Page 13...
Page 14 Screen 5: Password Set OFF/ON Serial ID Set Product Serial Number Format Cancel/OK Format SD Card: This will clear the photos off of the SD card to make space for new pictures. Please make sure you have viewed/saved the photos from the SD before formatting Password Set: Select Password, Press "OK", and then select "ON"...
Page 15 Screen 6: Default Setting Cancel/OK Beep Sound OFF/ON Software Version Shows the software version Page 15...
Page 16: Using Your Camera In The Field
Using Your Camera in the Field NOTE: Turn the camera to the “ON” position when leaving in the field. The screen will go black when it’s powered on to save battery life. Mounting Tips:  For best results, mount the camera approximately 3 feet off the ground facing straight forward, as level as possible.
Page 17: Technical Information Additional Technical Specifications
Technical Specifications 32 MP Resolution 1080P/720P (32/24/20/16/12/8/5MP) PIR Trigger Speed <0.6s Field of View (FOV) 80° 2” Color LCD display Work Time Setting Photo Burst 1-3 Operation/Storage Temperature: -20 - +60°C / -30 -+70°C Adjustable PIR Sensitivity Trigger Interval: 5s-60min Adjustable Hi-Power Color Pictures by Day, Invisible Black Flash...
Page 18 Dimensions: Operation Humidity: 5.5in * 3.8in * 2.4in 5%-90% Certifications: FCC, RoHS, CE Page 18...
Page 19 QUEST CAMERAS LIMITED TWO-YEAR MANUFACTURER’S WARRANTY WARRANTY POLICY: Quest Cameras warranties its cameras for a period of two years from the date of purchase. This warranty only covers manufacturer’s defects and does not cover damage caused by misuse or abuse of the product.
Page 20 date.) 3. Quest recommends the customer first utilize support materials shipped with the product, product diagnostics, information contained on the Web, and email support. If unsuccessful, to obtain service under this warranty, the customer must notify Quest Telephone Support or Quest Support email, of the defect before the expiration of the warranty period.
Page 21 equivalent to new parts, assemblies or products for equal or improved quality. All defective parts, assemblies, and products become the property of Quest. Quest may require the return of parts, assemblies and products to a designated Quest Depot or the Quest representative from which the part, assembly, or product was originally purchased.
Page 22 have been refilled, are used up, abused, misused, or tampered with in any way. j. To install replacement items that are not considered customer replaceable. k. To support software not supplied by Quest. To provide software or firmware updates or upgrades. Any service identified in the above list and provided by Quest at the Customer’s request shall be invoiced to the customer, at Quest’s then current rates for parts, labor and shipping.
Page 23 TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN THIS WARRANTY STATEMENT, IN NO EVENT SHALL QUEST AND ITS VENDORS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF PROFITS) WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY AND IRRESPECTIVE OF WHETHER QUEST OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES...
