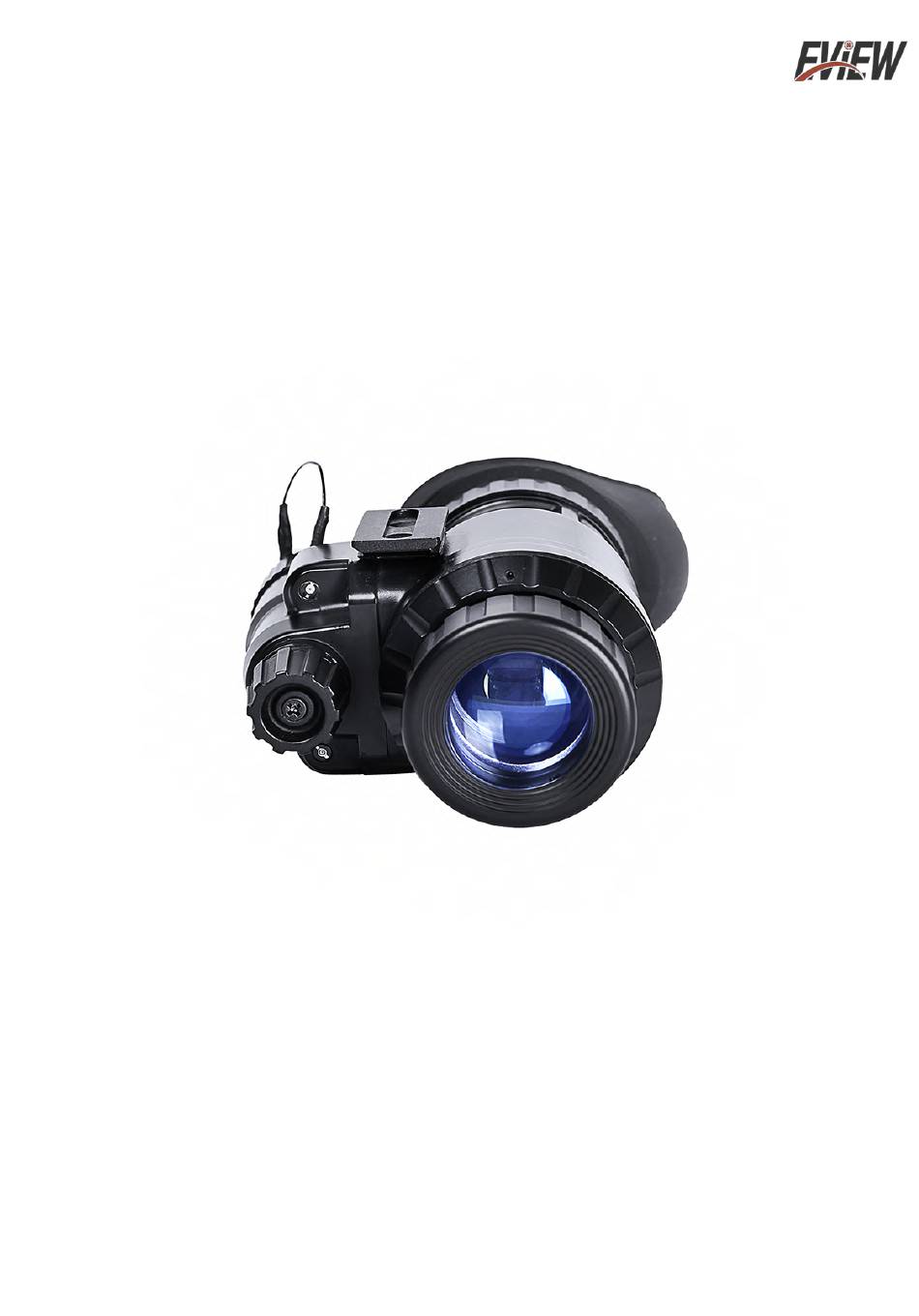

- Page 1 PVS-14 Night Vision Goggle Manual...
-
Page 2: Product Features
It is an ideal device for public security departments, armed police forces, special police forces, and patrol guards. Technical Specifications： Model: PVS-14 Image Intensifier Level: Super Second Generation / Third Generation Magnification: 1X (or 3X/5X/6X optional) -
Page 3: Battery Installation
Mean Time Between Failures (hours): 10,000 Field of View (degrees): 40° （or 50°）+/-2° Interpupillary Distance Range: 59-71mm Eyepiece Diopter Adjustment Range (diopters): +5 / -5 Lens System: F1.18 22.5mm Objective Lens Adjustment Range (meters): 0.25--∞ Dimensions (mm) (including the eyecup): 101x69x46 Material: Full Aeronautical Aluminum Alloy Net Weight (g) (including the eyecup): 244 Power Supply Voltage (V): 2.6-4.2V... -
Page 4: Working Modes
the eyepiece handwheel clockwise or counterclockwise to match the human eye The eyepiece adjustment is completed when the clearest target image can be observed ③ through the eyepiece.When used by different users, it needs to be re-adjusted according to their own vision. 4.Objective Lens Adjustment The purpose of adjusting the objective lens is to clearly see objects at different distances. - Page 5 device on the helmet mount firmly, and at the same time, push the night vision device along the device slot until the center of the anti-disengagement button moves to the middle part of the universal fixture. At this time, release the anti-disengagement button and rotate the device locking knob clockwise to lock the device.
- Page 6 angle reaches the 170-degree position, release the flip button of the helmet mount, and the system will automatically lock the flipped state; when you need to lower the night vision assembly for observation, you also need to press the flip button of the helmet mount first, and the night vision assembly will automatically return to the working position and lock in the working position.
- Page 7 1.Protection Against Strong Light This night vision is designed with an automatic strong light protection device, which will automatically protect the system when encountering strong light. Although the strong light protection function can ensure that the product is not damaged by strong light to the greatest extent, repeated exposure to strong light will still cause cumulative damage. Therefore, please do not place the product in a strong light environment for a long time or repeatedly to avoid permanent damage to the product.
