Summary of Contents for Workspace48 Versi

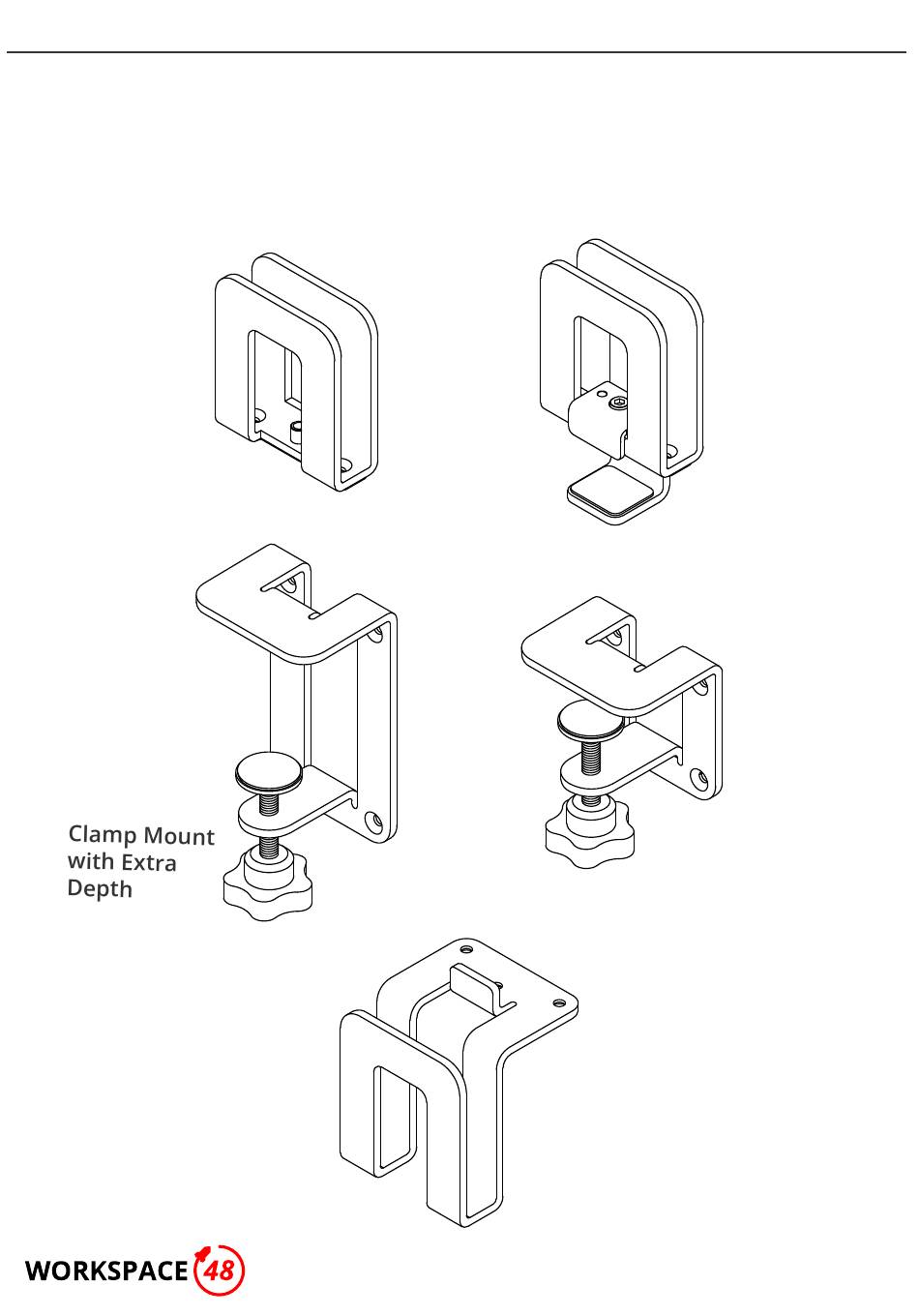

- Page 1 Versi Assembly Guide Surface Mount Surface Mount with Clamp Clamp Mount Slip Mount...
-
Page 2: Table Of Contents
Contents Surface Mount Components ............... 2 Installation .............. 3-4 Glass Sleeve ...............5 Surface Mount with Clamp Components ............... 7 Installation .............. 8-10 Glass Sleeve ...............11 Clamp Mount Components ............... 13 Installation .............. 14-15 Clamp Mount with Extra Depth Components ............... - Page 3 Surface Mount Bracket Versi Assembly Guide...
-
Page 4: Surface Mount
Surface Mount Bracket Components Surface Mount Bracket Acrylic Sleeve (Optional) Tapping Screw Philips Head Screwdriver Versi Assembly Guide... -
Page 5: Installation
Surface Mount Bracket Installation Step 1: Position bracket 25% from each end and to edge of worksurface. Step 2: Fasten bracket to worksurface with Tapping Screw using screwdriver. Versi Assembly Guide... - Page 6 Surface Mount Bracket Installation Step 3: Slip in 18mm PET privacy screen Step 4: Complete Versi Assembly Guide...
-
Page 7: Glass Sleeve
Glass Sleeve to Surface Mount Bracket Installation Step 5: Slip in Acrylic Sleeve until a “click” is felt. Step 6: Slip in 6mm acrylic screen Step 7: Complete Versi Assembly Guide... -
Page 8: Surface Mount With Clamp
Surface Mount Bracket With Clamp Versi Assembly Guide... -
Page 9: Components
Surface Mount Bracket with Clamp Components Acrylic Sleeve (Optional) Surface Mount Bracket with Clamp Allen Key Versi Assembly Guide... -
Page 10: Installation
Surface Mount Bracket with Clamp Installation Step 1: Position bracket 25% from each end and to edge of worksurface. Step 2: Push the clamp up to fit the thickness of the worksurface. Versi Assembly Guide... - Page 11 Surface Mount Bracket with Clamp Installation Step 3: Tighten the side screw by turning the Allen key clockwise. Step 4: Tighten the inner screw by turning the Allen key counterclockwise. Versi Assembly Guide...
- Page 12 Surface Mount Bracket with Clamp Installation Step 5: Slip in 18mm PET privacy screen Step 6: Complete Versi Assembly Guide...
-
Page 13: Glass Sleeve
Glass Sleeve to Surface Mount Bracket with Clamp Installation Step 7: Slip in Acrylic Sleeve until a “click” is felt. Step 8: Slip in 6mm Acrylic panel Step 9: Complete Versi Assembly Guide... -
Page 14: Clamp Mount
Clamp Mount Bracket Versi Assembly Guide... -
Page 15: Components
Clamp Mount Bracket Components Clamp Mount Bracket Tapping Screw Philips Head Screwdriver Versi Assembly Guide... -
Page 16: Installation
23”: Top of screen to be 11” above surface, 9” below surface 28”: Top of screen to be 18” above surface, 9” below surface Step 2: Fasten bracket to PET privacy screen with tapping screw using screwdriver. Versi Assembly Guide... - Page 17 Clamp Mount Bracket Installation Step 3: Position bracket sub-assembly to edge of worksurface. Turn the knob to fasten bracket to worksurface Step 4: Complete Versi Assembly Guide...
-
Page 18: Clamp Mount With Extra Depth
Clamp Mount Bracket with Extra Depth Versi Assembly Guide... -
Page 19: Components
Clamp Mount with Extra Depth Components Clamp Mount Bracket with Extra Depth Tapping Screw Philips Head Screwdriver Versi Assembly Guide... -
Page 20: Installation
23”: Top of screen to be 11” above surface, 9” below surface 28”: Top of screen to be 18” above surface, 9” below surface Step 2: Fasten bracket to PET privacy screen with tapping screw using screwdriver. Versi Assembly Guide... - Page 21 Clamp Mount with Extra Depth Installation Step 3: Position bracket sub-assembly to rear edge of Axis Desk worksurface. Turn the knob to fasten bracket to Axis Desk. Step 4: Complete Versi Assembly Guide...
- Page 22 Slip Mount Bracket Versi Assembly Guide...
- Page 23 Slip Mount Bracket Components Slip Mount Bracket Tapping Screw Philips Head Screwdriver Versi Assembly Guide...
- Page 24 Step 1: Position Slip Mount Bracket 25% from each end and to edge of worksurface. Make sure the bracket and the bottom of the worsurface are paralell, as shown. Step 2: Fasten Slip Mount Bracket to worksurface with Tapping Screw using screwdriver. Versi Assembly Guide...
- Page 25 Slip Mount Bracket Installation Step 3: Slip in 18mm PET privacy screen Step 4: Complete Versi Assembly Guide...
- Page 26 Please contact info@workspace48.com if you are missing any parts, have difficulty with assembly, or have any product-related questions.
