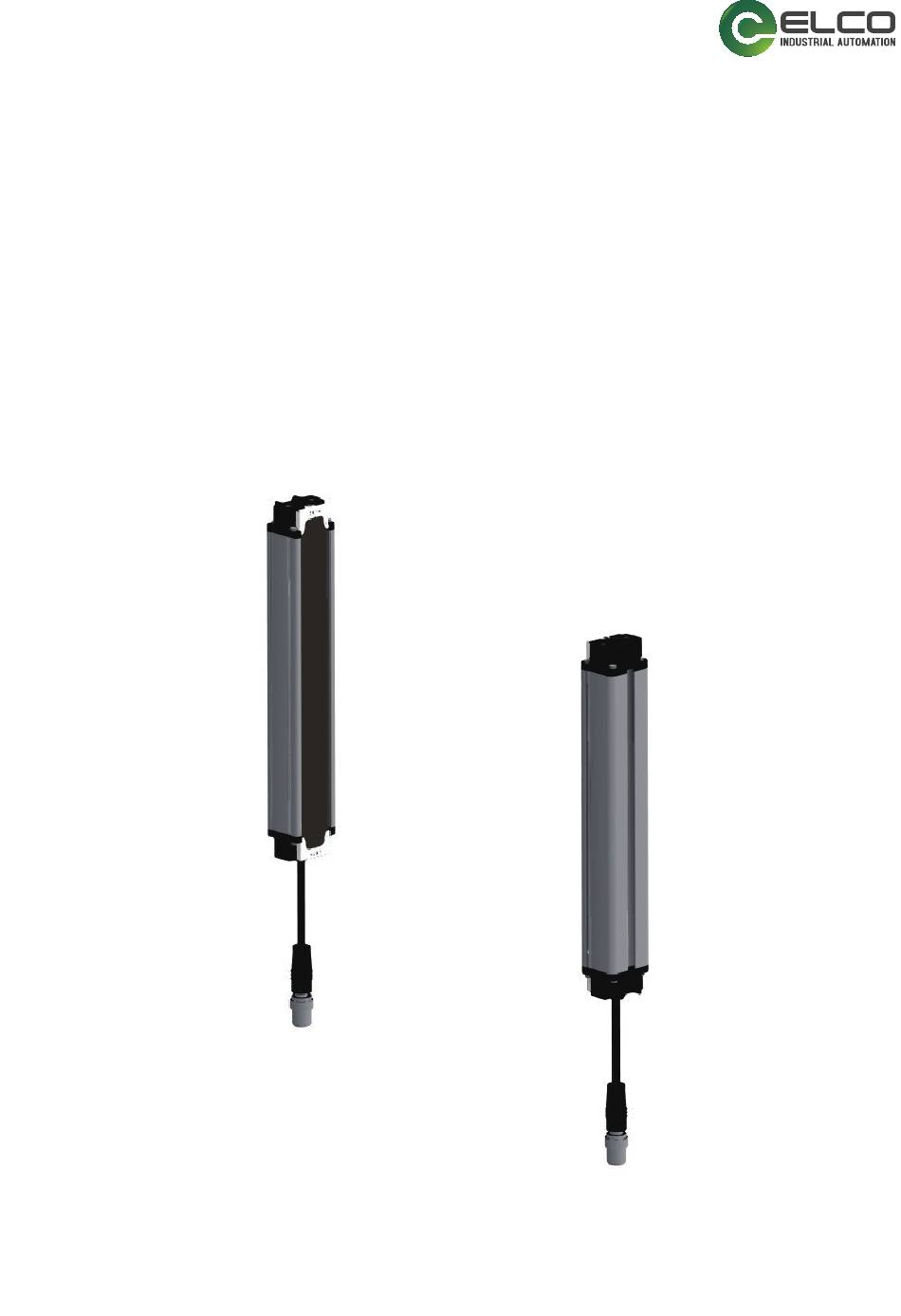

- Page 1 SE4 Safety Light Curtain Instruction Manual...
-
Page 2: Symbol Meanings
This instruction manual contains comprehensive details regarding the specifications, operating instructions, and safety precau- tions for the SE4 model safety light curtain. Prior to utilizing the safety light grid, it is imperative to thoroughly review this document to fully grasp its contents. Ensure to retain this manual in a secure location for quick reference whenever necessary. -
Page 3: Product Overview
Product Overview Sensors This manual utilizes the following symbols to warn of potential hazards or issues that require attention. Please read them carefully. Emitter Receiver Sensor indicator light Sensor Location Color Identification Function Description Default is CH-A (A channel), green light on, when Green / Red CH-A / CH-B Light Synchronization Channel... -
Page 4: Installation Accessories
Product Overview Cable ● Single-ended Connector Model Type Length Material jacket Cable-jacket-Ø C0-M12-2000E-5GF Straight 5.1 mm±0.2 C0-M12-5000E-5GF Straight 5.1 mm±0.2 C0-M12-10000E-5GF Straight 10 m 5.1 mm±0.2 C0-M12-15000E-5GF Straight 15 m 5.1 mm±0.2 C0-M12-20000E-5GF Straight 20 m 5.1 mm±0.2 C0-M12-25000E-5GF Straight 25 m 5.1 mm±0.2 C0-M12-30000E-5GF... -
Page 5: Model List
Specification and Model Model List Resolution: 14 mm, Operating range Max. 10 m Specification and Model Number of Beams Beam Spacing (mm) Protection Height (mm) Length (mm) SE4P14-150 SE4P14-200 SE4P14-300 SE4P14-450 SE4P14-600 SE4P14-750 SE4P14-900 SE4P14-1000 1000 1025 Resolution: 30 mm, Operating range Max. 10 m Specification and Model Number of Beams Beam Spacing (mm) - Page 6 Specification and Model Model List Resolution: 14 mm, Operating range Max. 16 m Specification and Model Number of Beams Beam Spacing (mm) Protection Height (mm) Length (mm) SE4P14-150L SE4P14-200L SE4P14-300L SE4P14-450L SE4P14-600L SE4P14-750L SE4P14-900L SE4P14-1000L 1000 1025 Resolution: 30 mm, Operating range Max. 16 m Specification and Model Number of Beams Beam Spacing (mm)
-
Page 7: Technical Parameter
Specification and Model Technical Parameter Safety parameters Safety parameters SIL 3(IEC 61508) 1.41 x 10E-8 PL grade PLe (IS0 13849) Diagnostictest interva Less than 10 minutes Category Cat.4(IS0 13849) Diagnostic coverage > 99% Type Type B(IEC 61508) Hardware failure margin HFT = 1 Protection type Type 4(IEC 61496) -
Page 8: Installation Method
Maximum response time of the workstation, in seconds (s) C: Additional distance calculated based on the diameter of the smallest detectable object by the SE4, in millimeters (mm) For an example with a minimum detectable object size smaller than 40mm, as per the parameters set by ISO 3855, K = 2000 mm/s, and C = 8 ×... - Page 9 Installation Method Adjacent Installation Precautions When multiple sets of safety light curtains are placed adjacent to each other, please refer to the diagram below for placement positions to prevent mutual interference between the curtains. (1) Front-to-Back Placement (2) Back-to-Back Placement (3) Top-to-Bottom Placement (4) Partitioned Placement ●...
- Page 10 Installation Method Precautions Regarding Surrounding Reflective Surfaces When there are metal plates, workpieces, glass, partitions, or other reflective surfaces around the light curtain, the distance B between the light curtain and the reflective surface must not be less than A, as illustrated in the diagram. The calculation formula for A is as follows: In this context, represents the detection distance of the light curtain, measured in meters (m);...
- Page 11 ● The working power supply for the SE4 type safety light curtain should not exceed 24 V + 20%, as this may affect the stability of the SE4.
-
Page 12: Safety Output
Once the internal control circuit receives a feedback signal (off signal) based on the self-diagno- sis, the SE4 determines that its output circuit is operating normally. If this off signal is not returned to the internal control circuit, the SE4 judges that there is a problem in its output circuit or wiring and enters a fault state. - Page 13 Product Commissioning and Maintenance Product Commissioning Steps ● Assemble the Bracket Fix the bracket onto the product, ensuring there is an appropriate amount of adjustability. ● Secure the Bracket Secure the bracket in a location that ensures the safety light curtain can effectively perform its protective function, as per installation requirements.
- Page 14 Product Commissioning and Maintenance Routine Maintenance of the Product ● Before use, it is essential to check if the safety light curtain functions properly. ● Do not arbitrarily change the position of the light curtain during use. ● In case of malfunction, it should be repaired by a professional. ●...
- Page 15 Product Commissioning and Maintenance Troubleshooting for Product Faults Fault Phenomenon Fault Cause Troubleshooting Methods Light curtain indicator No voltage in the power supply Check wiring or replace the power supply lights are not on 1.Firstly, check if the transmission surface is contaminated affecting the Light curtain continuously alignment;...
- Page 16 Noun explanation Routine Maintenance of the Product When any beam is obstructed by an object, it will cause the receiver to receive an occlusion signal, as shown in the diagram. Beam Center: The optical path between the emission optical center and the reception optical center. Beam Spacing: The distance between the centers of two adjacent beams.
- Page 17 Infrared Configuration Function Overview SE4 type safety light curtains support an infrared remote control configuration function across the entire series. This function allows users to install the " Configuration Assistant" app on a smartphone with infrared remote control capabilities or purchase a matching infrared remote control device for configuration purposes.
- Page 18 Infrared Configuration Function The Usage Instructions for the Mobile App Transmiter Receiver Enter Configuration MessageBox Not supported infrared remote control Exit Configuration ● Configuration Steps ● Select the Sensor for Configuration: Open the “Configuration Assistant” app and choose either the transmitter or receiver to enter the corresponding configuration interface.
- Page 19 Function Explanation: Output mode switching is generally used for quick adjustment when the selected SE4 safety light curtain does not match the control method at the application site. After switching the output mode, the SE4 safety light curtain must undergo safety confirmation and inspection before being put into use.
- Page 20 Infrared Configuration Function Explanation of Configurable Functions ● The transmitter and receiver of the same set of SE4 safety light curtains must use the same optical synchronization channel. ● Switching back to the long-distance mode from the close-range mode may result in the SE4 safety light curtains not being able to detect light.
