Edge Wireless LOC22-PRO Quick Start Manual

ADVANCED LINE OUTPUT CONVERTER
Quick Start Guide
The LOC22-PRO & LOC24-PRO can be used to add amplifiers to an audio system that does not
have RCA outputs or when replacing an OEM radio and retaining the factory amplified system.
Variable Gain Controls with Clipping Indicators, Selectable Ground Isolation and Load Select
features ensure a pure, noise-free signal for any type of audio system.
This Quick Start Guide will get you going, but if you need additional help or information, please
visit our website or contact Technical Support.

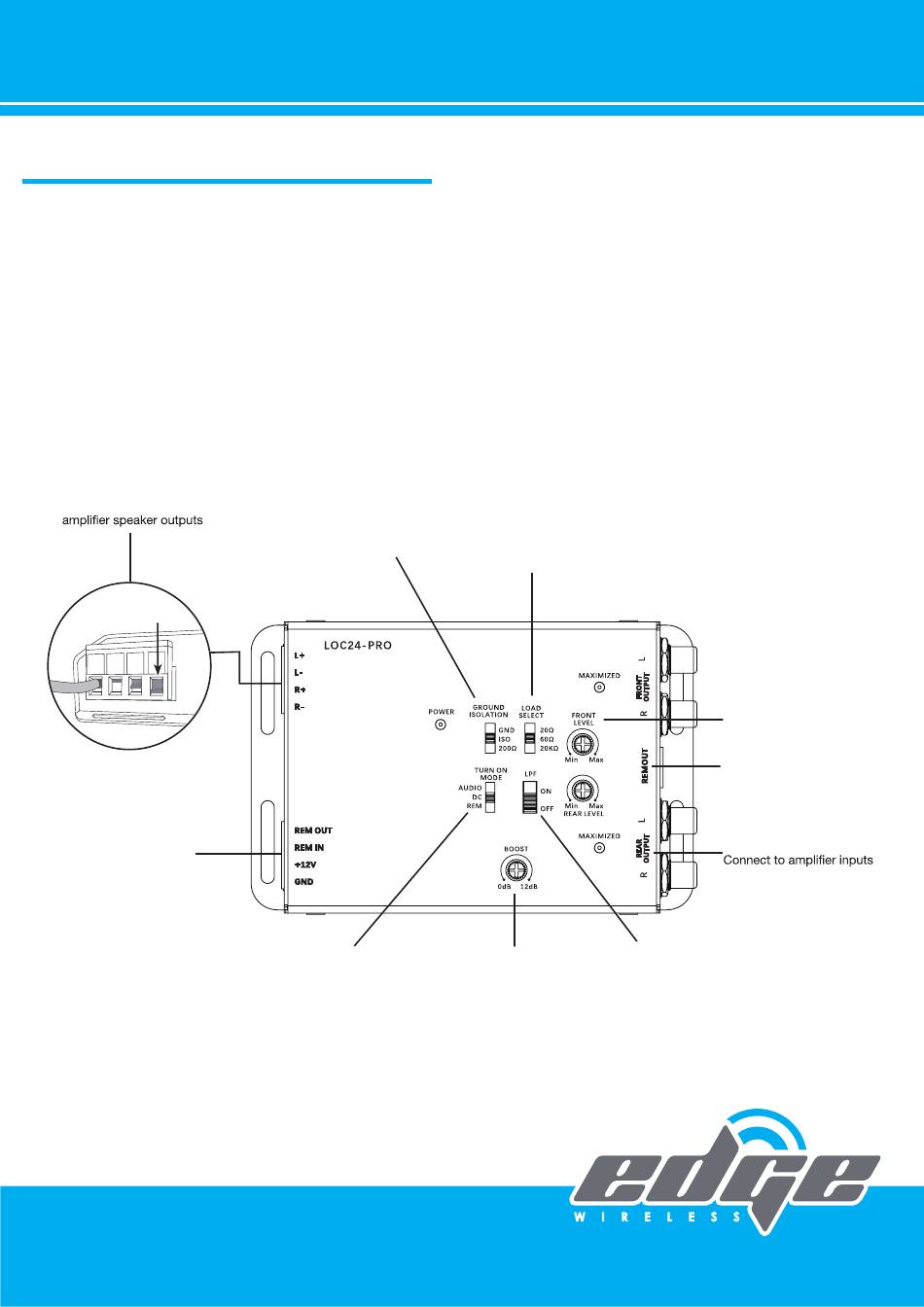

LOC24-PRO 4 Channel Line Output Converter
SPEAKER SIGNAL INPUTS
Connect to head unit or
FULLY OPEN TERMINALS
BEFORE INSERTING WIRE
X
REM OUT
Remote turn on output (+)
The LOC24-PRO will provide a
+9V Remote Output using
DC Signal Sense from the
Right channel inputs
REM IN
Remote turn on input (+)
12V
Connect to a fused
+12V constant source
GND
Connect to a good
chassis ground
REMOTE- lt is always optimal to adjust the gain at the output side of the amplifier, thus it's recom-
mended to use the Amplifier's Remote Knob when available.
7TH BUILDING, NO.59 CHUANG FU ROAD, XIAO GANG
INDUSTRIAL ZONE, NINGBO 315800, CHINA
Tel +86.574.873.88888
GROUND ISOLATION
Selectable: GND / ISO / 200Ω
Default: ISO
If ground / engine noise is present,
the jumper can be repositioned
TURN ON MODE
Selectable: DC / REM / AUDIO
Default: DC
Select DC if using speaker inputs
for turn on, or REM if using REM IN
Fax +86.574.876.77777
LOAD SELECT
Selectable: 20Ω / 60Ω / 20kΩ
Default: 20kΩ
For factory audio systems requiring
a resistance load to output audio.
(See NOTES below)
BOOST LPF
Variable: 0dB — 12dB Low Pass Filter
Allows 250Hz low pass
When LPF is ON, provides
filter for Rear Channels
Bass Boost (45Hz) for
Rear Channels
www.edgeholdings.com
GAIN
Variable: -28dB—+1dB
Allows gain adjustment of
the output signal
REMOTE
Optional Remote Level Control
Knob (RM-1) for Rear
Channels. (See NOTES below)
RCA SIGNAL OUTPUTS
