Assembly Instructions
Axxis Portable Shower
2530 Xenium Lane North, Minneapolis, MN 55441
Telephone: 763-553-1900
Fax: 763-553-1905
800-328-3332 / www.satelliteindustries.com
5/9/2023
24830 REV C
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Axxis Portable Shower and is the answer not in the manual?

Questions and answers

Summary of Contents for Satellite Axxis Portable Shower

  • Page 1 Assembly Instructions Axxis Portable Shower 2530 Xenium Lane North, Minneapolis, MN 55441 Telephone: 763-553-1900 Fax: 763-553-1905 800-328-3332 / www.satelliteindustries.com 5/9/2023 24830 REV C...
  • Page 2: Tools Needed

    INTRODUCTION Instructions for the Axxis portable shower Satellite restrooms must be assembled according to approved assembly procedures. Avoid variations in assembly which could adversely affect product life. The assembly procedures are written for assembly of single units. If assembling multiple units, considerable efficiency can be gained by working in assembly line fashion.

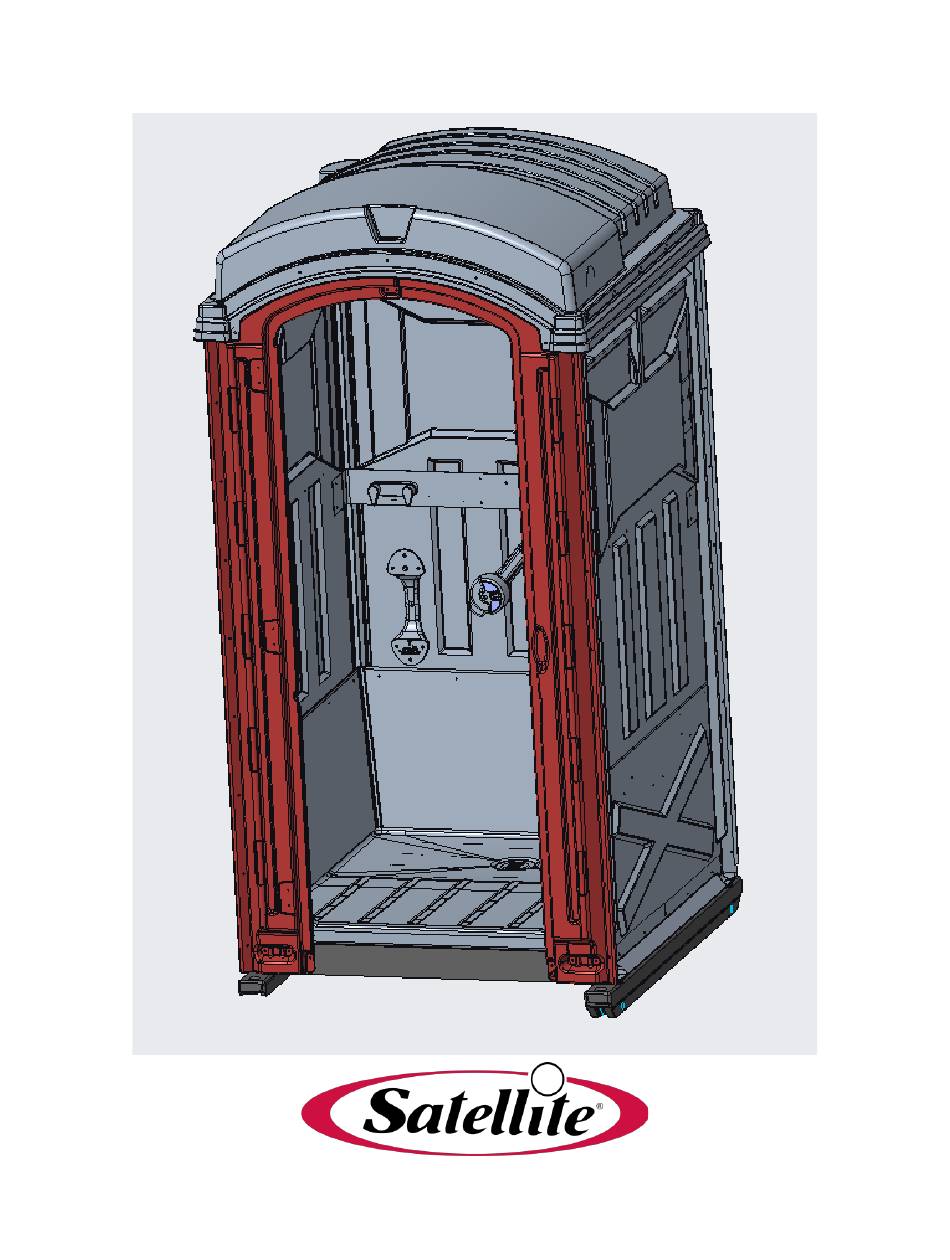

  • Page 3 EXPLODED UNIT ASSEMBLY 24830 REV C 5/9/2023...
  • Page 4 THESE PARTS ARE FOR THE HOT AND COLD SHOWER ADDITIONAL PARTS FOR THE HOT SHOWER 16307 NUT- 1/4/20 NYLOC STNLS 1685-599 HEATER BRACKET 12382 WASHER- 1/4 FLAT STNLS 1233-699 Y VALVE- GARDEN HOSE SPLITTER 1671-699 ADAPTER- 3/4 MGHT X 1/2 FN 21379 1 HEATER-SHOWER ECCOTEMP PROPANE 1676-599-B...
  • Page 5 Step 1) Assemble 3 Panels: Tip: Place rear panel flat on table with 44.00” height & 40.00” width, or 2 unit tanks during assembly. Notch at top Install Corner molding #22989 between the side panels & rear panel (notched end of corner molding at top of panels).
  • Page 6 Step 2) Assemble 3 panels to base: SPACER IMPACT BASE CENTER RIBS BUMP SPACER RIBS SPACER CENTER LINE / REAR OF BASE CENTER RIBS BUMP SPACER RIBS ALIGNMENT FEATURE SPACER RIBS Place base at bottom of 3 assembled panels with tank opening upward towards rear panel as shown.
  • Page 7 Step 2) Assemble 3 panels to base (continued): Side panel Center hole In panel Center bump on base Even spacing Align center hole in side panel with center bump on top of the runner. The spacing between the panel & top of runner must be even along the entire length of runner with panel . Install Screw #13860 in center hole of panel into base using 3/8”...
  • Page 8 Step 3) Assemble Front to Side Panels: Tip unit up on base & place front against side panels with edge of panel tucked in groove on inside edge of front. Align holes in front with holes in panels & use 1 rivet #11054 on front & 1 washer #11315 on panel in middle in holes on left &...
  • Page 9 Step 4) Assemble Front to base: (2) screws Install (2) Screws #13860 in holes on left & right side of front (door frame) at bottom, using a 3/8” or 5/16” Nut Driver bit (DO NOT over tighten screws, run screws in until rubber washer begins to flatten).
  • Page 10 Step 5) Assemble lock bracket, hasp to Front: (2) rivets (2) rivets (2) Washers (2) Washers on outside of door inside of door frame Install Lock bracket #24418 on right door frame. Use (2) Rivets #11270 through bracket holes into pre- drilled holes door frame &...
  • Page 11 Step 8) Assemble Handle (door latch) to Front: Outside of door Inside of door From outside door insert screw #40052 (3-1/2”) with washer #11360 in hole in door through hole in handle Place Handle #40057 on inside of door Step 9) Assemble Roof to panels : (recessed area).
  • Page 12 (5) rivets Washers inside on panel Finish fastening roof to side panel with (5) Rivets NOTE: Front Hole location on each side of roof #11030 outside on roof & (5) Washers #11315 inside there may not be a hole drilled in roof. Hold roof on panel.
  • Page 13 Step 10) Assemble Roof to front: Hasp style may vary Before fastening roof to front check that there is no major door sag as seen in see pic (A), door hasp way down from hasp on right facing & gap at top of door between door & door frame is greater on right side than the left side.
  • Page 14 (5) rivets 1” 2” Finish fastening roof to front with (5) Rivets #22604. Place the shower decal #1130-699 on the front of the unit 1 inch from the edge of the door and 2 inches above the groove as shown above. Interior components STEP 1: (Shelf) The shelf #20845 mounts in the back right corner.
  • Page 15 Interior components STEP 1 continued: (Shelf) Rivet #11054 location. Hold shelf in place, using a #10 drill bit drill from inside through shelf and wall panel at 4 locations shown below. Install rivets from the outside, washers #11315 on the inside. Washers inside on shelf Rivets outside on panel...
  • Page 16 Interior Components Step 2 continued: (Soap Dispenser). Soap Dispenser #23519 mounts on right side in center of flat raised area below shelf. Using a #10 drill bit transfer drill the 3 mounting holes in dispenser through the side panel. Place a rivet #11030 at each hole from the outside and a washer #11315 on the inside of the dispenser at each hole.
  • Page 17 Assemble Shower Drain: Place the shower drain top and the top seal into the hole of the shower base with the shower drain top on the top. Connect the bottom seal and bottom part of the shower drain to the top part of the shower drain.
  • Page 18 Assemble Shower Base: Note the drain assembly has been installed, carefully place the shower base #24608 on top of the impact base with drain side going first. The shower base should fit snugly on the impact base with little movement. ( Note to keep shower tray clean, during assembly, place a clean cardboard sheet on floor surface ).
  • Page 19 Assemble Shower Drain Bracket: Place the drain brackets #24609 around the straight pipe #21367 and up against the inside of the impact base. From the inside of the impact base, use a 17/64” drill to transfer drill through the drain bracket and impact base. Place another drain bracket on the outside of the impact base.
  • Page 20 Installing Shower Skirt: Place the assembled shower skirt onto the shower base within the unit. Place a 3/4-inch block of wood under each of the panels to give 3/4 inch of clearance between the shower base and the shower skirt. Transfer drill at each of the hole locations on the rear skirt through the back panel.
  • Page 21 Interior Components Step 4: (Aluminum Back Wall Panel) Aluminum back panel #1682-599 mounts on back wall. Measure down 1 1/2" from top of recess features and make a mark. Hold panel in place using a #10 drill bit transfer drill the 8 holes indicated below. Place a rivet #11030 into each hole and a washer #11315 on the end of the rivet.
  • Page 22 Shower Valve STEP 1 continued: Using 1-1/16" hole saw drill these two holes through both the back panel and aluminum panel on inside. Shower Valve STEP 2: (Install Shower Valve). One person inserts valve #1699-699 from inside shower through holes drilled in back panel. Another person on the outside places shower guard bracket #1697-599 on the outside and installs the two round plastic spin nuts that come with valve.
  • Page 23 Elbows & Adapters: (Install Elbows and Adapters). (Elbows) Apply Teflon tape on the threads of shower valve sticking through back of shower. Screw the elbows #1641-699 on until tight and threaded end is pointing straight down. Apply Teflon tape Adapters: Apply Teflon tape to threads on the elbows. Screw adapters #1671-699 on until tight. **For Cold Shower place plug #24735 on hot water adapter** 5/9/2023 24830 REV C...
  • Page 24 Hand Held Shower Head Bracket: Install Handheld Shower Head Bracket #1692-699 or #24898 depending on the parts received. Standing in shower it mounts on back panel in left corner at top of panel next to window vent. Hold bracket in center of flat area next to window vent and trace the bolt holes onto the panel.
  • Page 25 Shower Rod: (Shower Rod & Brackets). Shower rod brackets #1688-799 mount in front of unit. It’s 7” from the front wall of the roof to the bracket. It’s 1/2" up from bottom of roof to bottom of bracket. Hold the rod mounting bracket in place and trace the three bolt holes onto the roof. Locate a bolt hole in bracket in the six o’clock position and trace all 3 holes onto roof.
  • Page 26 Brackets for Heater continued: Installing Top Heater Bracket #1686-599. Drill the holes through the plastic wall panel and the aluminum back panel on the inside previously installed. Drilled holes for top bracket have to go through aluminum back panel inside unit. Brackets for Heater continued: Place nylon spacers #1777-699 lined up with the holes just drilled in between the aluminum back panel and back wall panel.
  • Page 27 Brackets for Heater continued: Install bottom heater bracket. Place a washer #12382 on each screw #22407 and from the inside install the bolts through the previously drilled hole in the back panel. On the outside place 2 washer #12382 on the screw #22407. Install bracket #1686-599 and fasten with a nut #16307 on each screw.
  • Page 28 Assemble Heater continued: Fasten Bracket to Heater. Insert screws #17385 into the designated holes from the bottom and fasten with the nut #16307 on top at both the top and bottom. Tighten using 7/16” wrench and 7/16” nut driver bit. Top of Heater Bottom of Heater Assemble Heater continued: Use Teflon tape on all threads.
  • Page 29 Hot Shower Packing: Binding straps are used to secure the heater box inside the unit. The box should be positioned, as shown in the photo below, to prevent the heater bracket from damaging the inside components. Use the binding straps, as shown in the photo below, to secure the heater box in the corner of the shower.
  • Page 30 Shower Testing Procedure Use Testing Procedure to complete Check List. Testing: • Mount Hot Water Heater on back of Shower. • Connect Hoses to Heater. Black is Gas in to the Heater. is hot out to Shower. Blue is cold out to Shower.
  • Page 31 • Connect the other end of Black Gas Line to Gas Tank/Service and turn Gas on. • Install 2 D size batteries in Heater, (some heaters will NOT come with batteries). Turn on water supply. Turn Power Switch on. Set Gas and Water Regulators to Max. {See picture below}. Regulators Battery Power Switch...
  • Page 32 Shower Testing Check List Check Yes or No and Initial Yes No Initial Heater Inspection • Heater free of damage? • Did Heater mount to Shower correctly? Hose Connections • Did all hoses connect easily? Shower & Heater Test • Did Heater come on when power switch turned on? •...
