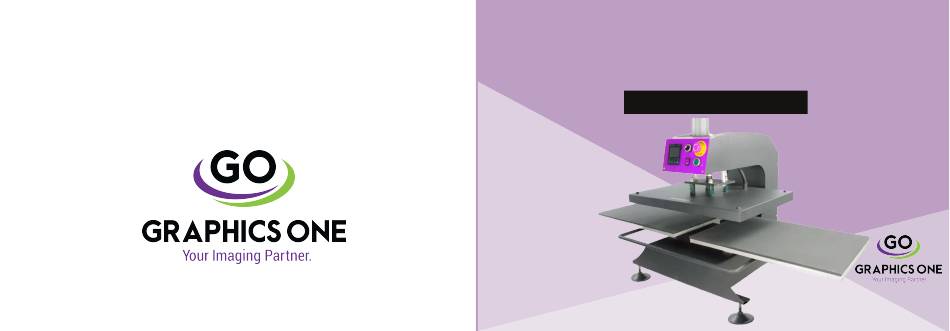

- Page 1 XPress 1620DS Dual Semi- Auto Pneumatic User Manual www.graphicsone.com sales@graphicsone.com (818) 260-9591...
- Page 2 NOTICE 1. Use the heat transfer press only as intend 2. Please keep children away from the machine 3. Use correct power outlet before plugging in the device CONTENT 4. Burns can occur from contact with hot surface 5. Please hold the handle firmly when machine is opening In the Box 6.
-
Page 3: Machine Introduction
MACHINE INTRODUCTION XPress 1620DA Dual Automatic In the box 1 x XPress 1620DS 1 x Power Cable 2 x Silicon Mat 1 x User Manual Instructions • To move the Lower Plate, use the handle. • When there is no operation, the unit will go on to Sleep Mode. -
Page 4: Controller Program
CONTROLLER PROGRAM CONTROL SETTING Present Value Set Value Control Panel Display P-1 : Temp. Setting Mode P-2 : Time Setting Mode Touch SET & ↑ ↓ buttons to set desired Temp. Touch SET & ↑ ↓ buttons to set desired time. Celsius Read-out Fahrenheit Read-out Timing in Seconds... -
Page 5: Troubleshooting
TRANFER PAREMETERS TROUBLESHOOTING Q:When pressed onto the garments, the color of the design is faded, or transfers are not fully stacked onto the garments. Transfer Material Base Material Printer Device Temperature Time Pressure Remarks Time Remarks A: There are three possible causes... insufficient pressure, the temperature is too low or the design has not been pressed for enough time. Micro Remarks Light color polyester fabric...
