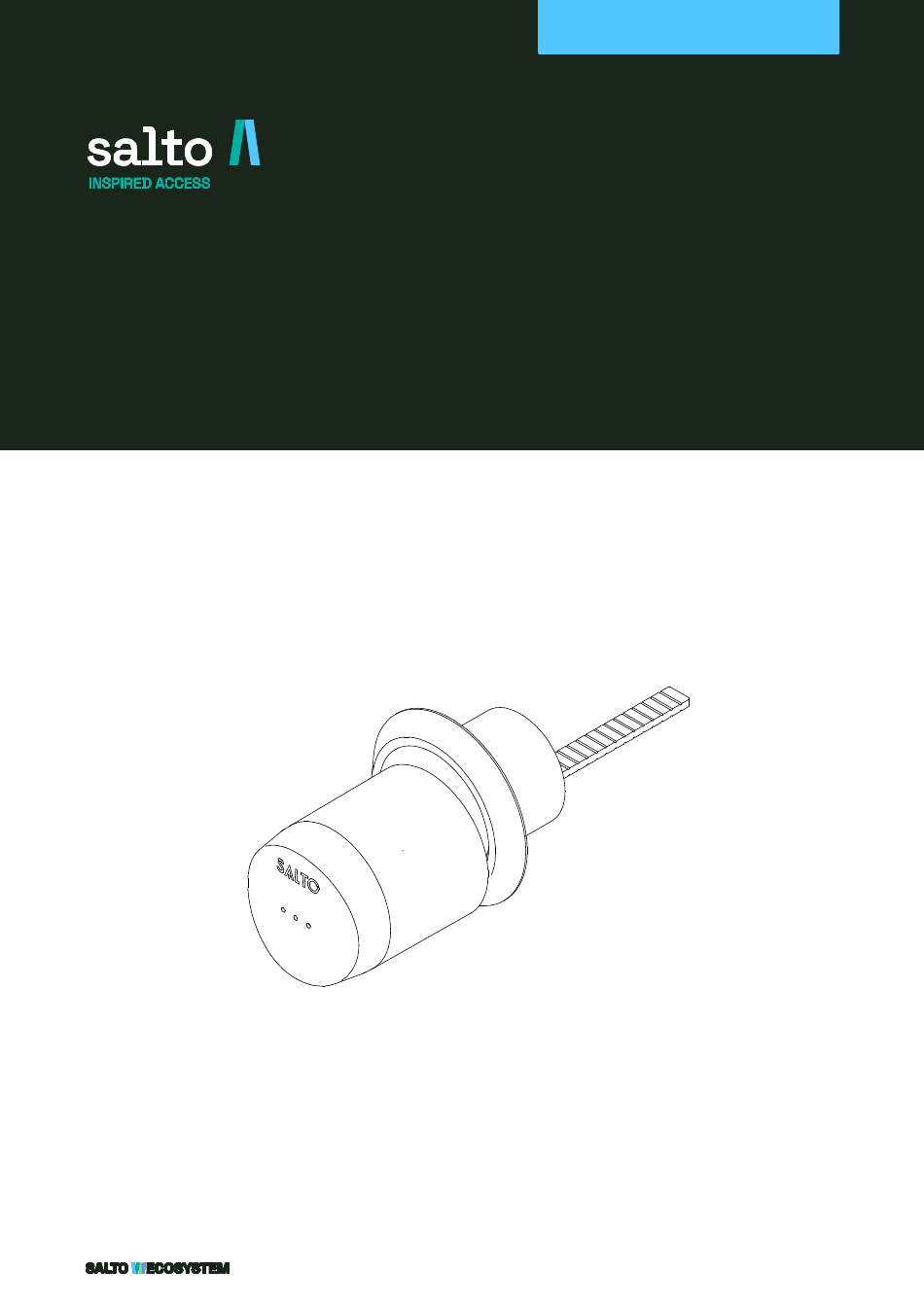

- Page 1 INSTALLATION GUIDE SALTO Geo Rim cylinder Copyright © 2025 Salto Systems, S.L.
- Page 2 INSTALLATION GUIDE | SALTO Geo Rim cylinder RIM CYLINDER RIM CYLINDER RIM UK CYLINDER Security screw CLICK Durability EN 15684 Class 6 cylinder HERE Knob Blocking screw SP220764 CR2 Battery included PAGE 2/9 saltosystems.com...
- Page 3 INSTALLATION GUIDE | SALTO Geo Rim cylinder Installation Instalacion Montage Installation Handleidig Montaggio CLICK ! PAGE 3/9 saltosystems.com...
- Page 4 INSTALLATION GUIDE | SALTO Geo Rim cylinder CLICK ! *Important: the knob is uniquely paired to the cylinder, and will not work if you switch in a different SALTO knob. PAGE 4/9 saltosystems.com...
- Page 5 INSTALLATION GUIDE | SALTO Geo Rim cylinder 1-1/4" 31.5] IF NECESSARY, CUT THE CONNECTING ROD AS INDICATED BY THE LOCK MANUFATURER. SI ES NECESARIO, CORTE LA VARILLA DE CONEXIÓN COMO LE INDICA EL FABRICANTE DE LA CERADURA FALLS NÖTIG, SCHNEIDEN...
- Page 6 INSTALLATION GUIDE | SALTO Geo Rim cylinder OPTIONAL OPCIONAL OPTIONNEL CUT DEPENDING ON THE DOOR THICKNESS CORTAR DEPENDIENDO DEL ESPESOR DE PUERTA COUPE EN FONCTION DE L'EPAISSEUR DE LA PORTE AT THIS POINT DO NOT CLOSE THE DOOR PROGRAM THE CYLINDER FIRST Follow user manual TÜRE NICHT SCHLIESSEN.
- Page 7 INSTALLATION GUIDE | SALTO Geo Rim cylinder Battery change Sustitución de la pila Batterie tauchen Remplacer la pile Vervangen batterij Sostituzione la pila PAGE 7/9 saltosystems.com...
-
Page 8: New Battery
INSTALLATION GUIDE | SALTO Geo Rim cylinder ONLY NEW BATTERY CLICK ! PAGE 8/9 saltosystems.com... - Page 9 INSTALLATION GUIDE | SALTO Geo Rim cylinder Installation and us recommendations Consejos instalación y uso Empfohiene Handhabung und installation Recommandations d'utilisation et d'installation Aanbevelingen van de gebruik en installatie Raccomandazioni d'uso ed d'utilizzo 0 - 3 mm Max. Outer knob...
