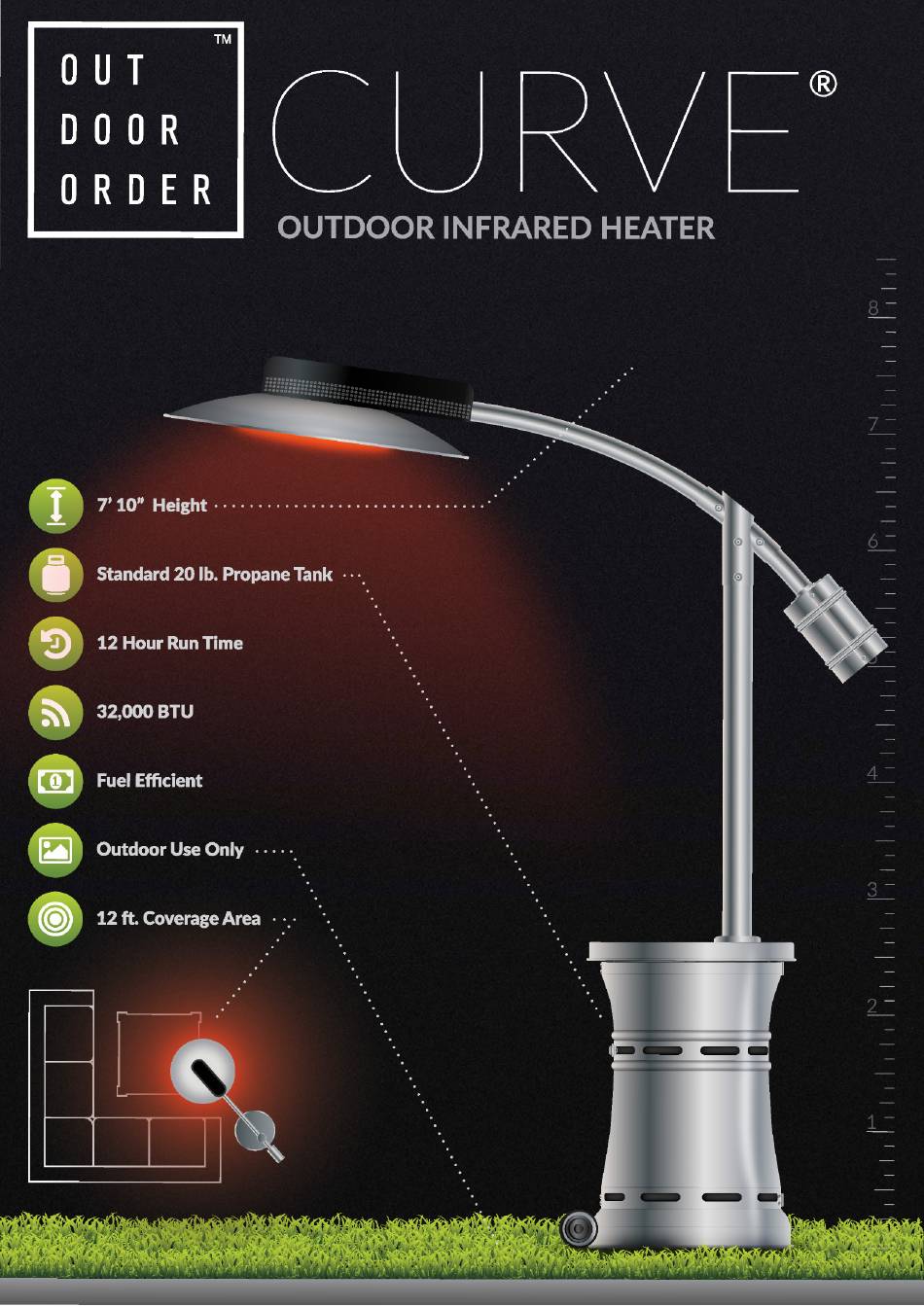

Curve ODO--LP Owner's Manual

Outdoor infrared heater

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the ODO-CURVE-LP and is the answer not in the manual?

Questions and answers

Summary of Contents for Curve ODO-CURVE-LP

Page 2 Model # Owner’s Manual ODO-CURVE-LP SRPH72 Questions, problems, missing/replacement parts? Before returning to your retailer call our customer service department at 1-8 88-8 06-8836 ● 9am - 5pm PST Monday thru Friday or email us at cs@outdoor-order.com.
Page 3: Warnings And Cautions
WARNINGS AND CAUTIONS DANGER CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent or home. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
Page 4 WARNINGS AND CAUTIONS PLEASE READ THE FOLLOWING SAFETY RULES WARNING: The installation must conform with local codes Installation and repair should be done by or, in the absence of local codes, with the a qualified service person. The heater National Fuel Gas Code, ANSI Z223.1/NFPA 54, should be inspected before use and at NFPA58 Natural Gas and Propane Installation least annually by a qualified service...
Page 5 WARNINGS AND CAUTIONS PLEASE READ THE FOLLOWING SAFETY RULES WARNING: Within a partial enclosure which includes an The pressure regulator and hose assembly sup- overhead cover and three side walls, as long plied with the appliance must be used, replace- as 30 percent or more of the horizontal ment pressure regulators and hose assemblies periphery of the enclosure is permanently...
Page 6: Tools Needed
WARNINGS AND CAUTIONS PLEASE READ THE FOLLOWING SAFETY RULES Perform a leak test with a soapy solution: 1. T o check gas connections. 2. After connecting a new cylinder. 3. Upon re-assembly after disassembly. This heater is designed to operate with a standard 20 Ib propane cylinder with approved cylinder connection.
Page 7: Exploded View
EXPLODED VIEW...
Page 8: Parts List
PARTS LIST PART # DESCRIPTION PICTURE QUANTITY Transom assembly Pole & base assembly Decorative cover Propane tank hook Cover (Transom assembly) Cover (Base) Protective grate...
Page 9: Before Assembly
BEFORE ASSEMBLY PLEASE FOLLOW THESE STEPS TO REMOVE THE PALLET STEP 1 Unscrew 6pcs M5 x 12 screws to remove the heater from the pallet, and then screw these 6pcs M5 x 12 screws back to the base of the heater. M5 x 12 screws M5 x 12 screws STEP 2...
Page 10 BEFORE ASSEMBLY PLEASE FOLLOW THESE STEPS TO REMOVE THE PALLET STEP 3 Unscrew 2pcs M6 x 25 screws, D6 spring washers, D6 washers and N6 nuts to remove the transom assembly (1) from the base. Then take out the EPS foam. D6 spring washers D6 washers M6 nuts...
Page 11 ASSEMBLY INSTRUCTIONS STEP 1 Put the decorative cover ③ through the pole ② and place it on the tabletop. ASSEMBLY INSTRUCTIONS Shoulder screw on pole Pole fixing sleeve Table of base assembly STEP 2 Unscrew lowest positioned M8 x 85 bolt, washer and M8 cap nut on transom assembly ① as illustration. M8 x 85 bolt washer M8 cap nut...
Page 12 ASSEMBLY INSTRUCTIONS STEP 3 Half-loosen other 3pcs M8 cap nuts on Transom assembly (1). Do not take out! M8 cap nut STEP 4 Make sure the reflector is at the same side as wheels. Insert the hose and regulator through the pole ② and place the transom assembly ①...
Page 13 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS STEP 5 Insert cylinder fixing hook ④ into holes on base assembly ②. Place the gas cylinder (not included) into the base assembly ② and fix it with cylinder fixing hook ④. Attach the regulator to the cylinder and turn clockwise to securely tighten the valve. Close and latch the door. Make sure to check for leaks after attaching the cylinder.
Page 14 ASSEMBLY INSTRUCTIONS STEP 7 Insert one end of the protective grate vertically into the hole at the top of the reflector then insert the other end horizontally into the slot at the bottom of the reflector. Once both grate tabs are inserted, grate should be firmly attached to the reflector. Protective grate has a specific orientation.
Page 15: Safety Check
SAFETY CHECK WARNING: ONLY AN AUTHORIZED GAS TECHNICIAN SHOULD INSTALL THIS PRODUCT. PROPER ASSEMBLY IS THE RESPONSIBILITY OF THE INSTALLER. Check for leaks All connections on the patio heater have been checked for leakage at the factory. In transportation and handling some connections may have loosened.
Page 16 SAFETY CHECK WARNING: ONLY AN AUTHORIZED GAS TECHNICIAN SHOULD INSTALL THIS PRODUCT. PROPER ASSEMBLY IS THE RESPONSIBILITY OF THE INSTALLER. ANNUAL OPERATION CHECK battery compartment cover 4pcs M4 x 10 bolts. b. Turn on propane tank valve. Battery compartment cover inlet pipe fitting and metal hose fitting.
Page 17: Operation
OPERATION WARNING: DO NOT ATTEMPT TO OPERATE HEATER UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN SERIOUS PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE. Before turning gas supply ON Your heater was designed and approved for OUTDOOR WARNING USE ONLY.
Page 18 OPERATION CURVE WIRING DIAGRAM THERMOCOUPLE SPARK PIN TILT SWITCH - SAMPLE CONTROL PANEL BLACK WIRE GAS OUT + SAMPLE RED WIRE HIGH VALVE HIGH HV OUT LOW VALVE -POWER+ BLACK WIRE RED WIRE DC3.0V GAS IN D#1.5X2 BATTERY FLAME CHARACTERISTICS The flame pattern at the mesh burner element, is normally red, but a little yellow flame is acceptable.
Page 19 OPERATION The burner may emit smoke during initial operation, This is normal, and is due to residual manufacturing oils. Burner flame may also reset flare during first ignition - this is also normal, due to excess gas build- up in the hose. Burner pad and protective grate will become bright red due to intense heat.
Page 20 LOCATING HEATER FOR USE LOCATING HEATER FOR USE CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT, ABOVE, BESIDE OR UNDER THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. This heater is primarily used for the heating of outdoor patios, decks, spas, pools and open working areas.
Page 21: Maintenance & Storage
MAINTENANCE/STORAGE CLEANING AND MAINTENANCE : WARNING: To enjoy years of outstanding performance from your FOR YOUR SAFETY ; heater make sure you perform the following maintenance DO NOT touch or move heater for activities on a regular basis: at least 45 minutes after use. Allow all burner elements to cool before Keep exterior surfaces clean.
Page 22 MAINTENANCE/STORAGE MAINTENANCE/STORAGE Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it NOTE: unsafe for use. Clean burner holes by using a heavy-duty Wait until heater is cool before pipe cleaner. Compressed air may help clear away covering.
Page 23: Troubleshooting
TROUBLESHOOTING PROBLEM Indicator light on start panel doesn’t work Control panel buttons don’t work Flame goes out unexpectedly Emitter Pad is damaged/flame pattern distorted/pad is disintegrating FOR IGNITION FAILER PROBLEMS PLEASE REFER TO THE DETAILED FLOW CHART ON PAGE 24...
Page 24 TROUBLESHOOTING...
Page 25: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY Outdoor Order™ LLC warrants to the original retail purchaser of this heater. that if assembled and operated in accordance with the printed instructions accompanying it, the mechanical operation of the heater for a period of one year. Outdoor Order™...
Page 26 THIS PAGE INTENTIONALLY LEFT BLANK...
Page 27 REV 3/18...
