(Wireless) Custom Foot Switch User Manual
For wireless series:FS20Pro,FS20G,FS2020BT,FS17Pro,
etc.
Product name ended with the letter "BT": Equipped with Bluetooth and USB function, it doesn't
come with 2.4G function.
Product name ended with the letter "G": Equipped with 2.4G(Including a receiver) and USB
mode function, it doesn't come with Bluetooth function.
Product name ended with the letter "Pro": Equipped with 2.4G, Bluetooth and USB function.
Comes with a receiver for 2.4G wireless function.
FS17G,FS2017BT,FS2016BT,FS2016G
-V1
Advertisement
Summary of Contents for PCsensor FS20Pro
- Page 1 (Wireless) Custom Foot Switch User Manual For wireless series:FS20Pro,FS20G,FS2020BT,FS17Pro, FS17G,FS2017BT,FS2016BT,FS2016G etc. Product name ended with the letter "BT": Equipped with Bluetooth and USB function, it doesn’t come with 2.4G function. Product name ended with the letter "G": Equipped with 2.4G(Including a receiver) and USB mode function, it doesn’t come with Bluetooth function.

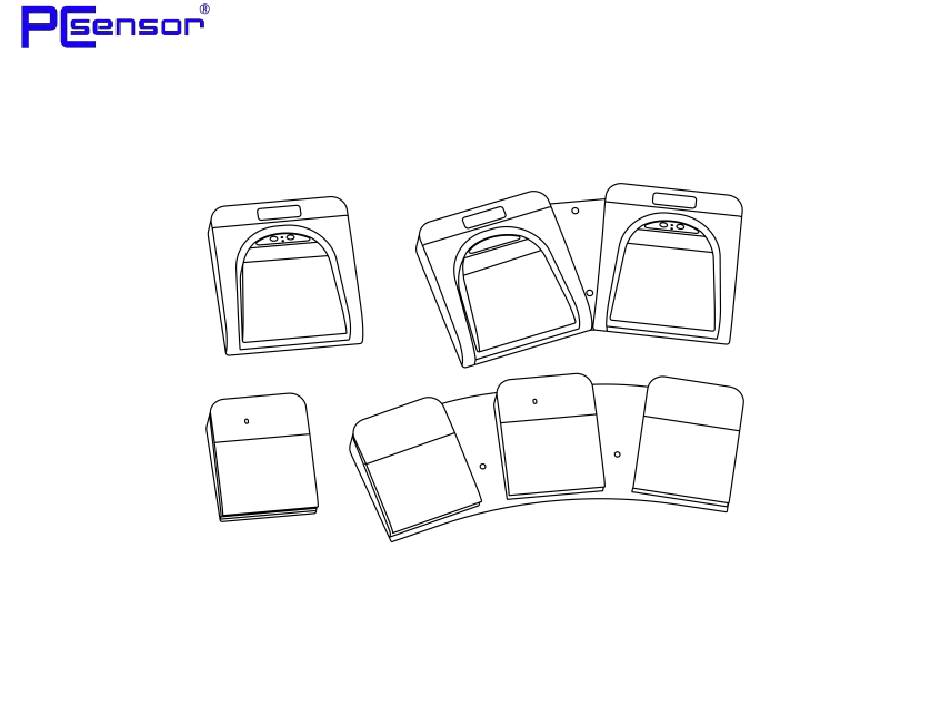

- Page 2 You can use the recording function to record the actions of keyboard and mouse. 3. About the custom Foot Switch Paragraph 3.1~3.4 of this section and image(1) are introduction of product series FS20Pro, FS20G, FS2020BT, FS17Pro, FS17G, FS2017BT, etc.
- Page 3 3.1 ① OFF/ON: Power switch, ON/OFF. 3.2 ② USB-Type C port: Power charge, key configuration and devices connection. 3.3 ③ connect button: Press once to switch connection modes. Press and hold 3 seconds to enter Bluetooth pairing mode. 3.4 ④ mode light: Blue light (usb mode); Red light (Bluetooth mode); Green light(2.4G mode). Light effect: Flashing at an interval of 1 second indicates a re-connection status;...
- Page 4 4. How to use: 4.1 Download and install the Elfkey software from: software.pcsensor.com. 4.2 Connect the custom foot switch to your computer with the USB cable. Run Elfkey software, press the connect button of the device until mode light turns to blue (USB mode), and the ElfKey software will automatically recognize the device and connect it.
