Summary of Contents for Dynasty ProAudio TMP-1

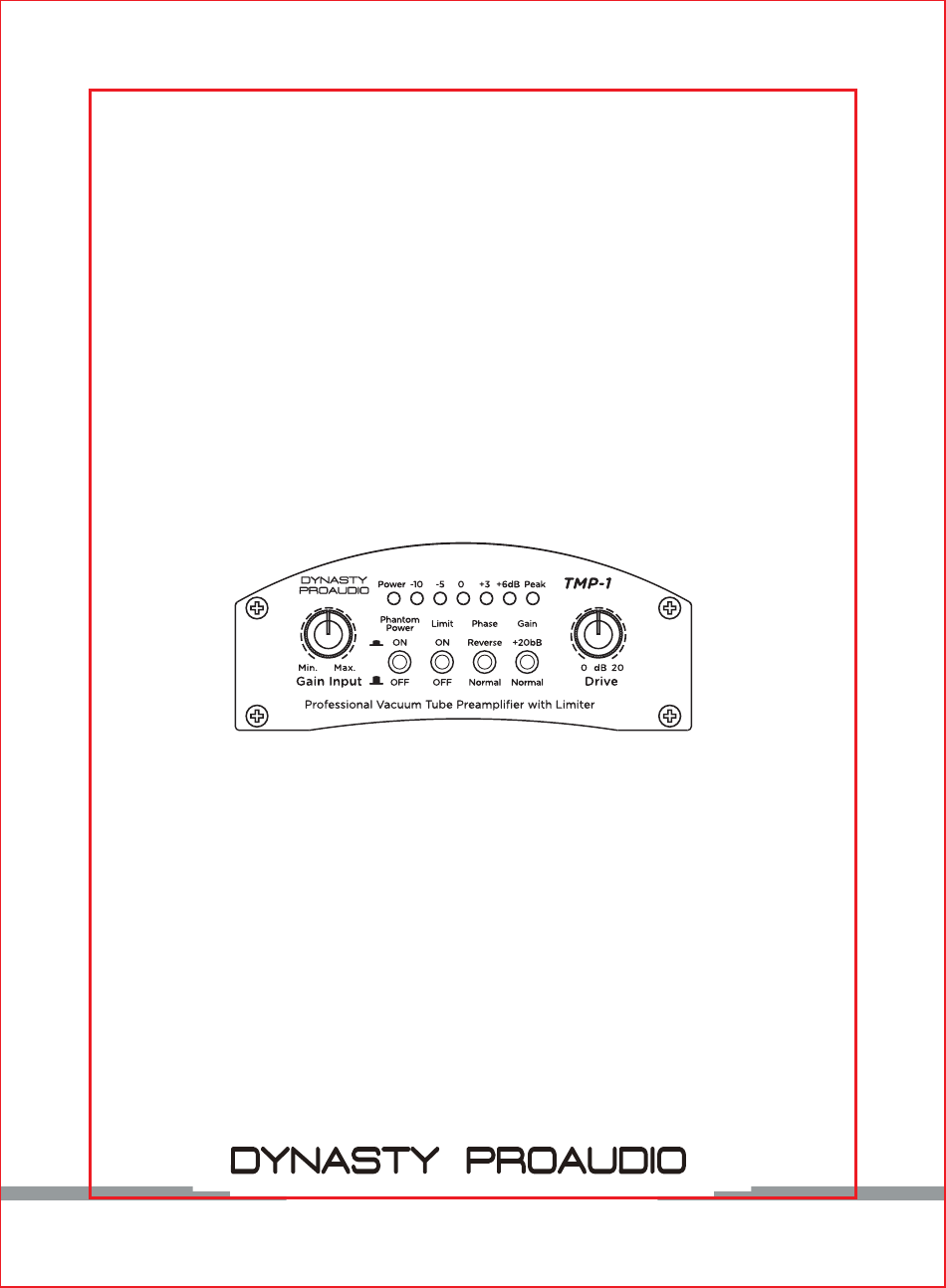

- Page 1 TMP-1 Professional Vacuum Tube Preamplifier with Limiter USER'S MANUAL www.dynastyproaudio.com...
-
Page 2: Important Safety Instruction - Read First
IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltage inside the enclosure-voltage instructions in the accompanying literature. that may be sufficient to constitute a risk of shock. - Page 3 INTRODUCTION Thank you for purchasing the Dynasty ProAudio TMP-1 preamplifier, it’s a professional quality audio single channel Mic preamp come with 12AX7 tube to add warmth to musical dynamics that lets you connect microphone, instrument, and line level signals to a mixer or other audio input. The new...
- Page 4 CONNECTION (1) The Balanced 1⁄4" TRS INPUT jack is for instrument or line level unbalanced signal, its high fixed input impedance is ideal for guitar and other passive instrument pickups. Plugging into this input bypasses the microphone preamp circuitry for a cleaner signal path.
- Page 5 (5) Use the 9V AC Power universal external power supply designed to operate at 100 to 240V AC ~ 50/60 Hz to hook up the enclosed power supply unit. Please noted that to use the adapter that came with the TMP-1. If the adapter becomes lost or damaged, contact Dynasty ProAudio Customer Service for replacement.
- Page 6 This control should be set fully counterclockwise when (dis)connecting a sound source to the TMP-1. When all connections are made, slowly start raising gain. (8) This Phantom Power switch activates the phantom power supply for the XLR input...
- Page 7 The TMP-1 is also work well as a very functional Tube Instrument DI for Acoustic Guitar, Bass, and virtually any other instrument with a 1⁄4-inch or XLR output. Many people prefer the sound of a tube for responsiveness and warmth instead of the standard DI’s and...
-
Page 8: Specifications
Maximum input level: -23dBu (XLR), -6dBu (1/4") SPECIFICATIONS Connector: Balanced/Unbalanced Type: Transformerless, AC-decoupled input Total Harmonic Distortion: <0.5% (typical) Dynamic Range: > 40dB (20Hz to 20kHz) Impedance: 2KU (XLR), 2K (1/4”) Maximum output level: +23dBu (XLR), +22dBu (1/4") Frequency Response for Mic input: <10Hz~43K Hz (+/-3dB) Frequency response for Line input: <10Hz~40K Hz (+/-3dB) Input Level LED: 6-segment LED meter: -10,-5, 0,+3,+6dB, Peak Dimensions: 2 1/2"...
