Summary of Contents for Feider FBRE40V

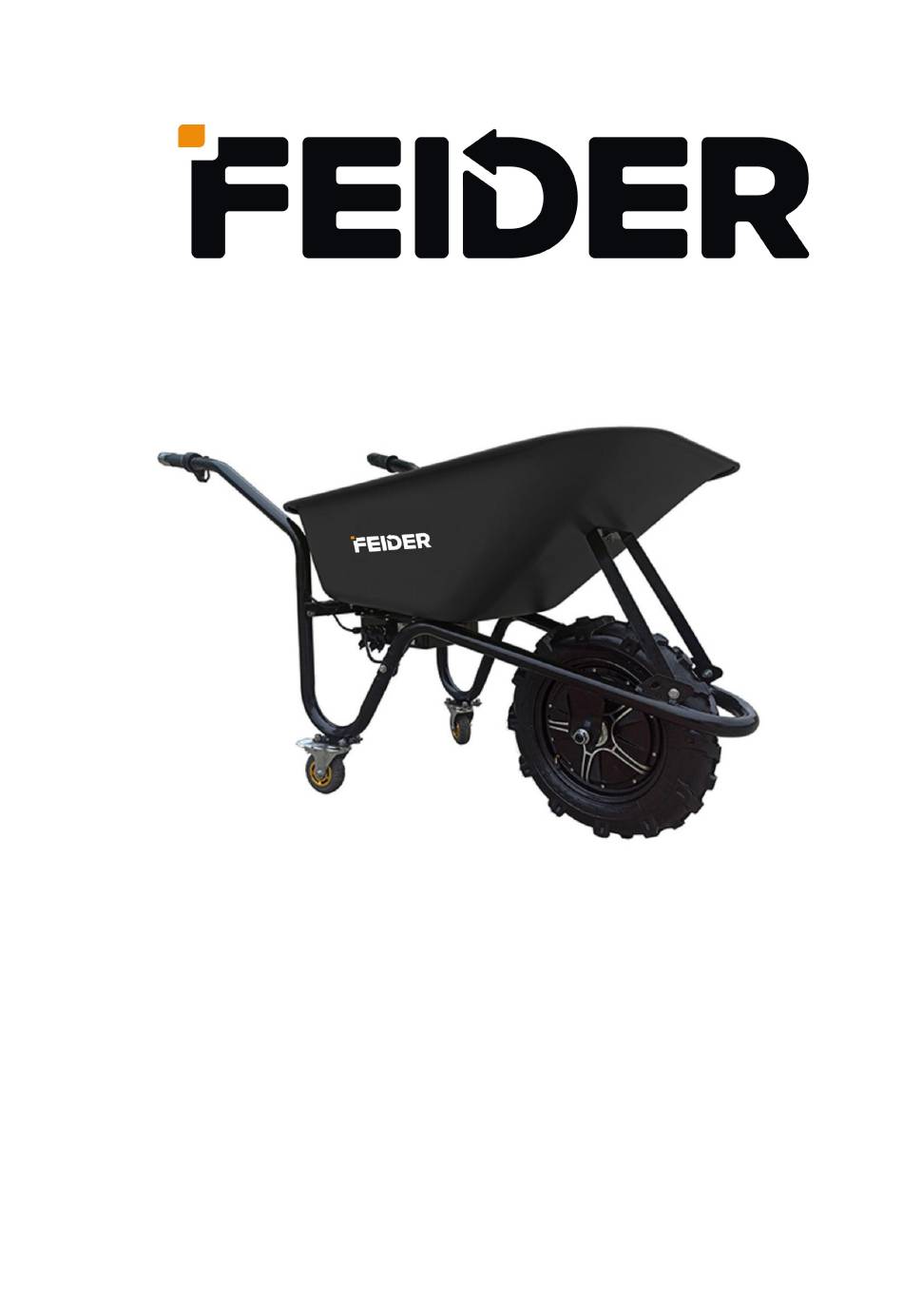

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRICAL WHEEL BARROW FBRE40V FBRE40V-UK USER GUIDE CAUTION: Read this manual before use this machine!
-
Page 2: Table Of Contents
CONTENTS 1. THE PRODUCT............................3 2. SAFETY WARNINGS..........................4 3. INTENDED USE............................7 4. SECURITY INSTRUCTIONS........................ 7 5. ASSEMBLY............................. 9 6. OPERATION............................10 7. MAINTENANCE............................11 8. CLEANING.............................12 9. STORAGE..............................12 10. DISPOSAL............................12 11. TROUBLESHOOTING........................12 12. SPARE PARTS...........................13 13. DECLARATION OF CONFORMITY....................14 14. WARRANTY............................15 15. PRODUCT FAILURE.........................16 16. -
Page 3: The Product
1. THE PRODUCT 1.1 Components Frame Direction switch Motor wheel Tray Battery box ON-OFF switch Handle grip Plug for battery charging cable Motor control element Operation indicator Right handle cap Castors with brake 1.2 Delivery content Parts name Left Handle Reinforce rib Castors with brake Wheel &... -
Page 4: Safety Warnings
100 min Speed max. 6,0 km/h Max. load capacity 150kg / 80l Net weight 27 kg Dimension 139x65x90cm Charger: FBRE40V(C4202); FBRE40V-UK(4202) Input voltage 220-240V~ 50/60Hz,0.44A Power 97 W Out put 42V d.c. 2A Charge time Protection class Battery: FBRE40V; FBRE40V-UK Rated voltage 40 V d.c. - Page 5 e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
- Page 6 h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. 5) Battery tool use and care a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
-
Page 7: Intended Use
Do not expose the charger or the battery to water. Do not incinerate the battery or charger. Ambient temperature of 40 °C max. (only for the battery) Use the battery and charger Indoor use only. Recycling 3. INTENDED USE The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse. - Page 8 GENERAL: Use the machine only in good enough light to allow a safe operation can be guaranteed. In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited! Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non- slip footwear.
-
Page 9: Assembly
DANGER A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Such a safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death. CAUTION A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage. -
Page 10: Operation
Step 7 Step 8 Step 9 Step 10 6. OPERATION Device to be operated in a perfect state only. Inspect the device visually every time it is to be used. Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. -
Page 11: Maintenance
Start electrical support 1. Press the red power switch to “1“ position 2. Turn the right handle cap anti-clock wisely, the more turn, the bigger power Direction switch “0” = go forward Direction switch “1” = go backwards When power switch =”1” and not turn the handle cap, the BAS will brake the wheelbarrow automatically. -
Page 12: Cleaning
Maintenance plan After each workshift: Check the cables (tight fit, damage) 8. CLEANING NOTICE The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface! Clean the machine surface with a wet cloth soaked in a mild solution Never use running water or a high pressure cleaner to clean the machine. -
Page 13: Spare Parts
12. SPARE PARTS The installation of other than original spare parts voids the warranty! So you always have to use original spare parts When you place a spare parts order please use the service formular you can find in the last chapter of this manual. -
Page 14: Declaration Of Conformity
Tel: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Declare that the machine designated below ELECTRICAL WHEEL BARROW FBRE40V S/N: 20241003875- 20241003924 Conforms to the provisions of the Machinery Directive 2006/42 / EC and the national regulations transposing it; Also complies with the provisions of the following European directives:... -
Page 15: Warranty
14 . WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 16: Product Failure
1 5 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 17: Warranty Exclusions
1 6 . WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 18 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
