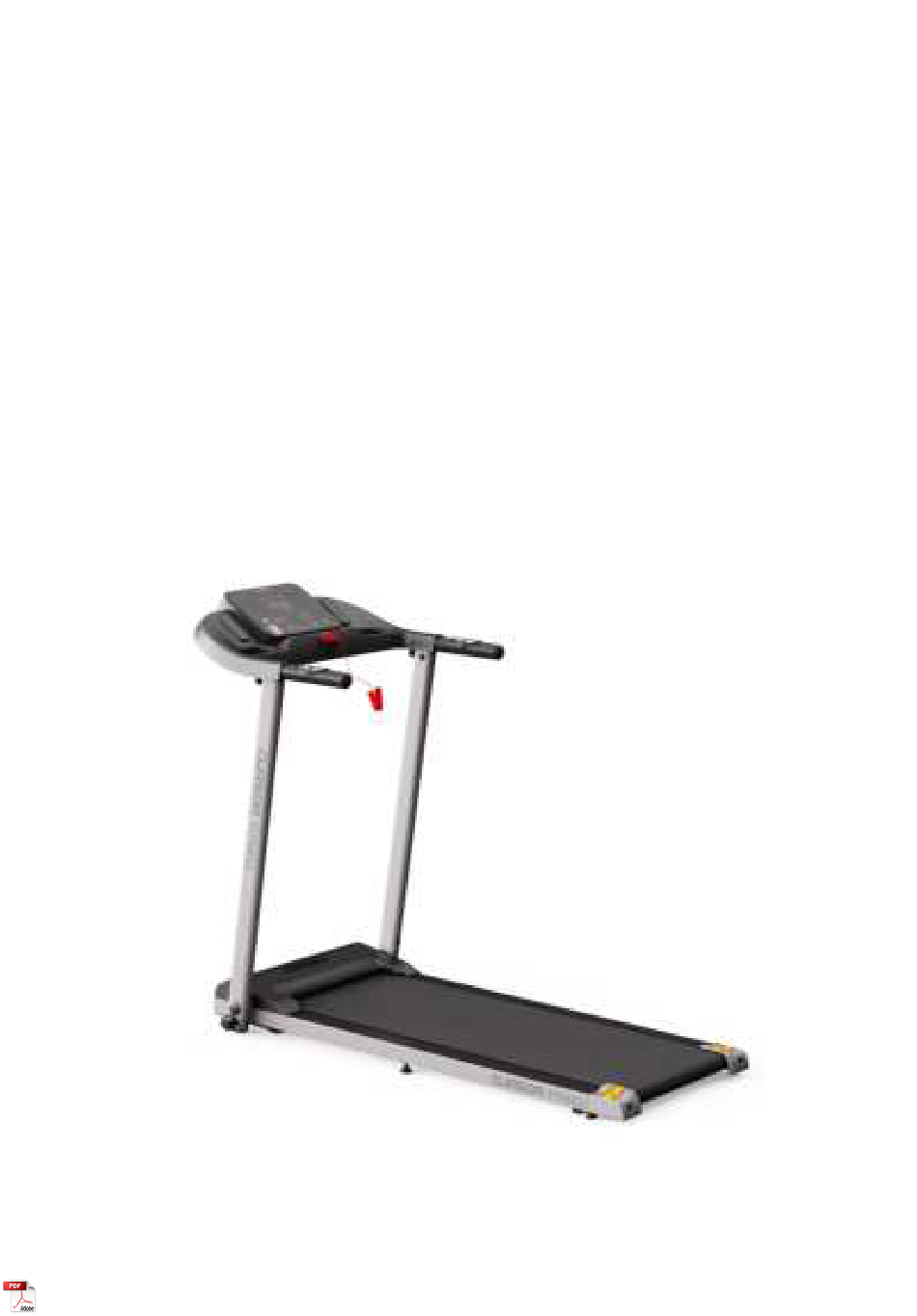

- Page 1 CURSOR Fitness C70 Treadmill User’s Manual...
-
Page 2: Table Of Contents
Contents Ⅰ. Important Precaution....(1) Ⅱ. Main Technical Features...(3) Ⅲ. Assembly........(4) Ⅳ. Workout Guidelines....(5) Ⅴ. Treadmill Operation....(6) Ⅵ. Maintenance.........(9) Ⅶ. Trouble Shooting......(11) Ⅷ. The Obvious Danger List..(14) Ⅸ. CursorCare........(15) -
Page 3: Ⅰ. Important Precaution
In order to decrease the risk of suffering severe injuries, read carefully all the important instructions and warnings regarding the use of a treadmill before using it. CURSOR FITNESS doesn’t take any responsibility for personal injuries or property damages resulting from the use of this product. - Page 4 6-Keep children younger than 12 years old and pets away from the equipment. Keep the security distance. 7-Check in the manual the maximum weight your equipment can support. Excessive weight could lead to a malfunction in the operating system, which won’t be covered 8-If your equipment is working through a power supply: make sure that the power cord by the guarantee.
-
Page 5: Ⅱ. Main Technical Features
II. Main Technical Feature LED Screen Security Key Handrail Foam Stand Tube Motor Cover Side Strip Rear Cover Running Belt Input Voltage 110V±10% Frequency 60 HZ Running area 40.2" x 15.4" Time, Speed, distance, Calorie, heart rate, Function Bluetooth, APP, MP3 Speakers Speed Range 0.6-7.5 MPH Max user weight... -
Page 6: Ⅲ. Assembly
III. Assembly Plug and Play, No assemble needed Name Main frame M8*20 Flat washer M10*43 knob 5mm Wrench 6mm Wrench Multi Wrench Silicone oil User’s Manual MP3 Wire Security Key STEP 1 1. Carry out the machine from the package by two persons and place it lightly on a flat floor, and put other fittings beside the machine. -
Page 7: Ⅳ. Workout Guidelines
STEP 2 1. Insert 2 pcs M8*20 screws with a 2 pcs flat washer to fasten the connection between the panel and stand tube. 2. Put on the safety in the position shown in Figure C, turn on the power switch, then can start the machine. -
Page 8: Ⅴ. Treadmill Operation
making you ready for the workouts. WORKOUT FOCUSED ON THE TRAINING AREA: Do some exercises during 20-30 minutes with your heart rate (don’t maintain your heart rate for more than 20 minutes during the first weeks of the exercise program). Breathe constantly and deeply during the workout (never hold your breath). - Page 9 The Method of Use: “Mode” Setting: “Program” Setting:...
- Page 10 TIME SETTING TIME / 20= EACH SECTION OPERATION TIME SECTIO PROGRA SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED...
-
Page 11: Ⅵ. Maintenance
VI. Maintenance This product must be earthed. If the power cord is damaged,it must be replaced with a manufacture recommended power cord. DO NOT TANGLE THE POWER CORD REGULAR MAINTENANCE OF THE TREADMILL STORAGE: Keep your equipment in a enclosed place, away from dust or humidity. Don’t store it neither in a garage or in a indoor backyard, or near the water. - Page 12 c) Turn over the running belt . Insert the lubricant pot as deep as possible into the middle of the running belt. Apply the lubricant onto the inner side of the running belt. Lubricate both sides of the running belt. After the lubrication is completed, start the machine at 1km/h to let the running belt bring silicon all over the board.
-
Page 13: Ⅶ. Trouble Shooting
belt is properly tightened. if the running belt slips,use 6mm wrench,turn both sides bolts 1/4 clockwise.Repeat this procedure until the belt is properly tightened. TIGHTEN THE DRIVE BELT:if the drive belt becomes loose after using for a period of time,you need to: ... - Page 14 The treadmill Overload protector Restart the overload protector doesn't work disengaged The signal wire between the computer and the PCB is not Re-connect the Signal wire or change the in good connect or damaged Signal wire Computer damaged Change the computer Safety key off Place the safety key in the yellow magnet position on the panel...
- Page 15 Computer display PCB overheat protection Stop using for a period of time after cooling PCB error Change the PCB Computer display Sudden low current protect Check the AC power supply voltage PCB error Change the PCB Computer display Sudden big current protect Check running belt or other place if something inside, or check PCB if it is hurt...
-
Page 16: Ⅷ. The Obvious Danger List
Ⅷ. The Obvious Danger List Description Associated Mechanical Hazards Crushing Inclining Folding Shearing Inclining Folding Drawing-in Or Trapping Rear roller Drive system Falling Sudden starts/stops Excessive speed variation Support failure Abrasion Contact with moving running surface Slippery Surface Slipping and falling Stored Energy Folded treadmills falling down Springs or elastic devices prior to... -
Page 17: Ⅸ. Cursorcare
behaviour Noise Hazards Disturbing acoustic Moving treadmill motor and belt communication Ⅸ. CursorCare This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as required by law. Contact Cursor 7/24 response 7*24 online California-based customer service team to solve ...
