FAMOCO FX925RC-ING User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

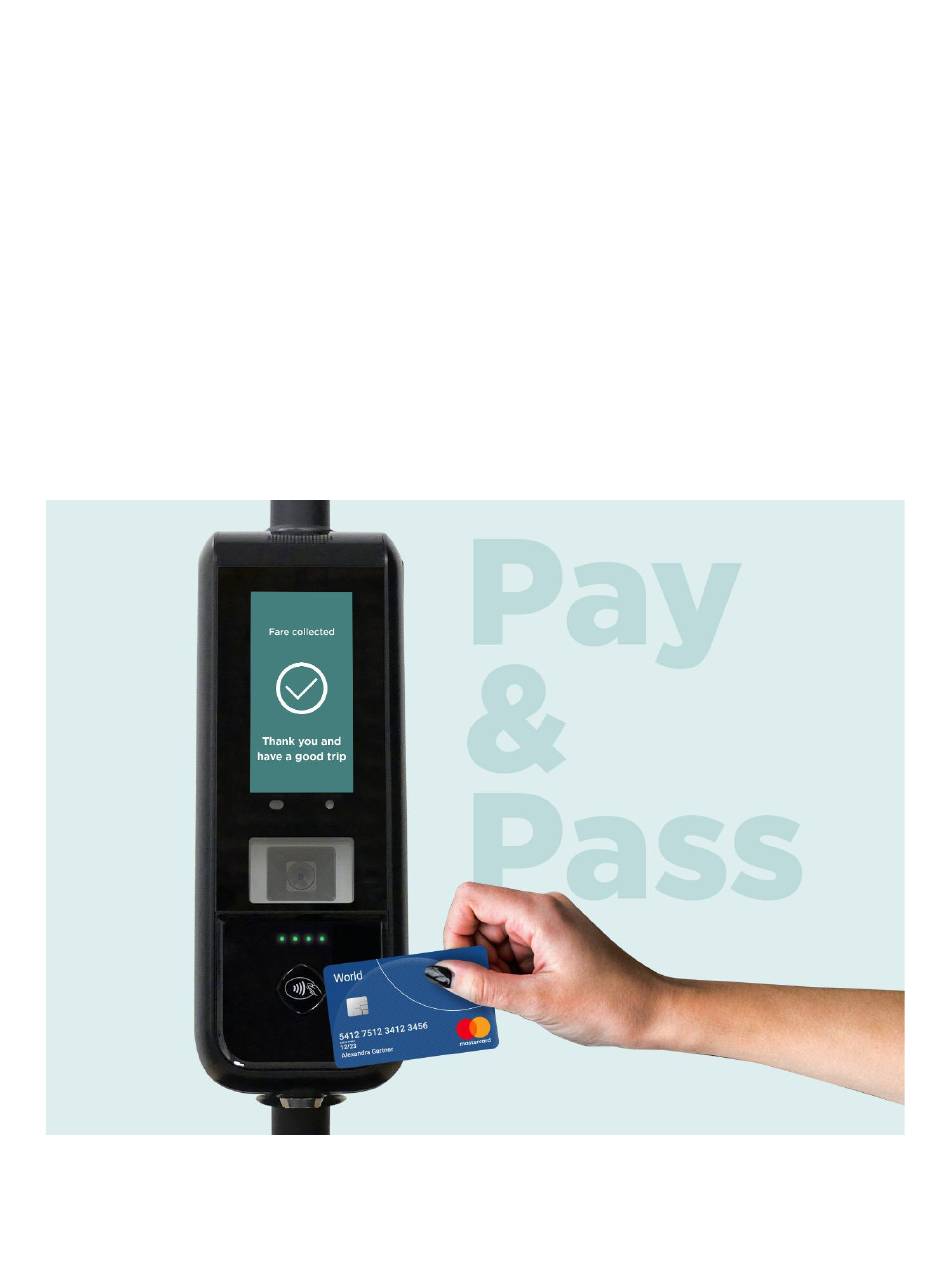

User Manual
FX925RC-ING
NFC Android Validator
Hardware Versions:
FX925RC-ING-VPDC-GEN,0101
FX925RC-ING-VWDC-GEN,0101
FX925RC-ING-VPDC-GEN,1101
FX925RC-ING-VWDC-GEN,1101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX925RC-ING and is the answer not in the manual?

Questions and answers

Summary of Contents for FAMOCO FX925RC-ING

  • Page 1 User Manual FX925RC-ING NFC Android Validator Hardware Versions: FX925RC-ING-VPDC-GEN,0101 FX925RC-ING-VWDC-GEN,0101 FX925RC-ING-VPDC-GEN,1101 FX925RC-ING-VWDC-GEN,1101...

  • Page 2: Table Of Contents

    How to install the front casing 8.2.5 Troubleshooting & Maintenance How to clean plastic surfaces How to store FX925RC-ING How to switch the device ON or OFF Home screen and synchronization How to read a smartcard How to read an EMVco card How to read a 1D / 2D code 8.10 About the SIM/SAM slots...

  • Page 3: Copyright

    4 Limitation of liability Famoco shall not be liable for any loss of profits or indirect, special, incidental, or consequential damages resulting from or arising out of or in connection with using this product, whether or not Famoco had been advised, knew, or should have known the possibility of such damages.

  • Page 4: Device Layout

    Applications and their functions may vary by country, region, or hardware specifications. ● Famoco is not liable for performance issues caused by applications from any provider other than Famoco. Famoco is not liable for performance issues or incompatibilities caused by edited registry ●...

  • Page 5: Package Content And Accessories

    Famoco 7.1 Product Delivery Famoco FX925RC-ING is provided to you not fully assembled, you will need to access the internal parts of your device for a proper installation. Thus, whether for the Pole or the Wall configuration of the product, it is provided in two parts - a front and back casings - that will need to be assembled at the final product destination.

  • Page 6: Electrical Installation

    Famoco FX925R series User manual 8.2.1 Electrical installation Warning: Make sure that the power supply is switched off during the entire installation, setting up, disassembly or any other maintenance operation on the device may damage the device and cause harm to anyone operating on it.
  • Page 7 Famoco FX925R series User manual Input voltage of 12V DC: Copper section mm2 12V DC (25 W/h, I=2,08) Cable length (m) minimum maximum Rigid wire’s (both ways) (PT 5%) (PT 2.5%) cross-section AWG equivalence 0.06 0.12 0.5 mm2 AWG 20 0.12...

  • Page 8: How To Install A Back Casing - Wall Configuration

    Famoco FX925R series User manual This connection is not needed for the product to operate nominally, if you do not need or use this feature, please let this connector free. 8.2.2 How to install a Back Casing - Wall Configuration 8.2.2.1 Tools of the installer...
  • Page 9 Famoco FX925R series User manual (*) refer to chapter "Electrical recommendations" 8.2.2.2 Prerequisite installation 8.2.2.2.1 Installation surface To ensure proper installation and sealing at the rear of the unit, the installation surface must be straight and level. A seal is still provided to compensate for roughness and surface defects.
  • Page 10 Famoco FX925R series User manual 1. To ensure the tightness of the device, the breakable openings are available both for fixing and for the passage of cables. Identify and break only those that will be required for fixation among those available.
  • Page 11 NOTE: Only drill and make openings according to these instructions and following the drilling templates.provided by Famoco. Creating openings in the product at other location may result in a non functional product as the cable routing may conflict with other peripherals as well as void...
  • Page 12 Famoco FX925R series User manual Cables can be routed directly from the rear of the unit, in the case of a hollow wall, or through the bottom of the cable gland. In both cases, the breakable or pierceable openings are available.
  • Page 13 Famoco FX925R series User manual 8.2.2.3 Assembly & electric installation 8.2.2.3.1 Mounting preparation In detail, the back of the validator in wall mounting consists of: ● A back casing ● Two seals ● A central room, housing the power supply electronics The validator support installation uses the following elements: ●...
  • Page 14 Nominal working voltage is 12 VDC or 24 VDC. c. The jumper available allows activating the 12/24 VDC power line in the front casing, for both FX925RC-ING and FX925RF-ING, the jumper must be plugged.
  • Page 15 Famoco FX925R series User manual d. In the case of cables passing through protruding grommets, use the lower bracket to tighten and secure the cables against possible tearing. 4. Before closing the unit, make sure that the seal on the contour of the back casing is correctly fitted.

  • Page 16: How To Install A Back Casing Pole

    ● VCC +5V DC must be lowered and stabilized in 5V DC ● VCC +12V/24V: must be 12V or 24V for both FX925RC-ING and FX92RF-ING, depending on the voltage available locally 8.2.3 How to install a Back Casing Pole...
  • Page 17 Famoco FX925R series User manual ● A front casing, which contains all the electronics and intelligence of the device. 8.2.3.2 Tools of the installer 8.2.3.2.1 Tools list The installer should be equipped with the following tools: Designation Quantity Drill Electric screwdriver (optional)
  • Page 18 Famoco FX925R series User manual 8.2.3.3 Prerequisite installation 8.2.3.3.1 Pole topology The pole on which FX925R validator is installed must be straight and vertical, with a cross-section diameter between 30 and 40 mm. The device is designed to be installed in a vertical position, right-side-up.
  • Page 19 Famoco FX925R series User manual 1. Use the drilling template to identify the position and the different holes to be drilled on the pole to fix the support. 2. Use a 5.5mm (+/- 0,1mm) drill bit to make the holes at the extremities. Only one is mandatory.
  • Page 20 Famoco FX925R series User manual 8.2.3.4 Mechanical assembly & electrical installation Warning: For safety reasons, make sure that the power supply is turned off throughout the operation. 8.2.3.4.1 Preparation for assembly The back casing of the Validator consists of: ● A back casing part ●...
  • Page 21 Famoco FX925R series User manual The installation of the validator uses the following elements: ● 4 metal brackets, all identical ● 2 anti-rotation screws with washers ● screws for fixing the fixing brackets to the back casing ● 16 plastic spacers (8 spacers per pair of fixing brackets) ●...
  • Page 22 Famoco FX925R series User manual 2. For a perfect centering on the pole, place the recommended number of spacers for the diameter of the pole, then fix the lower bracket with the 4 flat-headed screws, as shown: In this example, only one spacer is placed behind the bracket. This configuration is suitable for 35 mm diameter bars.
  • Page 23 Famoco FX925R series User manual ● Seal Type 3 can be identified by a “36 - 40” engraving 4. The fully assembled back casing will hold the rear seal halves and the rear brackets, as follows: 8.2.3.4.3 Mounting the back casing 1.
  • Page 24 Famoco FX925R series User manual 2. Stack the recommended number of spacers fixing screws, depending on the diameter of the pole, so that they serve as a stop against excessive tightening of the fixing bracket. Place the nuts/screws with the washers provided.
  • Page 25 Famoco FX925R series User manual 4. Tighten the self-locking nuts and the anti-rotation screw(s) using the pipe wrench. The result is: 8.2.3.4.4 Intermediate part fixing 1. Remove the lid that protects the access to the accessible electric items: the terminal block, the fuse and a...
  • Page 26 Famoco FX925R series User manual 2. Pass the power cable through the opening in the center. 3. Place the remaining halves of the seals on the top and bottom of the intermediate part.
  • Page 27 Famoco FX925R series User manual 4. Use the 8 screws provided with the TT20 Torx-type screwdriver, with a minimum shank length of 80mm to go to the bottom of the clearance hole, to screw and fix the intermediate part on the rear casing.
  • Page 28 Famoco FX925R series User manual 3. Ensure the jumper is on the right configuration: for both FX925RC-ING and FX925RF- ING, the jumper must be plugged. Finally, replace the lid, as shown in the image below, to hide the wiring and protect the access to...
  • Page 29 Famoco FX925R series User manual 8.2.3.4.6 Ignition Input The third pin of the power supply connector is made to accept an ignition input signal, which must be 12 or 24VDC. If your final installation uses this features and is capable of providing an ignition signal please use this connector.

  • Page 30: How To Install The Front Casing

    Famoco FX925R series User manual Please note the USB standard is USB 2.0. Therefore, the maximum power supply available per connector is 500 mA. 8.2.3.6 End of installation test Please refer to section 8.2.2.4 End of installation test. 8.2.4 How to install the front casing The installation of the front casing for wall and pole is the same, and it is done by fitting and then sliding it down.

  • Page 31: Troubleshooting & Maintenance

    If the problem persists, contact the Famoco support team: support@famoco.com 8.3 How to clean plastic surfaces Here are a few extra tips to help keep you healthy and connected using your Famoco devices: ● Famoco devices without a protective case or screen protector: Spray an alcohol-based (70% isopropyl) directly on a soft lint-free cloth and wipe down your Famoco device while it is powered down and unplugged.

  • Page 32: How To Store Fx925Rc-Ing

    To remove grease or plastic stains, gently rub the stains with isopropyl alcohol and a microfiber cloth. Do not use abrasive cleaners. 8.4 How to store FX925RC-ING Store the terminal in its original packaging, at a temperature between -10°C and 60°C, and a humidity level between 5% and 95% without condensation.

  • Page 33: How To Read A Smartcard

    Famoco FX925R series User manual Just a moment screen Obtaining device information screen If the synchronization is in progress, please wait until it is complete. If the synchronization is complete but no applications have been installed, or if the synchronization has been aborted, please contact your customer support.

  • Page 34: How To Read An Emvco Card

    Famoco FX925R series User manual Figure: Passing a smartcard in front of the NFC antenna 8.8 How to read an EMVco card To read an EMvco card, bring the card near the NFC pictogram (i.e. a hand holding a card) on the front casing, below the scan engine.

  • Page 35: How To Read A 1D / 2D Code

    Famoco FX925R series User manual Figure: Passing a EMVco media in front of the NFC antenna 8.9 How to read a 1D / 2D code To read a barcode (either from a mobile phone screen or a paper), place the barcode in front of the scan engine of the FX925R validator.

  • Page 36: About The Sim/Sam Slots

    Sim Card and the 3rd is a MicroSD card. On some versions, a SAM slot may be present. Figure: one (1) SAM slot on the Android host Famoco FX2055 series, accessible from the back of device front cover...
  • Page 37 5.0”, IPS FWVGA 960x480 pixels Display 5.0” touchscreen Touch Panel Notification 1 multi-color LED (red, green, blue) ● 1 SAM slot on Famoco validator Security SAM slots ● 4 SAM slot on the Ingenico Open/1500 NFC reader Operating modes Reader/writer ●...

  • Page 38: Warranty Information

    Famoco FX925R series User manual PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc. Read barcodes from paper, mobile phones, Performance and tablets Speaker, Microphone, Accelerometer Front (AxH) 315 x 115mm/12.40 x 4.52in. Back (AxH) 340 x 115mm/13.38 x 4.52in.

  • Page 39: Safety And General Information

    Famoco FX925R series User manual 6. Any other cause beyond the range of normal usage for products. 7. The customer shall have no right to reject, return, or receive a refund for any product user under the above-mentioned situations, not excluding your statutory rights under national law.

  • Page 40: Eu Declaration Of Conformity

    12 EU Declaration of Conformity FAMOCO SAS declares that the radio equipment type FX925RC-ING is in compliance with Directive 2014/53/EU, The full text of the EU declaration of conformity is available...
  • Page 41 Famoco FX925R series User manual 1800 1900 1900 2100 BAND 1 BAND 3 BAND 5 BAND 7 BAND 8 BAND 20 BAND 28 BAND 38 BAND 40 WIFI 2.4G 18±1 19±1 5±1 5±1...

  • Page 42: Nfc Module Information

    Famoco FX925R series User manual 13.2 NFC module information Working frequency: 13.56MHZ Sensing distance: EUT is designed to maintain a distance of 4 cm with the user. 14 Restrictions in the 5 GHz band According to Article 10(10) of Directive 2014/53/EU, the packaging shows that this radio...
  • Page 43 March 2024...
