Next BRONX M82206 Assembly Instructions Manual

Fitted sink unit h80 x w80 x d45cm
Hide thumbs

Advertisement

Quick Links

Download this manual
Actual product size
H80 x W80 x D45cm
IMPORTANT -
RETAIN FOR FUTURE REFERENCE
Produced in China for Next Retail Ltd.
M82206-2022-V1.
BRONX FITTED SINK UNIT
M82206
Assembly instructions
Need Help ?
With: Assembly instruction
Missing or damaged parts
CALL: 0333 777 8999

Advertisement

loading
Need help?

Need help?

Do you have a question about the BRONX M82206 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Next BRONX M82206

Summary of Contents for Next BRONX M82206

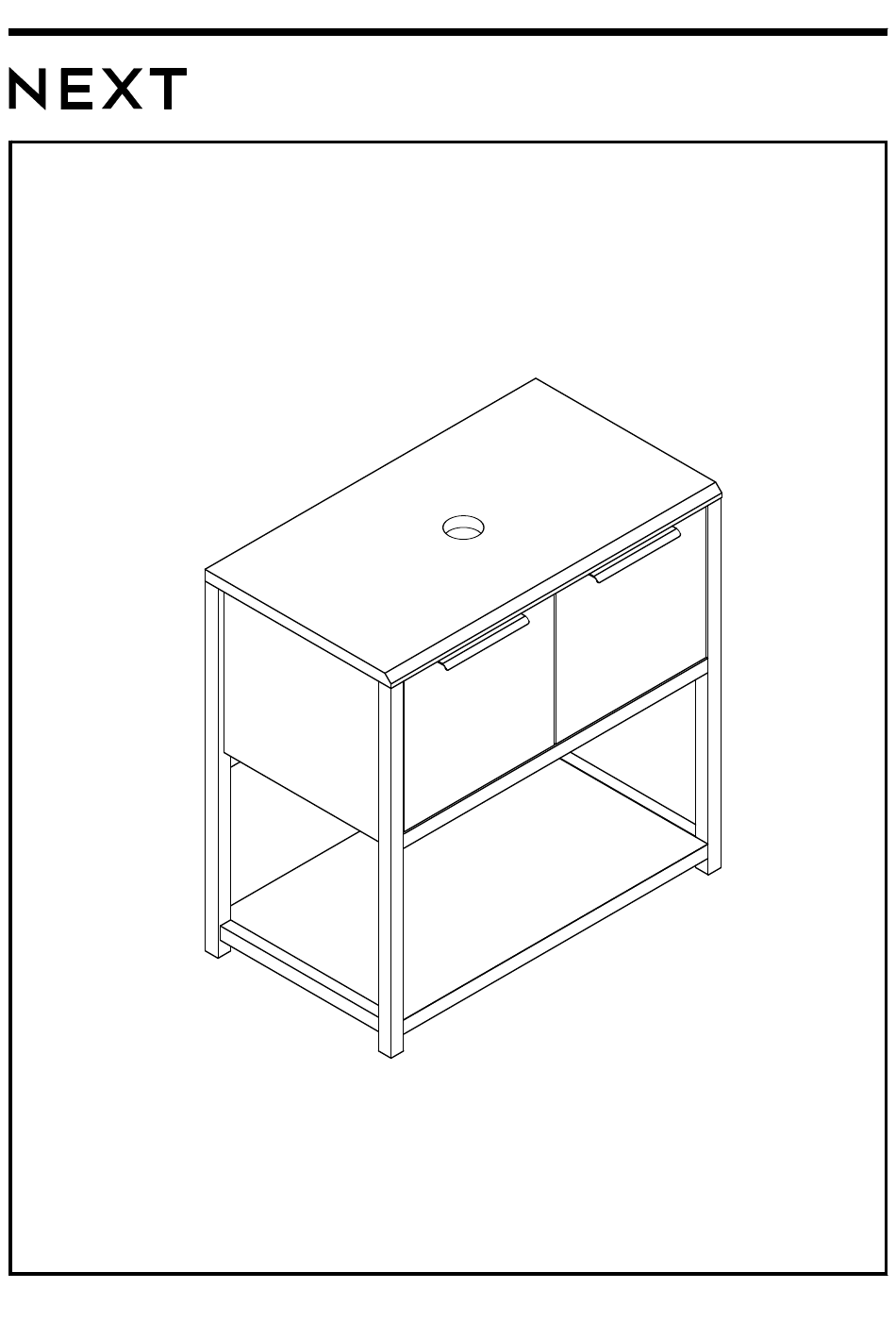

  • Page 1 BRONX FITTED SINK UNIT M82206 Assembly instructions Actual product size H80 x W80 x D45cm Need Help ? With: Assembly instruction IMPORTANT - Missing or damaged parts RETAIN FOR FUTURE REFERENCE CALL: 0333 777 8999 Produced in China for Next Retail Ltd. M82206-2022-V1.

  • Page 2: Before You Start

    Ensure the bathroom has ample ventilation to prevent moisture build-up. Ensure there is no standing water on the furniture and wipe away any water. Avoid placing the furniture next to the bathtub or shower without a proper shower screen. Time to assemble : 30 minutes Ensure the product is fixed to wall with safety brackets supplied.

  • Page 3: Getting To Know Your Product

    BRONX FITTED SINK UNIT M82206 Assembly instructions GETTING TO KNOW YOUR PRODUCT Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 4 BRONX FITTED SINK UNIT M82206 Assembly instructions Components supplied. Please use this guide if you require replacement parts. Ref Dimensions Visual 45x77.5cm 8.5x73.5cm 44.5x73.5cm 8.5x73.5cm 44.5x73.5cm 45x77.5cm 45x80cm 31.5x36.5cm 31.5x36.5cm Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 6 U139 Ø4.5 x 15mm Ø4 x 16mm Ø4 x 16mm Fixtures and fittings supplied ( not to scale) Fixtures and fittings supplied ( not to scale) Dimensions Visual Spare Qty Ø21mm Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 7 BRONX FITTED SINK UNIT M82206 Assembly instructions FRONT BACK U139 Ø4.5 x 15mm not supplied Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 8 BRONX FITTED SINK UNIT M82206 Assembly instructions Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 9 BRONX FITTED SINK UNIT M82206 Assembly instructions Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 10 BRONX FITTED SINK UNIT M82206 Assembly instructions Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 11 BRONX FITTED SINK UNIT M82206 Assembly instructions Ø4 x 16mm not supplied Ensure the tap hole is drilled,before the top panel is assembled. Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 12 WHEN LOOSENING THE CAM TURN THE CAM IN A COUNTERCLOCKWISE DIRECTION UNTIL THE ARROW POINTS IN THE POSITION SHOWN IN THE DIAGRAMS BELOW Ø21mm Ø4 x 16mm MAXIMUM TURN not supplied UNLOCKED LOCK TO UNLOCK Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 13 BRONX FITTED SINK UNIT M82206 Assembly instructions U139 Ø4.5 x 15mm not supplied not supplied Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 14 BRONX FITTED SINK UNIT M82206 Assembly instructions To align the door, please adjust the hinges as shown below. Install hinge Adjust Hinge Position LATERAL VERTICAL Remove hinge FRONT- TO-BACK Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 15 BRONX FITTED SINK UNIT M82206 Actual product size H80 x W80 x D45cm Produced in China for Next Retail Ltd. M82206-2022-V1.
  • Page 16 You can write to us at Home Customer Services Next Retail Ltd. Desford Road, Leicester, LE19 4AT To view our full furniture range please visit www.next.co.uk Produced in China for Next Retail Ltd. M82206-2022-V1.
