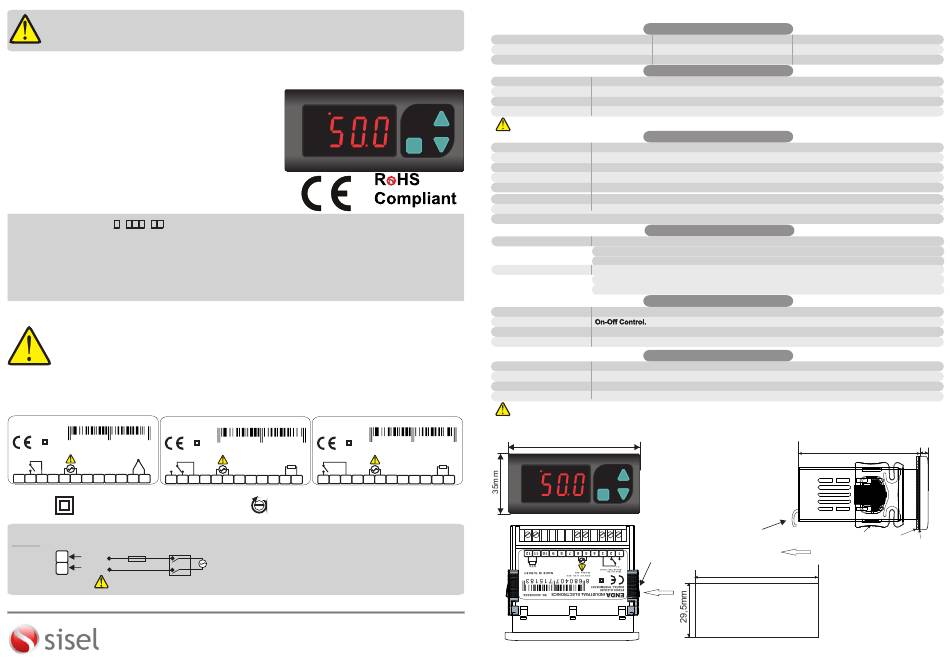

sisel ENDA ET2001 Quick Start Manual

Read this document carefully before using this device. The guarantee will be expired by device demages
if you don't attend to the directions in the user manual. Also we don't accept any compensations for
personal injury, material damage or capital disadvantages.
ENDA ET2001 ON/OFF TEMPERATURE CONTROLLER
Thank you for choosing ENDA ET2001 temperature controller.
*
77 x 35mm sized.
*
NTC or J Sensor input types can be selected (specify at order).
*
Indicates NTC input as decimal.
*
Zero point input shift.
* C1 Relay out for temperature control.
*
When C1 output configuration is selected for cooling, compressor delay
time can be entered.
*
Selectable heating / cooling control.
* In case of sensor failure, relay state can be configured
as ON or OFF.
*
CE marked according to European Norms.
Order Code : ET2001- - -
1 2 3
1- Input selection 2 - Supply Voltage
N....NTC input 230......230V AC
J....J Thermocouple 110......110V AC
024......24V AC / DC
012......12V AC / DC
24V......12V / 24V DC
SM.......9-30V DC / 7-24V AC
CONNECTION DIAGRAM
ENDA ET2001 is intended for installation within control panels. Make sure that the device is used only
for intended purpose. The shielding must be grounded on the instrument side. During an installation, all
of the cables that are connected to the device must be free of electrical power. The device must be
protected against inadmissible humidity, vibrations, severe soiling. Make sure that the operation
temperature is not exceeded. All input and output lines that are not connected to the supply network must be laid out
as shielded and twisted cables. These cables should not be close to the power cables or components. The
installation and electrical connections must be carried out by a qualified staff and must be according to the relevant
locally applicable regulations.
ENDA
ENDA
INDUSTRIAL ELECTRONICS SN: XXXXXXXXX
ET2001-J-230-05
ET2001-N-230-08
DIGITAL THERMOSTAT
DIGITAL THERMOSTAT
8 6 8 0 4 0 7 7 1 5 2 0 6
230V AC +10% -20%
MADE IN TURKEY
250V AC 5A
50/60Hz 5VA
250V AC 8A
RESISTIVE LOAD
J - TC RESISTIVE LOAD
C1
C1
-
+
1 2 3 4 5 6 7 8 9 10 11 12
1 2
Equipment is protected throughout by
DOUBLE INSULATION
NOTE :
Fuse
SUPPLY: F 100 mA
Switch
250V AC
5 Phase
184-253V AC
50/60Hz 5VA
Neutral
6
Fuse should
Cable size: 1,5mm²
be connected.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18 Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
C1
ENDA
3- Contact Current Selection
05......5A Contact output
08......8A Contact output
16....16A Contact output
ENDA
INDUSTRIAL ELECTRONICS SN: XXXXXXXXX INDUSTRIAL ELECTRONICS
ET2001-N-230-16
DIGITAL THERMOSTAT
8 6 8 0 4 0 7 7 1 5 1 6 9
8 6 8 0 4 0 7 7 1 5 1 8 3
230V AC +10% -20% 230V AC +10% -20%
MADE IN TURKEY
50/60Hz 5VA 50/60Hz 5VA
250V AC 16A
RESISTIVE LOAD
C1
NTC
3 4 5 6 7 8 9 10 11 12 1 2 3 4 5
Holding screw
0.4-0.5Nm.
Note 1) Mains supply cords shall meet the requirements
of IEC 60227 or IEC 60245.
2) In accordance with the safety regulations, the
230V AC
power supply switch shall bring the identification of
Supply
the relevant instrument and it should be easily
accessible by the operator.
Fax : +90 216 365 74 01
Input Type
NTC Sensor Resistance
J (FeCuNi) Thermocouple
Ambient/Storage temperature
Relative Humidity
Protection Class
Height
°C
Do not use the device in locations subject to corrosive and flammable gasses.
SET
SET
Supply
Power Consumption
ET2001
Wiring
Line Resistance
Data Retention
EMC
Safety Requirements
Indicator
C1 Output
Life Expectancy for Relay
Control Type
Control Algorithm
A/D Converter
Hysteresis
Housing Type
Dimensions
Weight
Enclosure Materials
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
SN: XXXXXXXXX
Dimensions
MADE IN TURKEY
NTC
C1
6 7 8 9 10 11 12
ENDA
ENDA TM
1 / 2
TECHNICAL SPECIFICATIONS
INPUT
Scale Range
EN 60751 -25.0...110.0 °C
EN 60751 -30.0...400.0 °C
ENVIRONMENTAL CONDITIONS
°C
0 ... +50 / -25... +70 °C
Max. humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
According to EN60529; Front panel: IP65 Rear panel : IP20
Max. 2000m
ELECTRICAL CHARACTERISTICS
230V AC - 110V AC +%10 -%20, 50/60Hz or 12 / 24V AC / DC ±%10 or 9-30V DC / 7-24V AC ±%10 SMPS
Max. 3VA
Power connector : 2.5mm² screw-terminal, Signal connector : 1,5mm² screw-terminal conenction.
Max. 100ohm
EEPROM (Min. 10 years)
EN 61326-1: 2013 (Performance criterion B is satisfied for EN 61000-4-3)
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
4 digits, 12.5mm, 7 segment red LED
OUTPUT
For 5A Models : 250V AC, 5A (for resistive load), NO control output.
For 8A Models : 250V AC, 8A (for resistive load), NO and NC control output.
For 16A Models : 250V AC, 16A (for resistive load), NO control output.
For 5A Models : 5.000.000 Switching for no-load operation; 100.000 switching for 5A resistive load at 250VAC.
For 8A Models : 30.000.000 Switching for no-load operation; 300.000 switching for 8A resistive load at 250VAC.
For 16A Models : 30.000.000 Switching for no-load operation; 100.000 switching for 16A resistive load at 250VAC.
CONTROL
Single-setpoint and alarm control.
12 bit resolution, 100ms sampling time.
Adjustable between 0.1 and 5.0°C/F.
HOUSING
Suitable for flush-panel mounting according to DIN 43 700.
W77xH35xD61mm
Approx. 215g (After packing)
Self extinguishing plastics
77mm
For removing mounting clamps:
- Push the flush-mounting clamp
°C
in direction 1 as shown in the
SET SET
figure below.Then,pull
out the clamp in direction 2 .
ET2001
Connection
Cable
Flush mounting
clamp
Panel cut-out
71,5mm
1
Accuracy
± 1% (for full scale) ± 1 Digit
± 1% (for full scale) ± 1 Digit
Depth
5mm
61mm
Flush mounting
Panel
clamp
2
Rubber
Packing
Note: 1) Panel thickness should
be maximum 7mm.
2) If there is not 60mm free
space at the back side of
the device,it would be
difficult to remove it from
the panel.
ET2001-EN-03-190423
