Coreline Fig.561 Installation, Operation & Maintenance Manual

Position switch box

Advertisement

Quick Links

Position switch box

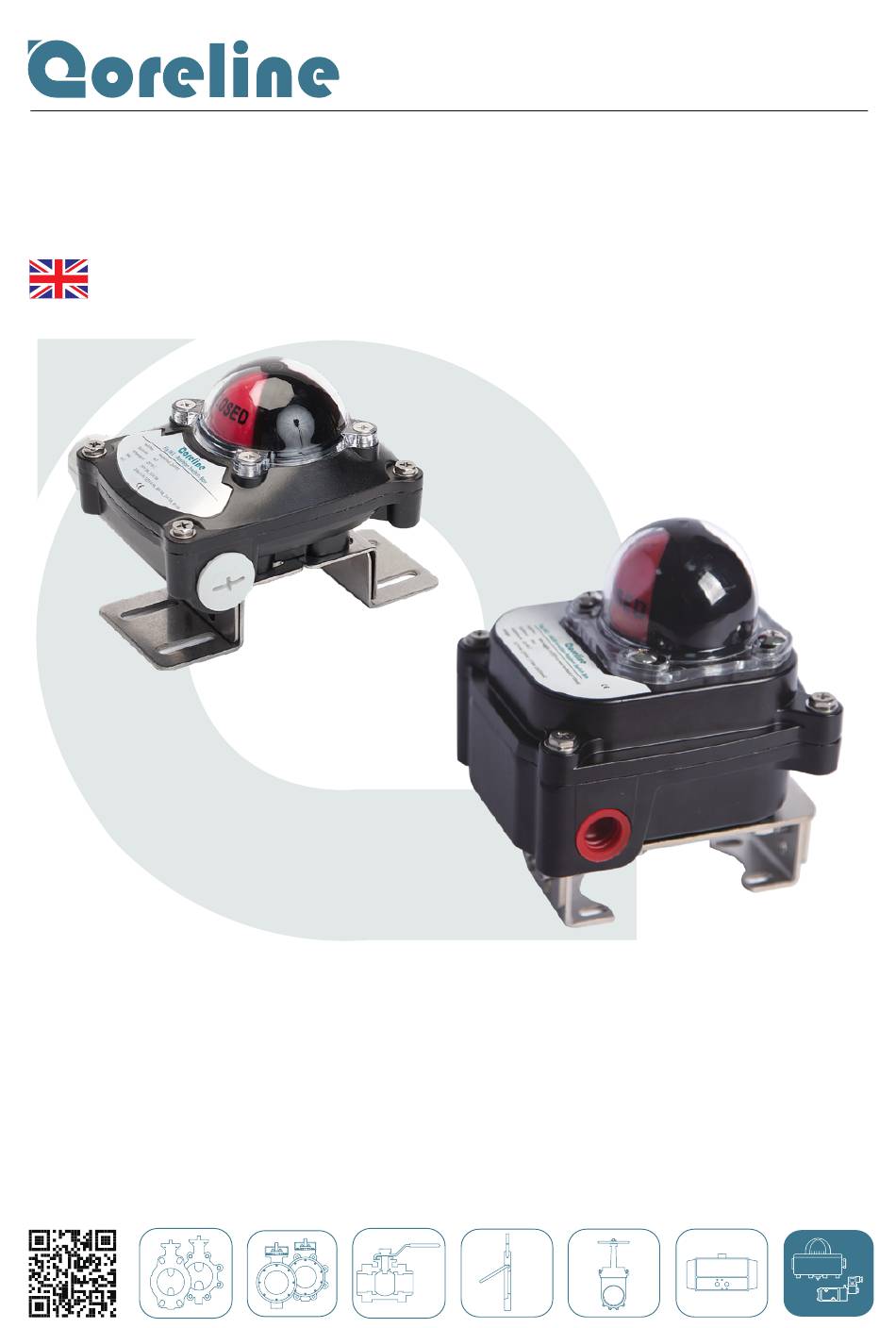

Fig.561 : Standard type
Fig.561M: Multi-function type
English
Introduction
This instruction manual contains important information regarding the installation, operation, maintenance and storage for
Coreline position switch box. For errors resulting from improper installation, the manufacturer or Distributer can not be
held responsible. Please read these instructions carefully and save them for future reference. Other information can be
found in our latest product catalogue from our website - www.coreline.dk .
Requirements for the maintenance staff
The staff assigned to assembly, operating and maintenance tasks, should be qualified to carry out such jobs and in any
circumstance, ensure personal safety.
www.coreline.dk
Installation-Operation-Maintenance Manual
