Fresh-Aire UV AHU 1 Series Installation Instructions

Germicidal UV Light Installation Instructions
IMPORTANT!
• Only qualified technicians should install this product*
• Install in accordance with relevant building codes
• Read instructions carefully including safety warnings
*Installation of this product by anyone other than licensed HVAC or electrical contractors voids warranty.

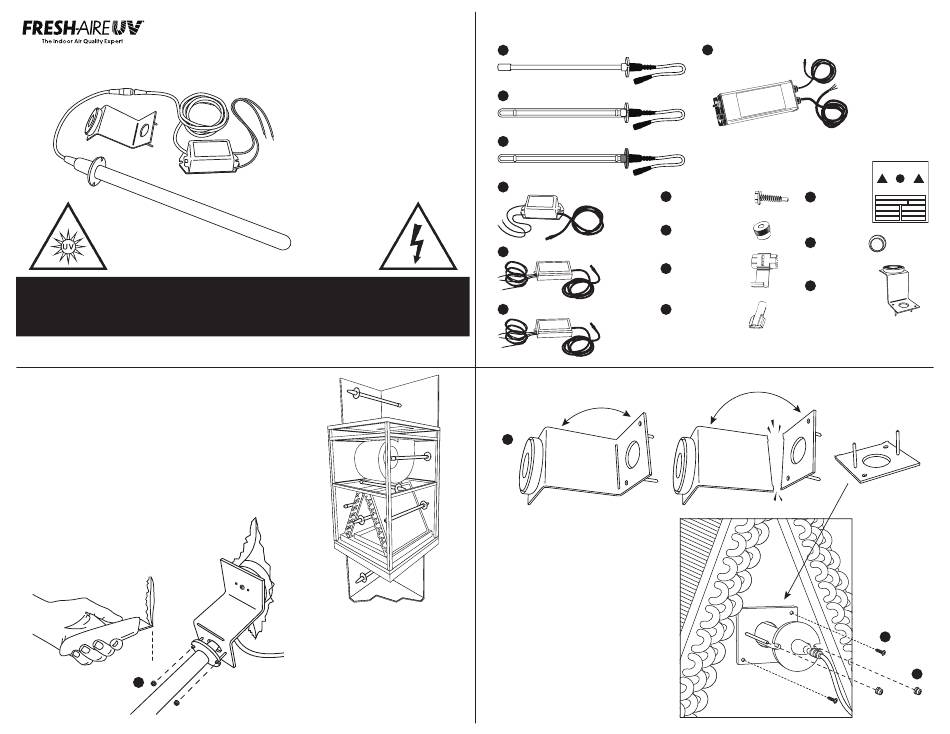

STEP 1: UV Lamp Installation
Surface Mount
1. Determine the optimal position
for placement of the UV lamp.
2. Use a utility knife to cut a slit in the insulation
on the interior surface.
3. Place the magnetic "Z" bracket directly on
the metal surface or remove the magnet and
hard-mount the bracket using the self-tapping
screws provided. Use foil tape to close the cut in
the insulation.
4. Use plastic quick-nuts to attach the
UV lamp to the "Z" bracket as shown.
2.
I
4.
The germicidal UV light is installed
inside the air handling system to
reduce biological contamination for
reduced system maintenance and
improved indoor air quality.
US patent #7,704,463
WARNING!
PROTECT EYES FROM UV LIGHT
TURN OFF UNIT OR DISCONNECT
BEFORE SERVICING
© Fresh-Aire UV
1.
3.
Typical UV lamp locations
Important: some materials inside
the air system (including filter
media, flex duct, wiring etc.) may
not be UV light resistant. Use the
optional UV shield (part #TUV-
SHIELD-LPC) or cover the materials
with reflective tape.
PARTS*
Blue-Tube UV
Blue-Tube X
A PART: TUVL-115P LIFE: 1 Year
AHU Series 1
B PART: TUVL-215P LIFE: 2 Year
C PART: TUVL-315P LIFE: 3 Year
D
"ER" 18 - 32 VAC Power Supply
E "ST" 110 - 277 VAC Power Supply
F "DT" 110 - 277 VAC Power Supply
STEP 1: UV Lamp Installation Cont.
Z
Coil A-Plate or Duct Mount
1. Snap the "Z" bracket apart by
bending.
2. Drill a 1" hole in the "A"-plate
or duct then attach the smaller
piece of the bracket using the
self-tapping screws.
3. Insert the UV lamp into the hole
then use the plastic quick-nuts
to attach the UV lamp to the "Z"
bracket as shown.
F
"NEMA-R3" 110 - 277 VAC Power Supply
G Self-tapping Screws X
Panel sticker
H Quick Nuts (plastic)
Y Sight Glass
I Tap-in Connectors
Z Magnet mount
J Spade Connectors
*Parts included with your kit will vary depending on model.
1.
3.
WARNING
WARNING
2.
G
H
