HEMSWORTH HIGH LEVEL WC INSTRUCTIONS
Installation & care instructions
This product must be installed by a qualified fitter or plumber in accordance with and meet the requirements of the Water Supply (Water Fittings)
Regulations 1999 and Scottish Byelaws 2004
IMPORTANT
Flush out all impurities in the cistern prior to installation.

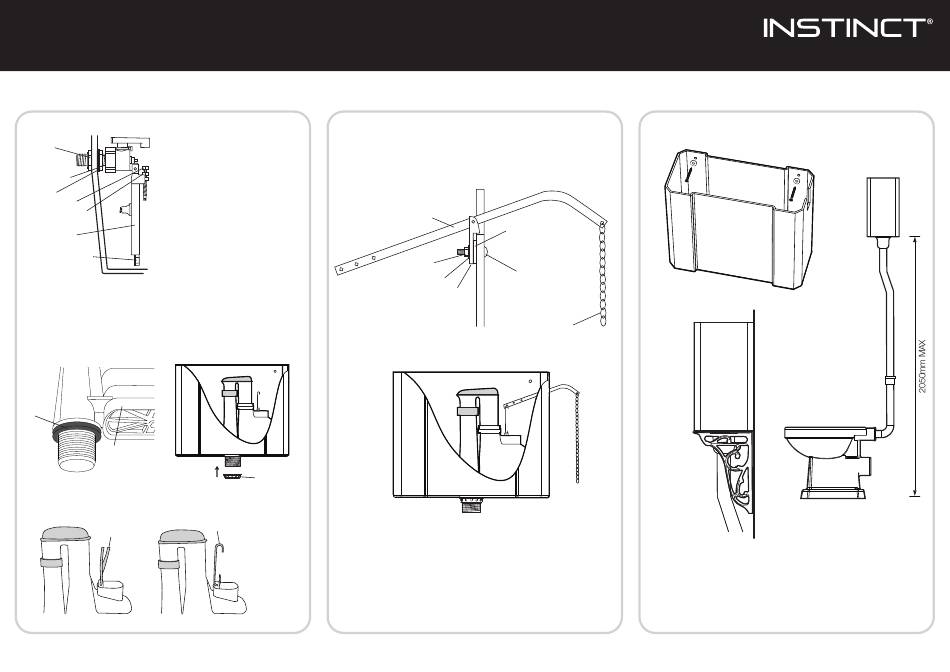

FILL VALVE - ASSEMBLY IN CISTERN
Screw the float into the swivel arm screw
and assemble inside the cistern tank as
Back Nut
shown. Check for free movement of the
float (ensure the float does not get caught
on the side/back wall of the cistern). To
Rubber Washer
adjust the water level rotate the water level
Back Nut adjustment screw. Turn clockwise to
reduce shut-off level, turn anti-clockwise to
Adjustment Screw
raise shut-off level, secure by hand
Locking Nut
tightening the locking nut.
Arm
The inlet valve is fitted with a high pressure
seat (white), if water pressure is low, the
inlet valve is supplied with a low pressure
Float Connection
seat (red, attached to the inlet valve arm)
that can be swapped.
Assemble the side entry
inlet valve as shown.
FLUSH VALVE - ASSEMBLY IN CISTERN
Ensure the flush valve is assembled and fully tightened as shown, making sure the
rubber seal is over the thread of the valve and between the valve and the cistern.
Make sure that the fill valve and flush valve are not touching when assembled
inside the tank.
Use PTFE tape around the thread to ensure a water tight seal as shown below.
Base
Seal
Siphon
1.
2.
Once the outlet valve is assembled in the cistern, keeping hold of the
piston, remove the tie wrap. Once this has been removed, install the C-link
to the piston. To make the installation easier, the piston may need to be
pushed upwards from the underside.
Tie Wrap
Customer Services: Brassmill Lane Trading Estate, Bath BA1 3JF
Customer Services: Brassmill Lane Trading Estate, Bath BA1 3JF
Tel: 01225 303900 Tel: 01225 303900
FLUSH VALVE SPECIFICATIONS
Full Flush: 6L
FLUSH LEVER INSTALLATION
Assemble the flush arm to the tank. Attach the flush arm to the C-link on the flush
valve as shown. The handle and chain can then be attached to the flush arm.
1.
Back Nut
C-Link
Flush Arm
Plastic Washer
Metal Nut
Round Head
Bolt
Brass Washer
Flush Arm
Bracket
Chain
2.
ASSEMBLY INSTRUCTIONS
1. The underside of the cistern can be a maximum of 2080mm off the floor.
Fix the cistern brackets to the wall first. Put the cistern on top of the brackets and
mark the positions of the holes on the wall. Screw the cistern to the wall using the
fixing screws and washers supplied through the fixing holes in the back of the
cistern. Ensure the tank is firmly secured to the wall.
The high level pipe kit can be cut down if required.
Note: Any screws and plugs supplied are suitable for stone/brick walls only. If in
doubt consult and expert.
