Summary of Contents for MODENATECH Compositi Red Passion Round Pole
-
Page 1: Table Of Contents

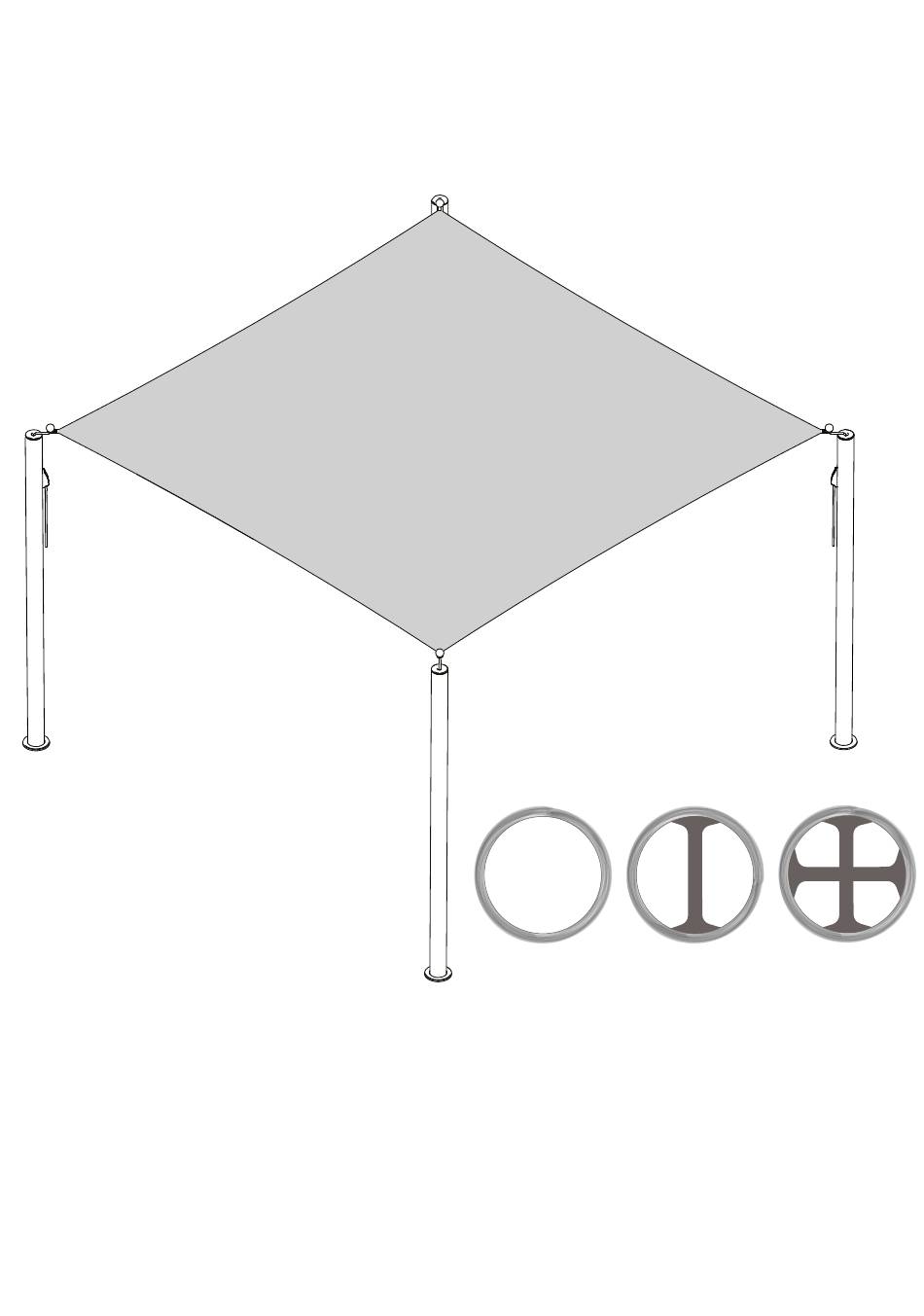

User and Maintenance Manual Awning Pole Installation Guide Model: Red Passion Round Pole Standard Reinforced Extra Reinforced Pole Section Pole Section Pole Section Table of Contents Warranty Intended Use and Warnings Installation of the Awning Pole Securing the Awning Removal and Storage of Poles and Awning... -
Page 2: Warranty
Warranty The product is guaranteed for 12 months from the date of delivery, covering manufacturing defects or material conformity. • During the warranty period, parts that are found to be defective under normal use will be repaired or replaced as indicated in this manual. •... -
Page 3: Installation Of The Awning Pole
Installation of the Awning Pole 1. Remove the cover from the deck socket by turning it counterclockwise and lifting it out of place. Store it safely. 2. Remove the pole from its protective bag. 3. Before installing the pole, it is advisable to unlock the rope and extend the knob from the upper end to a sufficient length to reach it once the pole is installed. -
Page 4: Securing The Awning
Securing the Awning 1. Insert the knob into the awning’s eyelet. 2. To tension the awning, place one hand on the pole and use the other to pull the rope until the desired tension is reached. 3. Secure the rope in the cleat. 4. -
Page 5: Removal And Storage Of Poles And Awning
Figure A AWNING POLE BUSHING AWNING POLE ANTI-LIFT SAFETY LOCK Removal and Storage of Poles and Awning 1. To remove the awning and poles, reverse the installation procedure. 2. Poles can be stored in designated bags or mounted on storage wall supports. Both items are available as optio- nal accessories. - Page 6 Installation and Positioning of Red Passion Awning Poles 1. Correctly install the fixing deck sockets with appropriate reinforcements. 2. Properly insert the poles into the supports, locking the safety tab. 3. Position the pole and support so that the black line (shown in red in the following image) aligns with the direction of the awning tension.
- Page 7 Installation and Positioning of Red Passion Awning Poles with Dual Attachment 1. Correctly install the deck sockets with appropriate reinforcements. 2. Properly insert the poles into the deck sockets, locking the safety tab. 3. Position the pole and the deck socket so that the black line (shown in red in the image) aligns with the direction of the awning tension.
