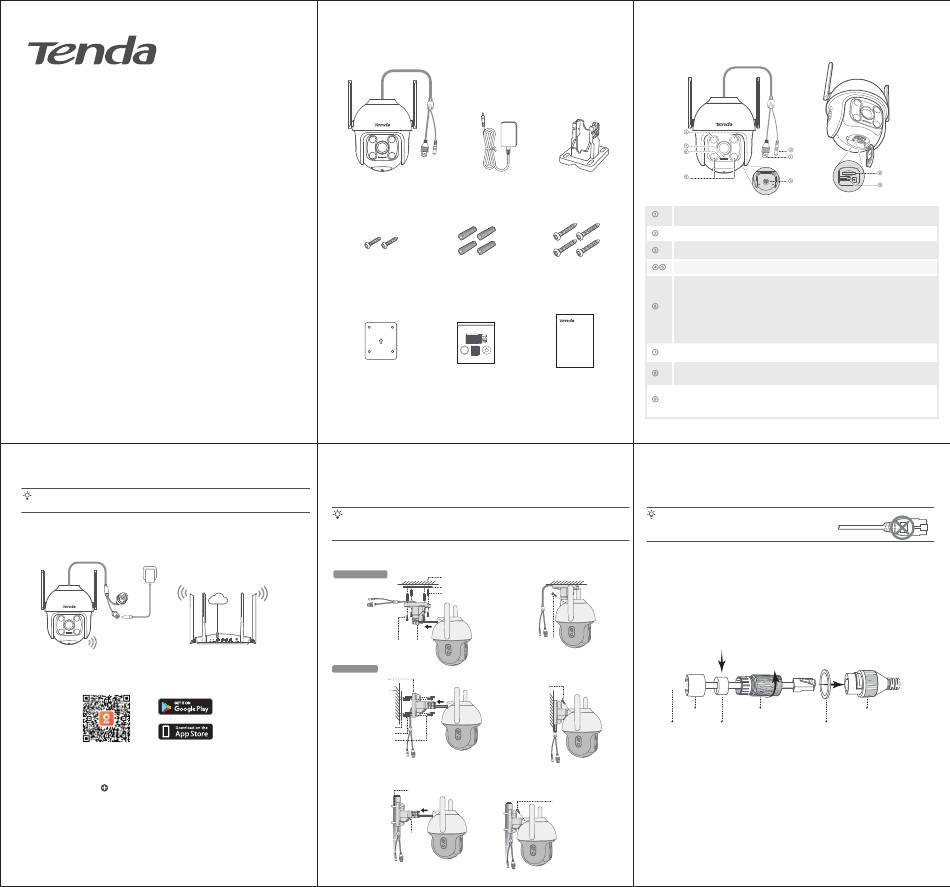

Tenda CH3-WCA Quick Installation Manual

Quick Installation Guide
Outdoor Wi-Fi Pan/Tilt Camera
CH3-WCA/RH3-WCA/CH7-WCA/RH7-WCA
*CH7-WCA is used for illustrations here unless otherwise specified. The actual product prevails.
Add the Camera to TDSEE App
Tips
Before adding your camera, ensure that the router is connected to the internet successfully and the filter function is disabled.
1. Power on the camera.
The LED indicator lights solid red after the camera is powered on. When the LED indicator blinks blue
quickly, the camera is waiting to connect to a 2.4 GHz Wi-Fi network.
Example: CH7-WCA
2.Download the TDSEE App onto your mobile device by scanning the QR code or searching for TDSEE
in the Google Play or App Store.
Or
QR code
3. Run the TDSEE App and follow the instructions to complete user registration. Enter the home page,
and tap Add a device or in the upper-right corner of the home page.
4. Scan the QR code on the top of the camera, and follow the instructions in the App.
After the settings are completed, you can see that the added camera is online on the home page of
the TDSEE App, and the camera has been managed by the TDSEE App.
Package Contents
Camera ×1
Screw ×2
(Thread diameter: 2.6 mm,
Length: 10mm, Head diameter: 4.2mm)
Installation template ×1
Install the Camera
Installation Method
The camera supports wall, ceiling and pole mounting.
Tips
- Make sure the ceiling is strong enough to withstand three times the weight of the camera.
- You may need a hammer drill, a drill bit (Diameter: 6 mm), a screwdriver, and a ladder for the installation.
- You are recommended to drill a hole of 28 mm to 32 mm using a drill bit.
Ceiling/Wall Mounting
Ceiling mounting
Internet
Screw
Router
(Thread diameter: 3 mm;
Length: 25 mm;Head diameter: 6.0mm)
Wall mounting
Bracket
wall
Installation template
Expansion bolt
Screw
(Thread diameter: 3 mm;
Length: 25 mm;Head diameter: 6.0mm)
Pole Mounting
Power adapter ×1 Bracket ×1
Expansion bolt ×4 Screw ×4
(Length:26.4 mm)
(Thread diameter: 3.0 mm,
Length: 25 mm, Head diameter: 6.0 mm)
Quick Installation Guide
Outdoor Wi-Fi Pan/Tilt Camera
CH3-WCA/RH3-WCA/CH7-WCA/RH7-WCA
*CH7-WCA is used for illustrations here unless otherwise specified. The actual product prevails.
Waterproof kit ×1 Quick installation guide
(Example: CH7-WCA)
Ceiling
Installation template
❶
❸
Expansion bolt
❷
Screw
Bracket
(Thread diameter:2.6 mm;
Length: 10 mm;Head diameter: 4.2mm)
❶ Screw
❸
❷ (Thread diameter:2.6 mm;
Length: 10 mm;
Head diameter: 4.2mm)
Strap (self-prepared)
❶
Screw
❷
❸
(Thread diameter:2.6 mm;
Length: 10 mm;
Head diameter: 4.2mm)
Bracket
Appearance
* The appearance (such as number of antennas and fill lights) of different camera models may be
different. The actual product prevails.
Example: CH7-WCA
Ethernet port: 10/100 Mbps auto-negotiation Ethernet port, used for connecting such devices
as the router and switch.
Power jack: Used to connect to the included power adapter.
Speaker
Fill Light
LED indicator
Solid red: Initializing and starting.
Blinking red slowly: Disconnected from the network.
Blinking red quickly: Connecting to the network.
Solid blue: Connected to the network.
Blinking blue slowly: Upgrading.
Blinking blue quickly: Waiting to connect to the network.
Microphone
Micro SD card slot (Behind the cover)
Insert the Micro SD card to store the monitoring videos.
Reset button (Behind the cover)
Hold down the reset button for about 5 seconds and release it after the LED indicator blinks
blue quickly or you hear a prompt tone. The camera is reset to factory settings successfully.
Install the Waterproof Kit
Install the waterproof kit for the Ethernet port if the camera is installed outdoors.
Tips
The included waterproof kit is not suitable for the Ethernet cable with
protection cover on the crystal head. See the example on the right.
When the Ethernet port of the camera is connected to an Ethernet cable, the installation steps of the
waterproof kit are as follows. If not, you are also recommended to install the kit and wrap the end with
waterproof tape.
1. Put the O-ring on the Ethernet port of the camera.
2. Pass the Ethernet cable through the fixed nut, the waterproof ring and the waterproof jacket in sequence.
3. Rotate to fix the waterproof jacket to the Ethernet port of the camera, insert the waterproof ring into the
waterproof jacket and fasten the fixed nut.
Clockwise rotation
Fixed nut Waterproof jacket
Ethernet cable Waterproof ring O-ring
Power On the Camera
Power on the camera after the camera is mounted. When the camera completes startup, it will
automatically connect to the configured Wi-Fi network. When the LED indicator of the camera is solid
blue, you can use the camera normally.
Ethernet port
