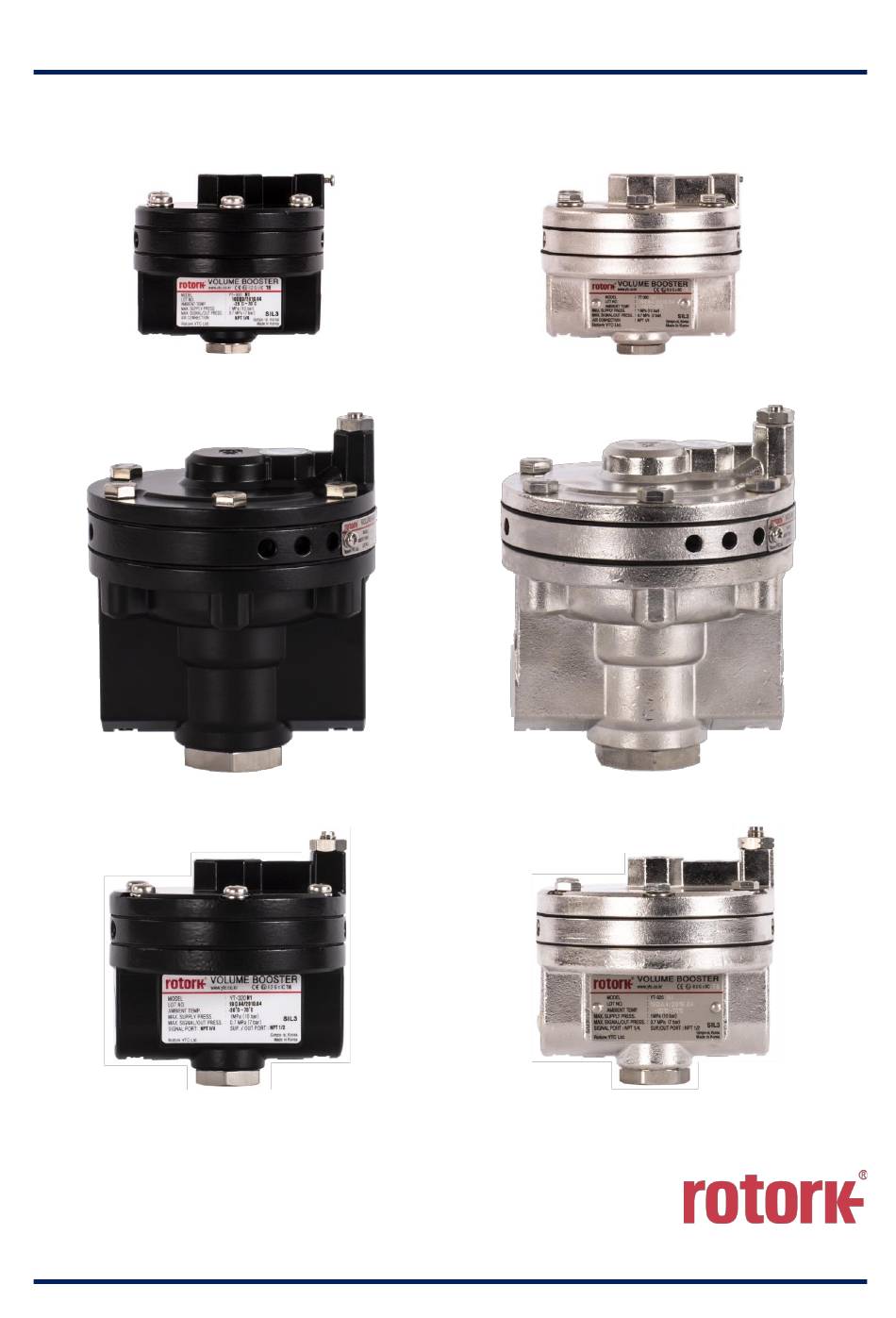

- Page 1 Volume Booster Relays PRODUCT MANUAL YT-300 / 305 / 310 / 315 / 320 / 325 Series YT-300 YT-305 YT-310 YT-315 YT-320 YT-325 Rotork YTC Limited VERSION 1.29...
-
Page 2: Table Of Contents
Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Contents Introduction ..............................3 General Information for the users ......................3 Manufacturer Warranty .........................3 Product Description ...........................4 General ..............................4 Main Features and Functions .......................4 Label Description ..........................4 Product Code ............................5 Product Specification ..........................6 Certifications of External products ......................7... -
Page 3: Introduction
Introduction General Information for the users Thank you for purchasing Rotork YTC Limited products. Each product has been fully inspected after its production to offer you the highest quality and reliable performance. Please read the product manual carefully prior to installing and commissioning the product. -
Page 4: Product Description
YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Improper or incorrectly performed maintenance will void this limited warranty. ➢ For detailed warranty information, please contact the corresponding local Rotork YTC Limited office or main office in South Korea. Product Description General... -
Page 5: Product Code
Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Fig. L-5: YT-310 / 315 (UKEX,ATEX) Fig. L-7: YT-320 (UKEX,ATEX) Fig. L-9: YT-325 (UKEX,ATEX) • MODEL : Indicates the model number and additional symbols. •... -
Page 6: Product Specification
YT-305 YT-325 YT-315 1.4 kg(3 lb) 1.9 kg(4.2 lb) 4.6 kg(10.1 lb) Tested under ambient temperature of 20 °C, absolute pressure of 760 mmHg, and humidity of 65 %. Please contact Rotork YTC Limited for detailed testing specification. Ver. 1.29... -
Page 7: Certifications Of External Products
YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Certifications of External products ※ All certifications below are posted on Rotork YTC Limited homepage(www.ytc.co.kr). SIL2 {in a redundant architecture(HFT=1) up to SIL 3} ➢ Certification No. : 968/V 1235.00/21 Operation Logic Fig. -
Page 8: Parts And Assembly
Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Parts and Assembly YT-300 / 305 2.8.1 Fig. 2-2: YT-300 / 305 Parts and Assembly Ver. 1.29... - Page 9 Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual YT-310 / 315 2.8.2 Fig. 2-3: YT-310 / 315 Parts and Assembly Ver. 1.29...
-
Page 10: Product Dimension
Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual YT-320 / 325 2.8.3 Fig. 2-4: YT-320 / 325 Parts and Assembly Product Dimension YT-300 / 305 2.9.1 Fig. 2-5: YT-300 / 305 dimension Ver. - Page 11 Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual YT-310 / 315 2.9.2 Fig. 2-6: YT-310 / 315 dimension YT-320 / 325 2.9.3 Fig. 2-7: YT-320 / 325 dimension Ver. 1.29...
-
Page 12: Flow Characteristics
Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Flow Characteristics 2.10 YT-300, 305 2.10.1 Fig. 2-8: YT-300 / 305 YT-310, 315 2.10.2 Fig. 2-9: YT-310 / 315 Ver. 1.29... - Page 13 Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual YT-320, 325 2.10.3 Fig. 2-10: YT-320 / 325 Ver. 1.29...
-
Page 14: Installation
Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Installation Safety When installing a unit, please ensure to read and follow safety instructions. ➢ Be sure to have protective equipment and comply with safety regulations. ➢... -
Page 15: Installation
Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Installation ➢ The volume booster is located between the actuator, positioner and supply pipe and can be installed using only pneumatic piping without separate brackets as shown in the left figure. Before connecting the piping, be sure to blow out all piping so that no impurities can enter the volume booster relay and ensure that it is the right size to meet the required capacity. -
Page 16: Installation Example
Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Installation Example Double acting linear cylinder actuator 3.3.1 Fig. 3-3: Double example Single acting rotary cylinder actuator 3.3.2 Fig. 3-4: Single example Ver. 1.29... -
Page 17: Maintenance
Volume Booster Relays YT-300 / 305 / 310 / 315 / 320 / 325 series Product Manual Maintenance Replacement of Parts (Repair kit) The volume booster requires regular maintenance. In particular, periodic inspection is required as the diaphragm is not permanent even when used in the operating ambient temperature range. Even if there is no problem in the operation of the volume booster, disassemble it once every 2 to 3 years to check the condition of the diaphragm and replace it if necessary. - Page 18 Product Manual Manufacturer: Rotork YTC Limited Address: 81, Hwanggeum-ro, 89 Beon-gil, Yangchon-eup, Gimpo-si, Gyeonggi-do, South Korea Postal code: 10048 Tel: +82-31-986-8545 Fax: +82-70-4170-4927 Email: ytc.sales@rotork.com Homepage : http://www.ytc.co.kr Issued : 2025-02-18 Copyright © Rotork YTC Limited. All Rights Reserved. Ver. 1.29...
