Summary of Contents for RIGTEC AIR PLATE P-30

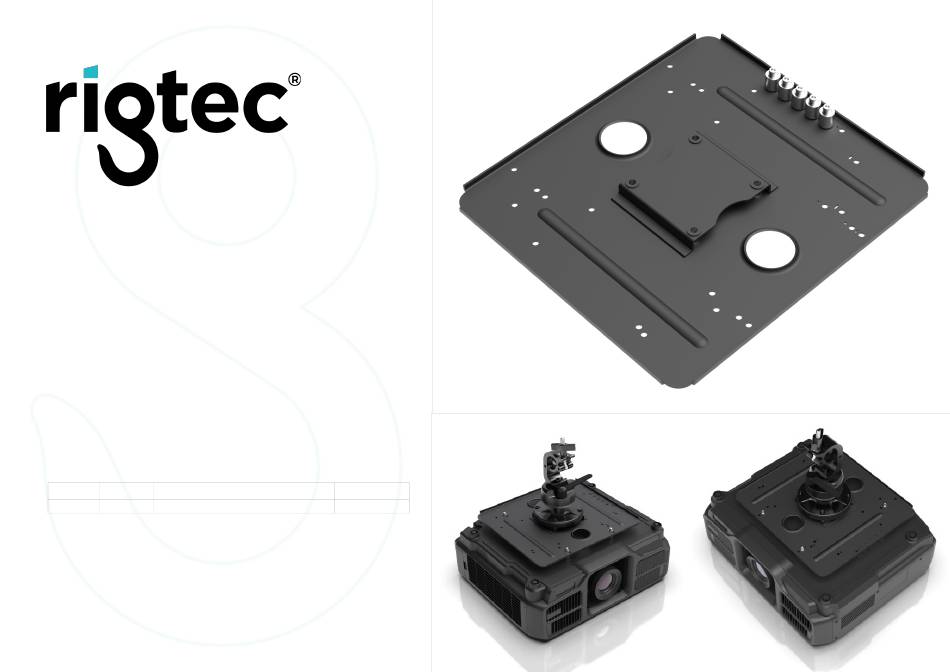

- Page 1 AIR PLATE P-30 (AP01-P30) USER GUIDE Version R1 Revision Date Revision Details Revised By +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
- Page 2 Thank you for purchasing a Rigtec Air Plate. We hope you enjoy using the Air Plate as much as we’ve enjoyed designing and manufacturing it. If you have any questions, suggestions or just want to say hello; please contact the team at hello@rigtec.com +44 (0)1926 290 418 hello@rigtec.com...
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION SAFETY INSPECTION AIR PLATE PARTS COMPATIBLE PROJECTORS INSTALLATION ACCESSORIES INSTALLING ON A PROJECTOR HANGING ACCESSORIES ATTACHING AN ATOM GRIP SAFETY STEEL CABLES SPECIFICATIONS DIMENSIONS DECLARATION OF CONFORMITY UKCA DECLARATION OF CONFORMITY +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 4: Safety Information
Do not expose the Air Plate to moisture or excessive heat. • Do not install the Air Plate on unstable surfaces. • Do not hang the Air Plate from unstable, unsafe or inappropriate objects/ structures. Ensure the structure can support the overall weight. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... - Page 5 • Any accident or dangerous occurrence. • Any significant change in conditions of use. • Any long periods of inaction. • Each time the equipment is used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
-
Page 6: Safety Inspection
Along with an overall visual check covering the issues above, the following specific parts should be checked before the product is used: Ensure the four M8 Rivet Nuts are not loose or damaged. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 7: Part Names
Spacer (Size & quantity based on projector model) M6 Rivet Nut (Accessory Storage) Crescent Hole Set Indicator Square Hole Set Indicator Parallelogram Hole Set Indicator Kite Hole Set Indicator Rectangle Hole Set Indicator Triangle Hole Set Indicator Safety Cable Cutout +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 8: Compatible Projectors
Hole Set 4 PROJECTORS Square Triangle Kite Crescent Rectangle Parallelogram The Air Plate P-30 has six hole sets. One hole from each set is (Epson) (Epson) (Epson) (Panasonic) (Epson) (Christie) labelled with a shape to aid the installation process. When... -
Page 9: Installation Accessories
INSTALLATION ACCESSORIES Rigtec Air Plates are provided with the necessary accessories to install the requested projector onto the plate. Bolts, washers and spacers will be required for all projectors, using the incorrect size could lead to damage to the projector or serious failure of the Air Plate. - Page 10 Where third party accessories are to be used with the Air Plate, such as a the Dynamic Projection Mirror Head, please contact the team at Epson EB-L1505UH [4] ◆ ◆ ◆ Rigtec to discuss. Alternative bolts and spacers will be required to Epson EB-L1710S [4] ◆ ◆ ◆ accommodate the accessory.
- Page 11 Panasonic PT-MZ680 [5] as a the Dynamic Projection Mirror Head, please contact the team at Panasonic PT-MZ780 [5] ◆ ◆ ◆ Rigtec to discuss. Alternative bolts and spacers will be required to accommodate the accessory. Panasonic PT-MZ880 [5] ◆ ◆ ◆...
-
Page 12: Installing Ona Projector
Only one type of washer should be installed at once. (See page 8) Please torque bolts to 4±0.5 Nm (or as recommended by the projector manufacturer in the projector user guide) Only use supplied bolts to connect Air Plate and Projector. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 13: Hanging Accessories
There are several accessories to suspend an Air Plate, please see below for a list of those accessories and see the next page for instructions on how to safely suspend the Rigtec Air Plate. Atom Grip (AG02-A): 245kg Single Point Trigger Clamp... -
Page 14: Attaching An Atom Grip
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 15: Safety Steel Cables
To safely suspend the Air Plate, ensure that the safety steel cables are looped around the suspending truss and through a Safety Cable Cutout on the Air Plate. Please use this diagram as guidance. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 16: Specifications
SPECIFICATIONS Part Number: AP01-P30 Description: Air Plate P-30 Weight: 3.52KG / 7.74 lbs Dimensions 419mm (16.5”) x 379mm (14.92”) x 21mm (0.83”) WLL: 70KG / 154.32 lbs +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 17: Dimensions
DIMENSIONS +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 18: Ce Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP CE DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Plate AP01-P30 Rigging Plate for Projector Part Number: AP01-P30 Is in accordance with the following Directive:... -
Page 19: Ukca Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP UKCA DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Plate AP01-P30 Rigging Plate for Projector Part Number: AP01-P30 Is in accordance with the following Directive:...
