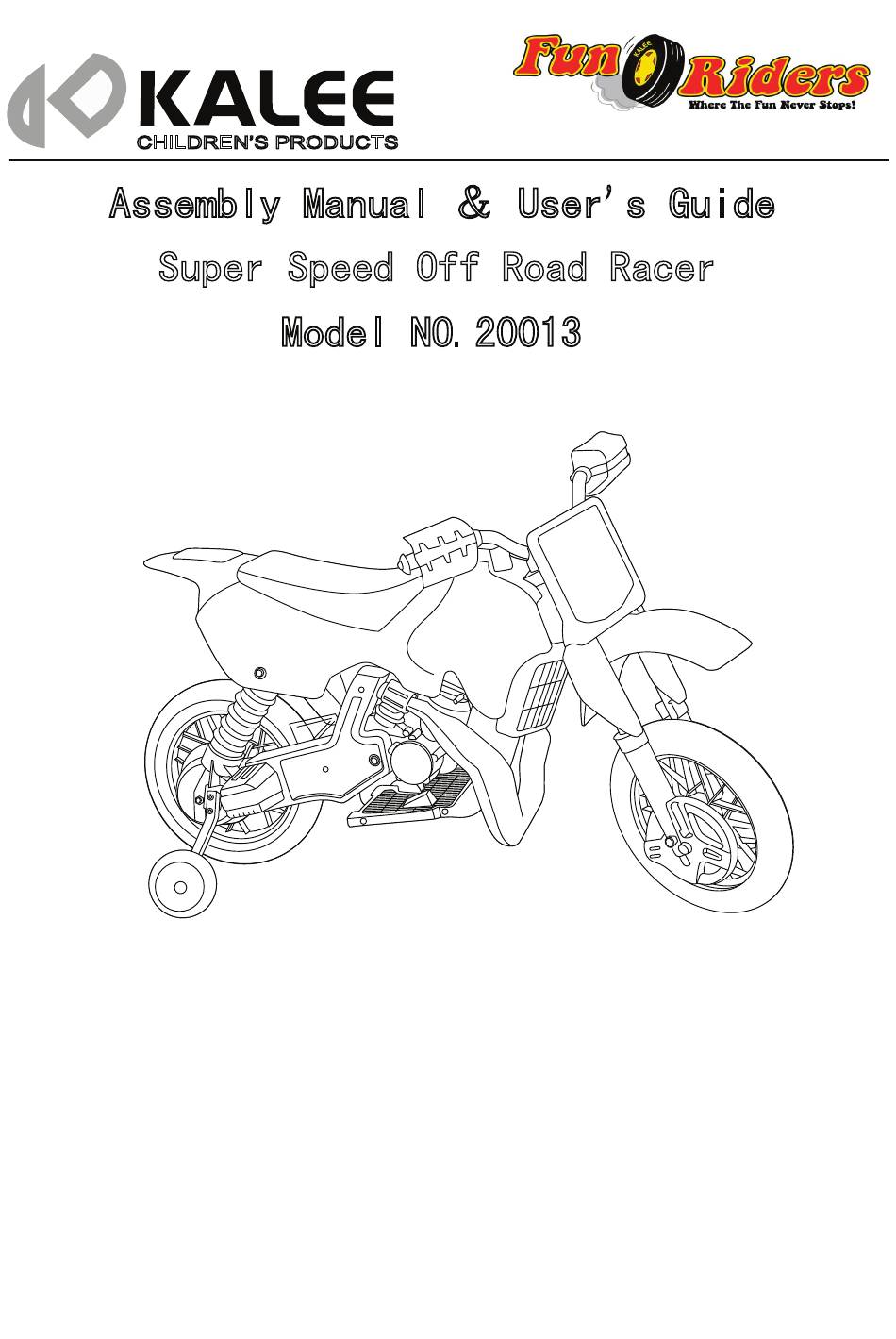

- Page 1 Battery Operated Ride-On Vehicle CHILDREN’S PRODUCTS Assembly Manual ＆ User’s Guide Super Speed Off Road Racer Model NO. 20013 Adult Assembly Required Please read this manual carefully before assembly and use.
- Page 2 Charging time:Always charge the battery for 8-10 hours before first use and when recharging is needed.Never charge over 20 hours. Battery Life:Recharging about 300 times. Power input for Charger:A/C 120 volts 60HZ Power output to battery:DC 14 volts,1000ma Manufactured By: Kalee Children’s Products Co.,Ltd Wuli Industrial Zone,Jinjiang,Fujian,China http://www.kalee.com...
-
Page 3: Parts List
PARTS LIST: 1 Main Chassis/Frame 1 Handlebar 1 Front Fork Assembly 1 Front Fender 1 Number Plaque 1 Front Wheel 2 Front Wheel Hubs 1 Charger 1 Round Upper 1 Plastic Front 1 Front Fork Pivot Pivot Bolt Spacer Fork cap Bolt With Nut 1 U-shaped Lower 1 Front Axle... - Page 4 How To Assemble The Vehicle: 1. Install training wheels. Remove the 2 nuts and the plastic cap on the rear wheel supports. Put training wheel over the 2 studs, then put plastic cap over studs and tighten nuts. Repeat on opposite side. (Fig 1) Snap front fender between the legs of the number plaque.
- Page 5 6. Snap front wheel hub cover onto fork leg. Be sure to line up hole for axle with fork. Repeat on other side. (Fig 6)
-
Page 6: Charging The Battery
Operation of the Vehicle: Press foot pedal, on the right, to move vehicle forward. Remove foot to stop vehicle. Rear light shines while vehicle is in motion. Charging the Battery: 1.Locate the white plugs and red plugs under the rear fender. -
Page 7: Troubleshooting
Battery/charger Safety and Warnings ◆The charger is not a toy.The battery should be charged by adults only. Do not allow children to play with the charger or to recharge the battery. ◆Before the first use,you should charge the battery for 8-10 hours.Do not recharge the battery for more than 20 hours to avold overheating the charger. - Page 8 Vehicle Safety Warnings: ! WARNING: To reduce the risk of injury,adult supervision is required.Never use in roadways,near motor vehicles.On or near steep inclines or steps, swimming,pools or other bodies of water,always wear shoes,and never allow more than 1 rider. ●Use the toy only on flat surfacas,such as sidewalks, driveways or playgrounds.Do not ride the vehicle in dangerous places such as busy streets,roads or highways.
