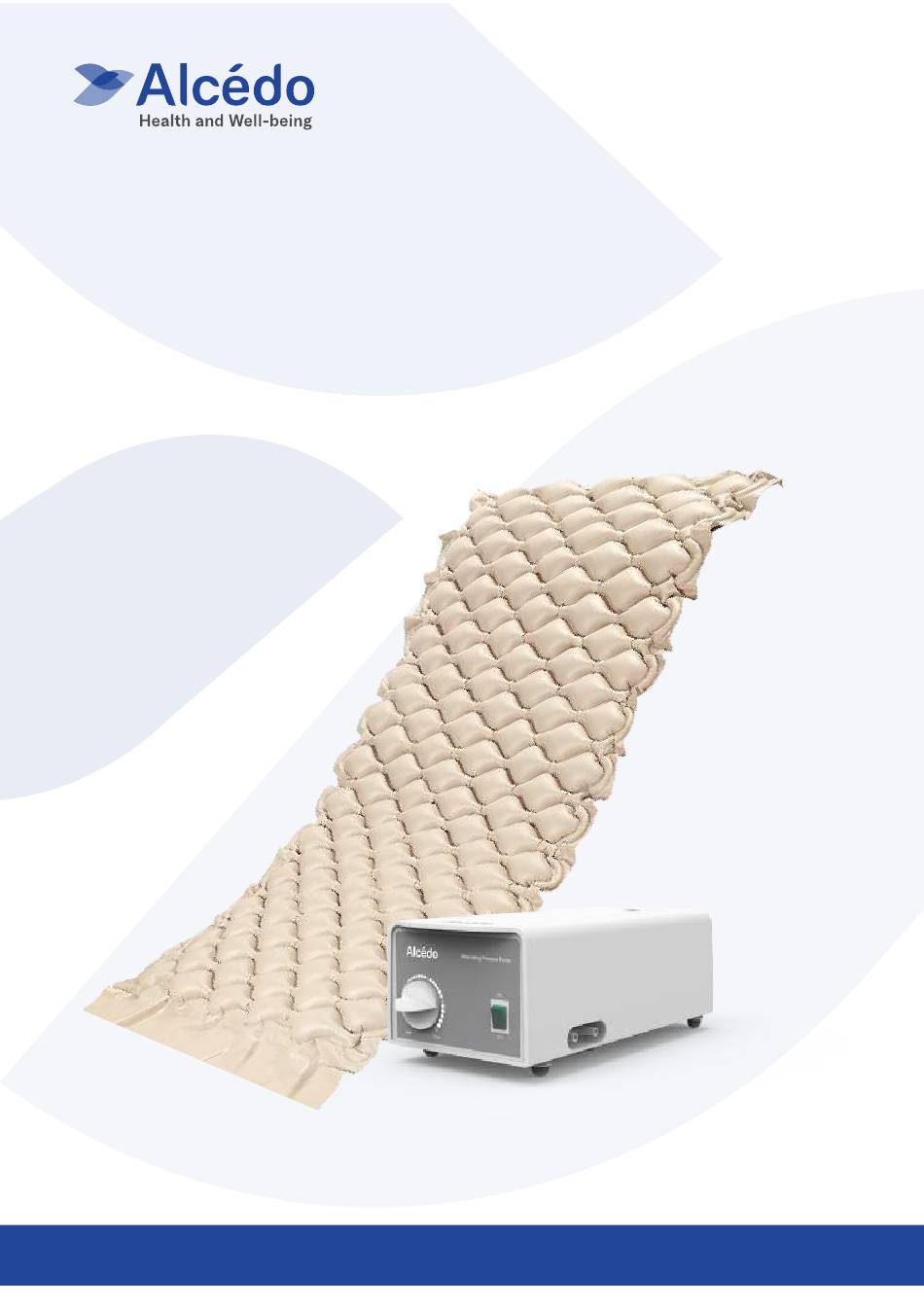

- Page 1 Alternating Pressure Mattress System Pump Model : AAPP-TT-03 Mattress Model : AAPM-TT-01 User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction・・・・・・・・・・・・・・・・・・・・・・・・・・ Statement and Symbols・・・・・・・・・・・・・・・・・・・・・ Safety Precautions・・・・・・・・・・・・・・・・・・・・・・・ Safety Warning・・・・・・・・・・・・・・・・・・・・・・・・・ Product Features ・・・・・・・・・・・・・・・・・・・・・・・・ Package Content・・・・・・・・・・・・・・・・・・・・・・・・ Product Functions・・・・・・・・・・・・・・・・・・・・・・・ Installation and Operation・・・・・・・・・・・・・・・・・・・・ Cleaning・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Maintenance and Storage・・・・・・・・・・・・・・・・・・・・ Environment Requirements・・・・・・・・・・・・・・・・・・・ Troubleshooting・・・・・・・・・・・・・・・・・・・・・・・・ Warranty・・・・・・・・・・・・・・・・・・・・・・・・・・・ Specifications・・・・・・・・・・・・・・・・・・・・・・・・・ EMC Declaration・・・・・・・・・・・・・・・・・・・・・・・・... -
Page 3: Introduction
Introduction Congratulations on the purchase of your anti-bedsore inflatable mattresses. The durable, high quality material used in the manufacturing of these products will ensure that you experience long-lasting and uninterrupted performance. Intended Use This product is intended to help and reduce the incidence of pressure ulcers while optimizing patient comfort. -
Page 4: Statement And Symbols
Statement and Symbols CE certification and notified Use environmentally friendly body number packaging materials European representative Environment temperature for 35ºC information operation or storage 5ºC Environment humidity for Product production batch operation or storage Atmospheric pressure for 106KPa Product serial number operation or storage 86KPa Maximum weight of the... -
Page 5: Safety Precautions
Safety Precautions In order to use this product safely, please read this book carefully and understand it. Please be sure to follow the instructions in this manual. In order to avoid a disaster when using this product, you must know in advance the factors that may be dangerous. How- ever, it is difficult to predict all potential dangers. - Page 6 Smoking is not allowed on the mattress and may cause a fire. Please do not bundle the air outlet or press it under the mattress. When the blower tube is bent or compressed, air may not enter the air mattress and may not achieve the desired results.
-
Page 7: Product Features
Product Features Two-channel alternating mode The ball mattress alternates about every 6 minutes. Support the body while inflation, relax the body while deflation to reduce stress. Ball structure... -
Page 8: Package Content
1 X Inflation Tube 1 X Patch Kit 1 X User Manual Alternating Pressure Mattress System 1 X Quick Start Guide Pump Model : AAPP-TT-03 Mattress Model : AAPM-TT-01 User Manual Product Functions Pressure Adjustment Knob Power Switch Air Outlet Hooks... -
Page 9: Installation And Operation
Installation and Operation Coverlet mattress Tuck the un-inflatable portion underneath the mattress Step 1 Step 2 Place the Air Mattress flatly on your Cover with a cotton sheet to avoid direct mattress. The inflation tube should be skin contact and reduce friction. facing up and positioned at the foot of the bed. - Page 10 Adjust pressure Turn on the power Step 5 Step 6 Plug the power cord into an 110V electrical Turn on the power by pressing the power outlet with grounded AC power. switch. Adjust the pressure knob to Note: Before inserting the plug into the “Firm”...
-
Page 11: Cleaning
Cleaning Pump DO NOT immerse or soak the pump. Check for external damage and move the pump to the cleaning area. Place the pump on a work surface and spray or wipe the outside of the case with qua- ternary ammonium solution. DO NOT spray any cleaning solution directly on the surface of the pump. -
Page 12: Maintenance And Storage
Maintenance and Storage General Check the power cord and plug to see if there are any signs of wear or damage. Check the mattress for signs of wear or damage. Make sure the mattress and tubes are connected together correctly. Plug in the pump unit and check the airflow from the hose connection port. -
Page 13: Troubleshooting
Warranty Your Alcedo product is warranted to be free of defects in materials and workman- ship for 12 months of the original consumer purchaser. This device was built to exacting standards and carefully inspected prior to shipment. -
Page 14: Specifications
Specifications Applied Part: Air Mattress Mode AAPM-TT-01 Inflated Size L190xW90XH7(cm) L200xW90xH10(cm) Weight 1.95Kg 5.31Kg Cell Material Applied Part: Air Pump Mode AAPP-TT-03 Size L29xW12xH10(cm) Weight 1.15Kg Material ABS plastic Power 110Vac 60Hz 12VA Power cord length: 2 meters Fuse: Time-lag type 500mA 250V Size 3.6x10mm... -
Page 15: Emc Declaration
EMC Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that they are used in such an environ- ment. Emissions test Compliance Electromagnetic environment - guidance RF emissions... - Page 16 Guidance and Declaration-electromagnetic immunity The models device intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that they are used in such an environment. IEC 60601 Compliance Electromagnetic Immunity test test level level environment -guidance...
- Page 17 Guidance and Declaration-electromagnetic immunity 10 V/m 10 V/m Recommended separation Radiated RF 80 MHz to 2.7 GHz. 80 MHz to 2.7 GHz. distance 385MHz- 5785MHz 385MHz- 5785MHz 61000-4-3 d=[3,5/V1]×P1/2 Test specifications Test specifications d=1.2×P1/2 80 MHz to 800 MHz for ENCLOSURE for ENCLOSURE d=2.3×P1/2 800 MHz to 2.7 GHz PORT IMMUNITY...
- Page 18 Recommended separation distances between portable and mobile RF communications equipment and the models AAPP-TT-03 The models AAPP-TT-03 are intended for use in electromagnetic environment in which radiated RF disturbances is controlled. The customer or the user of the models AAPP-TT-03 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the models AAPP-TT-03 are recommended below, according to the maximum output power of the communications...
- Page 19 Got questions? We have answers. Our Customer Support Team is happy to help. Email: info@alcedohealth.com Toll-Free: (833)682-8655 Support Hours Monday-Friday 9:00 am-5:00 pm EST Distributed By: NATURE MAJOR INC. 300 Old Country Rd Suite GL11, Mineola, NY 11501...
